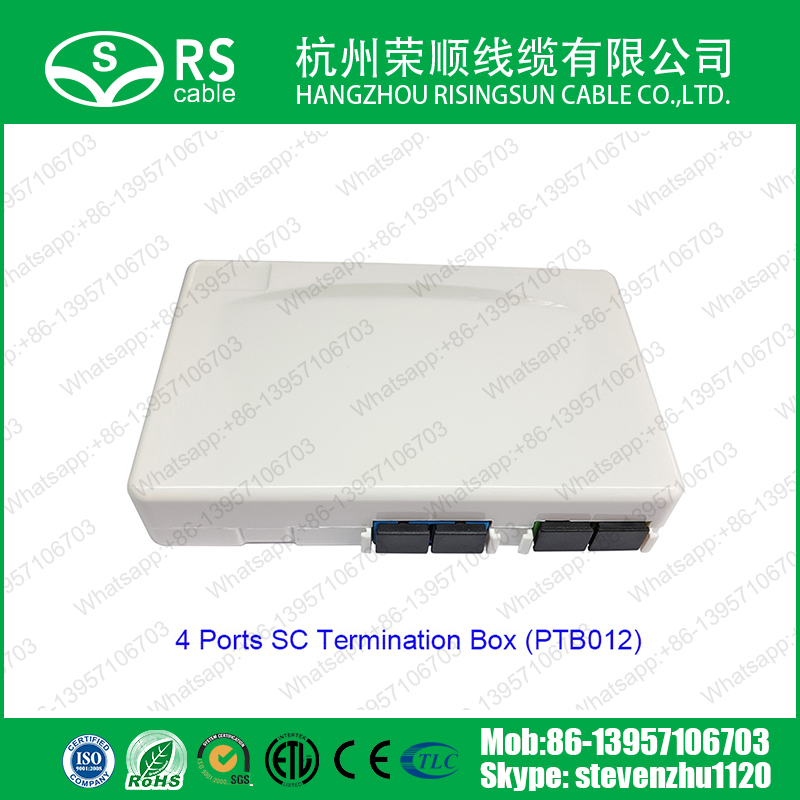

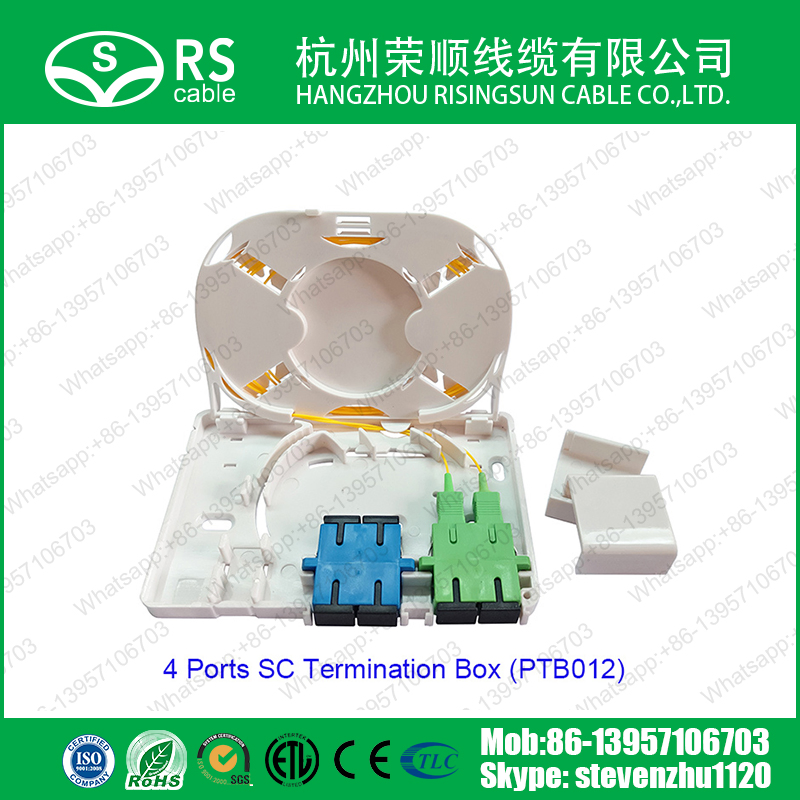

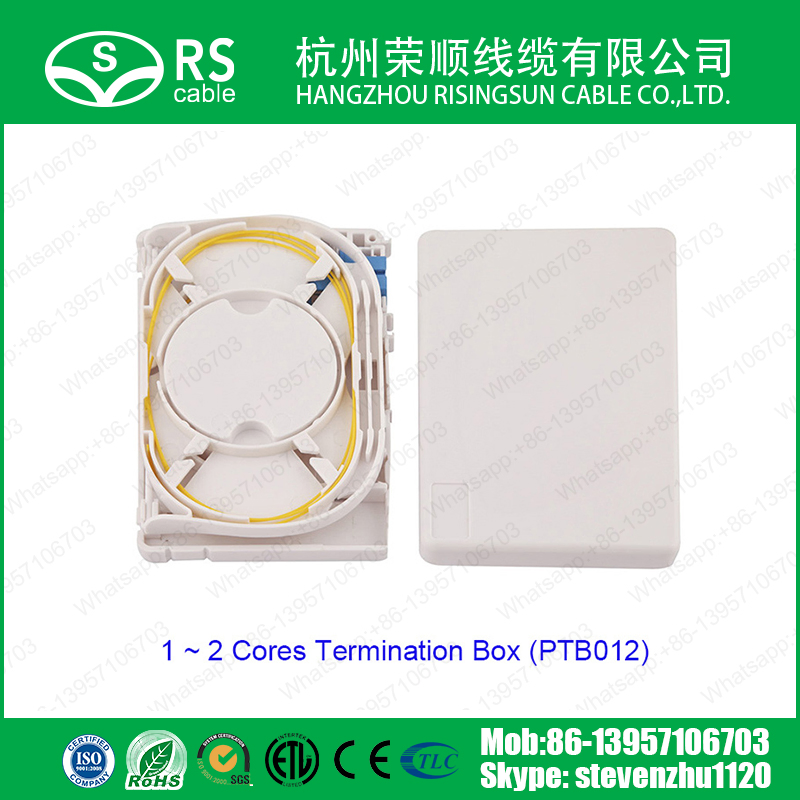

High Quality 4 Port Sc Fiber Optic Termination Box
PTB012 is an indoor terminal applied in the FTTX network to connect the fiber cable. It incorporates a hinged tray for fiber management and a removable cover for easy access.Standards Compliance. TIA/EIA 568.C, Optical Fiber Cabling Components Standard. IEC61754, Fiber optic connector interfaces ......
Send Inquiry
Product Description

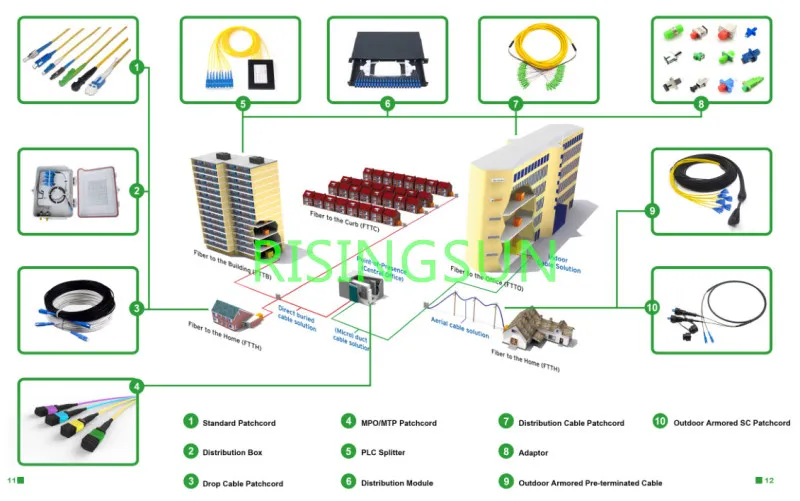

PTB012 is an indoor terminal applied in the FTTX network to connect the fiber cable. It incorporates
a hinged tray for fiber management and a removable cover for easy access.
Standards Compliance
. TIA/EIA 568.C, Optical Fiber Cabling Components Standard
. IEC61754, Fiber optic connector interfaces Standard
. ANSI/TIA/EIA-606-A (Administration Standard for Telecommunications Infrastructure. )
. GR-449-CORE (Generic Requirements and Design Consideration for Fiber Distributing Frames. )
. UL 94 (Tests for Flammability of Plastic Material for Parts in Devices and Appliances. )
. RoHS (Directive on Restriction of Hazardous Substances. )
Product Features:
. Excellent ergonomics design, graceful appearance and convenience operation.
. White color, graceful style and good adaptability to environment.
. The adapter panel can accommodate 1 SC simplex or 1 LC duplex adapters, Up to 2 cores.
. Ability to allow the cables to enter from rear of the wall mounted unit.
. Designed for low cost and low maintenance - re-entry with minimum tools.
. Made of high quality ABS+PC, anti-collision, flame retardant, resistance to impact.
All the materials complied with ROHS standard.
Specifications:
| Working temperature | -25~+60°C | Storage temperature. | -40~+70°C |
| Humidity | 93%(+30°C) | Air Pressure | 70KPa~106KPa |
| Size (H×W×D) mm | 122*81*22 | Weight (kg) | 0.07 |
| Color | White | Material | ABS+PC |
| Capacity (cores) | 1,2 | Installation Models | Wall Mounted |
| Connect Models | Fusion splicing, Mechanical Splicing, FMC | Drop cable (Flat) | Indoor Flat Drop cable 2mm×3mm |
| Drop cable (Round) | Φ5mm | Curvature Radius(mm) | ≥30 |
Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number: XX-AA-BBC(DEF)
Ordering Guide
| XX | Termination box Type | PTB=Plastic Termination box, MTB=Metal Termination box |
| AA | Product ID | PTB012 |
| BB | Fiber Capacity | 01=1 Fiber, 02=2 Fibers, 04=4 Fibers, 16=16 Fibers |
| C | configuration | E=only Termination box, L=With Adaptor, F=With Adaptor and Pigtail |
| D | Adaptor Type | SP,LA,FP,TP. |
| E | Adaptor Mode | SM=Singlemode, MM=Multimode, OM3=Multimode 10G |
| F | Connector Type | FP,SP,SA,LP |
| G | Fiber Type | OM1=62.5/125 OM1, OM2=50/125 OM2, OM3=50/125 OM3, OM4=50/125 OM4, G652D=9/125 G652D, G657A=9/125 G657A |
| H | Fiber Length | 05=0.5M, 10=1M |
Adaptor Type & Connector Type Code
| Code | Connector | Code | Connector | Code | Connector | Code | Connector |
| FP | FC/PC | FA | FC/APC | LP | LC/PC | LA | LC/APC |
| SP | SC/PC | SA | SC/APC | TP | ST/PC | TA | ST/APC |
| MU | MU | DN | DIN | MT | MTRJ | E2 | E2000 |
Ordering Sample
| Part Number | Description |
| PTB012-01E | 1 Fiber PTB012 Type Termination Box, without adaptor and pigtail. |
| PTB012-01LSPSM | 1 Fiber PTB012 Type Termination Box With Singlemode Simplex SC/PC Adaptor. |
| PTB012-02FLPG652D05 | 2 Fibers PTB012 Type Termination Box With Singlemode Duplex LC/PC Adaptor and 0.5M Singlemode LC/PC Pigtail. |
