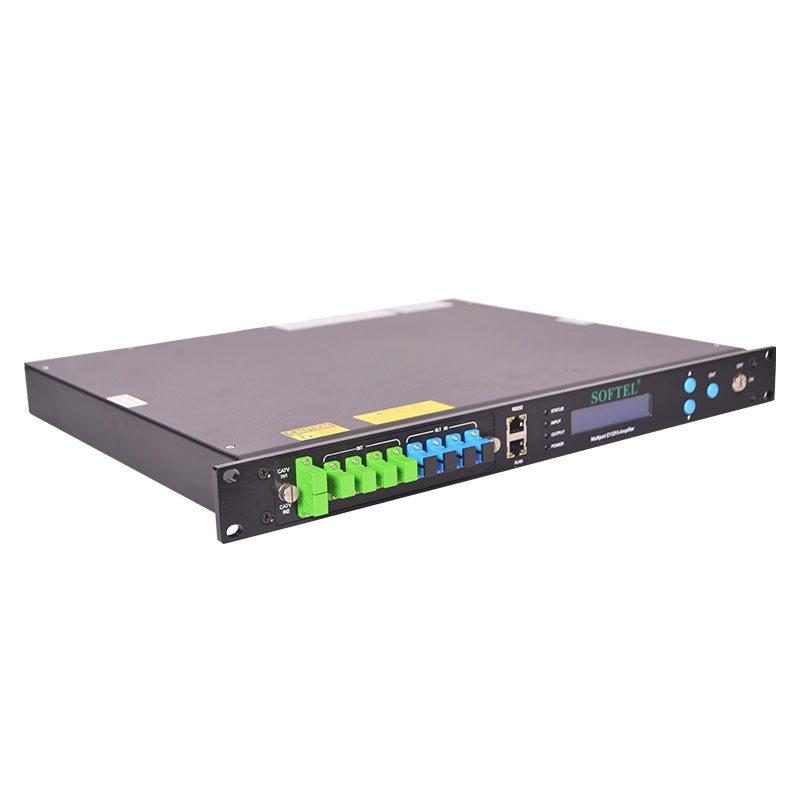

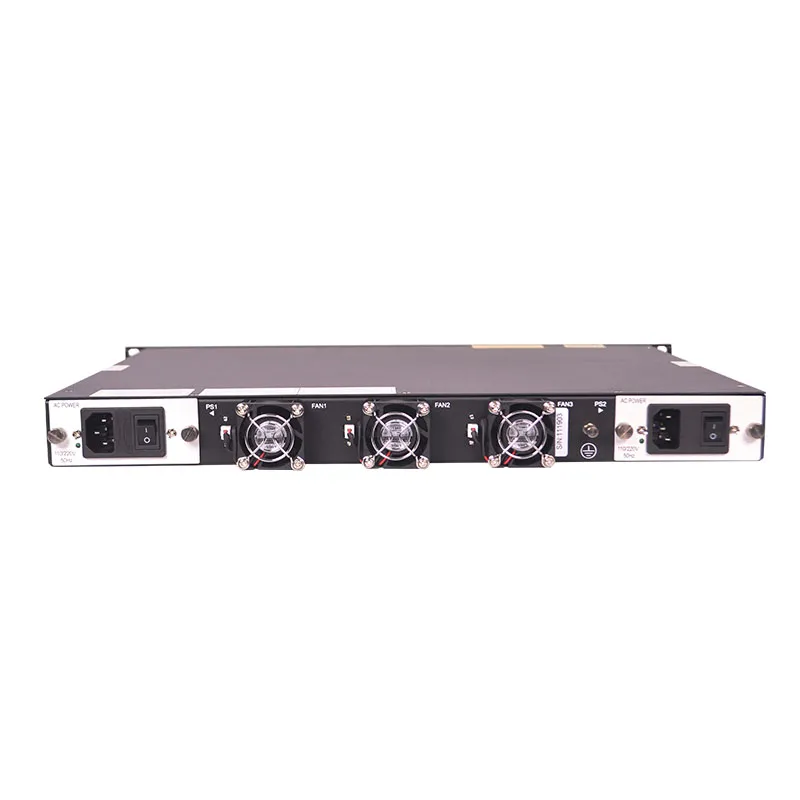

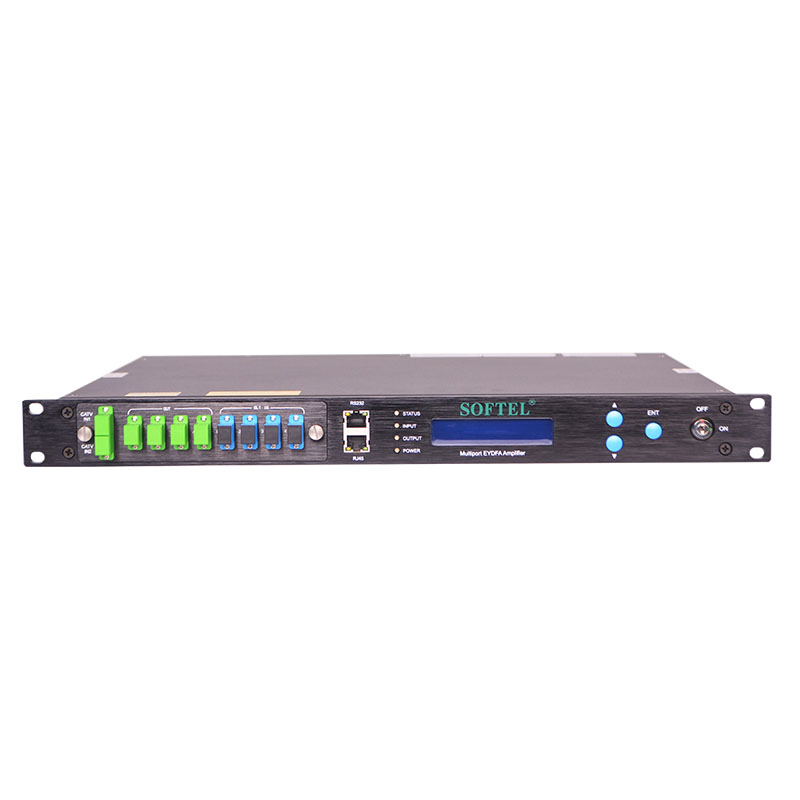

High Power 4 Output Erbium Doped Fiber Amplifier 1550nm EDFA
Single Output Erbium-Doped Fiber Amplifier 1550nm EDFA SummarySA15xx adopts the top class the pump laser and USA OFS erbium-doped fiber, complete control of APC and ATC, perfect design in the ventilation and heat output ensure the long life of pump laser and high reliable work, RS232 and RJ45 offer ......
Send Inquiry
Product Description
Single Output Erbium-Doped Fiber Amplifier 1550nm EDFA
Summary
SA15xx adopts the top class the pump laser and USA OFS erbium-doped fiber, complete control of APC and ATC, perfect design in the ventilation and heat output ensure the long life of pump laser and high reliable work, RS232 and RJ45 offer serial communication and SNMP network port, the LCD of front panel offers the work index of all equipment and warning alarm. Optical loss, the laser closes automatically, provide the safe protection of the laser. All the optical ports can be set in the front panel.
Feature
Adopts America OFS erbium-doped fiber and top class pump laser
Low noise figure
High output power
RS232 communication and SNMP network management (optional)
Excellent P/P ratio
Main application
AM CATV
Digital CATV
DBS&MMDS
FTTP
Parameters
| Item | Unit | Performance | Supplement |
| Optical feature | |||
| Operation wavelength | nm | 1540~1565 | |
| Input power range | dBm | -10~+3~+10 | |
| Total output power | dBm | 13~24 (optional) | Pin=0dBm |
| Each port output power | dBm | 10~22 | |
| Number of output port | 1~4 | ||
| Noise figure | dB | ≤ 0.5 | Pin=0dBm |
| Gain flatness | dB | 30 | |
| Polarization dependence loss | dB | 0.1 | |
| Polarization dependence gain | dB | ≤ 0.5 | |
| Polarization dependence dispersion | ps | ≤ 0.4 | |
| Pump power leakage | dBm | ≤ -30 | |
| Echo loss | dB | ≥ 50 | |
| General feature | |||
| SNMP interface | RJ45 | ||
| Communication interface | RS232 | ||
| Power supply | v | 90~265 AC | -48VDC OPTIONAL |
| Power consume | W | ≤ 50 | |
| Work temperature | 0~50 | ||
| Storage temperature | % | -40~85 | |
| Operating relative humidity | % | 5~95 | |
| Size | " | 19x10x1.75 | |
FAQ
1. What are the payment terms that you support?
Usually, we accept T/T, PayPal, Western Union, and Alibaba Trade Assurance. You can select the terms of payment which is more convenient for you.
2. What about the lead time?
Usually, if there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends.
3. How about the shipping?
When the package is small, we normally choose FedEx, DHL, TNT, and UPS, and so on, while the goods have high weight and volume, we suggest using air or sea shipment.
4. How can I place an order?
(1) Negotiation is agreed upon for the product price and specifications.
(2) Proforma invoice will be sent for confirmation.
(3) After the agreement on the proforma invoice, the customer makes the deposit.
(4) Manufacturing will be started as soon as the payment is confirmed by our bank.
(5) Ship out the goods within the agreed delivery deadline.
5. Can you do OEM for us?
Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.
6. How about the Warranty?
There are 12 months for the warranty.
While the warranty is not responsible for those broken by violence or updated with other brands.
