Gpon ONU with 1ge +1fe +WiFi + CATV
1. OverviewFWG-HGU8020WC GPON ONT is a three-in-one FTTH gateway for small and medium-sized businesses, SOHO office and home users, integrating GPON, WIFI, and CATV functions. This series of products complies with the G.988 international standard and has good interoperability and operability, enabli......
Send Inquiry

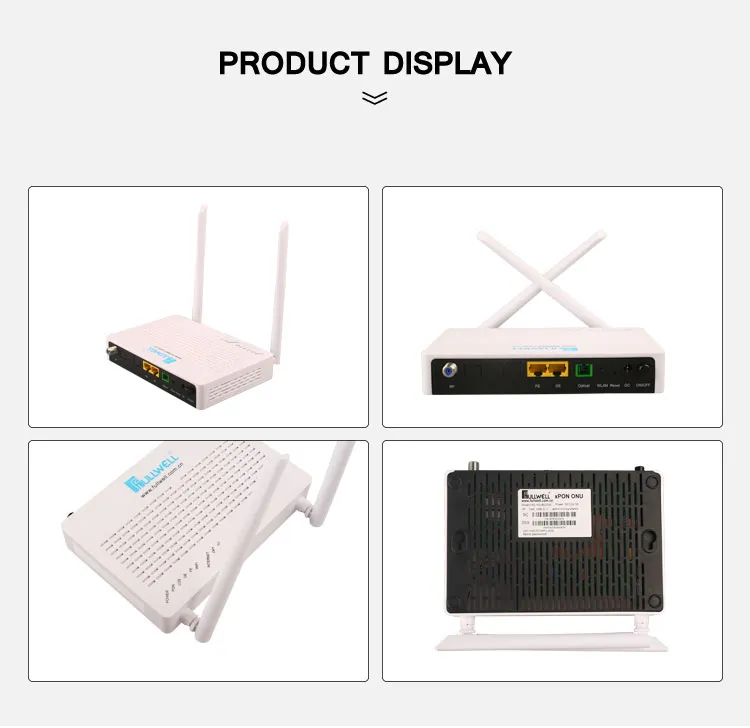

Product Description

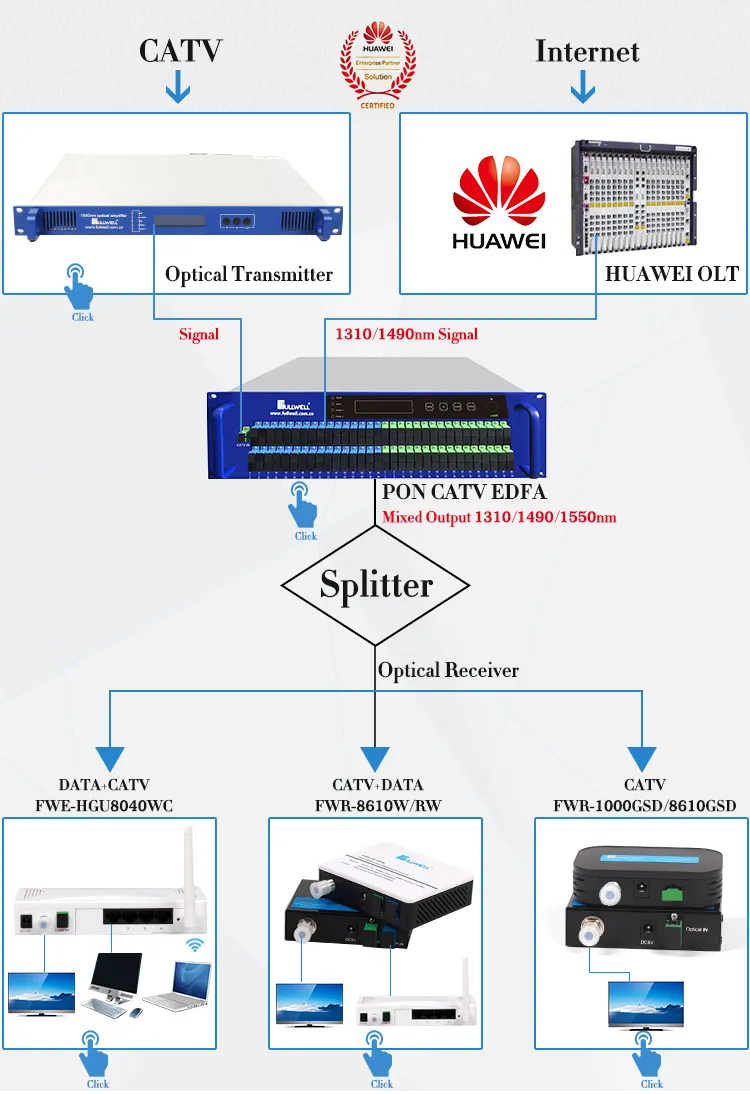

1. OverviewFWG-HGU8020WC GPON ONT is a three-in-one FTTH gateway for small and medium-sized businesses, SOHO office and home users, integrating GPON, WIFI, and CATV functions. This series of products complies with the G.988 international standard and has good interoperability and operability, enabling interoperability with mainstream manufacturers' OLT devices.
2. MAIN SPECS
3 Instructions for Use
Power Connection
This machine is supported by the power adapter. Firstly, connect the DC 12V output cable of the power adapter to the DC 12V port of the machine, and then plug the external regulated power supply into the 220V of the mains. The power indicator on the panel is on, indicating that the power supply is working normally.
2. INTERFACES
Indicators Description
4. WEB Login
This machine supports WEB management. You can log in to 192.168.0.1 (default IP address) from any PC to get relevant information. The steps are as follows:
1) Change the network segment of the PC to 192.168.0.X and connect it to any network port of the machine with a network cable;
2) Enter http://192.168.0.1 in Chrome, press Enter to pop up the login page, enter the username and password (user/user), and then enter the system management page.
5. Matters Needing Attention
1) This device is an indoor structure, it can not be used in places that are easily invaded by rainwater; it should have proper space in the indoor box to facilitate heat dissipation; the shielding net of the output cable must be grounded, and the grounding resistance should be less than 4Ω;
2) The fiber input and the cable output must be reserved for a certain length to avoid accidents caused by too short; the optical interface in the ONU is the SC/APC head. Do not misplace or the end faces are inconsistent.
6 Accessories
1). External power supply * 1: AC220V/DC12V/1A
2). User Guide * 1
3). The certificate of conformity has been affixed to this manual.
| ITEM | UNIT | SPEC | |
| OPT I CAL | Working wavelength | nm | PON:TX1310,RX1490;CATV:1150~1600 |
| TX POWER | dBm | 1-4(GPON) | |
| RX Sensitivity | dBm | ≥ -27 | |
| optic connector | / | SC/APC | |
| CATV POWER | dBm | -16~-6 | |
| CATV Return Loss | dB | ≥45 | |
| RF | Broadband/unevenness | MHz/dB | 45~1000/≤ ±1 |
| TX POWER | dBuv | AGC,TX POWER76±2 | |
| Return Loss | dB | ≥14(75Ω) | |
| MER | dB | 31 -15dBm 34 -12dBm | |
| CTB/CSO/HUM | dB | ≥62/≥62/≥45 | |
OT HE R | WIFI | / | 802.11 b/g/n 2.4GHz 300Mbps |
| TYPE | / | HGU | |
| POWER | V/A | AV110~255V→DC12V 1A | |
| Operating temperature | ºC | -5~40 | |
Power Connection
This machine is supported by the power adapter. Firstly, connect the DC 12V output cable of the power adapter to the DC 12V port of the machine, and then plug the external regulated power supply into the 220V of the mains. The power indicator on the panel is on, indicating that the power supply is working normally.

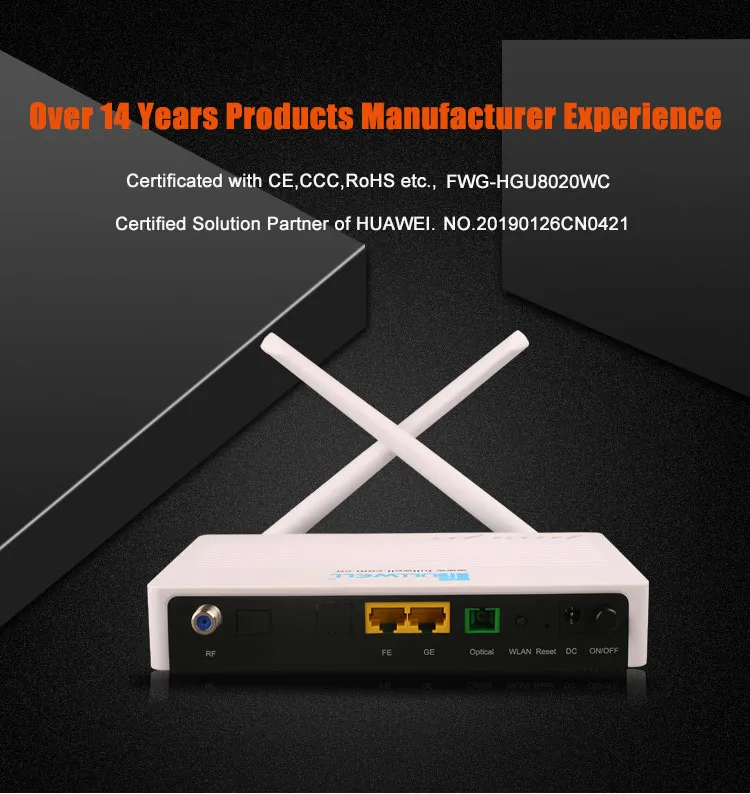

2. INTERFACES

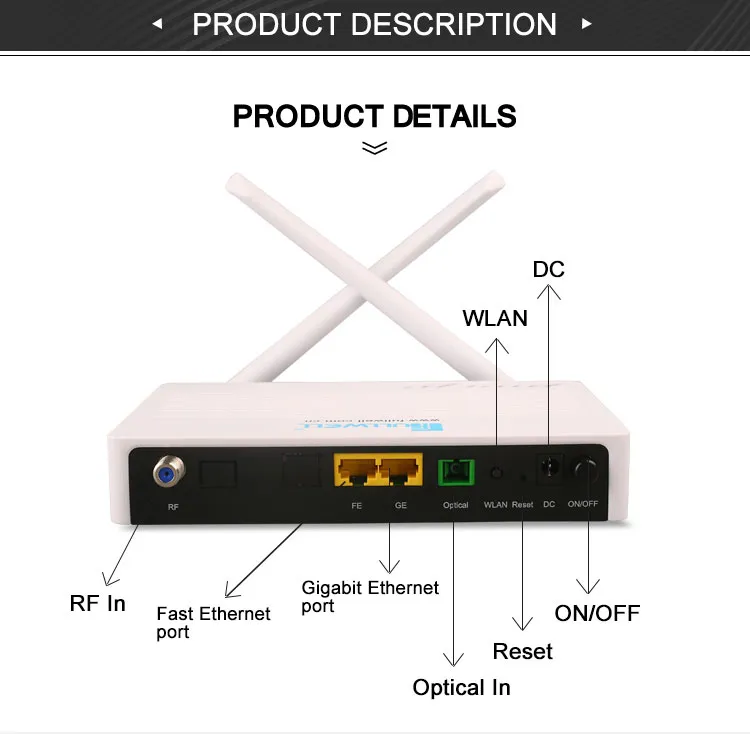

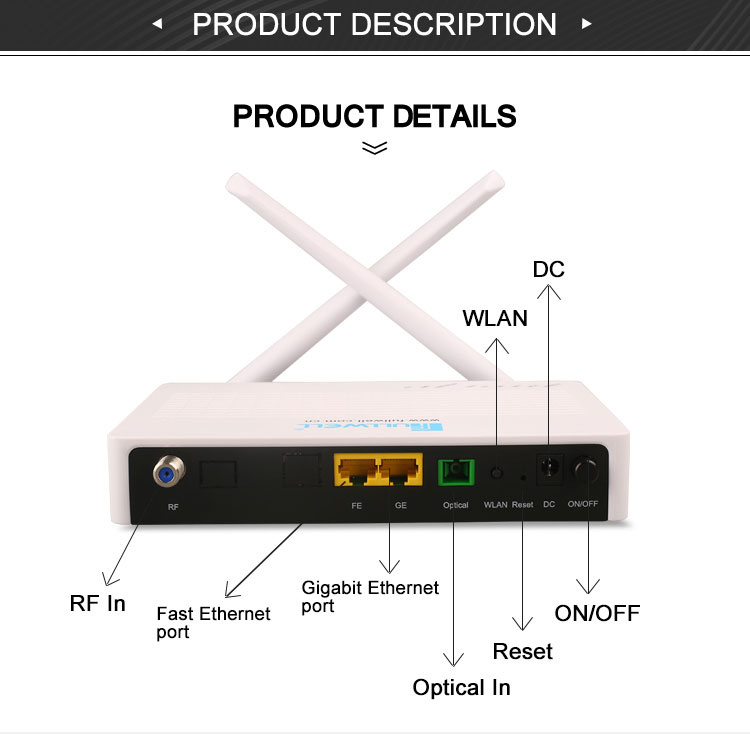

| INTERFACES | Introduction |
| ON/OFF | Power switch button |
| Power | Power input interface, DC 12V/1A |
| Optical | CATV and GPON fiber interfaces, using SC/APC fiber access |
| GE,FE | LAN service interface, GE is a gigabit port, and FE is a 100 Mbps port. |
| Reset | Reset button |
| WLAN | WIFI switch |
| CATV | CATV RF signal output |

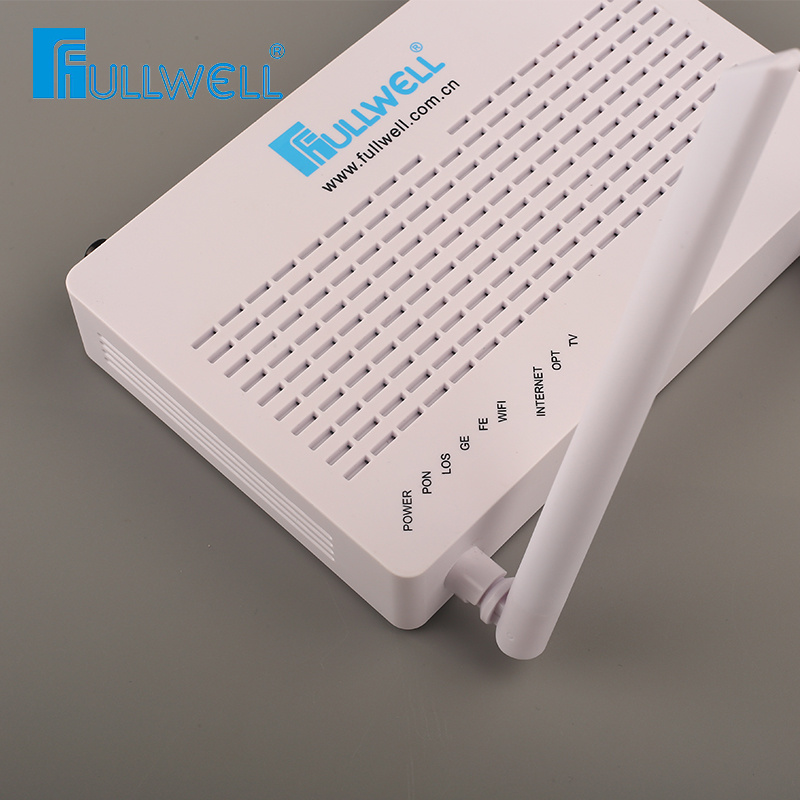

| Indicator | Status | Description |
| Power | ON | The device is powered on normally. |
| OFF | The device is not powered on. | |
| PON | Twinkling | Received light, device not registered |
| ON | The ONU is connected to the OLT and registered successfully. | |
| OFF | No optical received, device not registered | |
| LOS | Twinkling | Fiber break or optical power exceeds limit |
| OFF | ONU accepts normal optical power | |
| GE,FE | ON | The network port is connected but no data is transmitted. |
| Twinkling | Network port has data transmission | |
| OFF | The device is not powered on or the network port is not connected to the terminal device. | |
| WIFI | ON | WIFI works fine |
| Twinkling | WIFI has data transmission | |
| OFF | WIFI work abnormally | |
| Internet | ON | Successfully connected to the Internet |
| OFF | Not connected to the Internet | |
| OPT | OFF | RF output level is within the normal range |
| ON | RF output level is not within the normal range | |
| TV | ON | CATV optical signal is within the normal range |
| OFF | CATV optical signal is too low or faulty |
4. WEB Login
This machine supports WEB management. You can log in to 192.168.0.1 (default IP address) from any PC to get relevant information. The steps are as follows:
1) Change the network segment of the PC to 192.168.0.X and connect it to any network port of the machine with a network cable;
2) Enter http://192.168.0.1 in Chrome, press Enter to pop up the login page, enter the username and password (user/user), and then enter the system management page.
5. Matters Needing Attention
1) This device is an indoor structure, it can not be used in places that are easily invaded by rainwater; it should have proper space in the indoor box to facilitate heat dissipation; the shielding net of the output cable must be grounded, and the grounding resistance should be less than 4Ω;
2) The fiber input and the cable output must be reserved for a certain length to avoid accidents caused by too short; the optical interface in the ONU is the SC/APC head. Do not misplace or the end faces are inconsistent.
6 Accessories
1). External power supply * 1: AC220V/DC12V/1A
2). User Guide * 1
3). The certificate of conformity has been affixed to this manual.
