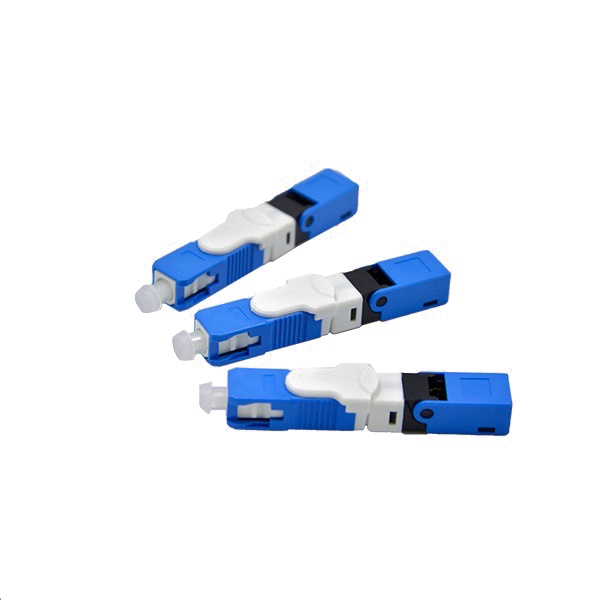

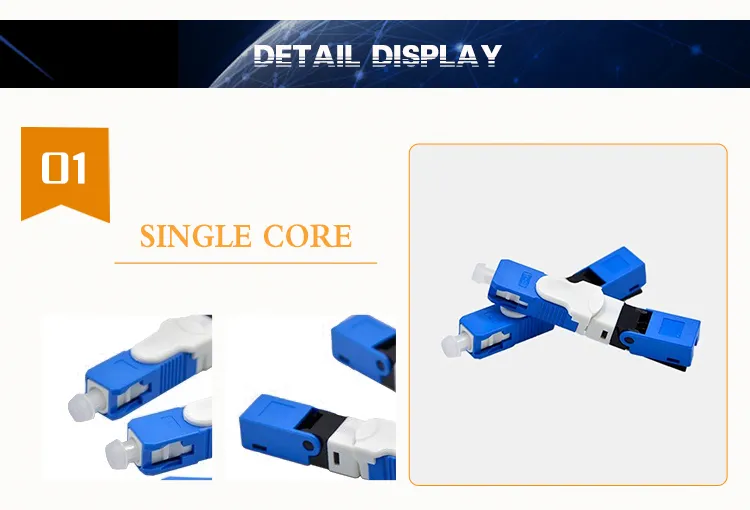

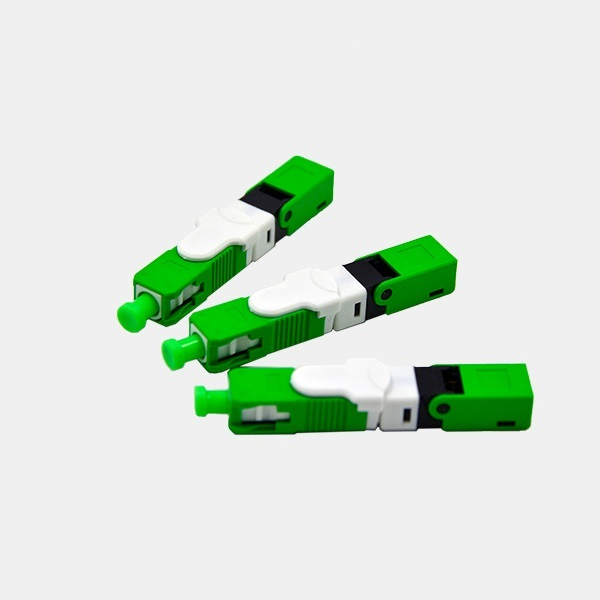

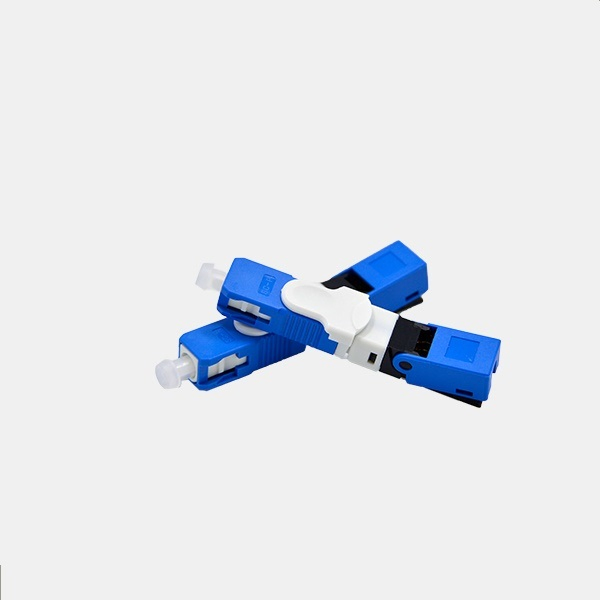

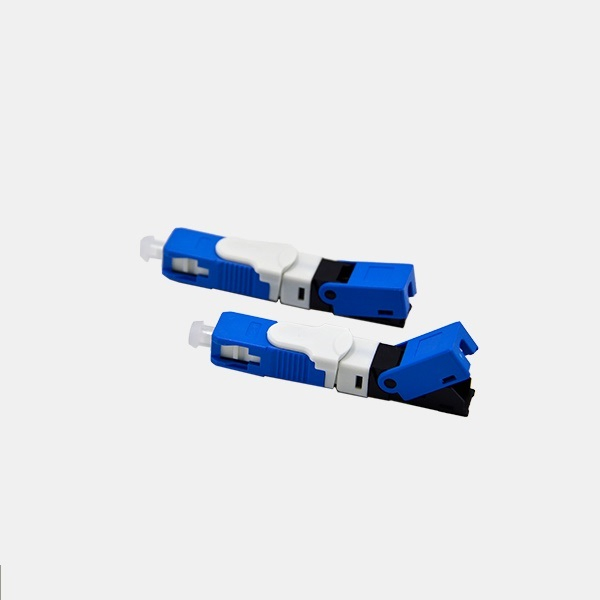

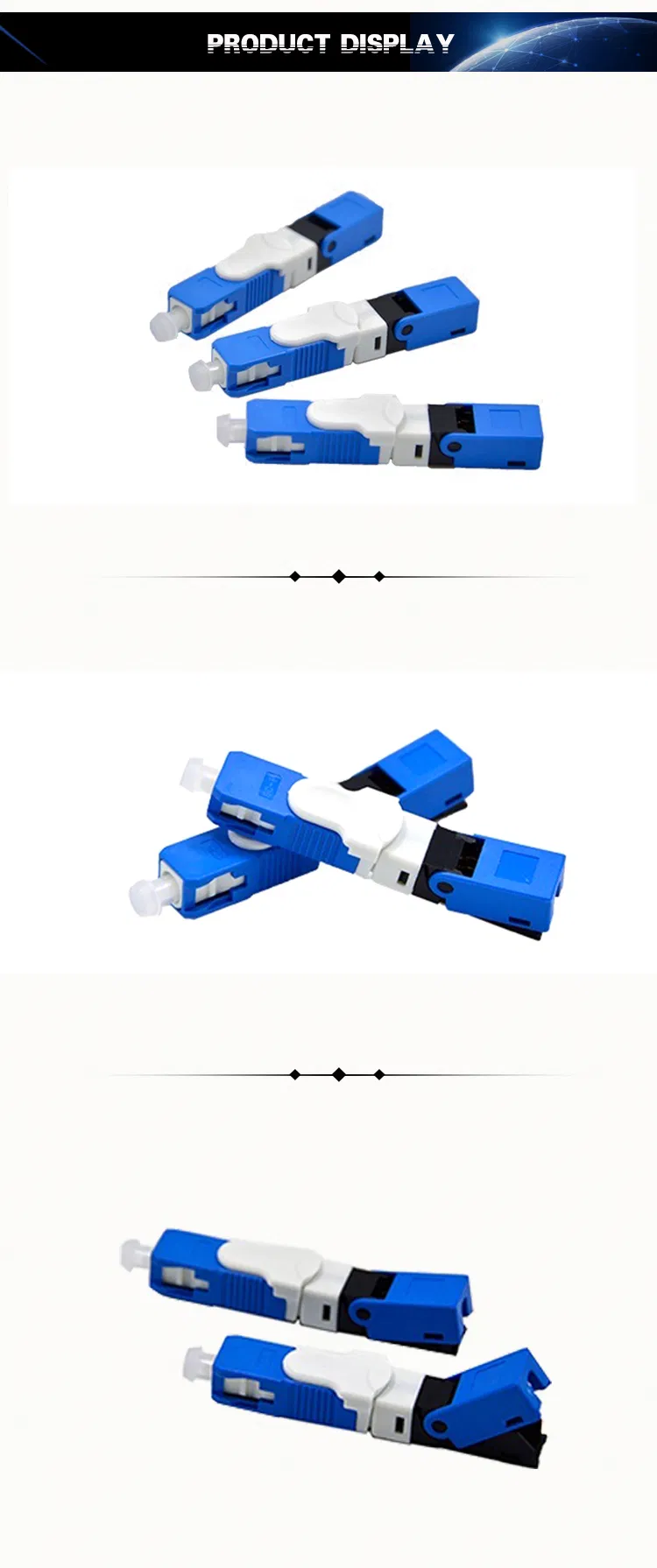

Good Quality ESC250d Embed Fast Connector
Product Description:Fast connector is a good solution to field wiring and fiber-to-the home engineering connector. Assembly without glue,grinding and electrical tools, is widely used in construction section, the place need to quickly connect, to provide a fastand stable connector for the operation. ......
Send Inquiry
Product Description
Product Description:
Fast connector is a good solution to field wiring and fiber-to-the home engineering connector. Assembly without glue,
grinding and electrical tools, is widely used in construction section, the place need to quickly connect, to provide a fast
and stable connector for the operation. It adopts the latest fiber formed technology. All the optical and mechanical index
meet the patch cord standard, to achieve to make the patch cord via mechanical cold junction, it change the traditional
splice opinion, offer the powerfull support for FTTx.
Feature:
1.Low insertion loss
2.High return loss (low amounts of reflection at the interface)
3.Ease of installation
4.Low cost
5.Reliability
6.Low environmental sensitivity
7.Ease of use
Application:
1.CATV
2.Active device termination
3.Telecommunication networks
4.Metro
5.Local Area Networks (LANs)
6.Data processing networks
7.Test equipment
8.Premise installation
9.Wide Area Networks(WANs)
Product Specification:
| Item | Parameter |
| Cable Scope | 3.0 x 2.0 mm and 1.6*2.0mm Bow-type Drop Cable |
| Size | 51*9*7.55mm |
| Coating Diameter | 250μm |
| Mode | SM |
| Operation Time | about 15s(exclude fiber presetting) |
| Insertion Loss | ≤ 0.3dB(1310nm & 1550nm) |
| Return Loss | ≤ -50dB for UPC, ≤ 55dB for APC |
| Success Rate | >98% |
| Reusable Times | >5 times |
| Tighten Strength of Naked Fiber | >5 N |
| Tensile Strength | >30 N |
| Temperature | -40 ~ +85 C |
| On-line Tensile Strength Test (20 N) | IL ≤ 0.3dB |
| Mechanical Durability(500 times) | IL ≤ 0.3dB |
| Drop Test | IL ≤ 0.3dB |
