Genew FTTH Fttp Access Network Optical Terminal Xg (S) -Pon Ont ONU Sfu GM2001g
Overview - GM2001G ONT / ONU:GM2001G is a GE Routing GPON ONT designed to fulfill FTTH ultra-broadband access requirements of home and Small Office, Home Office (SOHO) users. As developed by GENEW independently, it is based on the stable and mature GPON technology, and has high performance to price ......
Send Inquiry
Product Description

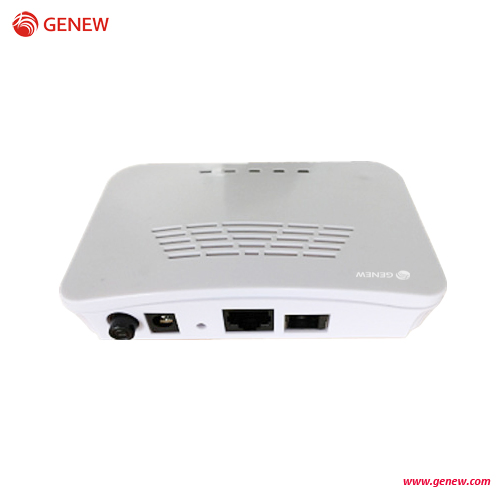

Overview - GM2001G ONT / ONU:
GM2001G is a GE Routing GPON ONT designed to fulfill FTTH ultra-broadband access requirements of home and Small Office, Home Office (SOHO) users. As developed by GENEW independently, it is based on the stable and mature GPON technology, and has high performance to price ratio. Embedded with the technology of layer 2/3 Ethernet switch, GM2001G ONT is highly reliable and easy to maintain, with guaranteed QoS, and is fully compliant to ITU-T G.984 GPON standards.
Features - GM2001G ONT / ONU:
- ITU-T G.984 COMPLIANT 2.5G DOWNSTREAM AND 1.25G UPSTREAM GPON INTERFACE
- SUPPORTS BRIDGED, ROUTER & MIXED BRIDGED-ROUTER MODES
- SINGLE PORT PON INTERFACE ONT WITH SINGLE 10/100/1000 MBPS, AUTO ADAPTIVE ETHERNET INTERFACE
- DESKTOP AND WALL MOUNTING SUPPORT
- SUPPORTS LAYER 2/3 SWITCHING FEATURES
Specification - GM2001G ONT / ONU:
Size: 120mm(L) x78mm(W) x 30mm(H)
Weight: 100g (power adaptor not included)
ETHERNET PORT: 1*10/100/1000Mbps, Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connector
MANAGEMENT: Support ITUT984.x OMCI, WEB GUI and CLI
GPON INTERFACE
PON Interface: GPON, SC single-mode/single-fiber, Upstream 1.25Gbps, Downstream 2.5Gbps
Wavelength: US 1310nm, DS 1490nm
Standards Compliance: ITU-T G.984 GPON Standards
Sensitivity: <-27dBm (CLASS B+)
Overload: >-8dBm (CLASS B+)
Optical Connector Type: SC/PC

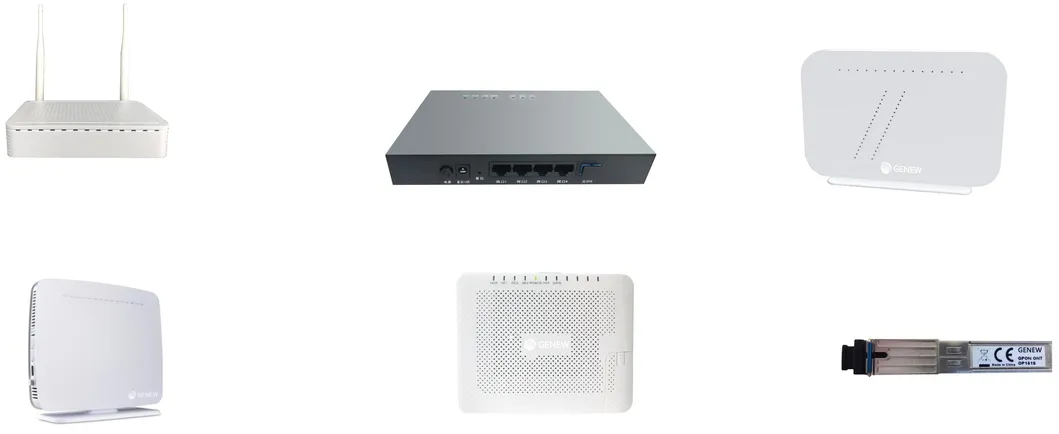

Family - Genew GPON/XG-PON/XG(S)-PON ONT:
| Model | Description |
NetCircle® GM2001G | Uplink: GPON; downlink: 1*GE |
NetCircle® GM2004G | Uplink: GPON; Downlink: 4*GE+ 2*POTS + WiFi 5 dual frequency |
| NetCircle® HG7120N | Uplink: GPON; Downlink: 1*GE + 1FXS + WiFi 802.11b/g/n/a |
NetCircle® GM2104G | Uplink: GPON; Downlink: 4*GE |
NetCircle® GM2104G-W | Uplink: GPON; Downlink: 4*GE+ 2*POTS + Wi-Fi([email protected] ) |
NetCircle® GM2104G-WE | Uplink: GPON; Downlink: 4*GE + 2FXS + WiFi 802.11b/g/n/ac, 2T2R |
NetCircle® GM2104G-WI | Uplink: GPON; Downlink: 4*GE+ 2*POTS + Wi-Fi 5 dual frequency |
NetCircle® HG3242A | Uplink: XGPON; Downlink: 4*GE+ 2*POTS + Wi-Fi 5 |
NetCircle® HG4242A | Uplink: XGSPON; Downlink: 4*GE+ 2*POTS + Wi-Fi 5 |
NetCircle® HG3252X | Uplink: XGPON; Downlink: 1*10GE+4*GE+ 2*POTS + Wi-Fi 6 |
NetCircle® HG4252X | Uplink: XGSPON; Downlink: 1*10GE+4*GE+ 2*POTS + Wi-Fi 6 |
