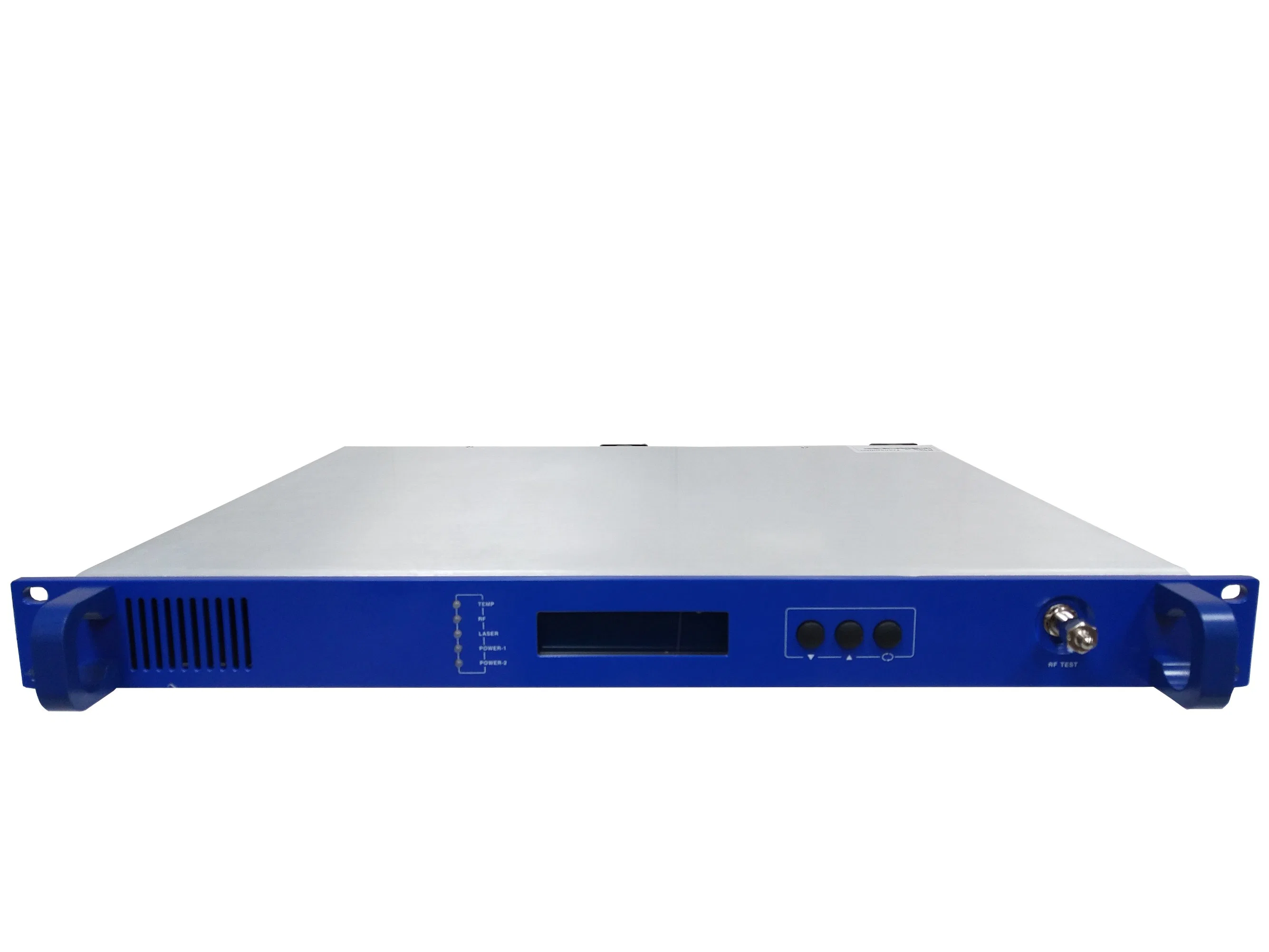

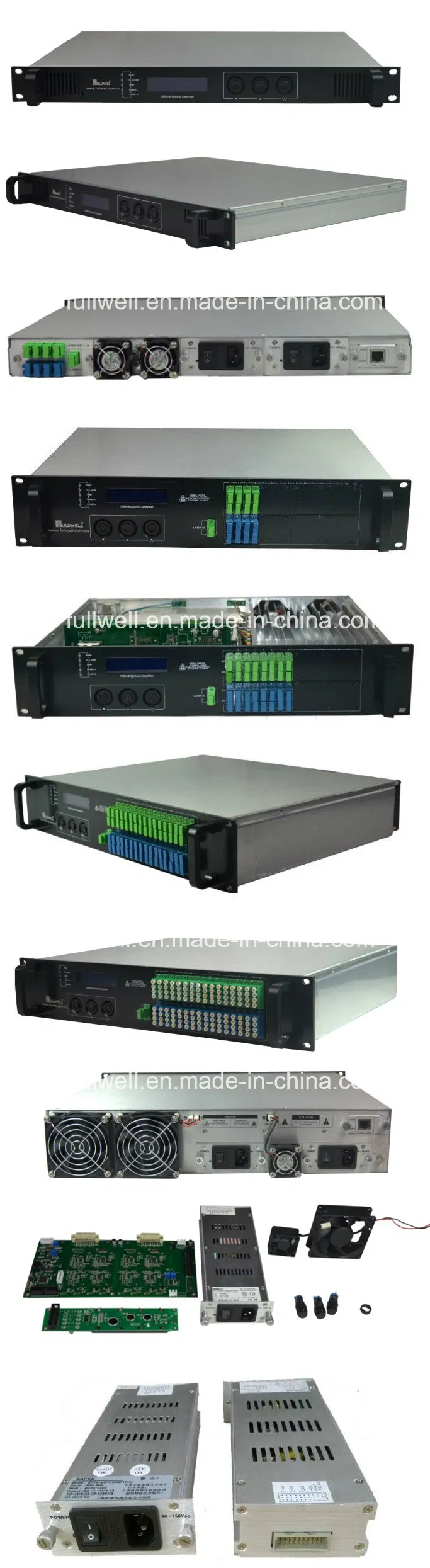

FWAP-1550T-Series, 1/2/4/8/16 ports PON&CATV WDM EDFA
Product Description
FWAP-1550T series erbium doped or erbium and ytterbium co-doped fiber amplifier is the latest optical transmission system equipment, realizing to combine optical signal OLT XPON/XGS-PON and 1550nm CAT, and amplify the CATV signal as well. The optical input number: 1 port of CATV or 2 redundant CATV inputs + 1/2/4/8/16 ports PON input ports. 1/2/4/8/16 ports outputs of 1550nm+1490nm/1310nm & 1270/1577nm combine output, of which the total output power range of 1550nm is 13 ~ 32dBm. Multiple output power can be matched according to user demand.
Fullwell's high-power WDM EDFA is well compatible with the OLT/ONU of HUAWEI, ZTE, FiberHome, etc and no data is lost, which owns high cost performance. It is mainly used for XPON / XGS-PON structure fiber to home(FTTH) and fiber to the building(FTTB).
This series product adopts JDSU, Lumentum, etc multimode high power pump laser as pump source and American OFS closed beam splitter as double-cladding synthesizer. Built-in optical power output stabilization circuit and laser thermoelectric cooler temperature stabilization control circuit ensure the best performance of the EDFA and the long-term stable operation of the laser. The microprocessor software monitors the working status of the laser, and the working parameters are displayed on the digital panel (LCD). Once the laser's working parameters deviate from the allowable range set by the software, the micro-processing will automatically turn off the laser power, and the red light flashes to alert.
Product feature
1. Top quality: Adopt multi-mode high-power pump laser and the power is optimized through software, which makes the system achieving excellent CNR.
2. Reliability: Adopt 19" 1U standard chassis, built-in high performance modular switching power supply, can work in AC165 ~ 265V city network voltage. DC 48V hot-swappable power supply option is available as well. Dual hot and reserved power supply with Chassis automatic heat dissipation control.
3. Intuitive: The built-in microprocessor monitors the working status of the pump laser, and the working parameters are displayed on LCD.
4. Network management Interface: Web transponder is line with the national standard and compatible with the SCTE HMS standard, achieving WEB monitoring function. The red warning symbol is displayed on the web page, which is convenient for troubleshooting.
5. Adjustable output optical power: Advanced design enables a large adjustable range of output power, and power can be lowered by 0 ~ -3dBm.
6. Plug-in WDM modular: Integrated FWDM module, CATV, GPON, EPON, XGS-PON (customized). One fiber with multi-waves is convenient to use.
7. Built-in optical switch option: There are automatic (prefer) or manual (force) switch mode when CATV signal has main path A and redundant path B optical switch input (OPT SWTTCH). Automatic mode uses the main path A by default, it switches to redundant path B if A input power fails.
Technical Parameters
Product model series
Product Description
FWAP-1550T series erbium doped or erbium and ytterbium co-doped fiber amplifier is the latest optical transmission system equipment, realizing to combine optical signal OLT XPON/XGS-PON and 1550nm CAT, and amplify the CATV signal as well. The optical input number: 1 port of CATV or 2 redundant CATV inputs + 1/2/4/8/16 ports PON input ports. 1/2/4/8/16 ports outputs of 1550nm+1490nm/1310nm & 1270/1577nm combine output, of which the total output power range of 1550nm is 13 ~ 32dBm. Multiple output power can be matched according to user demand.
Fullwell's high-power WDM EDFA is well compatible with the OLT/ONU of HUAWEI, ZTE, FiberHome, etc and no data is lost, which owns high cost performance. It is mainly used for XPON / XGS-PON structure fiber to home(FTTH) and fiber to the building(FTTB).
This series product adopts JDSU, Lumentum, etc multimode high power pump laser as pump source and American OFS closed beam splitter as double-cladding synthesizer. Built-in optical power output stabilization circuit and laser thermoelectric cooler temperature stabilization control circuit ensure the best performance of the EDFA and the long-term stable operation of the laser. The microprocessor software monitors the working status of the laser, and the working parameters are displayed on the digital panel (LCD). Once the laser's working parameters deviate from the allowable range set by the software, the micro-processing will automatically turn off the laser power, and the red light flashes to alert.
Product feature
1. Top quality: Adopt multi-mode high-power pump laser and the power is optimized through software, which makes the system achieving excellent CNR.
2. Reliability: Adopt 19" 1U standard chassis, built-in high performance modular switching power supply, can work in AC165 ~ 265V city network voltage. DC 48V hot-swappable power supply option is available as well. Dual hot and reserved power supply with Chassis automatic heat dissipation control.
3. Intuitive: The built-in microprocessor monitors the working status of the pump laser, and the working parameters are displayed on LCD.
4. Network management Interface: Web transponder is line with the national standard and compatible with the SCTE HMS standard, achieving WEB monitoring function. The red warning symbol is displayed on the web page, which is convenient for troubleshooting.
5. Adjustable output optical power: Advanced design enables a large adjustable range of output power, and power can be lowered by 0 ~ -3dBm.
6. Plug-in WDM modular: Integrated FWDM module, CATV, GPON, EPON, XGS-PON (customized). One fiber with multi-waves is convenient to use.
7. Built-in optical switch option: There are automatic (prefer) or manual (force) switch mode when CATV signal has main path A and redundant path B optical switch input (OPT SWTTCH). Automatic mode uses the main path A by default, it switches to redundant path B if A input power fails.
Technical Parameters
| Items | Unit | Performance Index | |
| Optical Operating Wavelength | nm | 1535~1565 | |
| Input Optical Power Range | dBm | -10~+10 | |
| Noise Ratio | dB | ≤5.0 (0 dBm,@1550nM) | |
| Gain Flatness | dB | <±0.3 | |
| Optical Power Output Stability | dB | <±0.5 | |
| Polarization Sensitivity | dB | <0.2 | |
| Polarization Mode Dispersion | Ps | <0.5 | |
| Input End Pump Leakage Power | dB | ≤-30 | |
| Output End Pump Leakage Power | dB | ≤-30 | |
| Optical Input, Output Return Loss | dB | >45(APC Stepped Face) | |
| Pump Operating Number | PCs | 1~2 | |
| Rated Output Power | dBm | 13~32 | |
| Linker(IN) | - | SC/APC or LC/APC | |
| Linker(OUT) | - | SC/APC or LC/APC | |
| Power Supply/Consumption | V/W | AC165~265 or DC-48/20 | |
| Operating/Storage Temperature | ºC | -20~65/-30~70 | |
| Operating/Storage Humidity | % | 5~90 | |
| Case Size | mm | 482×387×44(1U) | |
| Network Management Connector | / | RJ45(following national network management standard, supports WEB) | |
| PON Optical Path with WDM | PON Wavelength | mm | 1310/1490 |
| XG(S)- PON Wavelength | 1310/1490 & 1270/1577 (customized) | ||
| PON Linker | / | SC/UPC or LC/UPC | |
| Uplink optical ports | pcs | 1/2/4/8/16 | |
| Output ports | Pcs | 1/2/4/8/16 | |
| PON Insertion Loss | dB | <1.2 | |
| 1550 Port Insertion Loss | dB | <0.7 | |
| Optical isolation | dB | 40 | |
| Optical Switch | Insertion Loss | dB | <1 |
| Harass | dB | <-60 (isolation between A and B) | |
| Switch Time | ms | <10 | |
| Switched Power Threshold Range | dBm | -5~10 | |
Product model series
| Model Number | Total Output Power dBm(mW) | Output No. | Each Output Power (dBm) |
| FWAP-1550T-18 | 18 19 | 1 | 18 |
| FWAP-1550T-19 | 1 | 19 | |
| FWAP-1550T-20 | 20 21 | 1 | 20 |
| FWAP-1550T-21 | 1 | 21 | |
| FWAP-1550T-2x17 | 22 | 2 | 17 |
| FWAP-1550T-4x14 | 4 | 14 | |
| FWAP-1550T-2x18 | 23 | 2 | 18 |
| FWAP-1550T-4x15 | 4 | 15 | |
| FWAP-1550T-2x19 | 24 | 2 | 19 |
| FWAP-1550T-4x16 | 4 | 16 | |
| FWAP-1550T-2x20 | 25 | 2 | 20 |
| FWAP-1550T-4x17 | 4 | 17 | |
| FWAP-1550T-2x21 | 26 | 2 | 21 |
| FWAP-1550T-4x18 | 4 | 18 | |
| FWAP-1550T-4x19 | 27 | 4 | 19 |
| FWAP-1550T-8x16 | 8 | 16 | |
| FWAP-1550T-4x20 | 28 | 4 | 20 |
| FWAP-1550T-8x17 | 8 | 17 | |
| FWAP-1550T-8x18 | 29 | 8 | 18 |
| FWAP-1550T-16x15 | 16 | 15 | |
| FWAP-1550T-8x19 | 30 | 8 | 19 |
| FWAP-1550T-16x16 | 16 | 16 | |
| FWAP-1550T-8x20 | 31 | 8 | 20 |
| FWAP-1550T-16x17 | 16 | 17 | |
| FWAP-1550T-8x21 | 32 | 8 | 21 |
| FWAP-1550T-16x18 | 16 | 18 |
