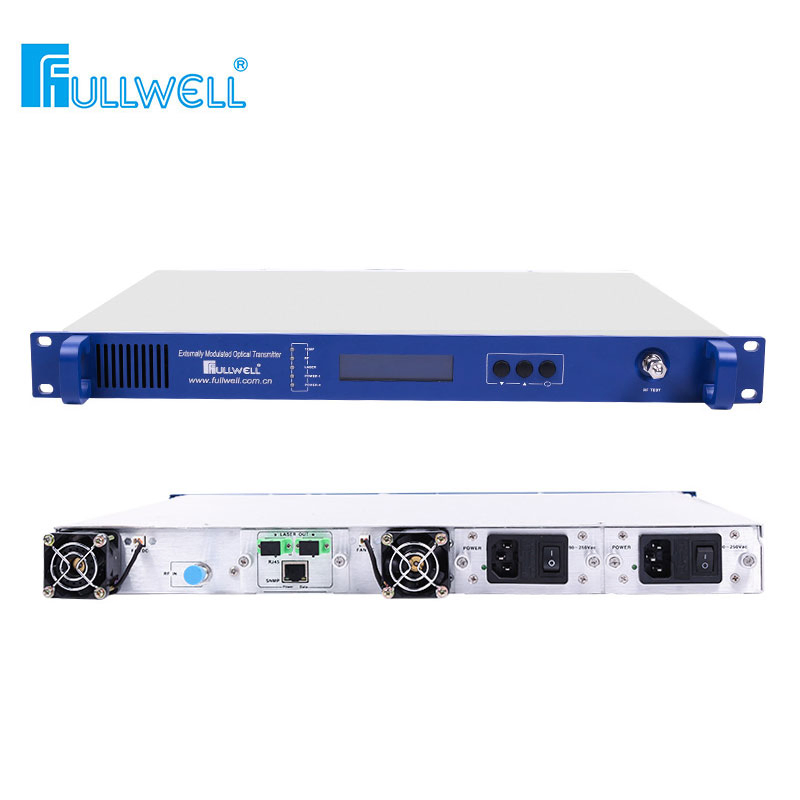

FWT-1550ET Series, 1550nm Top Type External Modulated Optical Transmitter

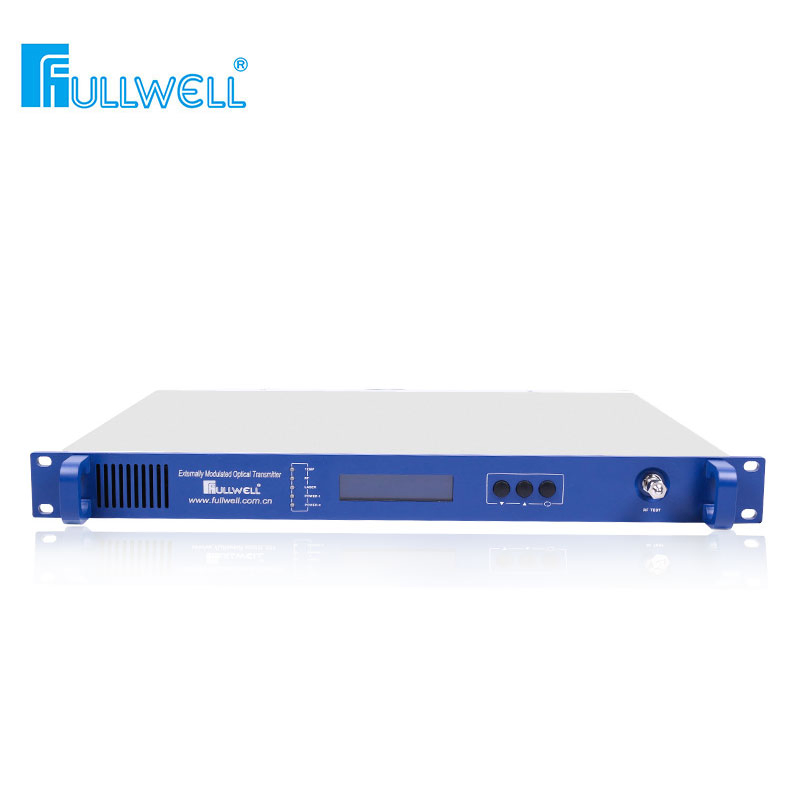

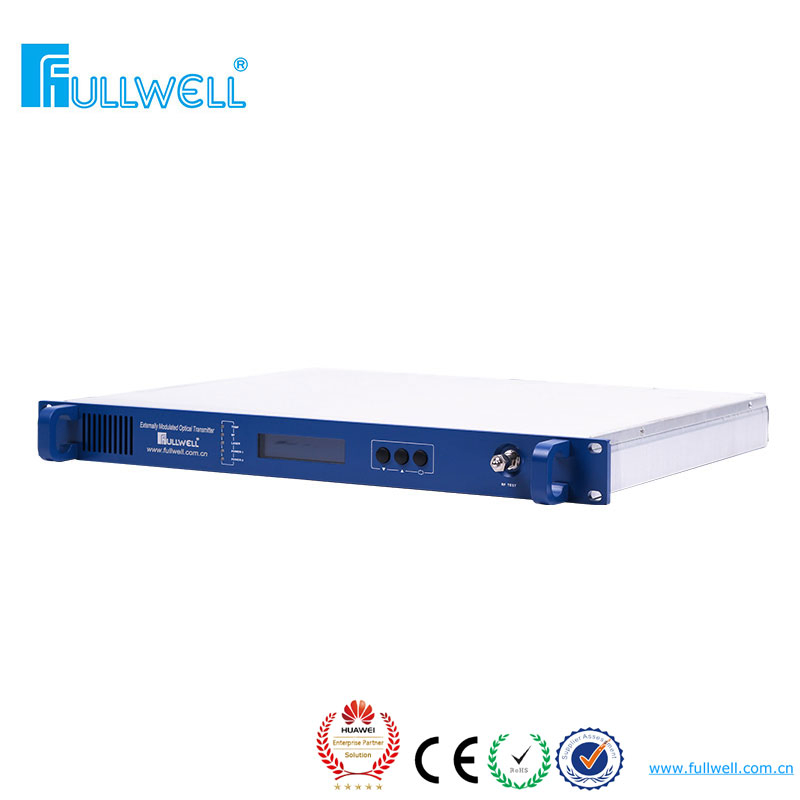

Product Description
FWT-1550ET series is a model of 1550nm Externally Modulated Optical Transmitter according with current international industry technique standard. The device's light source adopts narrow line width(Typ.=0.65MHz), low noise and continuous wave DFB laser, which is propitious to reduce the influence of dispersion.
Adopting the LiNbO3 external modulator specially developed and produced by USA Oclaro for CATV signal modulation, and independently developed and designed dual microwave source optimization control technology, which achieves transmission of more than 120KM, CNR≥53dB, CTB≤-65dB, CSO≤-65dB, 47 ~ 862 MHz, SBS: 13-19dBm continuous adjustable. Equipped with SNMP network management, 1 + 1 power supply backup, and chassis temperature automatic control.
The FWT-1550ET series transmits 1550nm externally modulated optical transmitters over long distances, transmitting CATV signals in all bands, especially ensuring low-frequency and high-quality signals. With its high indicators, high reliability, and excellent performance-price ratio, it is suitable for large and medium-sized CATV station's headend, which then used for the trunk and distribution network trunk.

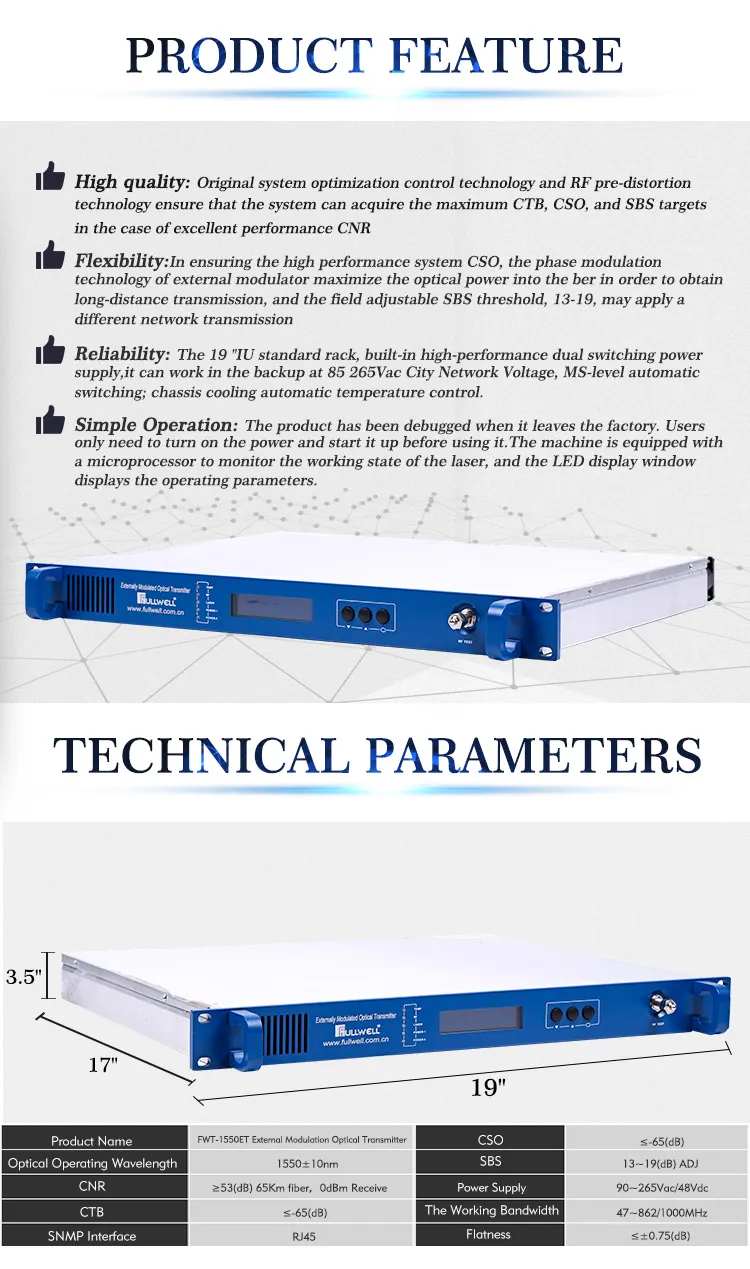

Product feature
1. Top quality: The original dual microwave source innovation technology and RF predistortion technology ensure the system has the perfect CTB, CSO and SBS indexes when CNR≥53dB.
2. Flexibility: The phase modulation technology of the external modulator maximizes the optical power of the fiber to obtain long-haul transmission while ensuring the excellent CSO performance of the system, and the SBS threshold is continuous adjustable: 13-19 dBm; AGC / MGC mode selectable at site, OMI can be adjustable, suitable for different network transmissions.
3. Suitable for long-haul transmission of backbone networks and metropolitan area networks.
4. High bandwidth: up to 47-1000MHz working bandwidth.

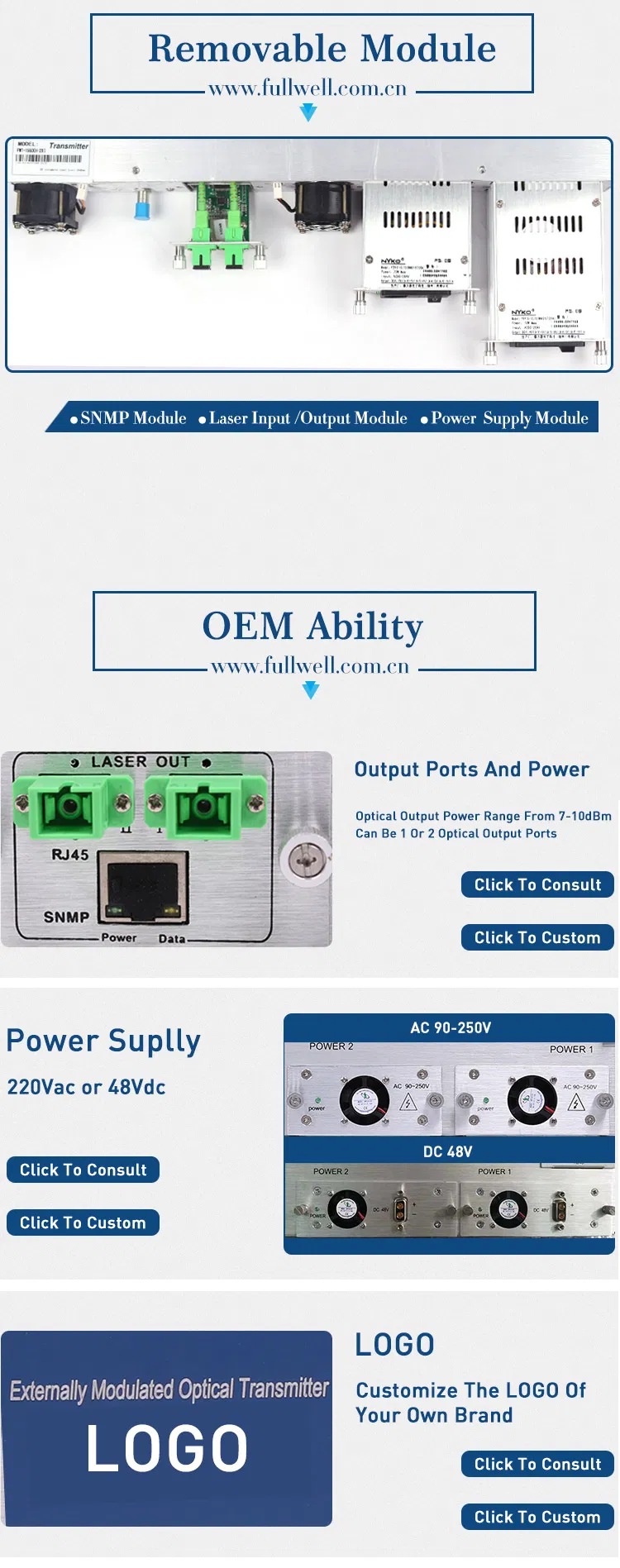

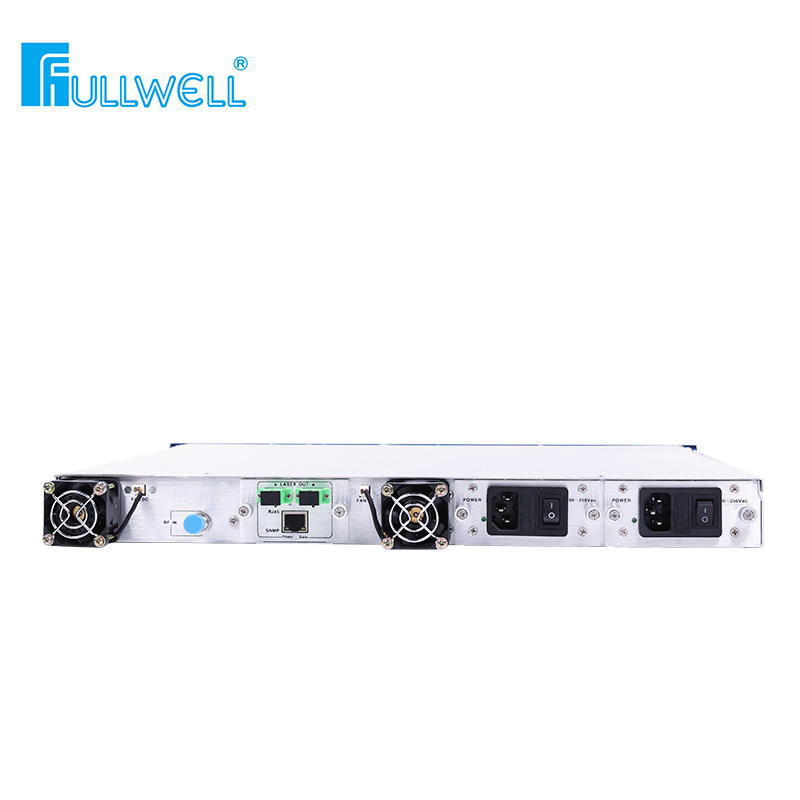

5. Reliability: 19" 1U standard rack, built-in high-performance 1 + 1 hot backup power supply, which can work at 86 ~ 265Vac city network. MS automatic switching, and chassis temperature automatic control.

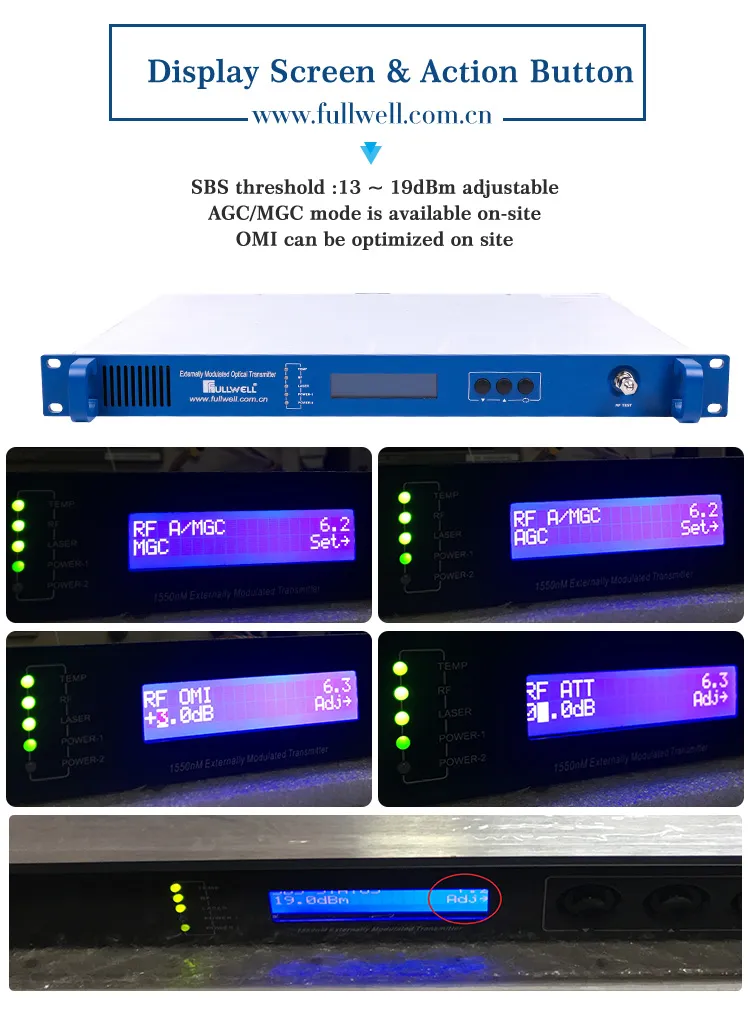

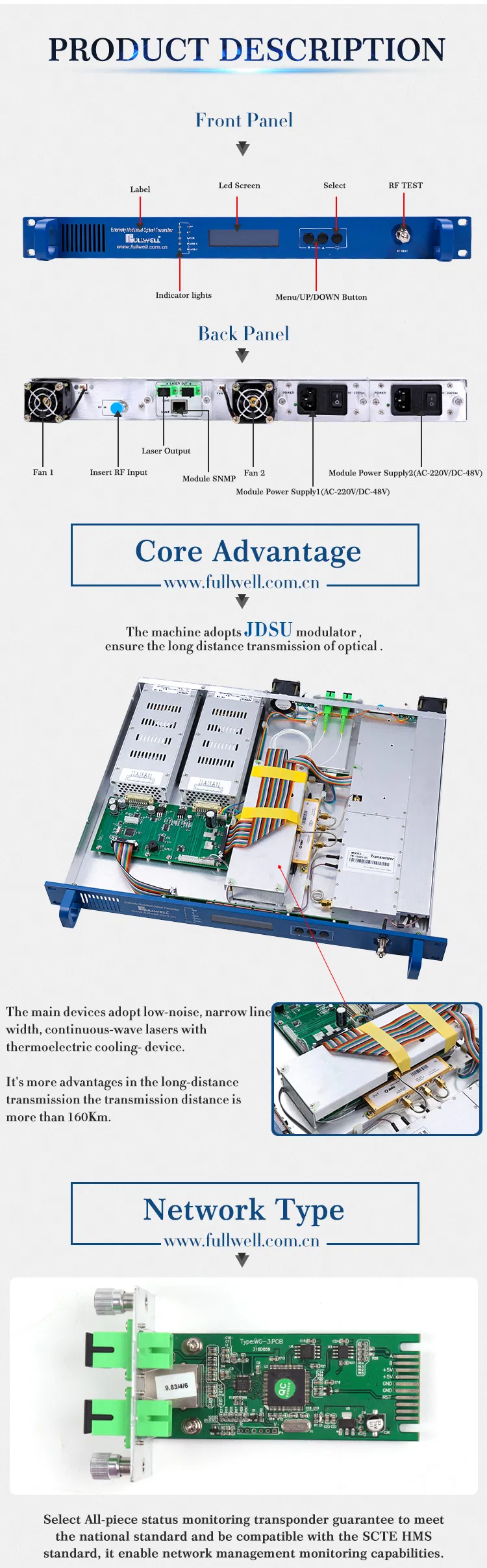

6. Intuitive: The external modulator and laser are the most expensive components of the device. The built-in microprocessor monitors the external modulator and laser working status, and the working parameters are displayed on LCD.
7. Network management type: SNMP network management, can realize the network management WEB monitoring function.
8. Passed EMC and LVD international standard CE certification.
Technical Parameters
Workshop ShowProduct Description
FWT-1550ET series is a model of 1550nm Externally Modulated Optical Transmitter according with current international industry technique standard. The device's light source adopts narrow line width(Typ.=0.65MHz), low noise and continuous wave DFB laser, which is propitious to reduce the influence of dispersion.
Adopting the LiNbO3 external modulator specially developed and produced by USA Oclaro for CATV signal modulation, and independently developed and designed dual microwave source optimization control technology, which achieves transmission of more than 120KM, CNR≥53dB, CTB≤-65dB, CSO≤-65dB, 47 ~ 862 MHz, SBS: 13-19dBm continuous adjustable. Equipped with SNMP network management, 1 + 1 power supply backup, and chassis temperature automatic control.
The FWT-1550ET series transmits 1550nm externally modulated optical transmitters over long distances, transmitting CATV signals in all bands, especially ensuring low-frequency and high-quality signals. With its high indicators, high reliability, and excellent performance-price ratio, it is suitable for large and medium-sized CATV station's headend, which then used for the trunk and distribution network trunk.
Product feature
1. Top quality: The original dual microwave source innovation technology and RF predistortion technology ensure the system has the perfect CTB, CSO and SBS indexes when CNR≥53dB.
2. Flexibility: The phase modulation technology of the external modulator maximizes the optical power of the fiber to obtain long-haul transmission while ensuring the excellent CSO performance of the system, and the SBS threshold is continuous adjustable: 13-19 dBm; AGC / MGC mode selectable at site, OMI can be adjustable, suitable for different network transmissions.
3. Suitable for long-haul transmission of backbone networks and metropolitan area networks.
4. High bandwidth: up to 47-1000MHz working bandwidth.
5. Reliability: 19" 1U standard rack, built-in high-performance 1 + 1 hot backup power supply, which can work at 86 ~ 265Vac city network. MS automatic switching, and chassis temperature automatic control.
6. Intuitive: The external modulator and laser are the most expensive components of the device. The built-in microprocessor monitors the external modulator and laser working status, and the working parameters are displayed on LCD.
7. Network management type: SNMP network management, can realize the network management WEB monitoring function.
8. Passed EMC and LVD international standard CE certification.
Technical Parameters
| Items | Unit | Parameter | Note |
| Laser Model | DFB | Oclaro (Made in USA) | |
| Wavelength | nm | 1550±10 | Specified Before Ordering |
| Optical Modulation Method | Externally Modulated | ||
| Optical Output Power | dBm | 2x7 | Can Customize 2x8, 2x9,2x10 |
| SBS Threshold | dBm | 19(Default) | 13~19 continuous adj. |
| Optical Connector | FC/APC or SC/APC | Specified Before Ordering | |
| Frequency Range | MHz | 47~1000 | |
| CNR | dB | ≥53.0 | GY/T143-2000 6.2.3.5 |
| Flatness | dB | ±0.75 | GY/T143-2000 6.2.4 |
| RF Input Level | dBuV | 78~88 | AGC Automatic Control |
| C/CTB | dB | ≥65.0 | GY/T143-2000 6.2.5 |
| C/CSO | dB | ≥65.0 | GY/T143-2000 6.2.6 |
| RF Input Impedance | Ω | 75 | |
| RF Input Return Loss | dB | >16(47~550)MHz >14(550~862)MHz | GB/T11381.1 4.2.2.2.5 |
| Power Supply | V | 90~265 VAC | Optional -48VDC |
| Power Consumption | W | ≤50 | Single Power Supply Operation |
| Working Temperature | ºC | 0~50 | Automatic Temperature Control |
| Storage Temperature | ºC | -20~85 | |
| Working Relative Humidity | % | 20%~85% | |
| Dimension | ″ | 19″×11″×1.75″ | 483(W)x280(D)x44(H) |
| Network Management Interface | RJ45 | Supporting Web Browser and SNMP |
Product model series
FWT-1550ET -2×7 (two outputs, ≥7dBm)
FWT-1550ET -2×8 (two outputs, ≥8dBm)
FWT-1550ET -2×9 (two outputs, ≥9dBm)
FWT-1550ET -2×10(two outputs, ≥10dBm)
FWT-1550ET -2×7 (two outputs, ≥7dBm)
FWT-1550ET -2×8 (two outputs, ≥8dBm)
FWT-1550ET -2×9 (two outputs, ≥9dBm)
FWT-1550ET -2×10(two outputs, ≥10dBm)
Package Information
