Product Description

FWG-SFU824GWP GPON ONT

Overview

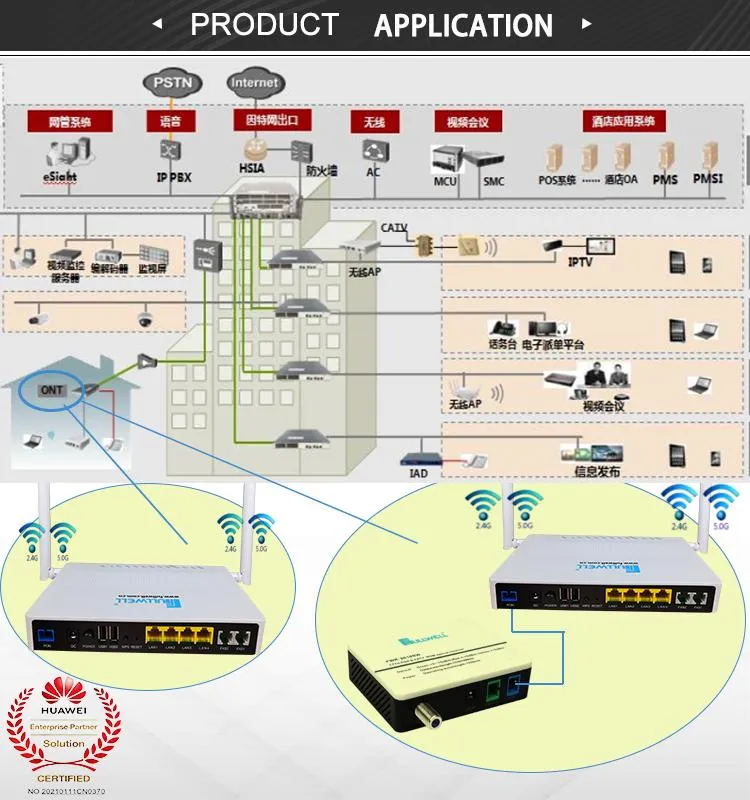

To deliver triple-play services to the subscriber in Fiber-to-the-Home or Fiber-to-the-Premises application, the FWG-SFU824GWPGPON ONT incorporates interoperability, key customers' specific requirements and cost-efficiency.
Equipped with ITU-T G.984 compliant 2.5G Downstream and 1.25G Upstream GPON interface, the GPON ONT supports the full of services includingvoice ,video, and high speed internet access.
Compliant with standard OMCI definition, FWG-SFU824GWP GPON ONT is manageable at remote side and supports the full range FCAPS functions including supervision, monitoring and maintenance.

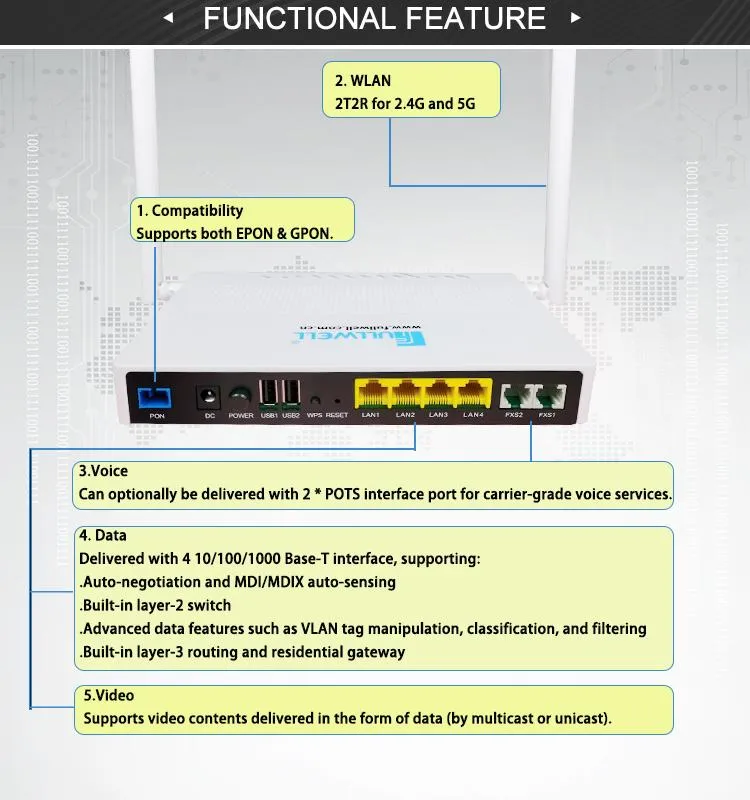

Service

Data

The FWG-SFU804GWP ONT is delivered with 4 10/100/1000 Base-T interface, supporting:

Auto-negotiation and MDI/MDIX auto-sensing
Built-in layer-2 switch
Advanced data features such as VLAN tag manipulation, classification, and filtering
Built-in layer-3 routing and residential gateway
2.4GHz 300Mbps + 5GHz 867Mbps WLAN interface
USB 2.0 storage

Video

The FWG-SFU824GWP ONT supports video contents delivered in the form of data (by multicast or unicast).

Voice

The FWG-SFU824GWP ONT can optionally be delivered with two POTS interface port for carrier-grade voice services,
supporting:

Multiple voice codec
Echo Cancelling, VAD, CNG
Supporting static or dynamic jitter buffer
Various CLASS services - Caller ID, Call Waiting, Call Forwarding, Call Transfer, etc.SIP (RFC3261)
MEGACO v2 (H.248)

To enable VoIP access, theFWG-SFU824GWP ONT also supports interfacing external IAD box or Home Router withvoice capability through the Ethernet Interface.

Specification

Optical SPEC	Working wavelength	nm	PON:TX1310,RX1490;
	The light emitting power	dBm	1 ~ +4(GPON)
	The light receiving sensitivity	dBm	≥ -27
	Optical fiber connector	/	PON:SC/UPC

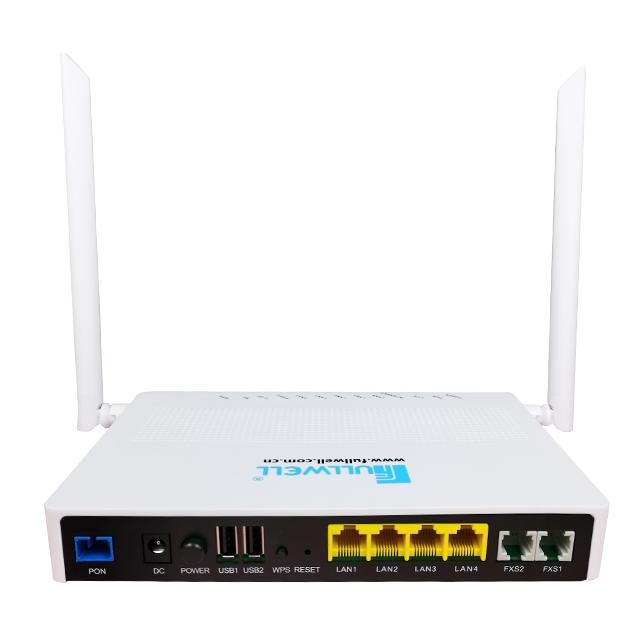

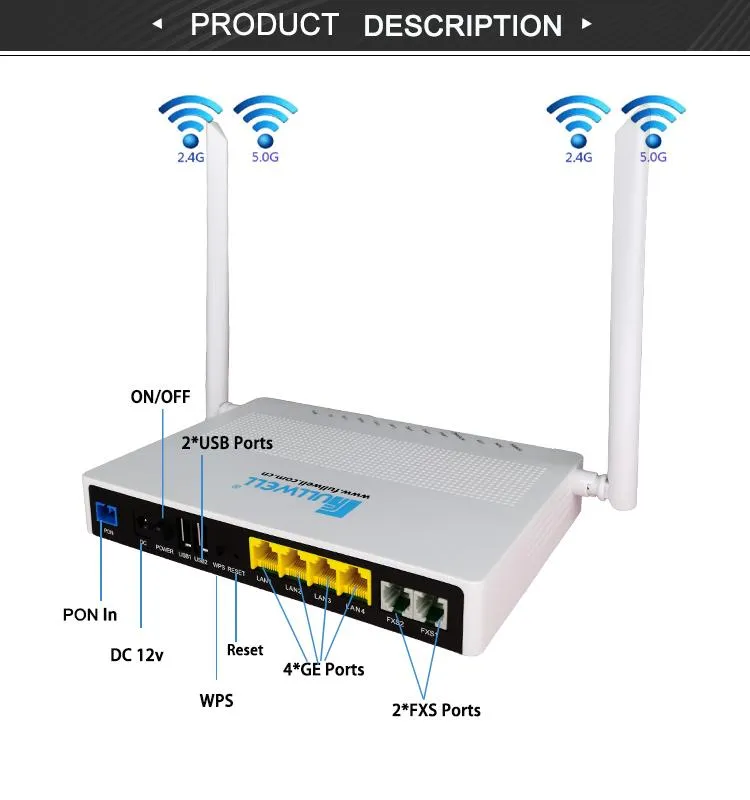

Port	The user side Ethernet ports	/	4GE
	USB	/	2
	POTS	/	2
WiFi	2.4GWiFi	/	300Mbps
WiFi	5GWiFi	/	867Mbps
Other	The power supply	V/A	AV110~255V→DC12V 1.5A
Other	Work temperature	ºC	-5~45

WwW

2.4G 300Mbps+5G 867Mbps
802.11 b/g/n/ac
Internal Antenna

Power Supply

+12V (feed via external AC/DC adapter)
2-PIN power adaptor input
Dying Gasp support
Power switch
Power Consumption: less than 12W

GPON Interface

Compliant with ITU-T G.984 GPON standards
BoSA on board optical solution
1.244Gbps Burst Mode Upstream Transmitter
2.488 Gbps Downstream Receiver
Compliant with ITU-T G.984.2 Amd1, Class B+
Wavelengths: US 1310nm, DS 1490nm
Multiple T-CONTs per device
Multiple GEM Ports per device
Flexible mapping between GEM Ports and T-CONT
Activation with automatic discovered SN and password in conformance with ITU-T G.984.3
AES-128 Decryption with key generation and switching
FEC (Forward Error Correction) in both directions
DBA reporting by piggyback reports in the DBRu (mode 0 and mode 1)
Mapping of GEM Ports into a T-CONT with priority queues based scheduling
Support Multicast GEM port and incidental broadcast GEM port.

Ethernet Interface

4GE
Ethernet port auto negotiation or manual configuration
MDI/MDIX automatically sense
Virtual switch based on 802.1Q VLAN
VLAN tagging/detagging per Ethernet port

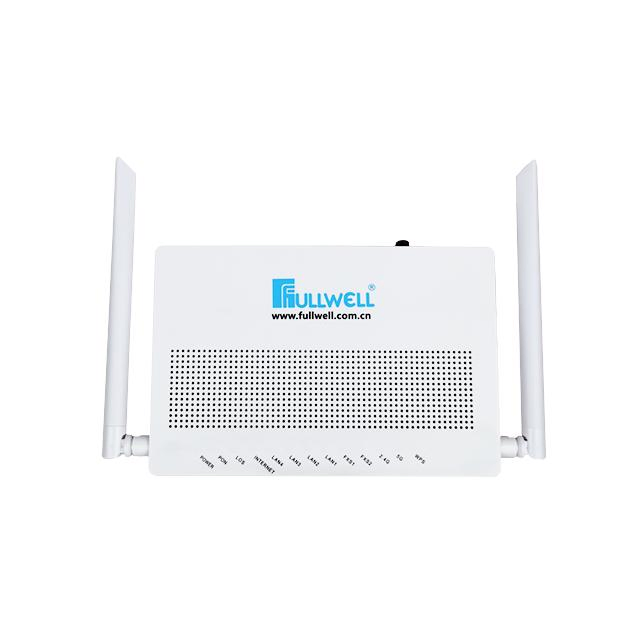

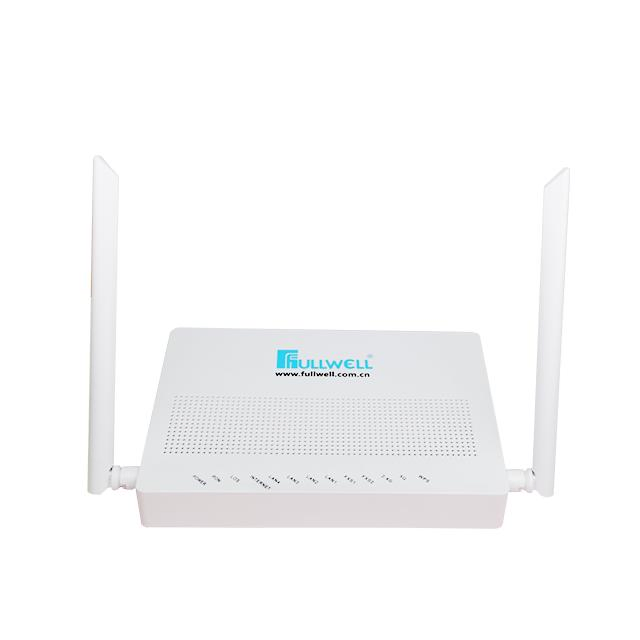

LED

USB
FXS
5G WiFi
2.4G WiFi
LAN1 - LAN4
LOS
PON
Power

OAM

Standard compliant OMCI (the embedded operations channel) interface as defined by ITU-T G.988
Alarming and performance monitoring
Remotely software image download over OMCI, as well as activation and rebooting
Hold two software sets with software image integrity checking and automatic rollback
