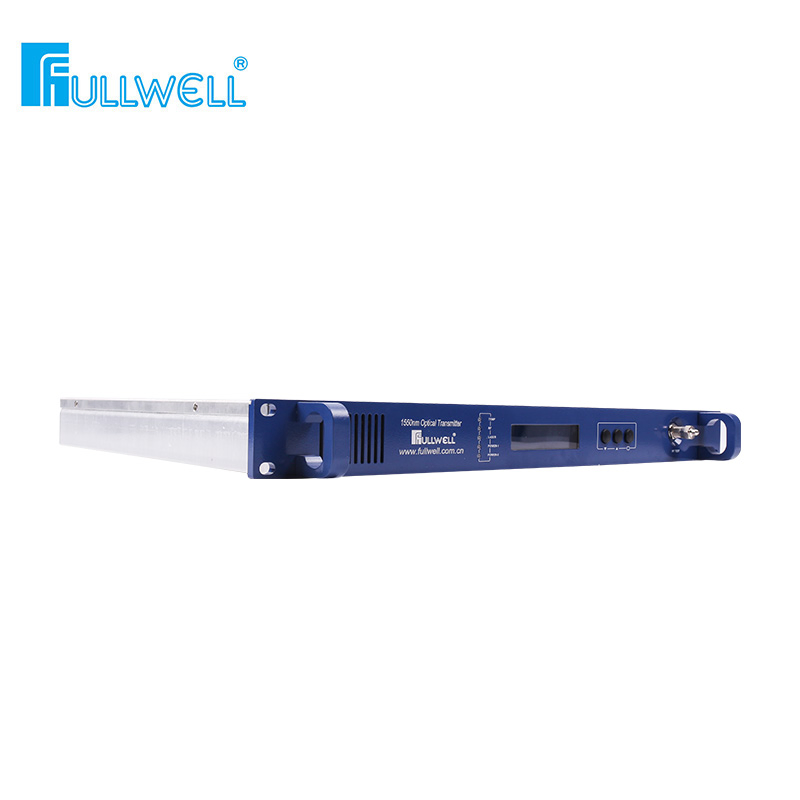

Fullwell 1550nm Internal Optical Converter

Product Description

1550nm Direct modulation Optical Transmitter
Plug-in type, Single Module
With AGC, 1 way output
FWT-1550DT -6

Fullwell 1550nm Internal Optical Converter

Product features

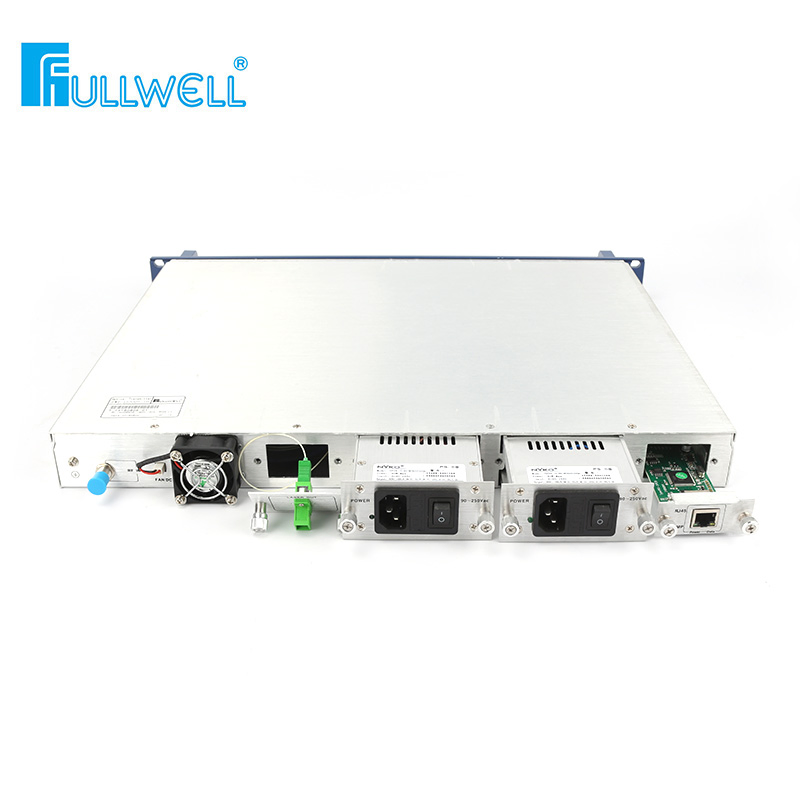

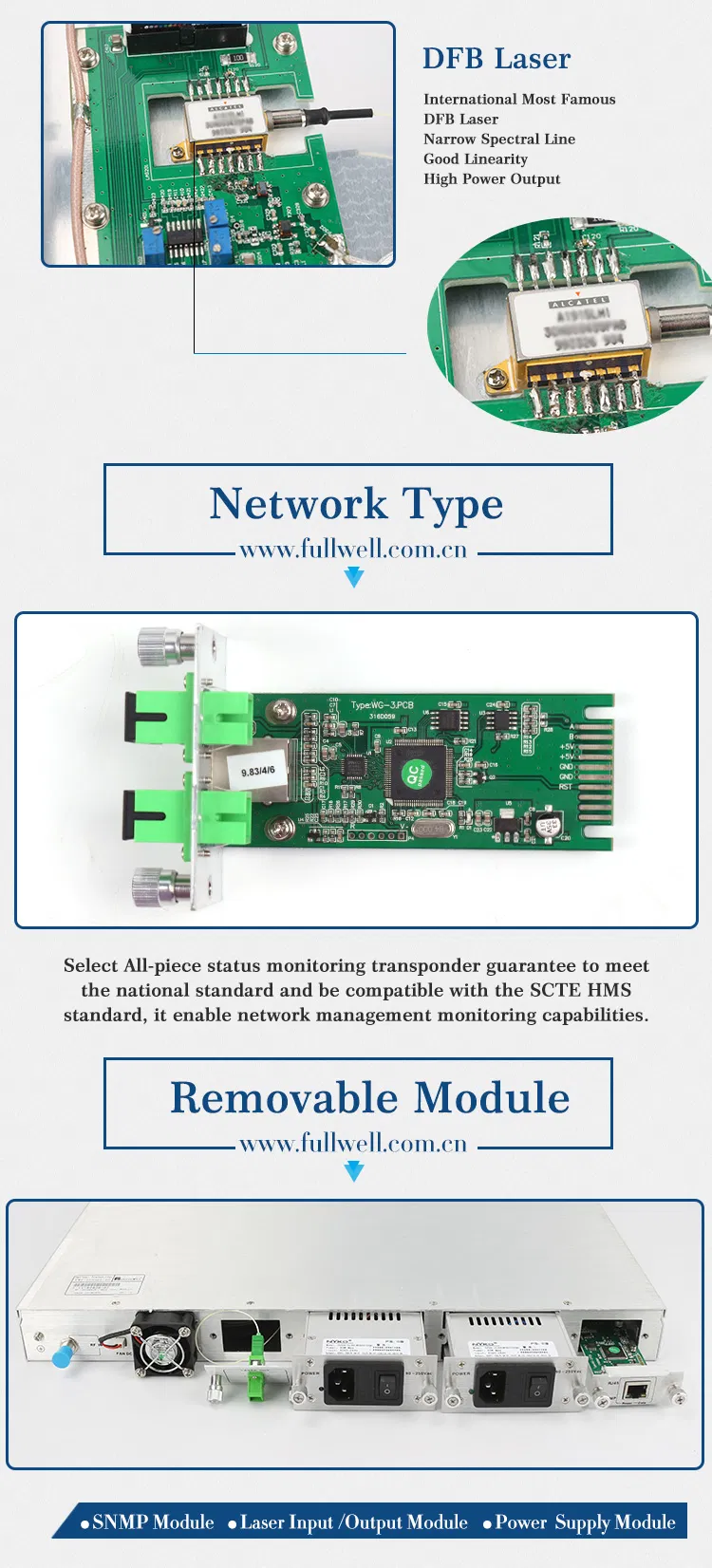

1. Pull-out type module design, DFB Laser, NEC module.
2. Output power 2....10mW.
3.C/CTB≥65.0dB, C/CSO≥65.0dB, CNR≥52.0dB

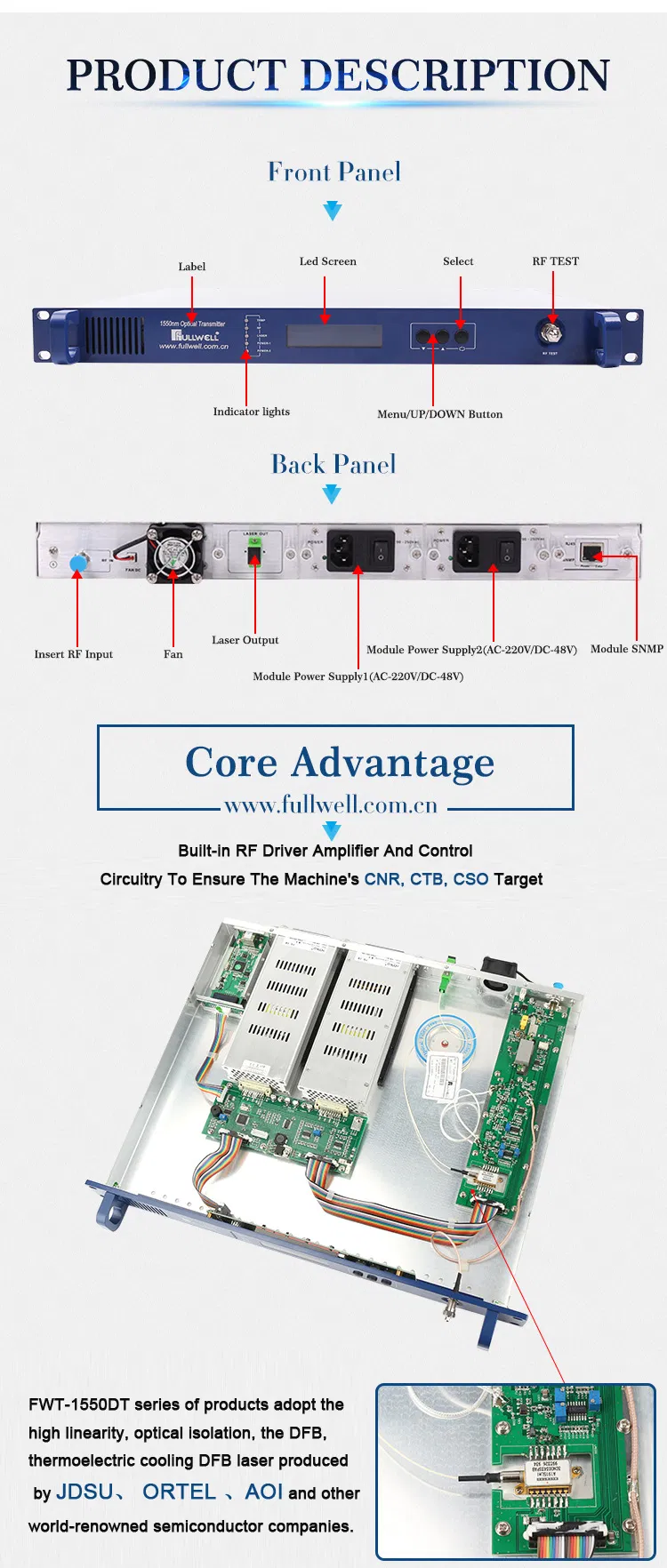

4.Front panel display for operating parameters and warming.
5.RJ45 port. SNMP web interface.
6.Hot-plug switching power supply design. (90~265V)

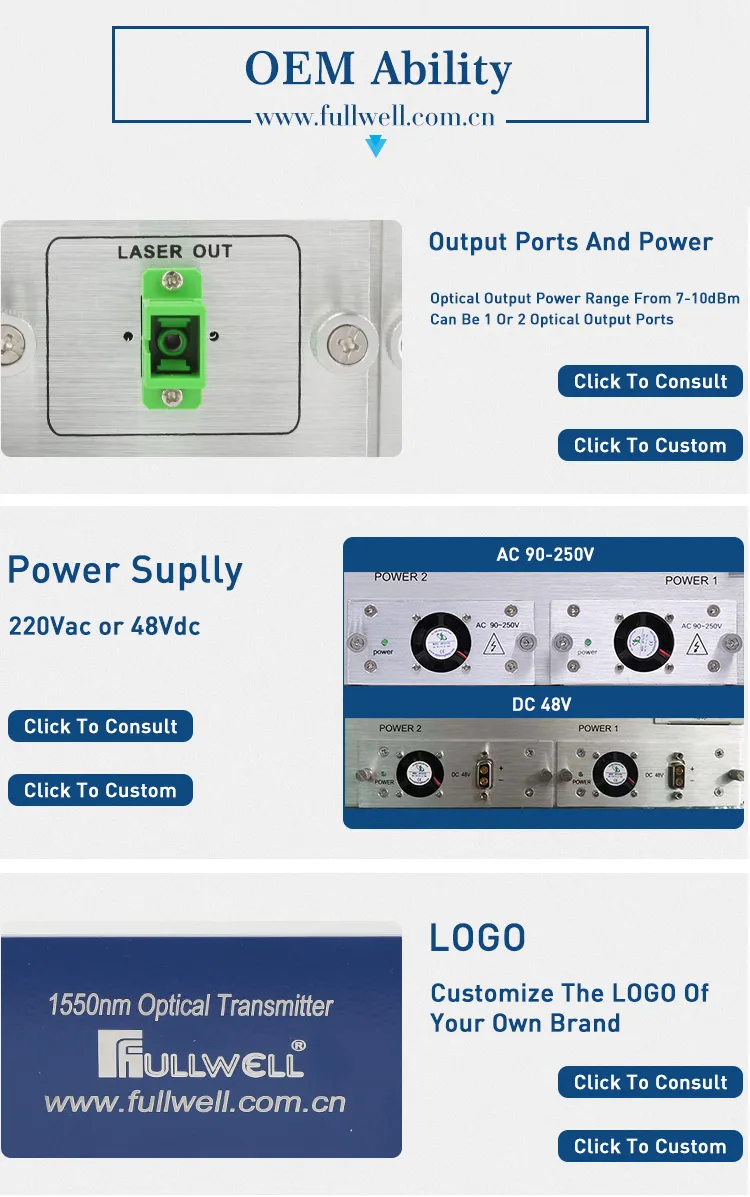

7. OEM offered.

Modules main technical indexes

Serial No.	Project	Unit	Parameter	Remark
1	Laser model		DFB
2	Optical wavelength	nm	1550±10	if it is different from the wavelength, please marking before order
3	Optical modulation modes		Internal modulation
4	Optical output power	mW	6mW (2~10)
5	Optical connector form		FC/APC, SC/APC optionally	Please marking before order
6	Frequency range	MHz	45~750(862)
7	Carrier to Noise ratio	dB	≥52.0	According to GY/T143-2000 6.2.3.5
8	Flatness	dB	±0.83	According to GY/T143-2000 6.2.4
9	RF input signal level	dBuV	78~88	AGC automatic control
10	C/CTB	dB	≥65.0	According to GY/T143-2000 6.2.5
11	C/CSO	dB	≥65.0	According to GY/T143-2000 6.2.5
12	RF input impedance	Ω	75
13	RF input reflection loss	dB	>16(47~550)MHz	According to GB/T11381.1
13	RF input reflection loss	dB	>14[550~750(862)MHz	4.2.2.2.5
14	Power supply	V	90~265 mains
15	power consumption	W	≤50	Single power source
16	Power source			Plug-fuse double power backup
17	Operating temperature	ºC	0~50	Automatic chassis controls temperature
18	Storage temperature	ºC	, -20~85
19	Working relative humidity	%	20%~85%

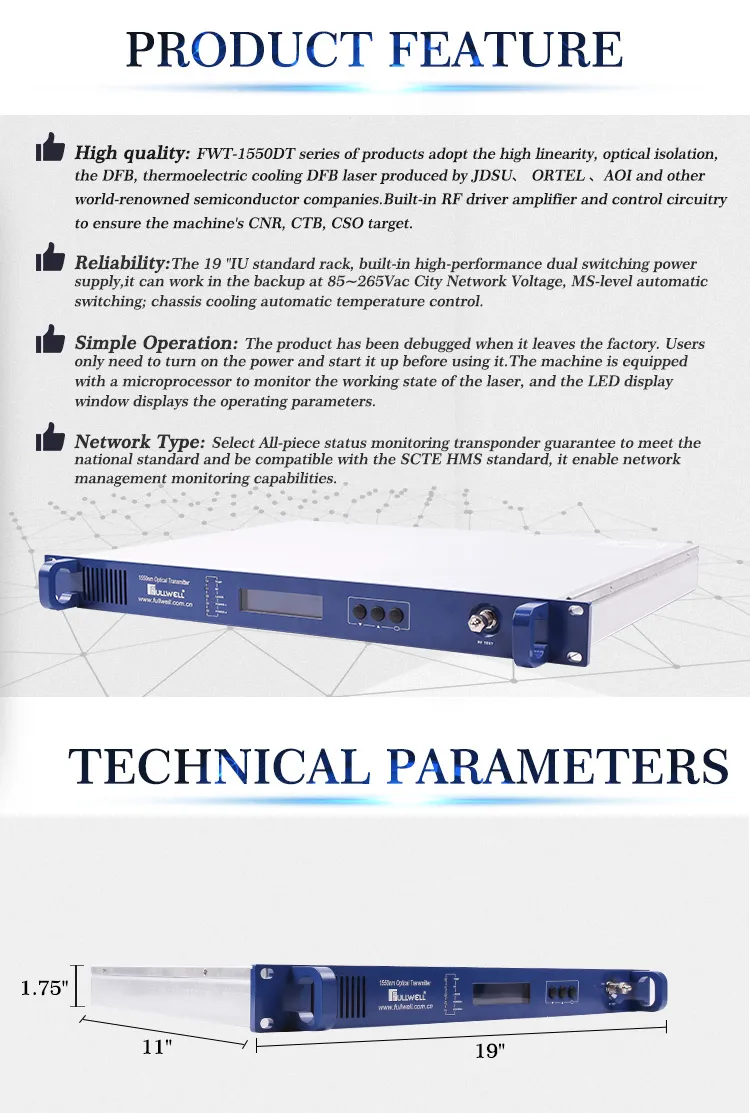

20	Size	″	19″×11″×1.75″	(W)x(D)x(H)
21	Network management interface		RJ45	Support browser and SNMP

FAQ
1. What are your terms of payment?

Usually, we can accept T/T, PayPal, and Western Union. You can select the terms of payment which is more convenient for you.

2. What about the lead time?

Usually, if there is a stock of goods, we will deliver the goods within 3~5 working days after we receive the payment.

3. How about the shipping?

Usually, we will deliver the goods via International Express like FedEx, DHL, TNT, and UPS and so on. Door to door delivery service will be provided.

4. How can I place an order?

(1) The agreement is achieved on the product price and product specifications.

(2) We make a proforma invoice for your confirmation.

(3) When you agree on the proforma invoice, you make the payment.

(4) We deliver the goods after we receive your payment.

5. Can you do OEM for us?

Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.

6. What are the advantages of your products?

A. Good quality and competitive prices.

B. Strict quality control during production process.

C. Professional operations in processes of production, sales, assembling, packaging, and shipping.

D. Good after-sale service. Professional online technical support can be provided. Moreover, if there is any problem with the goods, we will help to solve the problem or provide replacement of the goods.
