Fullwell 10g Xgs-Pon FTTH Wdm Optical Node
FWR-8610RW-XGS, Smart 10 Gigabit WDM Optical ReceiverProduct DescriptionThe WDM optical receiver is based on HUAWEI and FULLWELL in 2013 to create a smart hotel solution: a convenient, safe and easy-to-maintain network construction solution that carries hotel voice, broadband Internet access, CATV a......
Send Inquiry
Product Description

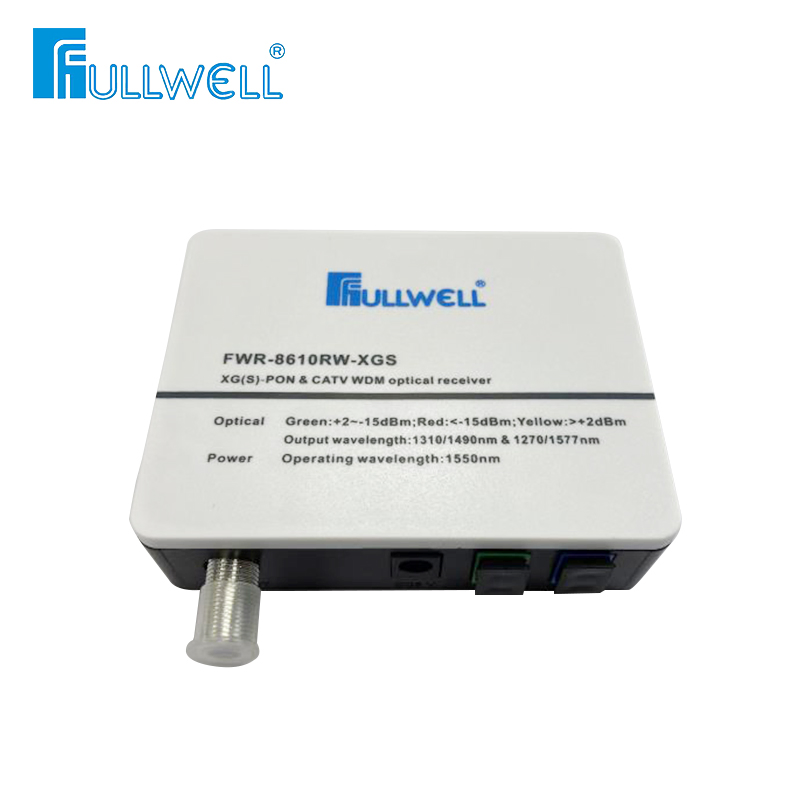

FWR-8610RW-XGS, Smart 10 Gigabit WDM Optical Receiver
Product Description
The WDM optical receiver is based on HUAWEI and FULLWELL in 2013 to create a smart hotel solution: a convenient, safe and easy-to-maintain network construction solution that carries hotel voice, broadband Internet access, CATV and other information on a single network. With its industry-leading triple play equipment, FULLWELL has produced a series of telecommunication-grade products of WDM optical receiver.

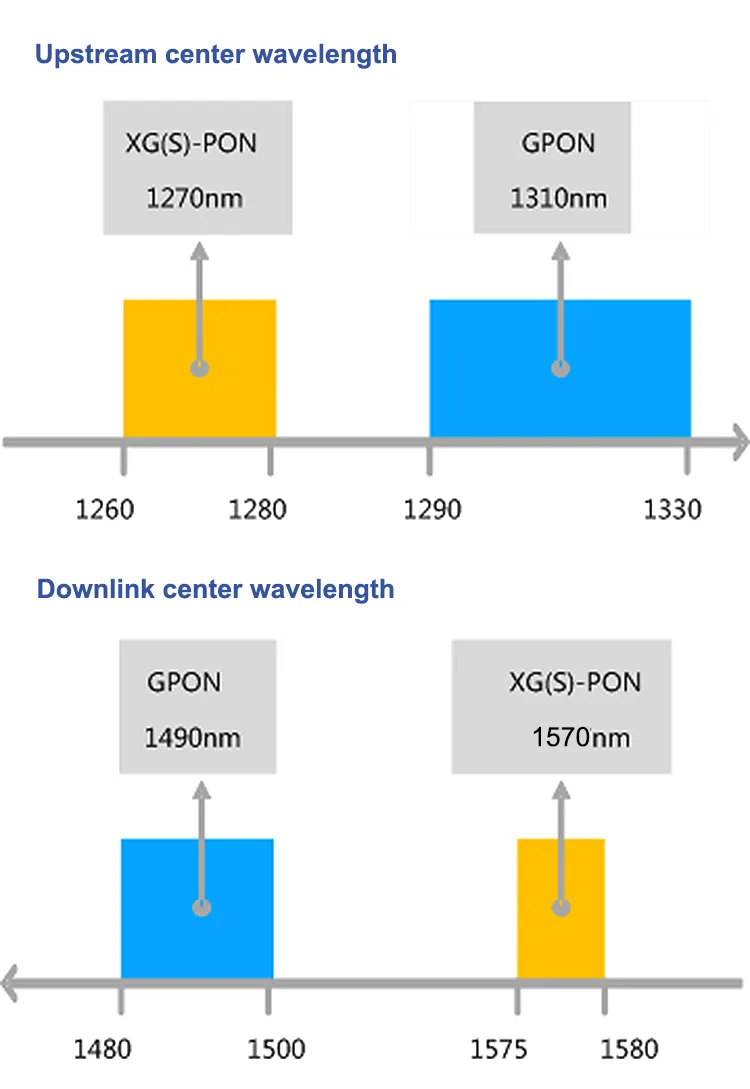

FWR-8610RW WDM optical receiver adopts high isolation and WDM technology to separate CATV and 10 Gigabit ONU signals, which can meet FTTH requirement of CATV + XG (S) -PON optical network, receiving 1550nm CATV signal and PON output signals (1310 / 1490nm & 1270 / 1577nm).

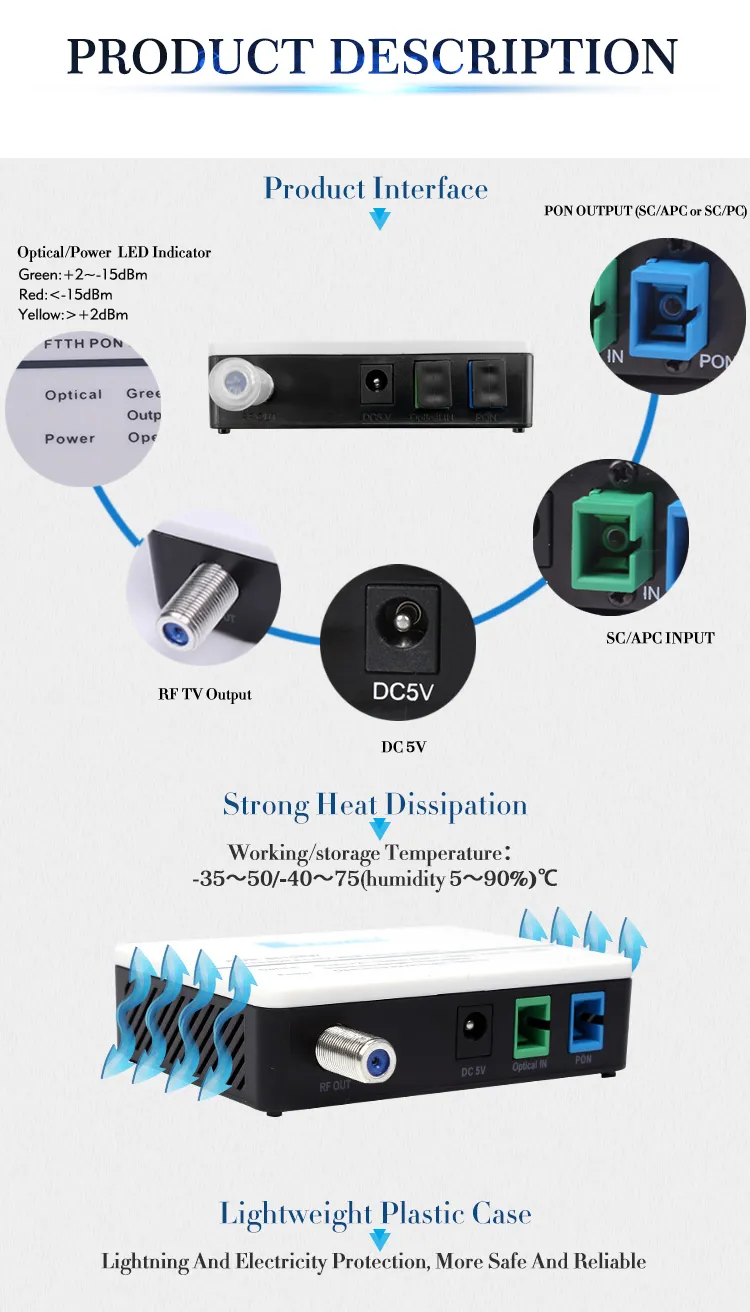

FWR-8610RW WDM optical receiver uses high-bandwidth and high-sensitivity photocells, low-noise matching circuits, GaAs amplification, low optical power receiving and RF-AGC technology. Receiving power range from -18 to + 2dBm, Light control AGC: -12~-2dBm, RF rated output 82dBuv, and there is also an optical power receiving monitoring LED indicator (≥-15dBm) on the panel. Industry-leading 5V power adapter, non-stop work design for more than 5 years, FWR-8610RW is an ideal WDM optical receiver for FTTH single fiber to home network.

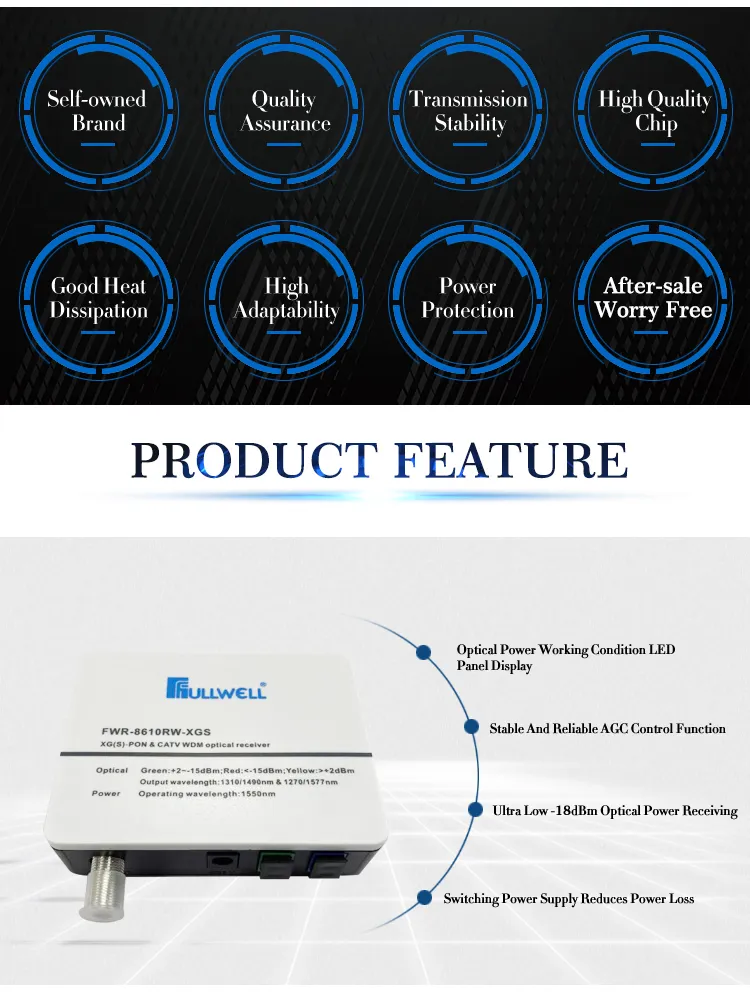

Product Feature
PIN optical receiving power, -1dBm receiving sensitivity, AGC receiving range: -2 ~ -12dBm, output stable level: 82dBuv.
Wide bandwidth type: 47 ~ 1000MHz working bandwidth.

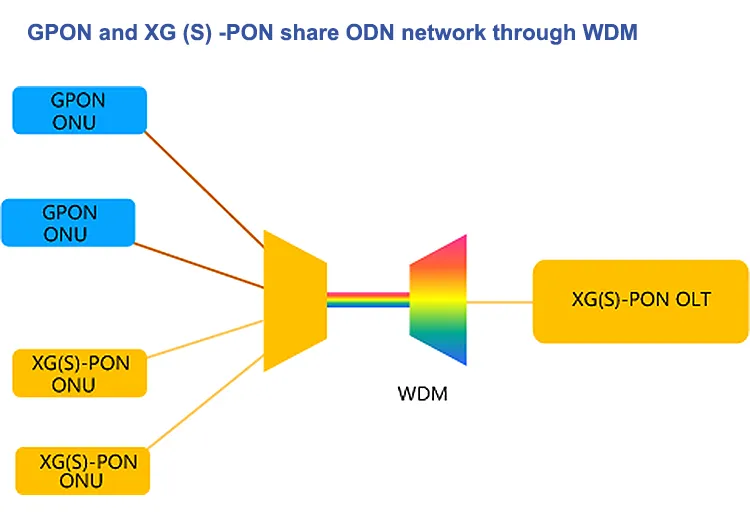

One fiber can receive long-range CATV RF signals and XG(S)-PON output signals at the same time.
It can be used along with the FULLWELL optical transmitter and WDM EDFA for FTTH triple play transmission
and coverage.
Industry-leading 5V power adapter, non-stop work design for more than 5 years.
Can be compatible with any FTTx XGS-PON triple play optical network.
Plastic enclosure with white top cover and black base, exquisite texture appearance, to demonstrate brand strength.
Technical Parameters
| Items | Unit | Parameter | |
| Input Wavelength | (nm) | 1310/1490 & 1270/1577nm,1550 | |
| Output Wavelength | (nm) | 1310/1490 & 1270/1577nm | |
| Operation Wavelength | (nm) | 1540~1560 | |
| Channel Separation | (dB) | ≥40(1310/1490 & 1270/1577nm and 1550nm ) | |
| Responsivity | (A/W) | ≥0.9 | |
| Receiveing Power Range | (dBm) | +2~-18 | |
| Reflection Loss | (dB) | ≥55 | |
| Fiber Link | / | SC/APC | |
| PON Link | / | SC/UPC (Optional SC/APC) | |
| Bandwidth/Flatness | MHz/dB | 47-1000/≤±1 | |
| Output Level | dBuv | 1 RF | AGC: 82±1/(-2~--12dBm) |
| 2RF(Optional) | AGC: 78±1/(-2~--12dBm) | ||
| Adj. Range of Output Level | dB | 0~15(Customized) | |
| Reflection Loss | dB | ≥14(75Ω Characteristic Impedance) | |
| RF Output Interface | / | 1 Way Output Male (or Two-Way Output or Female) | |
| CNR/MER | dB | ≥44/34(PAL-D 60CH, OMI3.8%, -9dBm) | |
| CTB/CSO/HUM | dB | ≥65/≥60/≥60(-1dBm Receive) | |
| Power Supply/Consumption | V/W | AC100~240V→DC5/3 | |
| Working/Storage Temperature | ºC | -35~50/-40~75 (Humidity 5~90%) | |
| Dimension | mm | 95×92×23 | |
Product Model Series
FWR-8610RW-XGS, WDM XG(S)-PON optical receiver
Please feel free to send inquiry to us for more details of this product or other products in our showroom.
