Fullwell 1 & 2 & 4 & 8 Ports CATV Optical Amplifier / 1550 EDFA
Fullwell CATV Optical Amplifier / 1550 EDFA FeaturesAdjustable output power: Adjustable output power range(0~ -3dB), The user specified when ordering.1. CATV 1550nm EDFA, 13 ~ 26dBm2. Four ports output, per port output 10-22 dBm 3. New Pump, 100% new first-hand pump4. Stable output optical ......
Send Inquiry
Product Description
Features
Adjustable output power: Adjustable output power range(0~ -3dB), The user specified when ordering.
1. CATV 1550nm EDFA, 13 ~ 26dBm
2. Four ports output, per port output 10-22 dBm
3. New Pump, 100% new first-hand pump
4. Stable output optical power
5. Long lifetime
Application
1. CATV 1550nm EDFA amplify the optical signal
2. output optical power stable and sustaining
Fullwell Manufacturer Service
1. Mature technical support
2. Perfect sell service
3. Free OEM service, laser your logo
Technical Index
Equipment type Item | FWA-1550T |
Wavelength (nm) | 1545~1555 |
Optical input power (dBm) | -5~+10 |
Nominal optical input power (dBm) | +3 |
NF(dB) (+3 dBm,@1550nM) | 3.8~5.5 |
Gain Flatness (dB) | <±0.3 |
Optical output power stability (dB) | <±0.5 |
Polarization Sensitivity (dB) | <0.2 |
Polarization mode dispersion (ps) | <0.5 |
Optical connector (IN/OUT) | FC/APC or SC/APC |
Working pump quantity (N) | 1-3 |
Saturated output power (dBm) | 13-22 |
Power source (Vac) | 95~265 |
Power source (Vdc) | 48 |
Working temperature (ºC) | 0~50 |
size(mm) | 482.6×387×44 |

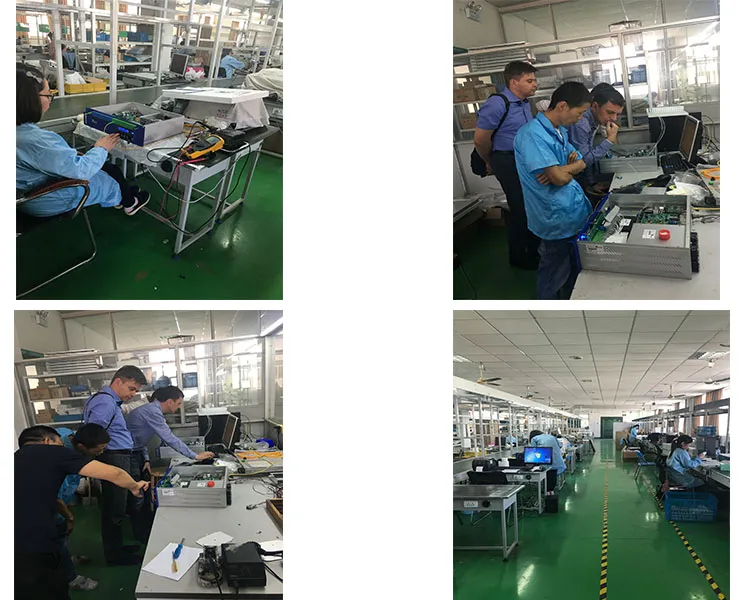

Workshop View
Package
1. What are your terms of payment?
Usually, we can accept T/T, PayPal, and Western Union. You can select the terms of payment which is more convenient for you.
2. What about the lead time?
Usually, if there is the stock of goods, we will deliver the goods within 3~5 work days after we receive the payment.
3. How about the shipping?
Usually, we will deliver the goods via International Express like FedEx, DHL, TNT, and UPS and so on. The door to door delivery service will be provided.
4. How can I place an order?
(1) The agreement is achieved on the product price and product specifications.
(2) We make proforma invoice for your confirmation.
(3) When you agree on the proforma invoice, you make the payment.
(4) We deliver the goods after we receive your payment.
5. Can you do OEM for us?
Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.
6. What are the advantages of your products?
A. Good quality and competitive prices.
B. Strict quality control during production process.
C. Professional operations in processes of production, sales, assembling, packaging, and shipping.
D. Good after-sale service. Professional online technical support can be provided. Moreover, if there is any problem with the goods, we will help to solve the problem or provide replacement of the goods.
If you have another question, please feel free to contact me directly as below:
Hangzhou Fullwell Optoelectronic Equipment Co., Ltd
Add:A2-1305,Qimeng Science & Innovation Park,No.1899,Gudun Road,Hangzhou, China
Contact person: Leo Yao
"Design and manufacture the most reliable and efficient FTTH CATV equipment products in the industry."
