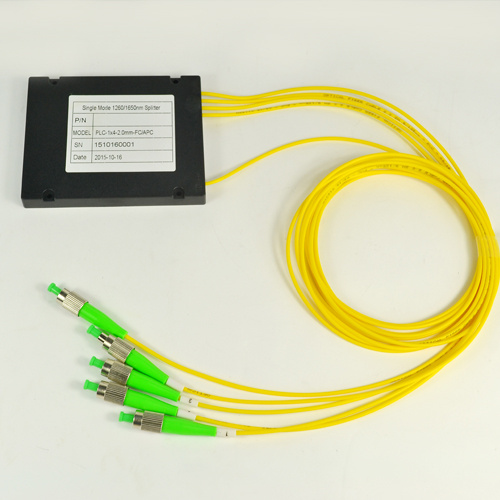

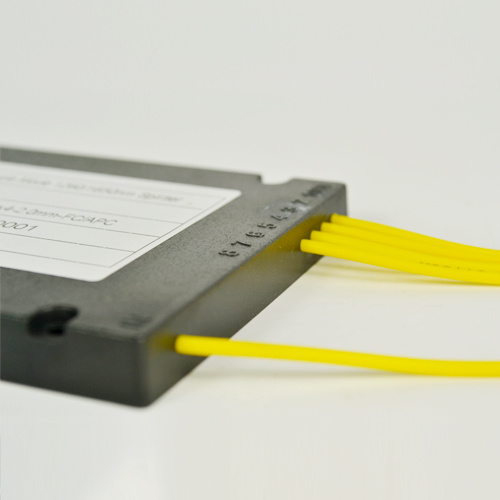

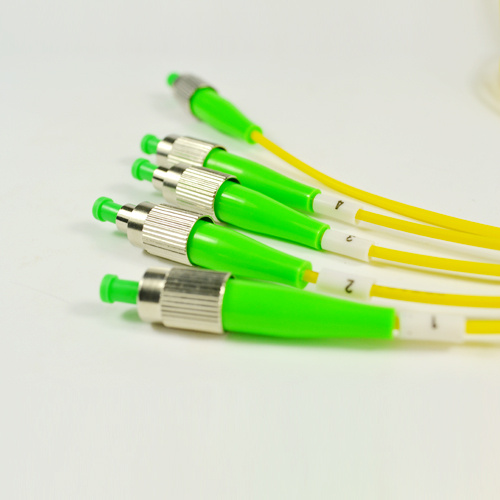

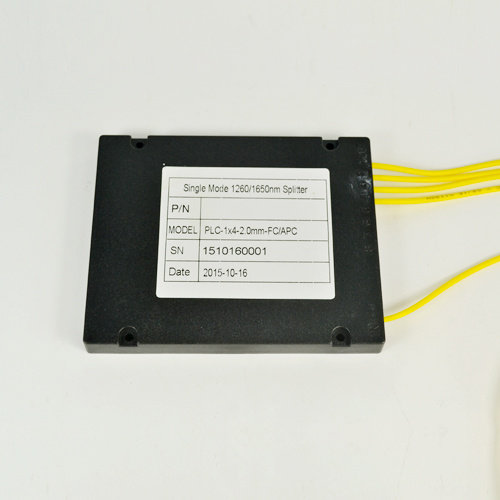

FTTX Networks Fiber Optics Splitter 1 X 4 with FC/APC Connector

FTTX Networks Fiber Optics Splitter 1 X 4  with FC/Apc Connector


1XN Series PLC(Planar Lightwave Circuit) Splitter
Products Overview:
Planar waveguide light optical distributor (PLC Splitter), is a kind of planar waveguide integrated
optical device, it can be 1260nm ~ 1650nm such a wide range of wavelengths of light power
reservation in realization, the distribution of wavelength range covers EPON technology used
1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive
optical network access technology FTTP fiber network system, broadband passive optical optical
distributor (POS) use.
Features Applications
Low insertion loss and high uniform
Low polarization relevant
Redundant reliability
FTTX application
CATV network
Passive Optical Network(PON)

Performance Specifications:
Type 1x2 1×4 1×8 1×16 1×32 1×64 1x128
Operating Wavelength(nm) 1260~1650
Insertion loss (dB)
Typical 4.0 7.2 10.3 13.8 16.8 20.2 23.5
Maximum 4.2 7.4 10.5 14.0 17.0 20.4 23.7
Uniformity (dB) Maximum 0.8 0.8 0.8 1.0 1.2 2.0 2.0
Polarization Dependent
Loss (dB)
Maximum 0.1 0.1 0.1 0.2 0.2 0.2 0.2
Return loss (dB) Minimum ≥50
Directivity (dB) Minimum ≥55
Operating temperature (ºC) -20 to75
Storage temperature (ºC) -40 to 85
Optical fiber type SMF-28 Or the customer require
Optical fiber length (m) 1.0 or customize
3. The Insertion Loss, if with connector, PC/UPC will be 0.2dB higher; APC connector will be
0.3dB higher.
4. Return Loss, if with connector APC>60dB,UPC>55dB.
