FTTX Closure 16cores with Snaplock Waterproff Fiber Closure with Splitter and Distribute Joint Closure

Product Description

Fttx Closure 16cores with snaplock waterproff Fiber Closure with splitter and distribute Joint Closure

Products Description

S305 Fiber Optical Splice Closure

Horizontal Closure provide space and protection for fiber optic cable splicing and joint. They can be mounted aerial, buried, or for underground applications. They are designed to be waterproof and dust proof. They can be used in temperature ranging from -40°C to 85°C, can accommodate 70 to 106 kpa pressure and the case are usually made of high tensile construction plastic.

Product Name	FAT-16A Inline type fiber optic splice closure
Weight	1.65kg
package	10pcs/carton
carton size	623142 cm
Material	PP+fiberglass
Cable Ports	6 cable ports+16 drop cable ports
Core capacity per tray	24 cores per tray
Max. Capacity of Trays	1 trays
Diameter of in/out ports	20mm&11mm
Installation	Aerial, and Wall-mounted

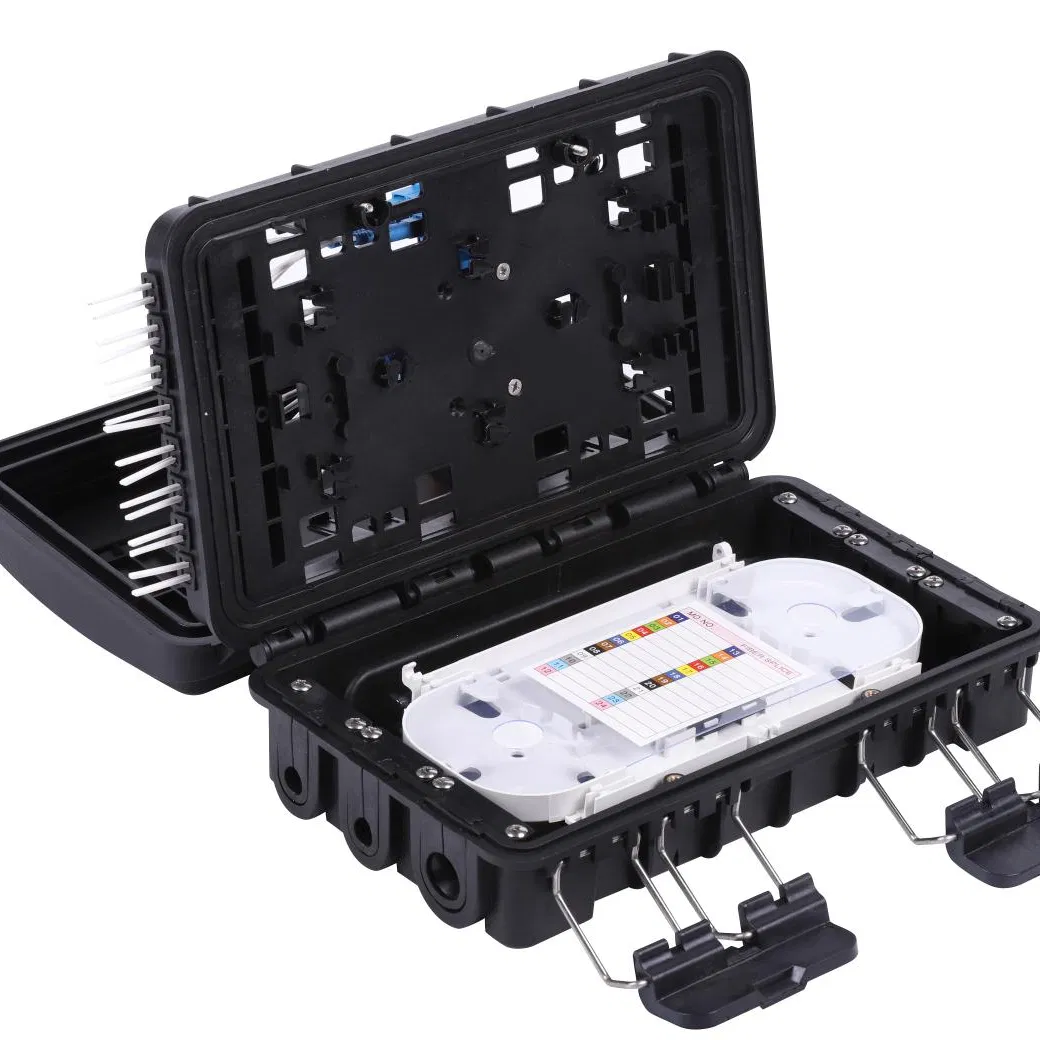

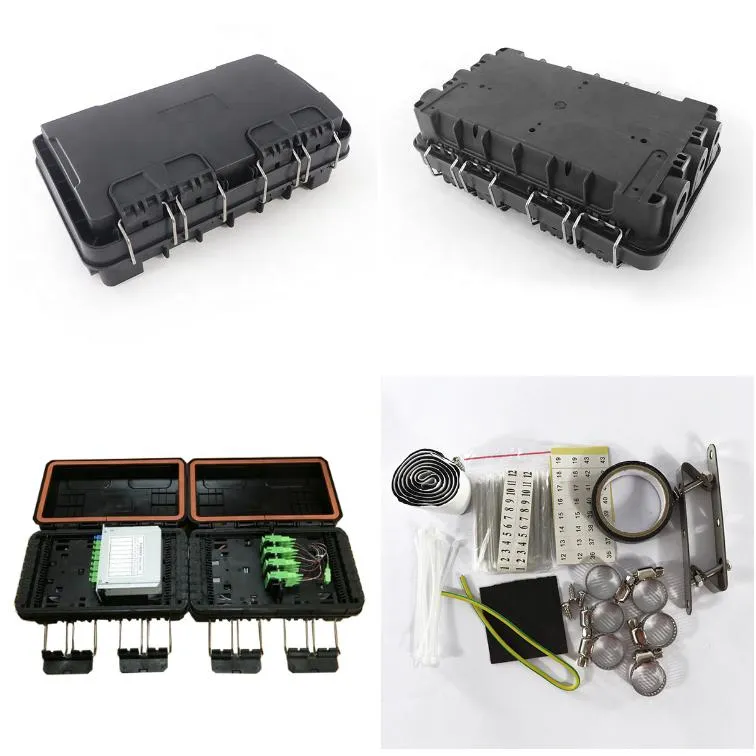

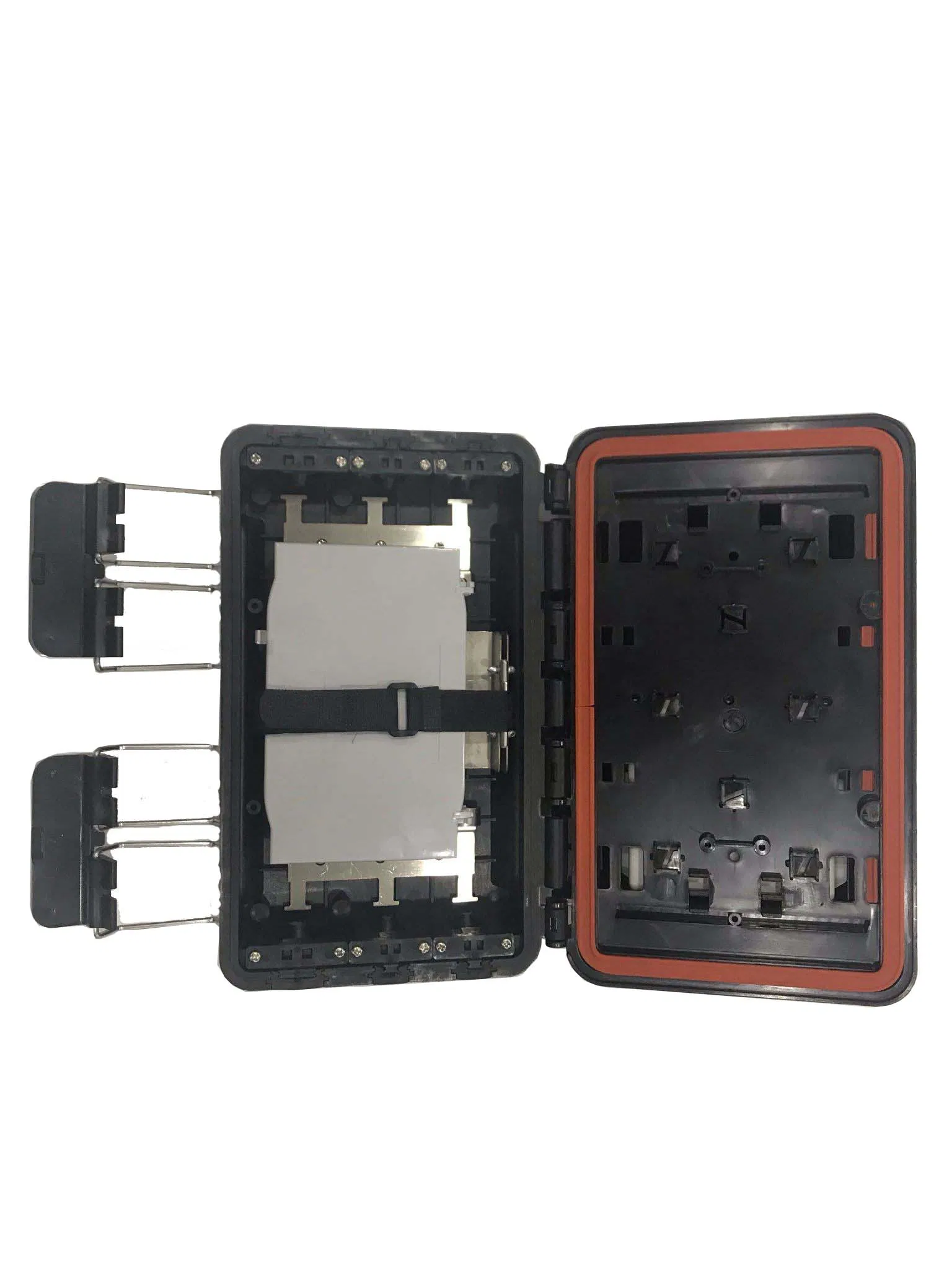

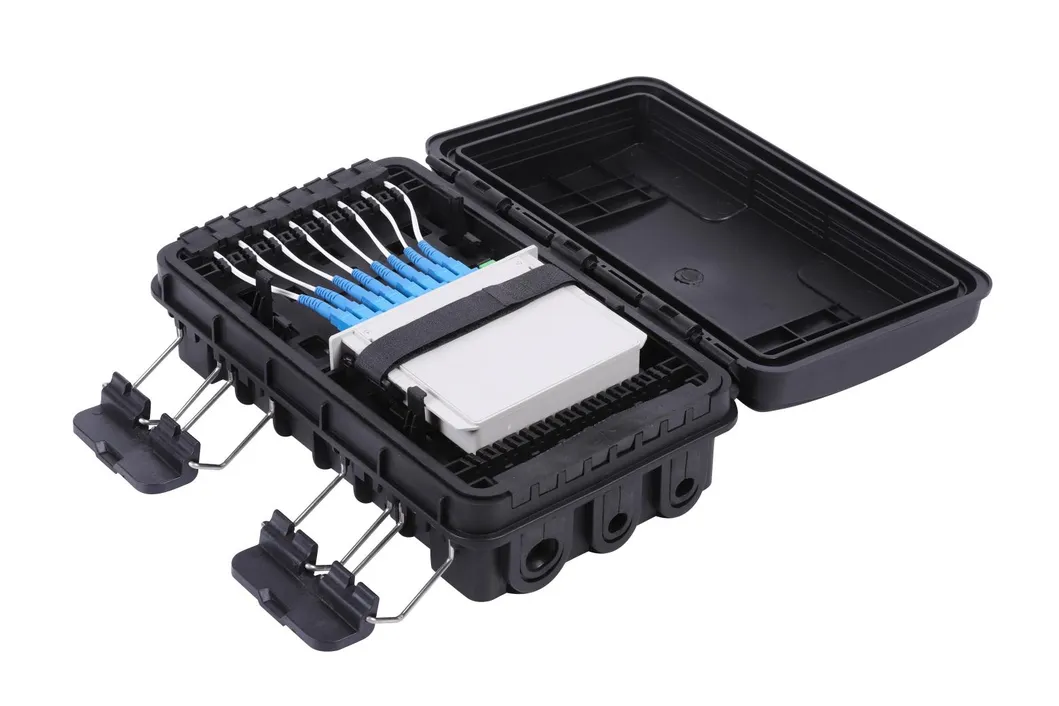

Product Show

FTTX Closure 16cores with Snaplock Waterproff Fiber Closure with Splitter and Distribute Joint Closure

Characteristics	Value/Performance	Methods and Conditions
Mechanical
Air Tightness	No air bubble seen	Put closure under water for 15min with closure's internal air pressure set at 100kPa±5kPa.
Air Tightness	Remains100kPa±5kPa	Measure the internal pressure 24 hours later
Air Tightness after re-installation	No air bubble seen and pressure remains unchanged	Do re-entry and re-installation 3 times and repeat above Air Tightness Tests.
Axial Pulling	Pressure remains unchanged	Pulling force: 1000N Time: 1min Internal air pressure: 60kPa±5kPa
Compression	Pressure remains unchanged	Applied pressure: 2000N/100mm Time: 1min Internal air pressure: 60kPa±5kPa
Impact	Pressure remains unchanged	Impact energy: 16N.m No. of impacts: 3 Internal air pressure: 60±5kPa
Bending	Pressure remains unchanged	Bending angle±45°(in two opposite directions) Tension: 150N No. of bending: 10 Internal air pressure: 60kPa±5kPa
Twisting	Pressure remains unchanged	Twisting angle: ±90° Torque: 50N No. of twisting: 10 Internal air pressure: 60kPa±5kPa
Thermal
Temperature Cycling	Pressure drop ≤5kPa	Cycling range: -40 ~ +60°C Cycling time: 2hrs at -40°C, then 2hrs at +60°C No. of cycling: 3 Internal air pressure: 60kPa±5kPa
Electrical
Insulation	Resistance between metal parts:2.0x105MΩ	Soak closure into water in 1.5m-depth for 24hrs, and measure the insulation resistance after taking it out of water.
Insulation	Resistance between each metal part and ground:2.0x105MΩ
High Voltage	No voltage break-downs and sparks	Soak closure into water in 1.5m-depth for 24hrs, then apply 15kV DC to the metal parts inside
