FTTH Terminal Box Waterproof IP66 Outdoor 48/72/96 Core Fiber Optic PLC Splitter Patch Panel Termination Distribution CTO Box Wholesale Price White/Balck Color

Fiber Optic Terminal BoxOTB-S96 seriesOTB-S96 is used for fiber optical cable splicing, distribution, connection and protection. It is made by ABS plastic. Features:1. OTB-S96 1) Different adapter panel, SC, LC, ST, FC ... 2) 96 adapter port 3) Max. 8......

Send Inquiry

Product Description

Fiber Optic Terminal Box
OTB-S96 series

OTB-S96 is used for fiber optical cable splicing, distribution, connection and protection. It is made by ABS plastic.

Features:
1. OTB-S96 1) Different adapter panel, SC, LC, ST, FC ...
2) 96 adapter port
3) Max. 8pcs splice tray for 192 fiber splicing (splice tray in both side, each side 4pcs)
4) Max. 8pcs PG21 cable port
5) Waterproof IP65

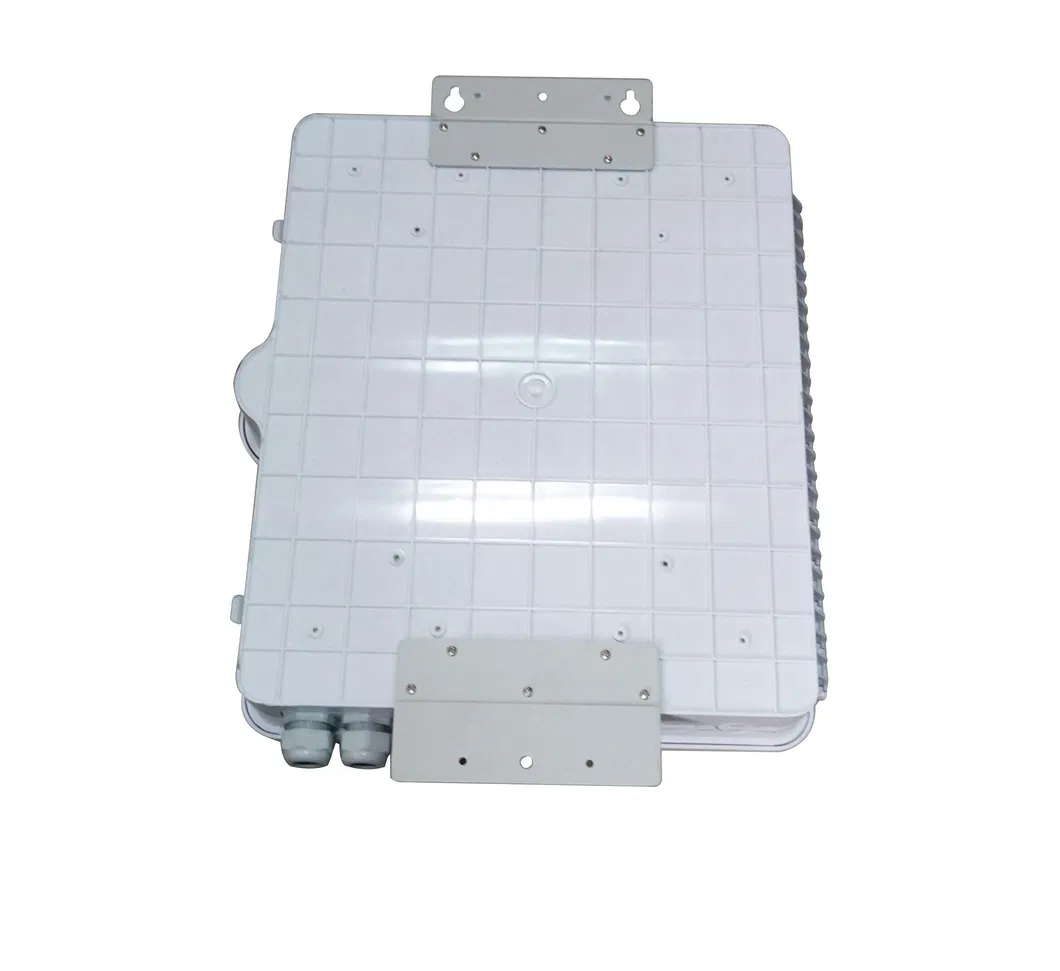

6) Wall mounted or pole mounted application

2. OTB-S96A 1) Different adapter panel, SC, LC, ST, FC ...
2) Support cable entry without cutting
3) Max. can load 8pcs 1:8 or 1pc 1:64 box type splitter
4) 72 adapter port

5) Max.4pcs splice tray for 96 fiber splicing (splice tray in one side)
6) Max. 6pcs PG21 cable port + 2 rubber cable port

7) Waterproof IP65
8) Wall mounted or pole mounted application

2. OTB-S96B 1) Different adapter panel, SC, LC, ST, FC ...
2) Support cable entry without cutting
3) Max. can load 8pcs 1:8 or 1pc 1:64 box type splitter
4) Support FTTH drop cable entry/exist
5) 72 adapter port
6) 2pcs splice tray for 48 fiber splicing (splice tray in one side)

7) Max. 6pcs PG21 cable port + 2 rubber cable port

8) Waterproof IP65
9) Wall mounted or pole mounted application

Application:

FTTH access network
Telecommunication Networks
CATV Networks
Data communications Networks
Local Area Networks

Specification:

Model	Adapter port	Dimension(mm) *WHD*	Splitter space
OTB-S96	96	397 ×467×125	No
OTB-S96-A	72		Max. 8pcs 1:8 or 1pc 1:64 box type splitter
OTB-S96-B	72		Max. 8pcs 1:8 or 1pc 1:64 box type splitter

Who we are:

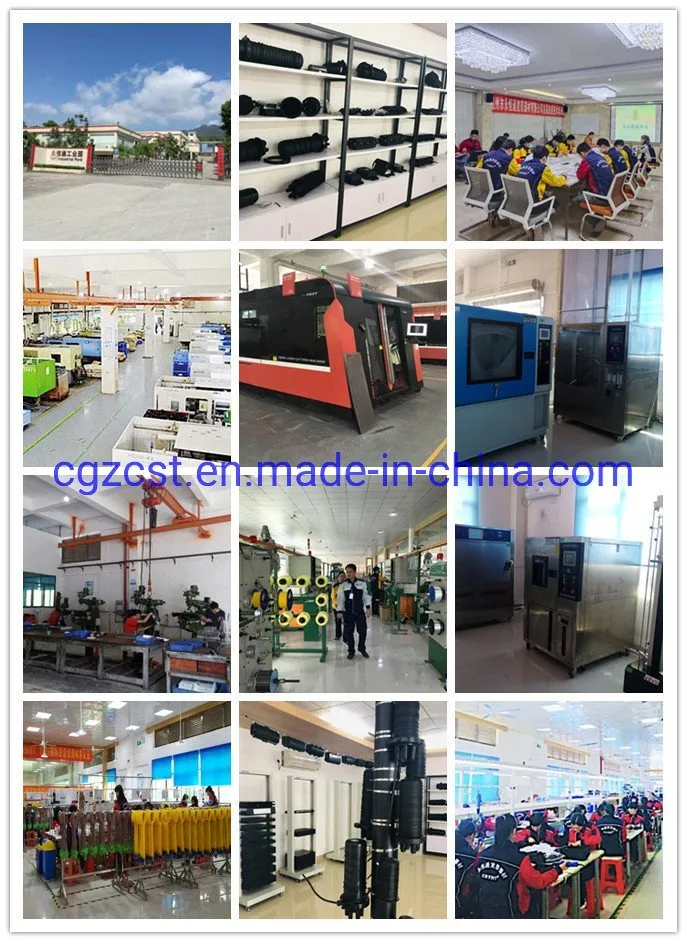

Guangzhou CST is a 18 years experienced fiber optic component manufacturer.

It is a high technology qualified company that specializing in R&D, manfacture and sell of fiber optic distribution and termination products. we are qualified by ISO9001:2015 and ISO14001:2015.

The main products include fiber optic patch panel, distribution box, ODF, FTTH box, fiber optic splice closure, optic splitter box, cabinet, connectors, fiber patch cord, pigtails, adapters etc which are widly used in FTTx, GPON, CATV and telecommunications.
Up to now, we have served more than 80 countries and district all around the world.
Thanks to the professional service and hardworking of the whole company employees, we have ranked amount the top 5 manufacturering enterprised in mainland China.
