FTTH Steel Mini Type 1X8 PLC Splitter Single Mode Sc/Upc Fiber Optic Splitter
FTTH Steel Mini Type 1X8 PLC Splitter Single Mode SC/UPC Fiber Optic SplitterProducts OverviewDYS Fiber Optic PLC (planar lightwave circuit) splitter is fabricated by using silica optical waveguide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reli......
Send Inquiry

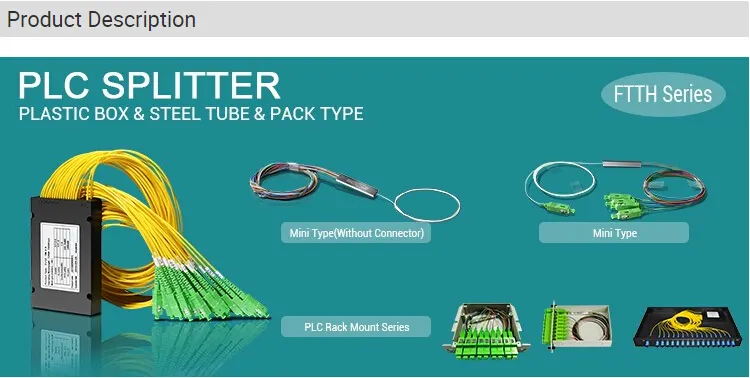

Product Description

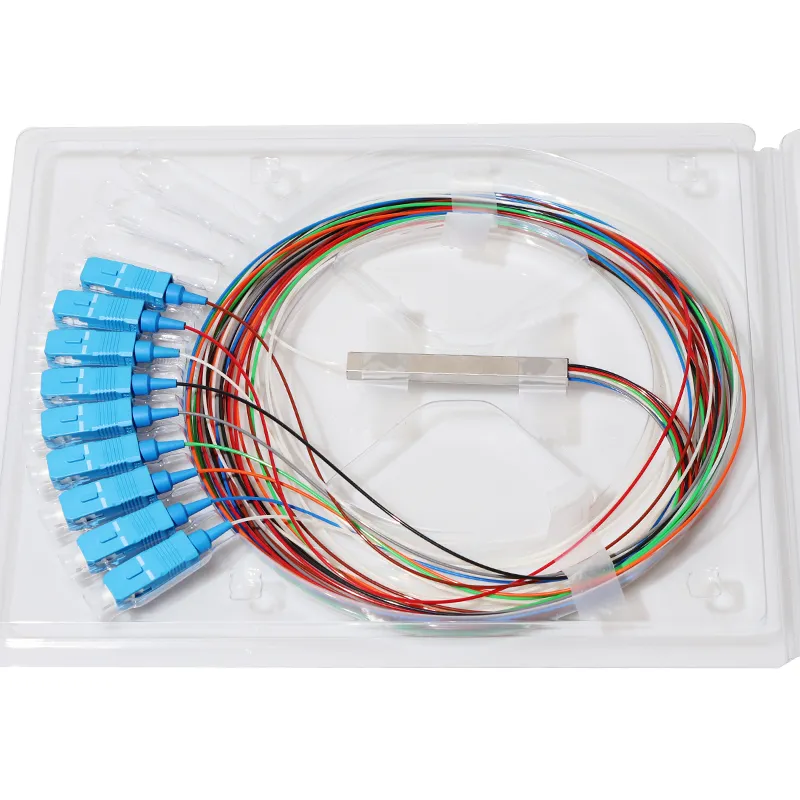

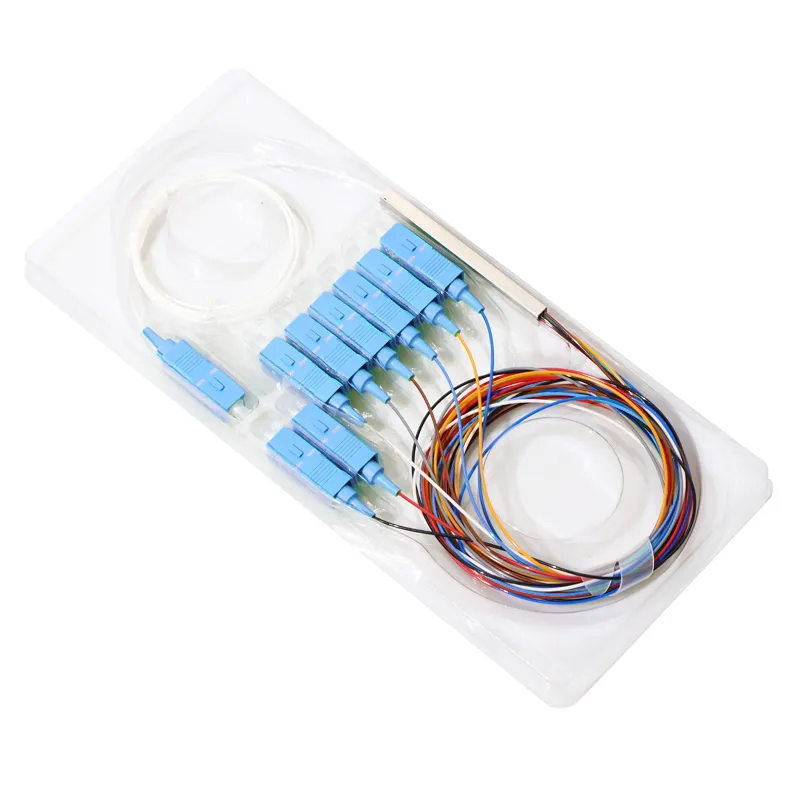

FTTH Steel Mini Type 1X8 PLC Splitter Single Mode SC/UPC Fiber Optic Splitter
Products Overview
DYS Fiber Optic PLC (planar lightwave circuit) splitter is fabricated by using silica optical waveguide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in PON networks to realize optical signal power management. We provide a whole series of 1 x N and 2 x N splitters that are tailored for specific applications. All products meet Telcordia 1209 and 1221 reliability requirements and are certified by TLC for network development requirment.
DYS' PLC splitter quality control, minimizing products risk
1)100% raw material testing2)Semi-finished products pass the High and low temperature cycle testing
3)Finished product pass the High and low temperature cycle testing again

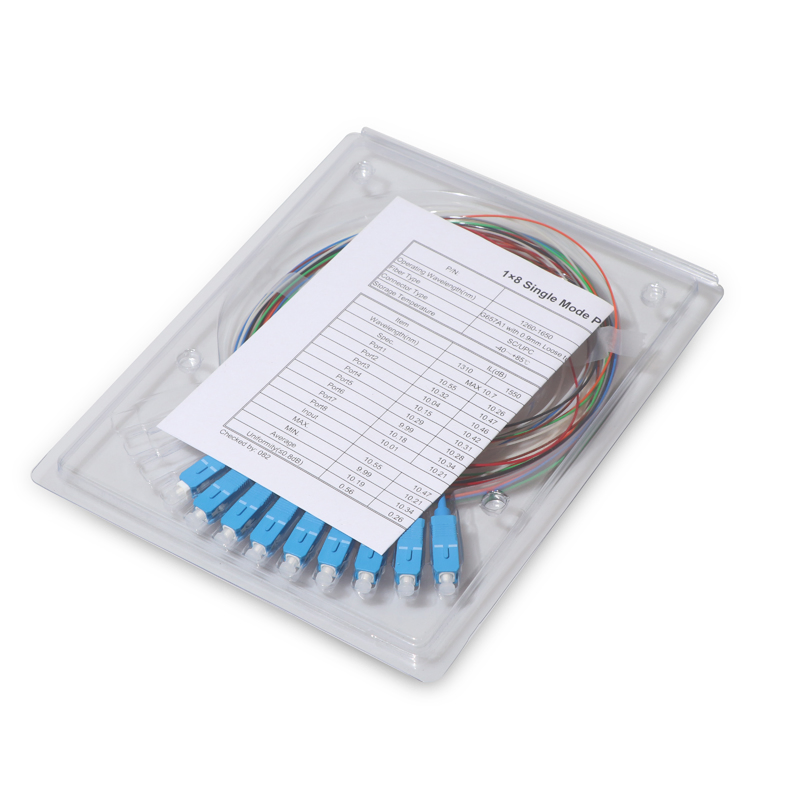

4)100% performance testing before shipping
Feature
Ultra-end insertion loss and associated loss of polarization
Good spectral uniformity
Wide wavelength bandwidth
Wide range of working environment
High reliability
Small
Application
FTTX Systems
GEPON Networks
CATV
Optical Signal Distribution
Specification of PLC Splitter
Parameter/Type | Nx2(N=1or2) | Nx4(N=1or2) | Nx8(N=1or2) | Nx16(N=1or2) | Nx32(N=1or2) | Nx64(N=1or2) |
Fiber | 9/125 um SMF-28e or customer appoint | |||||
Operating Wavelength(nm) | 1260~1650(nm) | |||||
Insertion Loss | ≤3.9dB | ≤7.1dB | ≤10.3dB | ≤13.3dB | ≤16.3dB | ≤19.8dB |
Loss Uniformity(dB) | ≤0.6dB | ≤0.6dB | ≤0.8dB | ≤1.2dB | ≤1.5dB | ≤2.0dB |
Polariation Dependent Loss | ≤0.15dB | ≤0.15dB | ≤0.2dB | ≤0.2dB | ≤0.2dB | ≤0.3dB |
Return Loss | UPC≥50dB APC≥60dB | |||||
Directivity | ≥55dB | |||||
Working Temperature(ºC) | -40°C to +85°C | |||||
DYS win the the honorary title of National High-tech enterprise by Shenzhen government in 2014.

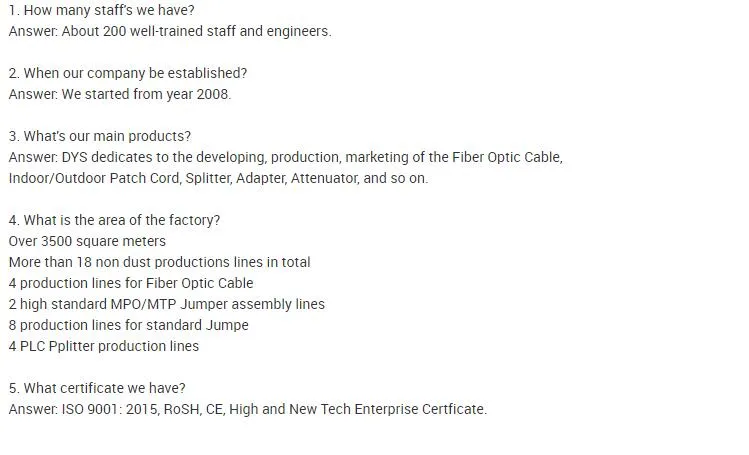

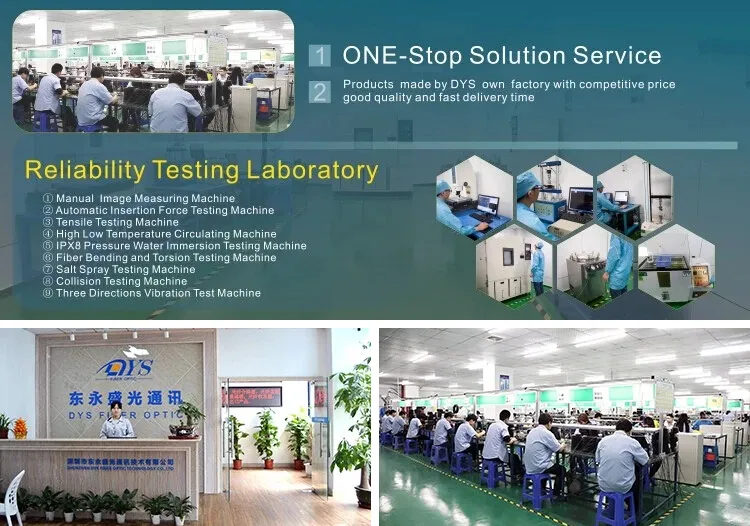

Over 3500 square meters and more than 18 non dust production lines .About 200 well-trained staff and engineers are contributing to our proud products. We have 4 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 8 production lines for standard jumper and 10 PLC Splitter production lines.
The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on.
All of our optical products are RoHS compliant and DYS also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, DYS fiber optic is looking forward to cooperate with you.
