FTTH Signalfire Welding Splicing Machine Optical Fiber Fusion Splicer
FTTH Signalfire Welding Splicing Machine Optical Fiber Fusion Splicer DescriptionObtaining 16 patens of invention and 58 technical innovations, a brand-new product-AV6481 Optical Fiber Fusion Splicer is launched, thanks to 5 years of painstaking research of 28 engineers. AV6481 implements industrial......
Send Inquiry
Product Description
Description

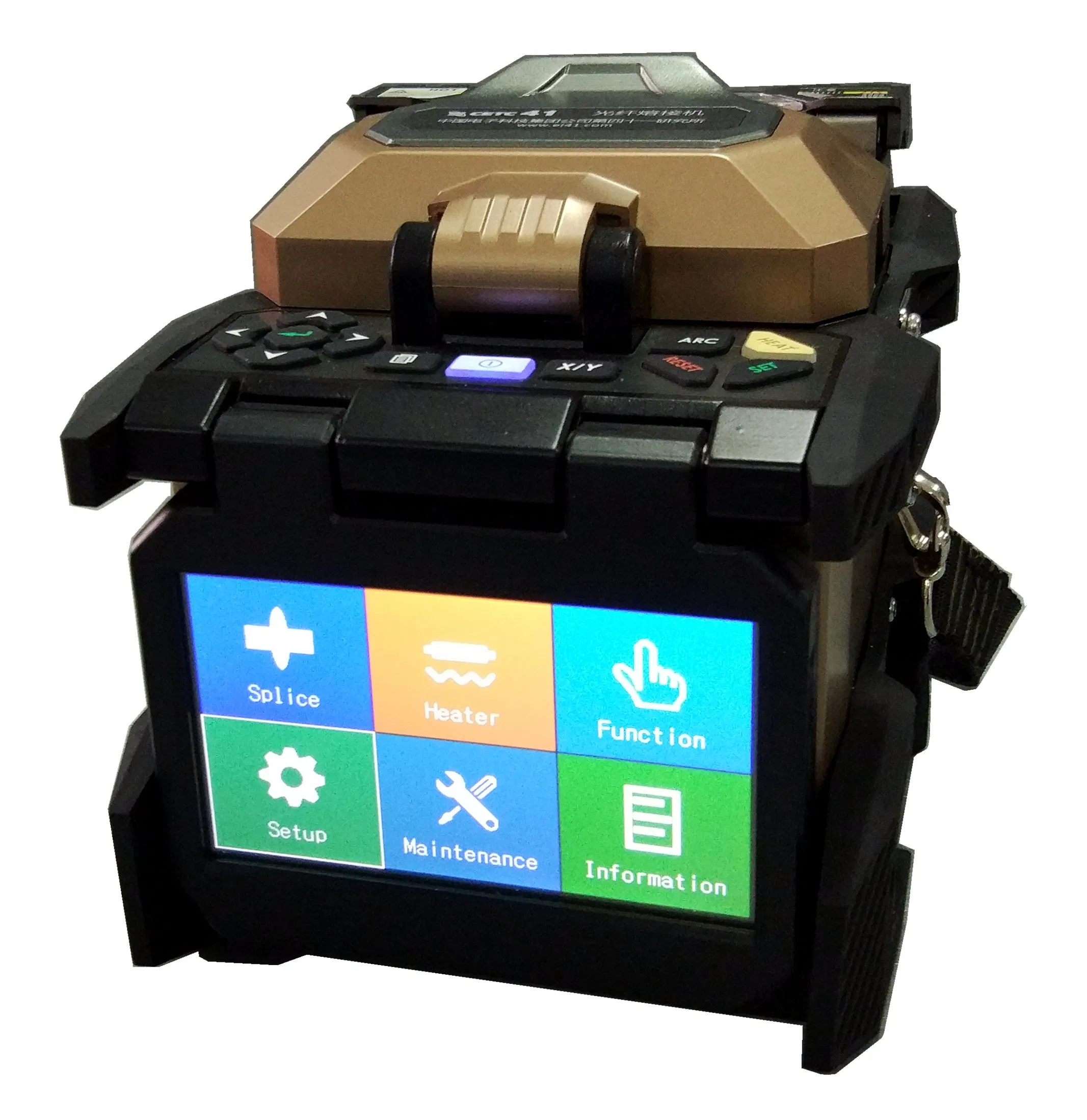

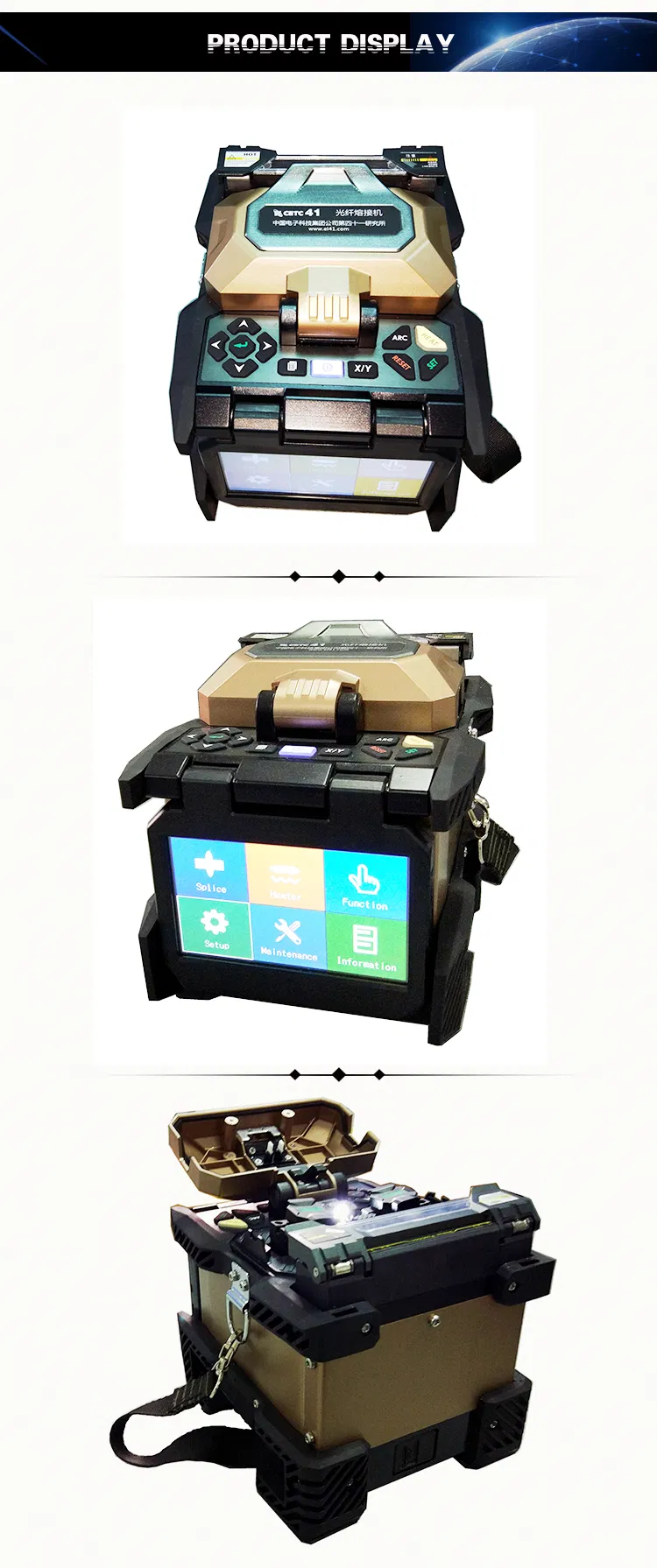

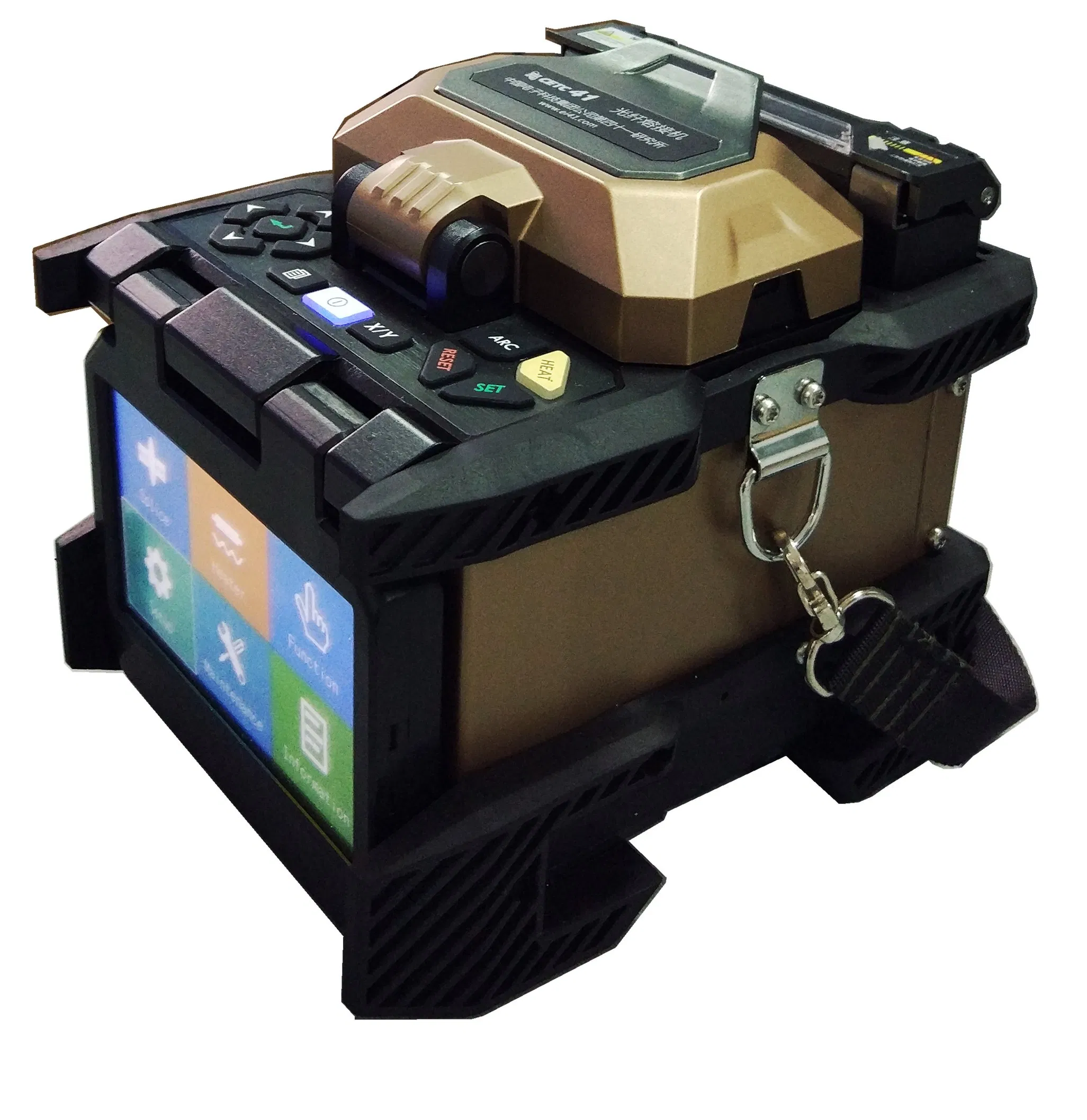

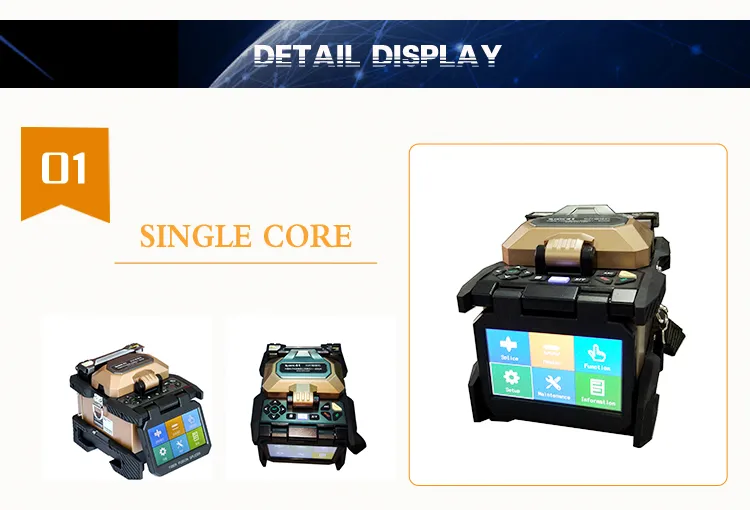

Obtaining 16 patens of invention and 58 technical innovations, a brand-new product-AV6481 Optical Fiber Fusion Splicer is launched, thanks to 5 years of painstaking research of 28 engineers. AV6481 implements industrial-grade CPU+FPGA structure of high-performance, completely fresh HD optical fiber microscope, imported high-speed motor and aluminum-magnesium alloy materials extensively. Compared with AV6471, our star product, AV6481 lowers the size by 38%, the weight by 52%, the power consumption by 57%, but improves the speed by 60%, the environment adaptability by 80% and the reliability (MTBF) by 200%. You can get unprecedented fusion splicing experience.
Feature
1.Precise fiber core alignment, ultra-low fiber fusion splicing consumption
2. 7s fast fusion splicing, 18s highly efficient heating.
3. 320 times image magnification, 5mm fusion splicing for fibers of ultra-short cutting length
4. 300 groups of fusion splicing modes, 100 groups of heating modes
5. 10000 groups of fusion records, 64 images storage
6. Ceramic presser foot, ceramic V-block, all-in-one fixture
7. Dual-direction splicing, automatic splicing, intelligent pyrocondensation
8. USB and SD card interfaces, U-disk automatic software upgrade
9. Built-in modular lithium battery, supports 220 times of splicing and heating cycles
Application
1.FTTH FTTB FTTX Network
Specification
Model | AV6481 |
Alignment method | Precise core alignment and cladding alignment |
Applicable fibers | Any common optical fibers, rubber-insulated fibers and jumpers that meet requirements of ITU-TG.651~653, ITU-TG.655 and ITU-TG.657. |
Optical fiber diameter | Cladding:80~150μm, coating layer: 0.1~3mm |
Cutting length | 5~16mm(coated optical fiber diameter≤250μm);10mm(coated optical fiber diameter:0.25~3mm) |
Fusion splicing consum ption(typical value) | 0.02dB(SMF);0.01dB(MMF);0.04dB(DSF);0.04dB(NZDSF) |
Return loss | Better than 60dB |
Fusion splicing time (typical value) | 7s |
Heating time (typical value) | 18s |
Pulling force test | 1.96~2.25N |
Thermal shrinkage tube | 60mm, 40mm and a series of thermal shrinkage tubes |
Graphical display | High-performance 4.3 inch LCD |
Magnification time | 320 times/88 times |
Fusion splicing record | 10000 groups |
Battery capacity | 11.1V,6400mAh,typical value of fusion splicing and thermal cycle is 220 times |
Battery service life | Cycle charging times reach 300~500, can be replaced by customers |
Electrode service life | Typical value is 4000 times, can be replaced by customers |
Construction lighting | Built-in lights with high-brightness and wide lighting area |
Working environment | Temp:-10~50ºC;hum: 0~95%RH,height above sea level:0~6000m |
Operation interfaces | GUI graphical operation interfaces |
External power | AC: AC100~240V,60Hz,0~1.5A;DC: DC10~15V |
External port | USB / SD |
Dimensions | 120mm(W)×130mm(H)×154mm(D)(without rubber anti-vibration pad) |
Weight | 1.59kg(host engine),0.37kg(battery) |
