FTTH OTDR 1310/1550nm, 45/43dB 185km Distance Fiber Testing Equipment
Product Despriction: is manufactured with patience and carefulness, following the national standards to combine the rich experience and modern technology, subject to stringent mechanical, electronic and optical testing and quality assurance; in the other way, the new design makes X-50 more smart and......
Send Inquiry
Product Description
Product Despriction:
is manufactured with patience and carefulness, following the national standards to combine the rich experience and modern technology, subject to stringent mechanical, electronic and optical testing and quality assurance; in the other way, the new design makes X-50 more smart and compact and multi-purpose. Whether you want to detect link layer in the construction and installation of optical network or proceed efficient maintenance and trouble shooting, X-HO5000 can be your best assistant.
Features
- Integrated design, smart and rugged
- IP65 protection level, outdoor enhanced
- 7-inch anti-reflection LCD screen
- PON online test module (1625nm) is optional
- MMF test module (850/1300nm) is optional
- Support multi-language display and input
SPECIFICATIONS
| Dimension | 253×168×73.6mm /1.5kg (battery included) |

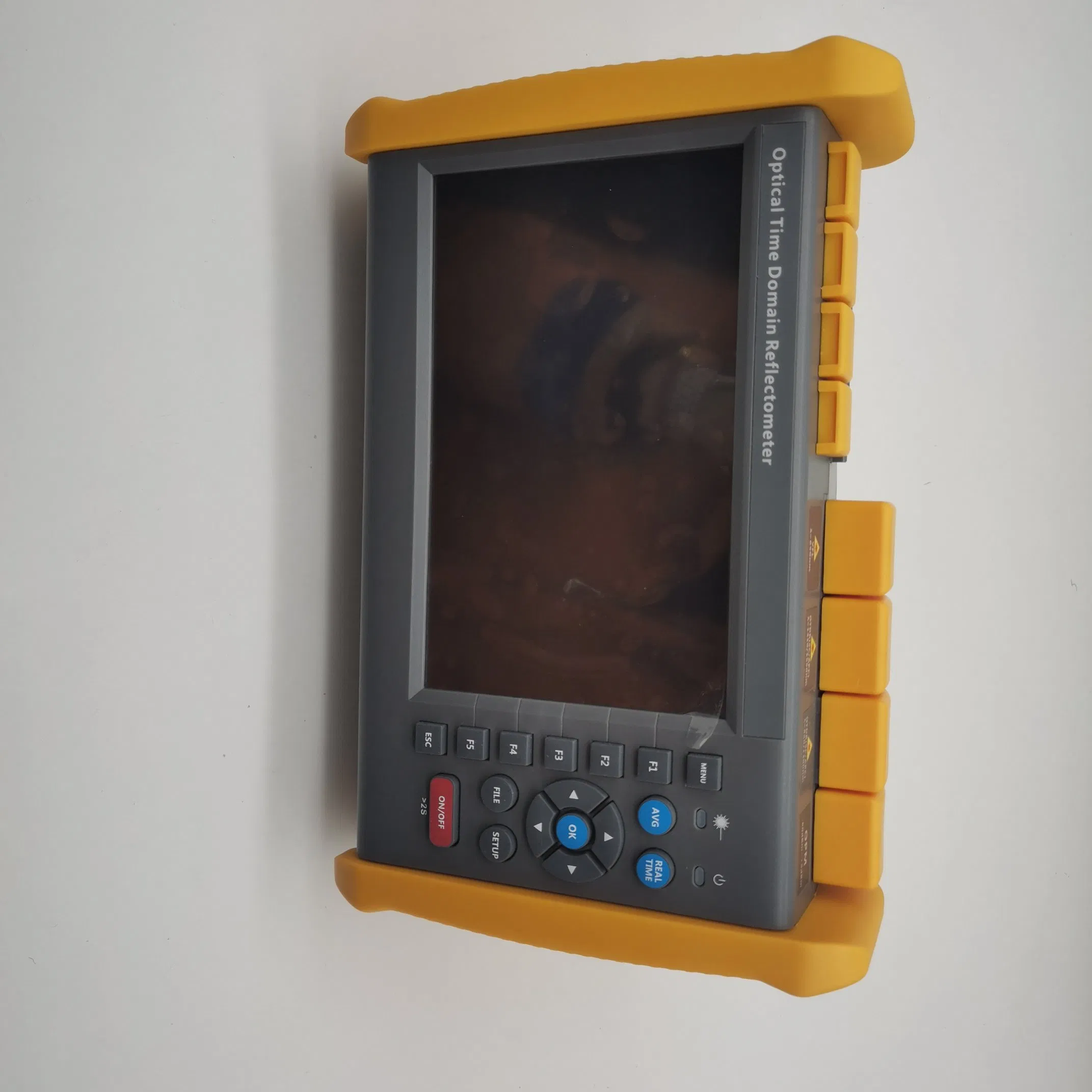

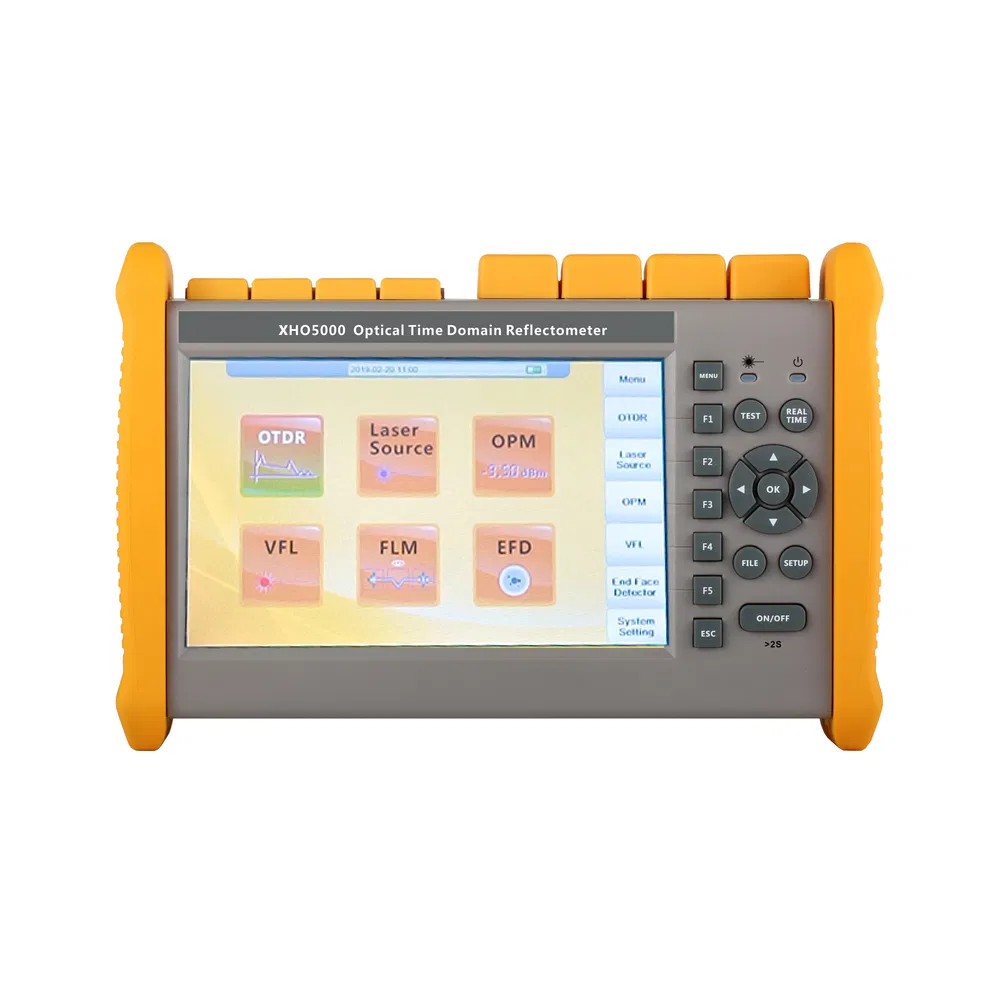

| Display | 7 inch TFT-LCD with LED backlight (touch screen function is optional) |

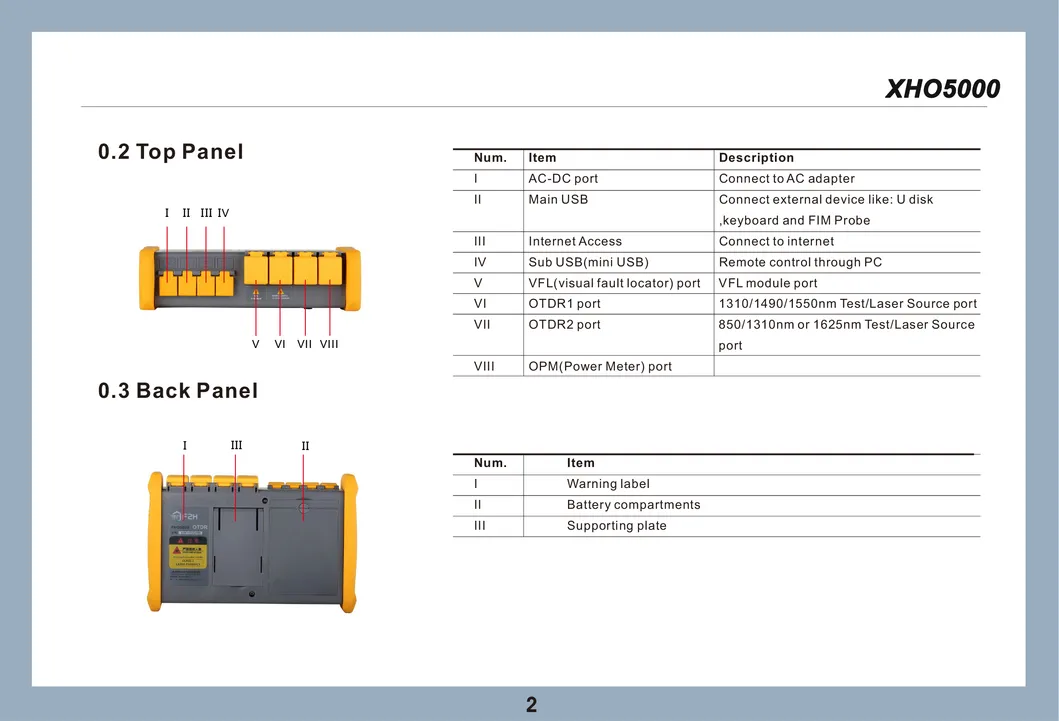

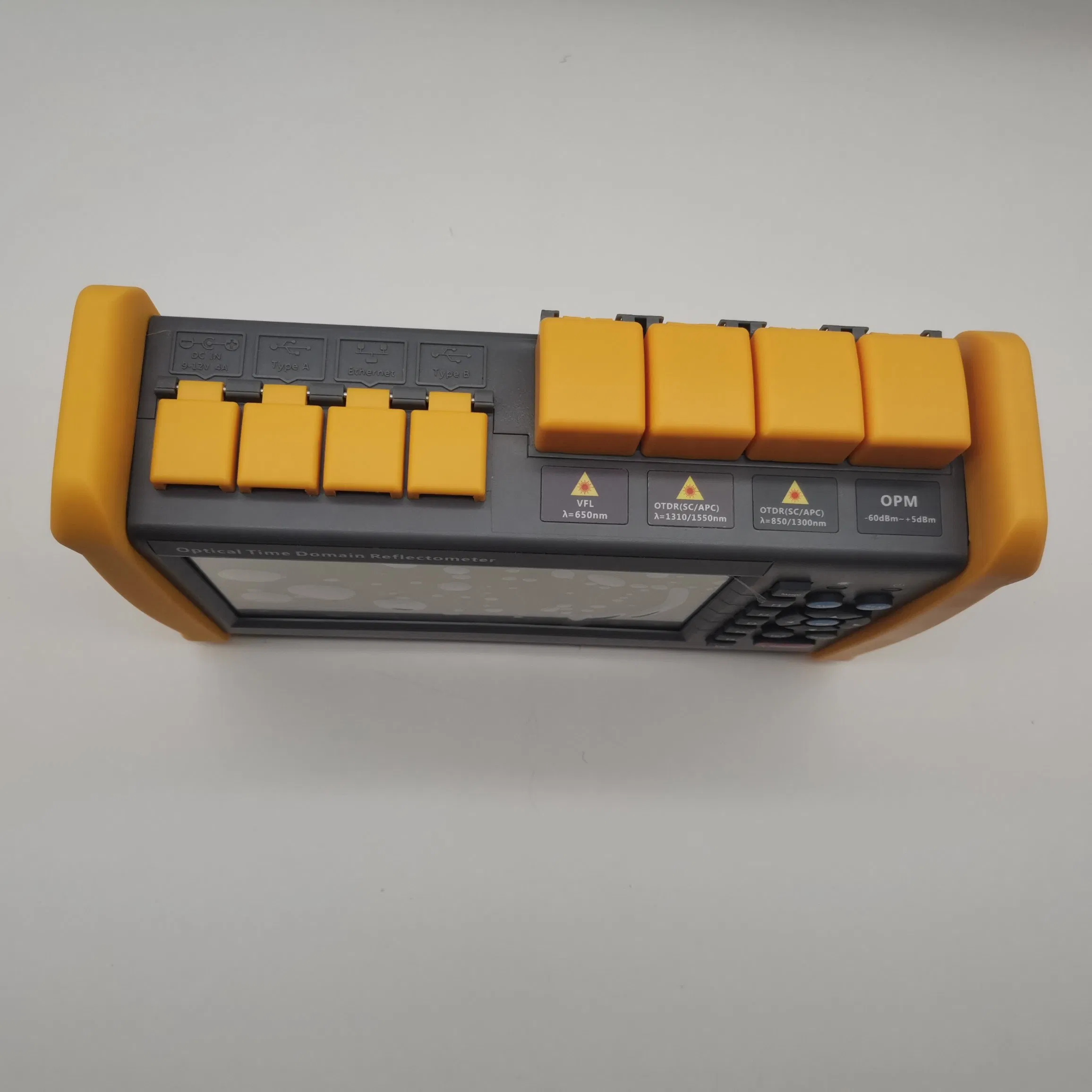

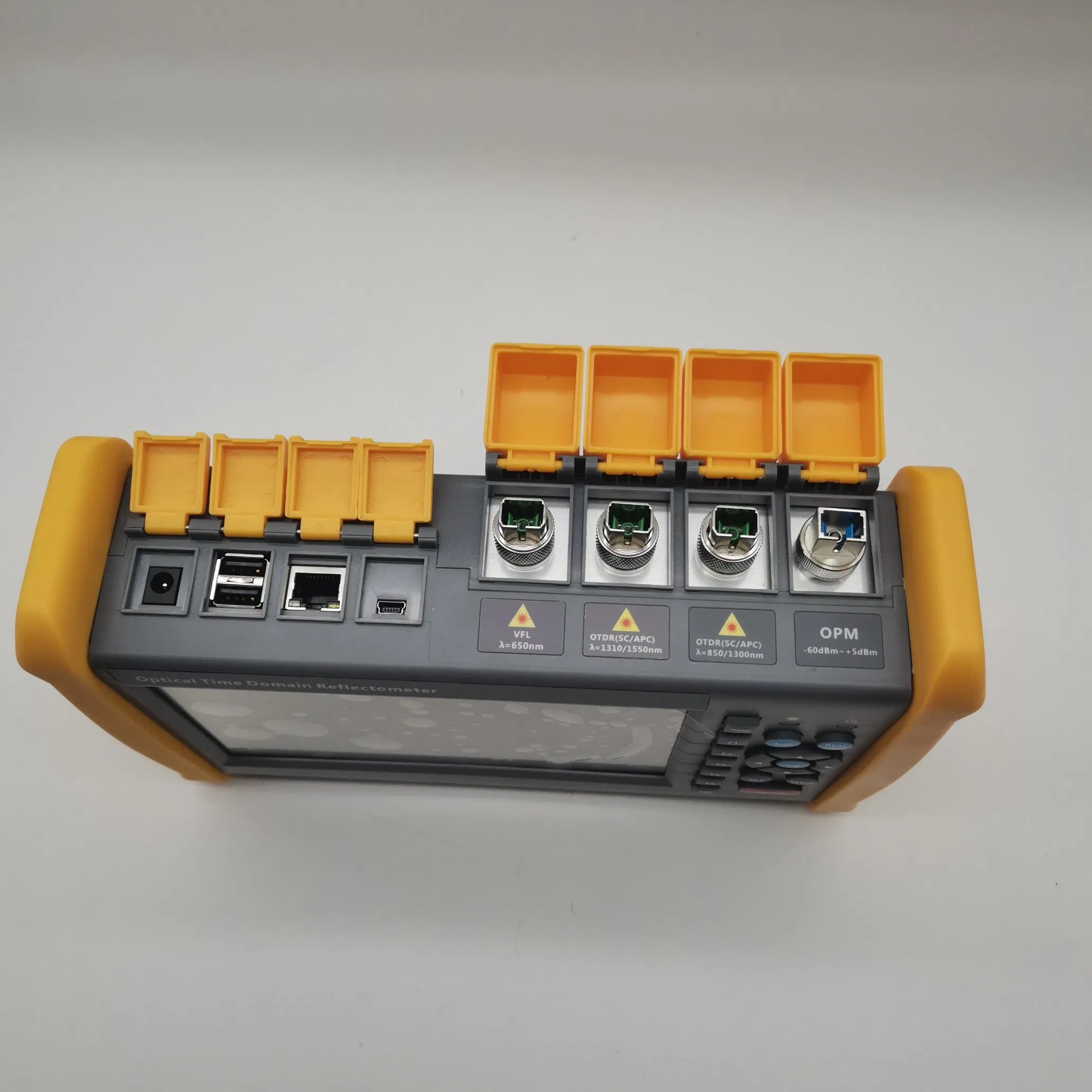

| Interface | 1×RJ45 port, 3×USB port (USB 2.0, Type A USB×2, Type B USB×1) |
| Power Supply | 10V(dc), 100V(ac) to 240V(ac), 50~60Hz |
| Battery | 7.4V(dc)/4.4Ah lithium battery (with air traffic certification) Operating time: 12 hours [1], Telcordia GR-196-CORE Charging time: <4 hours (power off) |
| Power Saving | Backlight off: Disable/1 to 99 minutes Auto shutdown: Disable/1 to 99 minutes |
| Data Storage | Internal memory: 4GB (about 40,000 groups of curves) |
| Language | User selectable (English, Simplified Chinese, traditional Chinese, French, Korean, Russian, Spanish and Portuguese-contact us for others) |
| Environmental Conditions | Operating temperature and humidity: -10~+50 , ≤95% (non-condensation) Storage temperature and humidity: -2 ~+70, ≤95% (non-condensation) Proof: IP65 (IEC60529) |
| Accessories | Standard: Main unit, power adapter, Lithium battery, FC adapter, USB cord, User guide, CD disk, carrying case Optional: SC/ST/LC adapter, Bare fiber adapter |
| Type [2] | Testing Wavelength (MM: ±20nm, SM: ±10nm) | Dynamic Range (dB)[3] | Event/Attenuation Dead-zone (m)[4] |
| XHO5000-M21 | 850/1300 | 19/21 | 0.8/4 |
| XHO5000-MD21 | 850/1300;1310/1550 | 19/21;35/33 | 0.8/4;1/4 |
| XHO5000-MD22 | 850/1300; 1310/1550 | 19/21;40/38 | 0.8/4;1/4 |
| XHO5000-D26 | 1310/1550 | 26/24 | 0.8/4 |
| XHO5000-D32 | 1310/1550 | 32/30 | 0.8/4 |
| XHO5000-D35 | 1310/1550 | 35/33 | 0.8/4 |
| XHO5000-D40 | 1310/1550 | 40/38 | 1/4 |
| XHO5000-D43 | 1310/1550 | 43/41 | 1/5 |
| XHO5000-D45 | 1310/1550 | 45/43 | 1/5 |
| XHO5000-T40F* (with optical filter) | 1310/1550/1625 | 40/38/38 | 1/4 |
| XHO5000-T43F* (with optical filter) | 1310/1550/1625 | 43/41/41 | 1/5 |
| XHO5000-T45F* (with optical filter) | 1310/1550/1625 | 45/43/43 | 1/5 |
| XHO5000-TC35F | 1310/1550/1650 | 35/33/31 | 0.8/4 |
| XHO5000-TP35 | 1310/1490/1550 | 35/33/33 | 0.8/4 |
TECHNICAL PARAMETER
TEST PARAMETER : Typical, backlight off, sweeping halted at 25 degree, 12 hours typical continuous testing.
| Pulse Width | Single mode: 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μs Multi-mode: 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs |
| Testing Distance | Single mode: 100m, 500m, 2km, 5km, 10km, 20km, 40km, 80km, 120km, 160km, 240km Multi-mode: 500m, 2km, 5km, 10km, 20km, 40km |
| Sampling Resolution | Minimum 5cm |
| Sampling Point | Maximum 128,000 points |
| Linearity | ≤0.05dB/dB |
| scale Indication | X axis: 4m~70m/div, Y axis: Minimum 0.09dB/div |
| Distance Resolution | 0.01m |
| Distance Accuracy | ±(1m+measuring distance×3×10-5+sampling resolution) (excluding IOR uncertainty) |
| IOR Setting | 1.4000~1.7000, 0.0001 step |
| Units | Km, miles, feet |
| OTDR Trace Format | Telcordia universal, SOR, issue 2 (SR-4731) OTDR: User selectable automatic or manual set-up |
| Testing Modes | Visual fault locator: Visible red light for fiber identification & troubleshooting Light source: Stabilized Light Source (CW, 270Hz, 1kHz, 2kHz output) Field microscope probe |
| Fiber Event Analysis | Reflective and non-reflective events: 0.01 to 1.99dB (0.01dB steps) Reflective: 0.01 to 32dB (0.01dB steps) Fiber end/break: 3 to 20dB (1dB steps) |
| Other Functions | Real time sweep: 1Hz Averaging modes: Timed (1 to 3600 sec.) Live Fiber detect: Verifies presence communication light in optical fiber Trace overlay and comparison |
| Wavelength (±20nm) | 650nm |
| Power | 10mw,CLASSIII B |
| Range | 12km |
| Connector | FC/UPC |
| Launching Mode | CW/2Hz |
| Magnification | 400X | View of Field | 0.40×0.31mm |
| Resolution | 1.0µm | Storage/working Condition | -18 ~35 |
| Dimension | 235×95×30mm | Weight | 150g |
| USB | 1.1/2.0 | Sensor | 1/3 inch 2 million of pixel |
| Adapter (More adapters available upon request) | SC-PC-F (For SC/PC adapter) FC-PC-F (For FC/PC adapter) LC-PC-F (For LC/PC adapter) 2.5PC-M (For 2.5mm connector, SC/PC, FC/PC, ST/PC) | ||
| PM Module | LS Module | |
| Wavelength Range (±20nm) | 800~1700nm | 1310/1550(OTDR1 port )/ 1625nm (OTDR2 port) |
| Calibrated Wavelength | 850/1300/1310/1490/ 1550/1625/1650nm | |
| Test Range | Type A: -65~+5dBm (standard); Type B: -40~+23dBm (optional) | |
| Resolution | 0.01dB | |
| Accuracy | ±0.35dB±1nW | ±0.5dB |
| Modulation Identification | 270/1k/2kHz,Pinput≥-40dBm | |
| Connector | FC/UPC | FC/UPC |
| Output Power | Adjustable -25~0dBm | |
| Magnification |
Delivery leading period
Within 3 working days for small orders after receiving full payment
Kindly consult us for bulk orders
Shipment
Choosing DHL, FedEx, TNT, EMS, UPS and other Express, delivering to your hands directly for small orders.
By sea or by aircargo for bulk orders.
After-sales Service
We guarantee all our fusion splicers,OTDR for 24 months from the date customers receive them. OTDR for 18 months warranty. Other parts for six months.
We guarantee that every fusion splicer is tested carefully and works very well before shipment. We strive for 100% customer satisfaction on every sale we complete.
We are responsible for the whole lifespan of our products, and whenever you have questions during usage, feel free to contact us, we are glad to provide technical support timely.
Lifelong Maintenance Service
During the warranty period, we can repair or replace the defective parts for free.
After the warranty time, we can also repair the defective parts, but only charge for parts.
Shanghai Shinho Fiber Communication Co., Ltd is a professional manufacturer of fiber optic fusion splicers. Besides, Shinho could also supply other related test equipment, like palm OTDRs, power meters, VFLs, light sources, fiber identifiers, toolkits, cleavers, etc.
Shinho X-series of optical fiber fusion splicers have Independent Intelligent Property Right (IIPR). They have advanced functions and stable performance, and their splicing loss could reach the top level in the world. After several years' development, Shinho products are broadly acknowledged and trusted by different clients around the world, like USA, South America, Russia, India, Pakistan, Europe, Middle East, South Africa, etc.
Shinho would keep researching and developing the top level fiber optic fusion splicers, providing the excellent and quick service to our customers.
