FTTH Ont WiFi Modo Dual G/Epon ONU Epon Ont Con WiFi
Ftth ont wifi Modo dual G/EPON ONU Epon ont con wifi Brief Views ONT-2GF-W dual-mode ONU supports EPON and GPON two modes access. It will automatically establish an EPON link with the EPON OLT or GPON link with the GPON OLT by identifying the local OLT mode. It also supports th......
Send Inquiry
Product Description
Brief Views
ONT-2GF-W dual-mode ONU supports EPON and GPON two modes access. It will automatically establish an EPON link with the EPON OLT or GPON link with the GPON OLT by identifying the local OLT mode. It also supports the EPON ONU OAM and GPON ONT OMCI.
ONT-2GF-W have a high reliability and provide quality of service guarantee, easy
management, flexible expansion and networking. It's fully meet the ITU-T technical standards and have good compatibility with third party manufacturers OLT.
ONT-2GF-W can integration wireless function with meet 802.11 n/b/g technical standards, It has external high gain directional antenna, the wireless transmission rate up to 300Mbps. It has the characteristics of strong penetrating power and wide coverage. It can provide users with more efficient data transmission secur
Adaptive GPON Mode:
In compliant with ITU - T G. 984 Standard
Support ONU auto-discovery/Link detection/remote upgrade of software
Wi-Fi series meet 802.11 n/b/g technical standards
Support VLAN transparent, tag configuration
Support multicast function
Support DHCP/Static/PPPOE internet mode
Support port-binding
Support OMCI+TR069 remote management
Support data encryption and decryption function
Support Dynamic Bandwidth Allocation (DBA)
Support MAC filter and URL access control
Support power-off alarm function ,easy for link problem detection
Specialized design for system breakdown prevention to maintain stable system
EMS network management based on SNMP ,convenient for maintenance
Adaptive EPON Mode
In compliant with IEEE802.3ah Standard
Support ONU auto-discovery/Link detection/remote upgrade of software
Wi-Fi series meet 802.11 n/b/g technical standards
Support VLAN transparent, tag configuration
Support multicast function
Support DHCP/Static/PPPOE internet mode
Support port-binding
Support OAM+TR069 remote management
Support data encryption and decryption function
Support Dynamic Bandwidth Allocation (DBA)
Support MAC filter and URL access control
Support power-off alarm function ,easy for link problem detection
Specialized design for system breakdown prevention to maintain stable system
EMS network management based on SNMP ,convenient for maintenance
Specification
Item | Parameter | |
Interface |

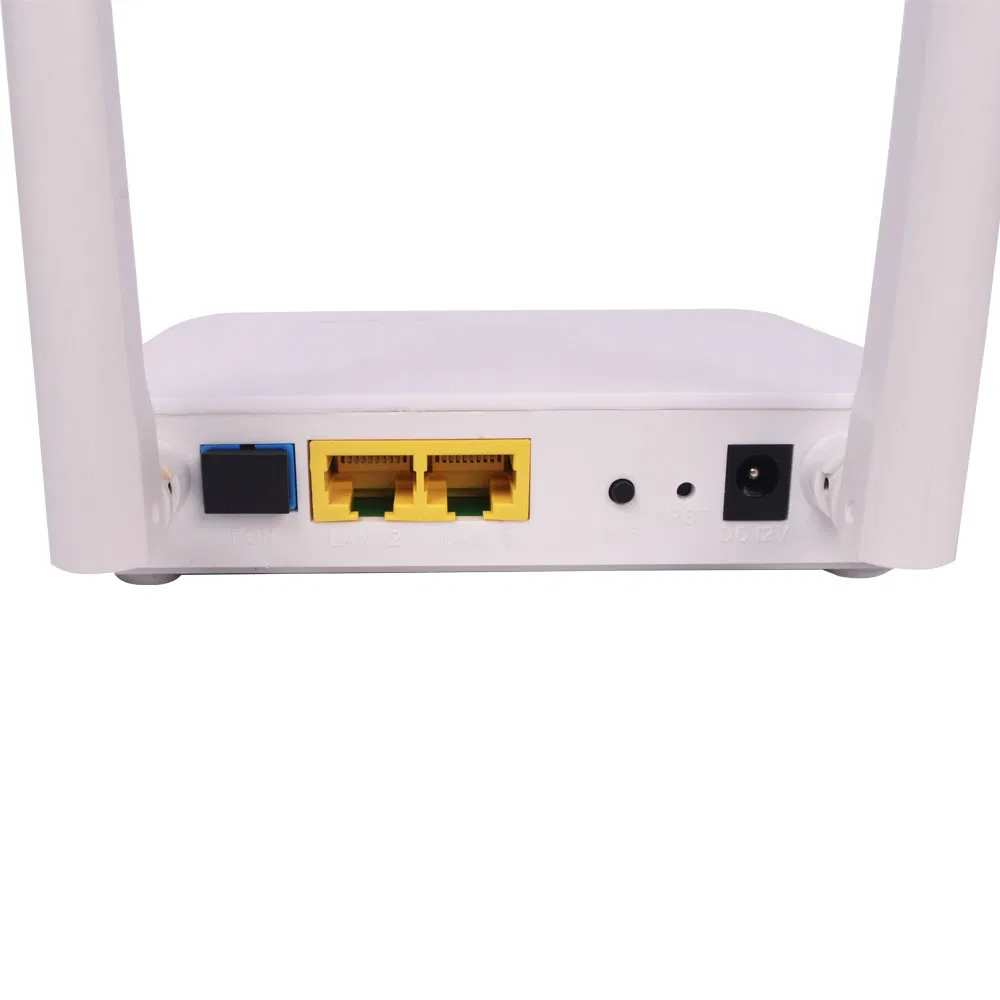

PON Interface | GPON/EPON mode adaptive 1*GPON port, FSAN G.984.2 standard, support for backward compatibility with EPON SC/PC single mode fiber |
Ethernet Interface | 1*10/100/1000M and 1*10/100M auto-negotiation Full/half duplex mode RJ45 connector Auto MDI/MDI-X 100m distance | |
Power Interface | 12V DC Power supply | |
Performance Parameters |
PON Optical Parameter | Wavelength: Tx 1310nm, Rx1490nm Tx Optical Power: 0.5~5dBm Rx Sensitivity: -28dBm Saturation Optical Power: -8dBm |
Data Transmission Parameter | PON Throughput: Downstream 2.488Gbit/s; Upstream 1.244Gbit/s Ethernet: 100Mbps or 1000Mbps Packet Loss Ratio: <1*10E-12 latency: <1.5ms | |
Network Management |
Management Mode | When adaptive to GPON mode, support standard compliant OMCI interface as defined by ITU-T G.984.4, TR069 remote management and WEB management |
When adaptive to EPON mode, Support IEEE802.3 QAM, ONU can be remotely managed by OLT, TR069 remote management and WEB management | ||
Management Function | Status monitor, Configuration management, Alarm management, Log management | |
Physical Features | Shell | White plastic casing |
Power | <5W, 12V/0.5A power supply adapter | |
Physical Specifications | Item Dimension:125mm(L) x80mm(W) x 25mm (H) Item weight:0.2kg | |
Environmental Specifications | Operating temperature: 0 to 50ºC Storage temperature: -40 to 85ºC Operating humidity: 10% to 90%(Non-condensing) Storage humidity: 10% to 90%(Non-condensing) | |
1. ¿Cuáles son las condiciones de pago que admite?
Por lo general, aceptamos T / T, PayPal, Western Union y Alibaba Trade Assurance. Puede seleccionar las condiciones de pago que le resulten más convenientes.
2. ¿Cuando es el tiempo de entrega?
Por lo general, si hay existencias, enviamos los productos dentro de los 3 a 5 días hábiles posteriores a la confirmación del depósito. Si está agotado, el tiempo de entrega depende.
3. ¿Como enviar?
Cuando el paquete es pequeño, normalmente elegimos FedEx, DHL, TNT y UPS, etc. Si los productos tienen un gran peso y volumen, sugerimos usar el envío aéreo o marítimo.
4. ¿Cómo hacer un pedido?
(1) Se acuerda la negociación del precio y las especificaciones del producto.
(2) La factura proforma se enviará para su confirmación.
(3) Después del acuerdo sobre la factura proforma, el cliente realiza el depósito.
(4) Una vez que nuestro banco confirme el pago, nuestra fábrica comenzará la producción inmediatamente.
(5) Envíe los productos dentro del plazo de entrega acordado.
5. ¿Puedes hacer OEM para nosotros?
Por supuesto. Si hay una cierta cantidad de pedido, podemos hacer OEM incluyendo impresión, logotipo y modelo personalizado para usted.
6. ¿Qué tal la Garantía?
Hay 12 meses para la garantía.
Si bien la garantía no es responsable de aquellos quebrantados por la violencia o actualizados con otras marcas.Aunque tiene garantía, la Compañía no es responsable de los daños debidos a la violencia o de las actualizaciones de otras marcas.
