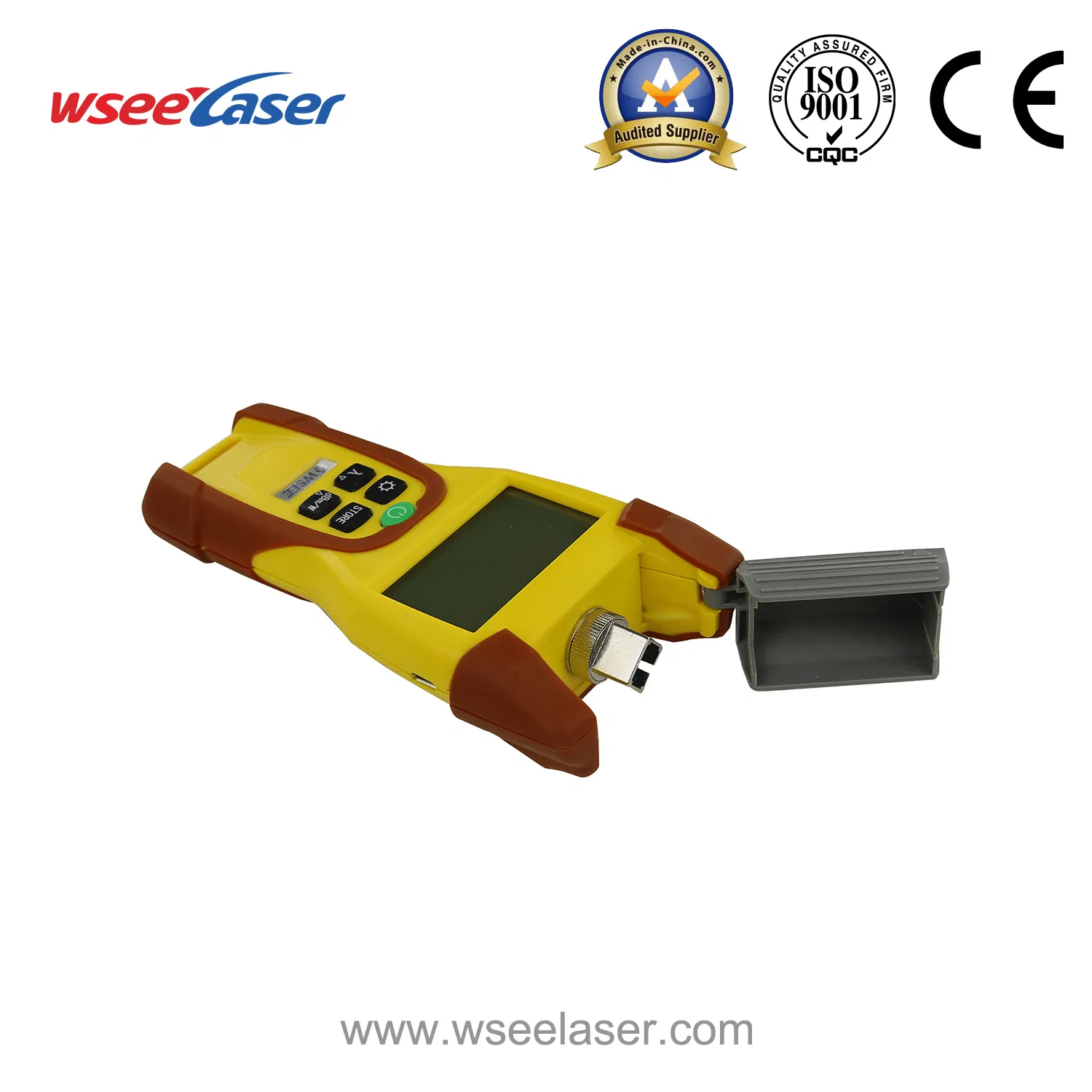

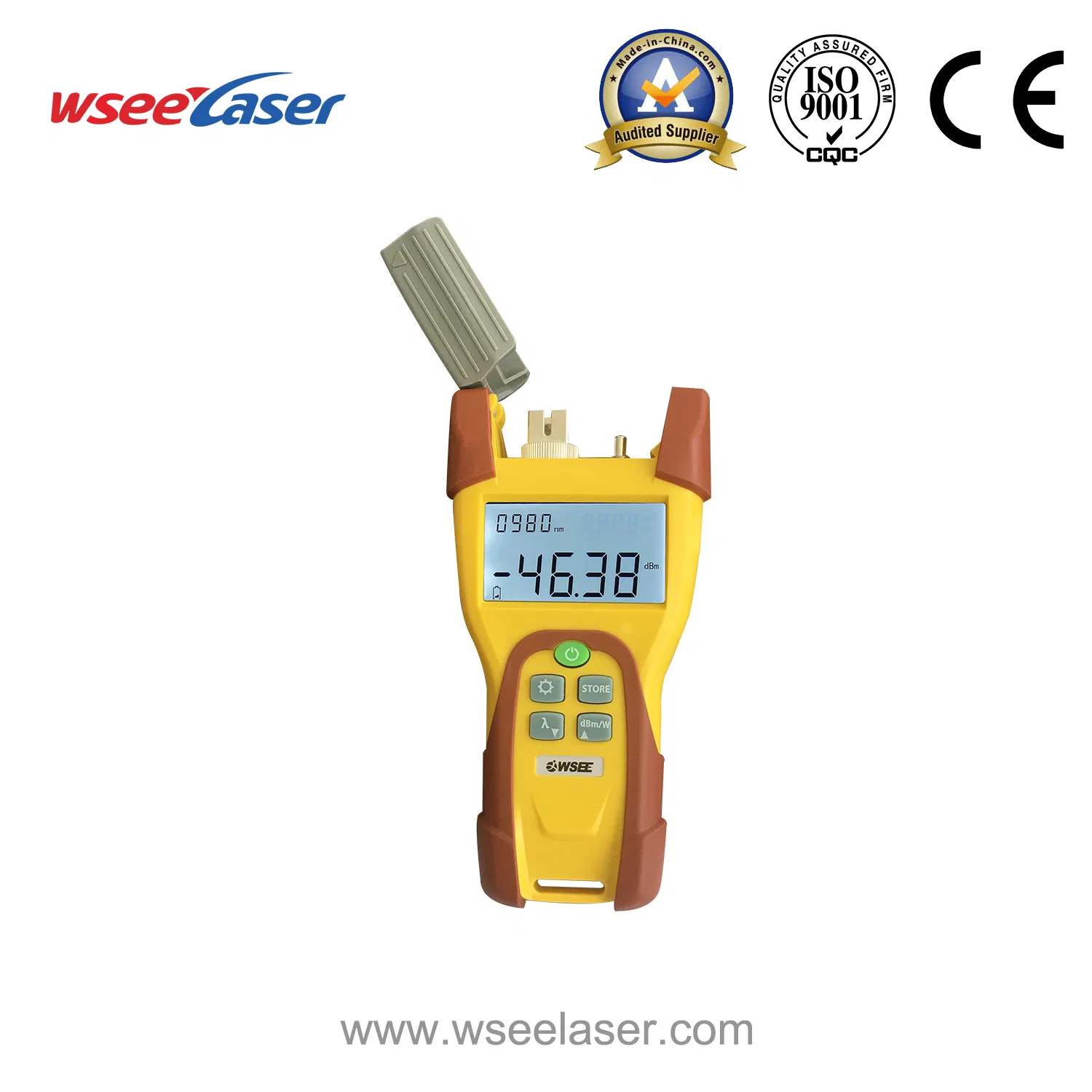

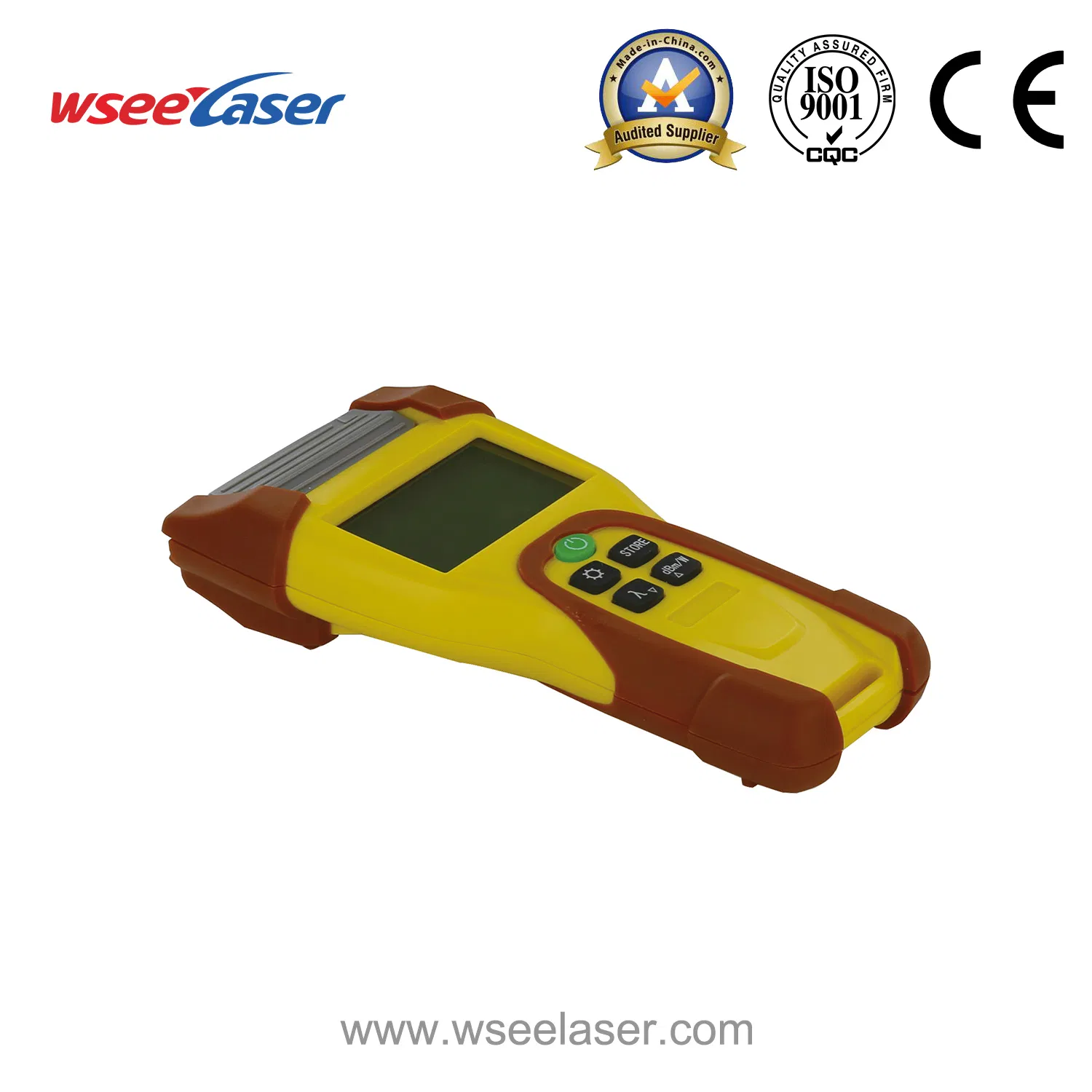

FTTH Handheld 1310nm 1490nm/ 1550nm Olt/Ont Pon Optical Power Meter Fiber Optic Medidor De Potencia De Fibra Optica
WS-OPM-35 series portable optical power meter is a new optical fiber test equipment, which is independent of the characteristics of foreignoptical instruments. This equipment can increase the function of red light source, integrate light power and red light source, and quicklysolve the problem of th......
Send Inquiry
Product Description

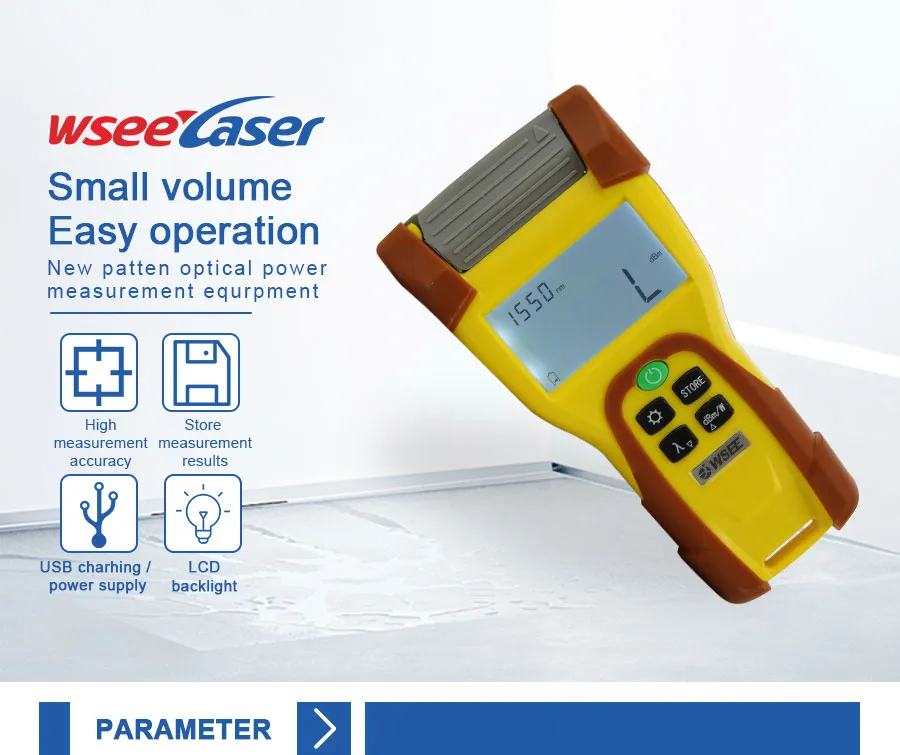

WS-OPM-35 series portable optical power meter is a new optical fiber test equipment, which is independent of the characteristics of foreign
optical instruments. This equipment can increase the function of red light source, integrate light power and red light source, and quickly
solve the problem of the ideal equipment
| Technical parameters | WS-OPM-35 |
| Red light source part(This feature is customizing for customers) | |
| Light emitting device | FP-LD |
| Working wavelength(nm) | 650nm |
| Typical output of output power(mw) | 10mw(Customizable) |
| Transmission distance(Km) | 20Km |
| Red light frequency scintillation function | Frequency is 2Hz |
| Optical power meter section | |
| Calibrated wavelength(nm) | 850,980,1300,1310,1490,1550,1625 |
| Probe type | InGaAs |
| Detection range(dBm) | -70~+6(A Model);-50~+20(B Model);-50~+26(C Model) |
| Detection range(mw) | 0~+400 |
| Inherent uncertainty(dB) | ±0.10 |
| degree of linearity(dB) | ±0.001 |
| Display resolution(dB) | 0.01 |
| Storing data(group) | 10 |
| Communication interface | USB |
| Connector type | FC,SC Optional |
| lithium battery | 900mAh,3.7V |
| The power adapter(V) | 5V |
| Battery continuous working time(h) | 200 |
| working temperature(ºC) | -10~+60 |
| Storage temperature(ºC) | -25~+70 |
| Net weight(g) | 145 |
| Shape size(mm) | 157*80*39 |

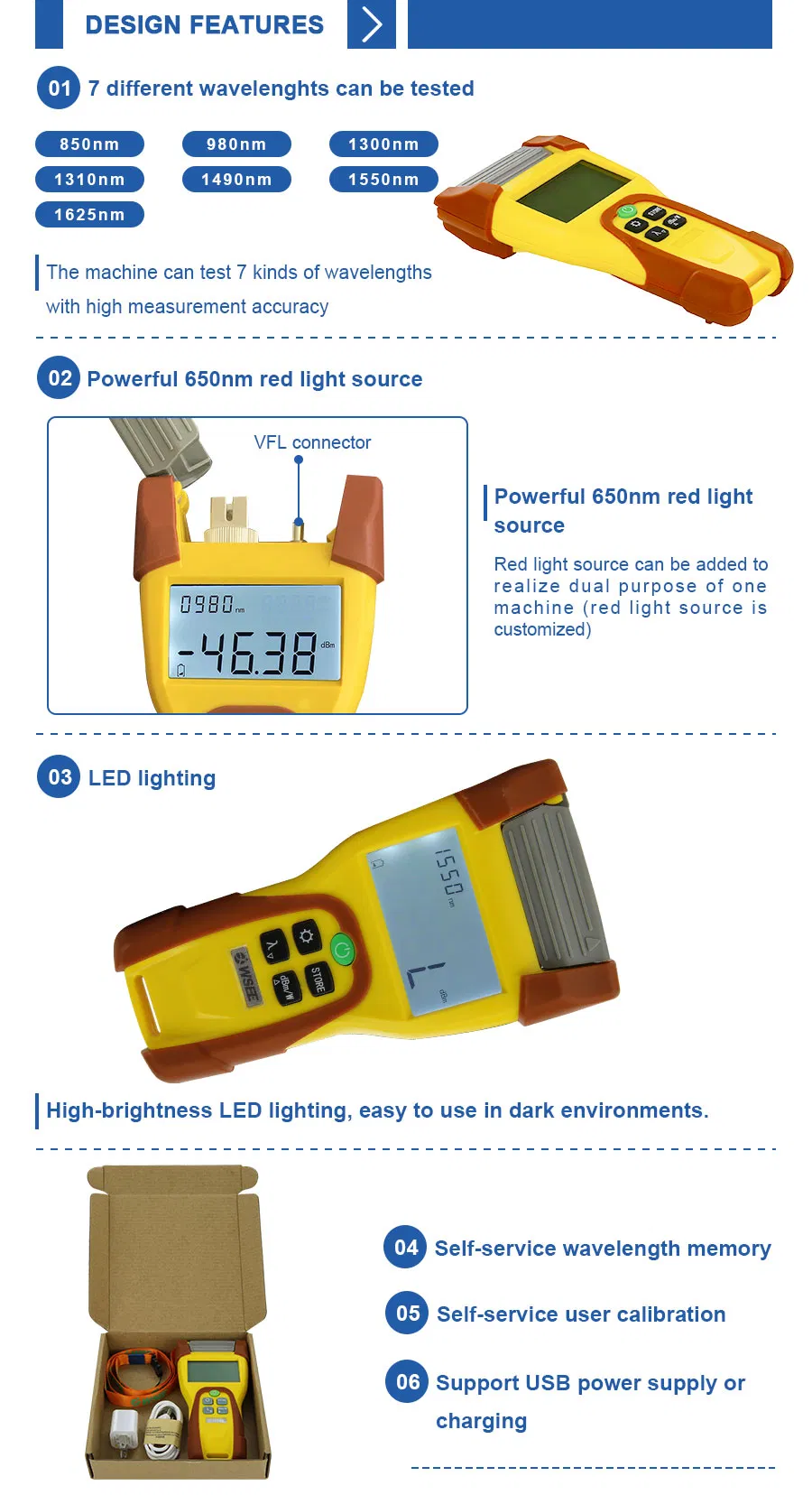

- The machine can test 7 kinds of wavelengths with high measurement accuracy
- Support USB power supply or charging
- Powerful 650nm red light source
- Red light source can be added to realize dual purpose of one machine (red light source is customized)
- High-brightness LED lighting, easy to use in dark environments
- Self-service wavelength memory
- Self-service user calibration
