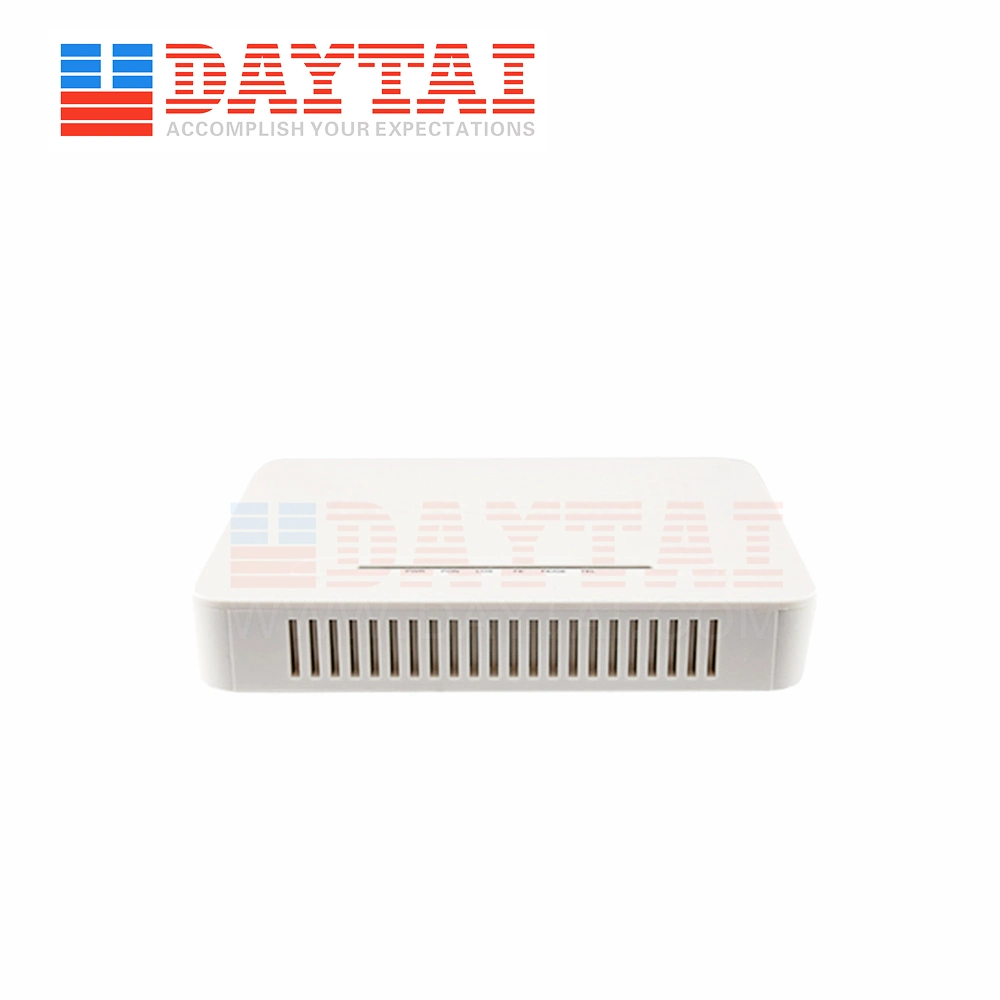

FTTH Gpon Ont 1ge 1fe 1 Pots Gpon ONU
DescriptionGONU 1GE+1FE+1Pots(DT-GONU+1GE+1FE+1Pots)is one of the GPON optical network unit design to meet the requirement of the broadband access network. It apply in FTTH/FTTO to provide the data, voice and video service based on the GPON network.GPON is the latest generations of access network te......
Send Inquiry
Product Description
★Description
GONU 1GE+1FE+1Pots(DT-GONU+1GE+1FE+1Pots)is one of the GPON optical network unit design to meet the requirement of the broadband access network. It apply in FTTH/FTTO to provide the data, voice and video service based on the GPON network.
GPON is the latest generations of access network technology. ITU-T G.984 is the standard protocol of GPON. The GPON standard differs from other PON standards in that it achieves higher bandwidth and higher efficiency using larger, variable-length packets. GPON offers efficient packaging of user traffic, with frame segmentation allowing higher quality of service (QOS) for delay-sensitive voice and video communications traffic. GPON networks provides the reliability and performance expected for business services and provides an attractive way to deliver residential services. GPON enables Fiber To The Home (FTTH) deployments economically resulting to accelerated growth worldwide.

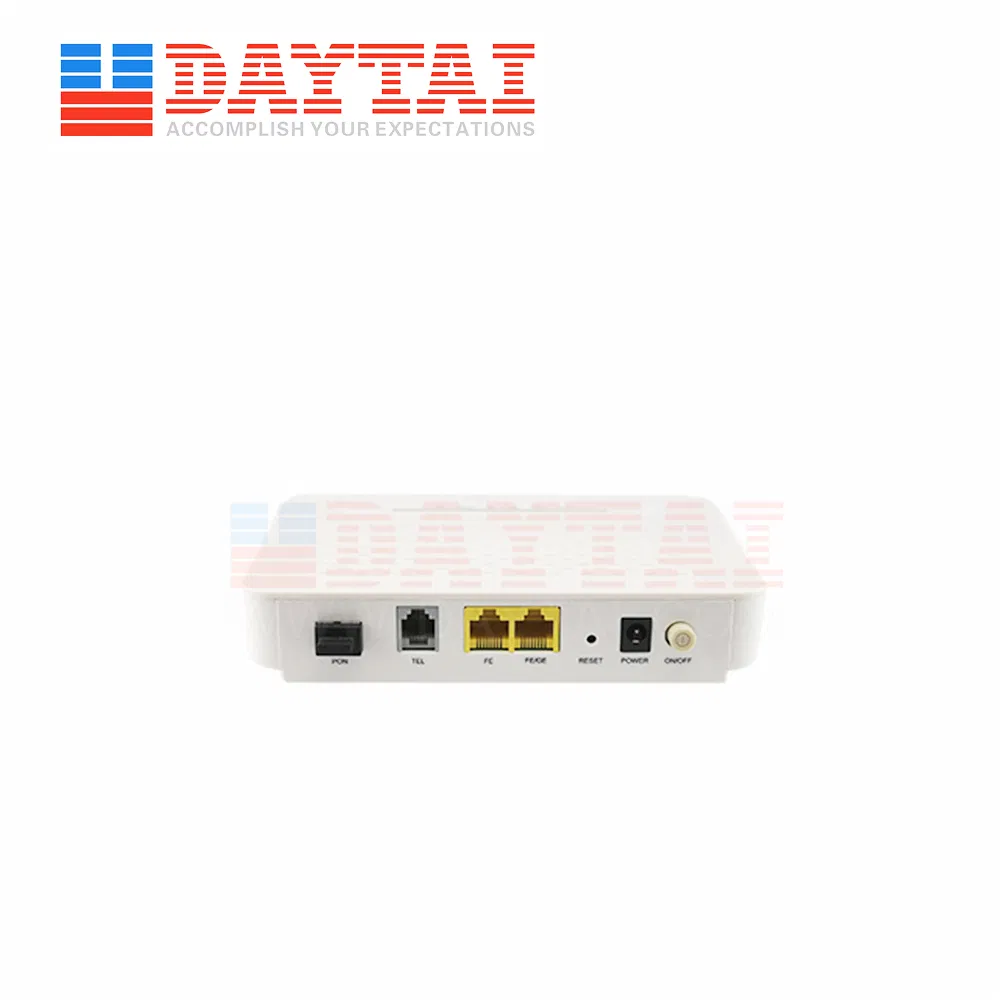

DT-GONU+1GE+1FE+1Pots provide one POTS ports, one FE and one GE auto-adapting Ethernet ports. The DT-GONU+1GE+1FE+1Pots features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the DT-GONU+1GE+1FE+1Pots provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment. It has good third-party compatibility to work with the third party OLT, such as Huawei/ZTE/Fiberhome/Alcatel-Lucen.
★Feature
⊙Support AES-128
⊙Support one POTS port
⊙Support IGMP Snooping
⊙Support loopback at UNI
⊙Support three router function
⊙Full compatible with IEEE802.3ah
⊙Support Web for local management
⊙Support H.248,MGCP and SIP protocol
⊙Support Auto-negotiation and MDI/MDIX
⊙Support performance statistics of Ethernet lines
⊙Support OAM and TR069 for remote management
⊙Support PPPoE+ for accurate subscribers identification
⊙Support one FE and one FE/GE auto-adapting Ethernet ports
⊙Support packet filtering and anti-illegal message attack protection
⊙Support the Ethernet interface rate, working mode and flows control
⊙Support DHCP Option60 reporting the location information of the Ethernet interface
⊙Support VLAN tagged label processing, traffic classification and packet filtering, STP/RSTP etc.
★Specification
| Item | Parameters | Specification |
| Interface | PON Port | 1*GPON port, FSAN G.984.2 standard, Class B+ Downstream Data Rate:2.488Gbps Upstream Data Rate:1.244Gbps SC/PC single mode fiber 28dB Link loss and 20KM distance with 1:128 |
| Ethernet Port(LAN) |
| |
| POTS Port | 1*RJ11 with 3REN Max 1km distance Balanced Ring, 50V RMS | |
| Power Supply Port | 12V DC input | |
| PON Optical Parameter | Wavelength: Tx 1310nm, Rx1490nm Tx Optical Power: 0.5~5dBm Rx Sensitivity: -27dBm Saturation Optical Power: -8dBm Connector Type: SC Optical Fiber: 9/125m single-mode fiber | |
| Data Transmission Parameter | PON Throughput: Downstream 2.488Gbit/s s; Upstream 1.244Gbit/s Ethernet: 100Mbps or 1000Mbps Packet Loss Ratio: <1*10E-12 latency: <1.5ms | |
| Management | Network Management | Standard compliant OMCI interface as defined by ITU-T G.984.4 Support TR069 and WEB management |
| Management Function | Status monitor, Configuration management, Alarm management, Log management | |
| Environmental Specifications | Shell | Plastic casing |
| Power | External 12V 1A DC power supply adapter Power consumption: <6W | |
| Dimensions | 160mm(L) x 120mm(W) x33mm (H) 0.2kg | |
| Environment | Operating Temperature:0~50ºC Storage Temperature:-40~85ºC Operating Humidity:10%~90%(Non-condensing) Storage Humidity:10%~90%(Non-condensing) |
⊙Business:Broadband Internet, Voice,IPTV
