Product Description

FTTH/FTTB 2*10G Uplink Ports 2.5G 8 Pon Ports Gepon Olt

Product Overview

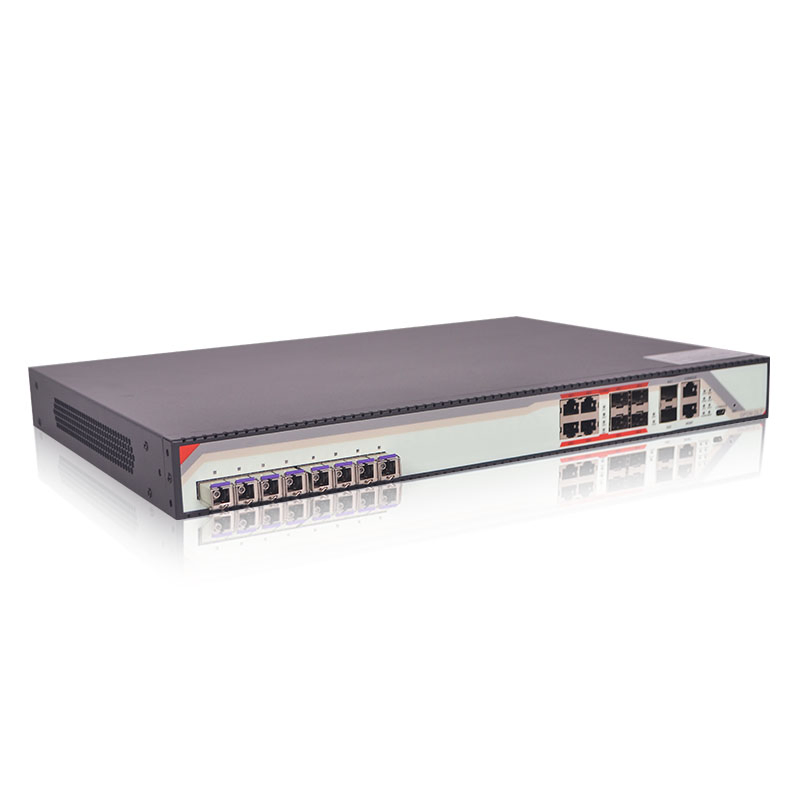

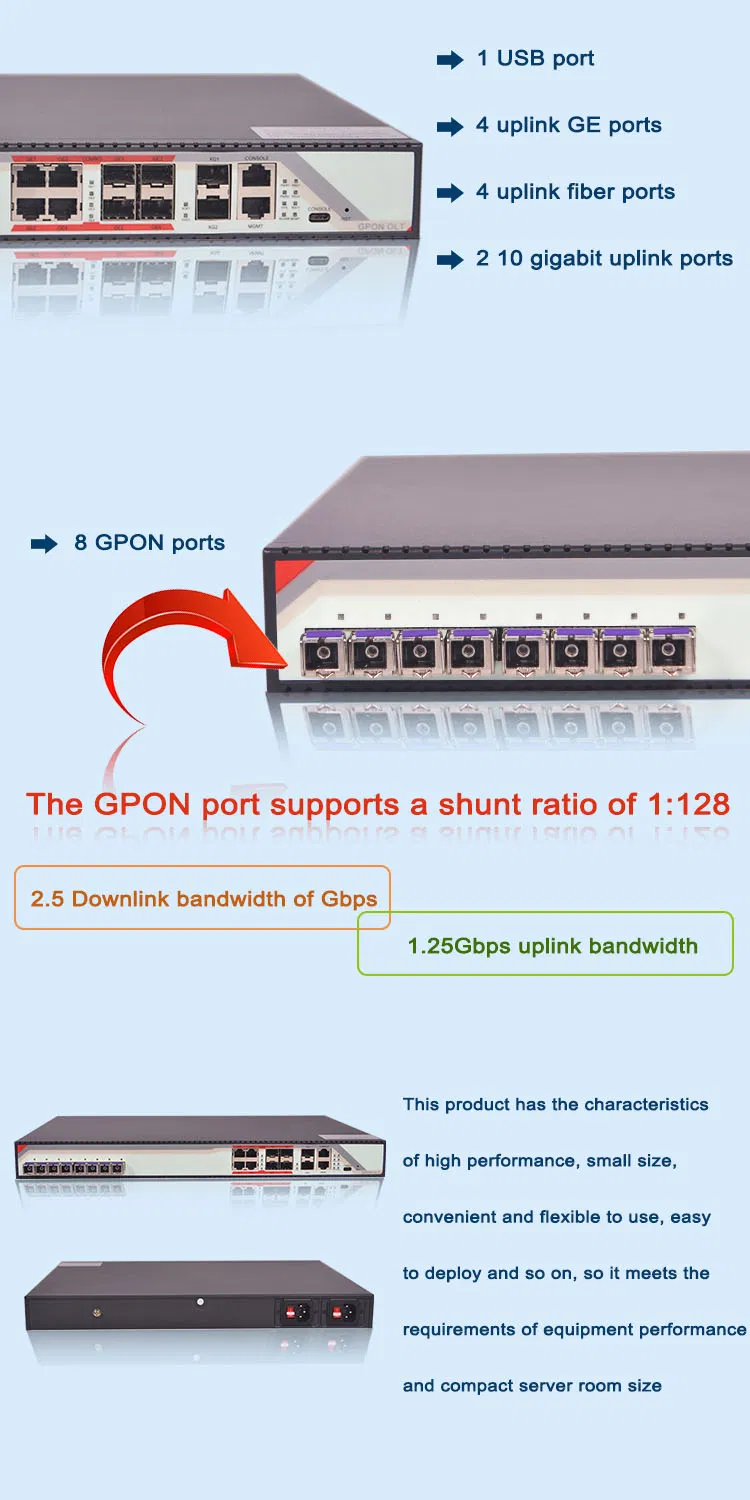

GPON OLT OLT-G8 completely meet the relative standard of ITU G.984.x and FSAN, which is a 1U rack-mounted device with1 USB interface, 4 uplink GE ports, 4 uplink optical ports, 2 10-gigabit uplink ports, and 8 GPON ports, each GPON port supports the splitting ratio of 1:128 and provides downstream bandwidth of 2.5Gbps and upstream bandwidth of 1.25Gbps, system support 1024 GPON terminals accessing in for the most. This product meets the requirements in device performance and size of compact server room as the product has high performance and compact size is convenient and flexible to use and is easy to deploy as well. Moreover, the product meets the requirements of promoting network performance, improving reliability, and reducing power consumption in the perspective of access network and enterprise network and is applicable to the three-in-one broadcast television network, FTTP (Fiber to the premise), video monitoring network, enterprise LAN (Local Area Network), internet of things and other network applications with a very high price/performance ratio.

Features

Meet ITU-T G.984/G.988 standard and relative GPON standards of Chinese Communication Industry
Support OMCI remote management for ONT/ONU, compatible with ITU-T G.984.4/G.988 OMCI Protocol
1U height 8PON OLT product in the compact design of Pizza-Box
Layer 2 Switching Function

OLT equips with very powerful layer 2 Full Wire Speed Switching and completely supports the layer 2 protocol. OLT supports varieties of layer 2 functions like TRUNK, VLAN, LACP, rate limit, port isolate, queue technology, flow control technology, ACL, and so on, which provides technical guarantee for the development of multi-service integrated.

QoS Guarantee

GPON Products maintains fully-improved DBA with excellent QoS service capabilities. DBA meets different Qos requirements from different service flow in latency, jitter, packet loss rate.

Easy-to-Use Management System
The support management method of CLI, SNMP, TELNET, SSH and meet OMCI standard, through OMCI channel protocol service management can be realized, including ONT function parameter set, T-CONT business lines and amount, Qos parameters, configuration information request, performance statistics, auto-reporting of running events in the system, configuration for ONT from OLT, fault diagnosis and management of performance and safety.

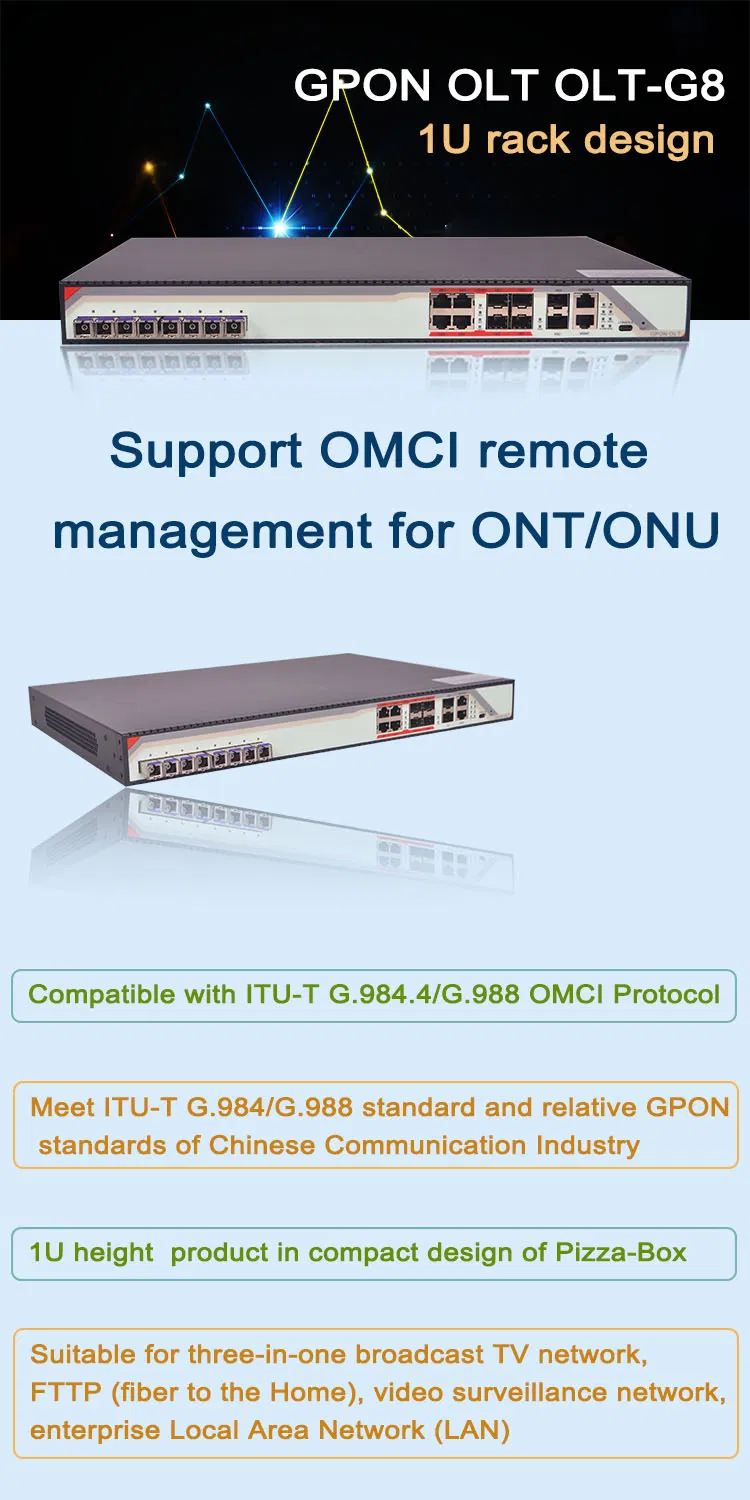

FTTH/FTTB 2*10g Uplink Ports Fiber Optic Network 2.5g 8 Pon Ports Gepon Olt

Item		OLT-G8
Management Rack	Type	1U 19-inch standard box

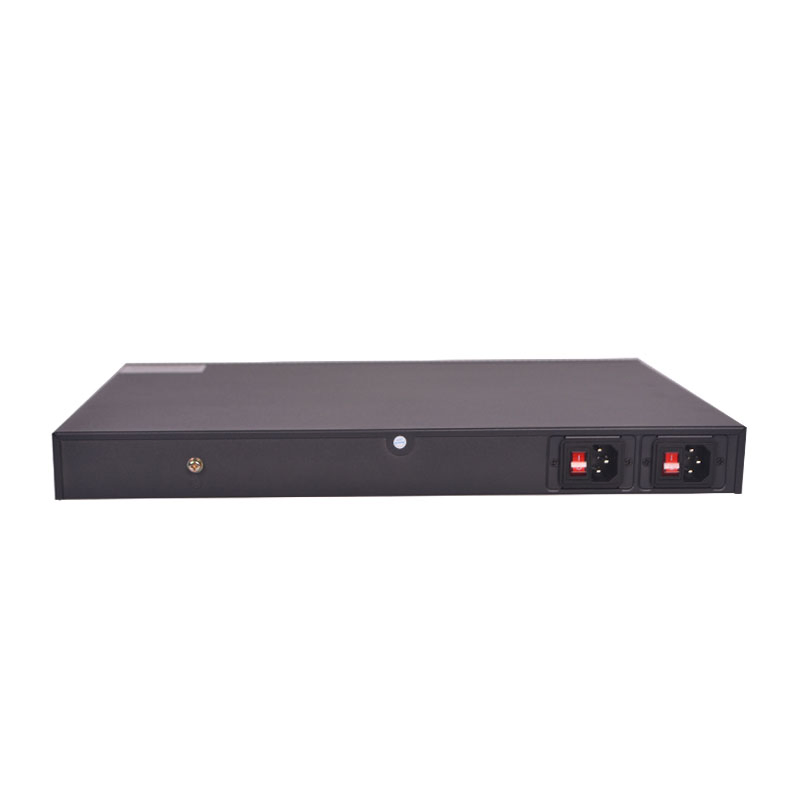

	Slot	2 power module slot
Uplink Port	COMBO port	4 10/100/1000M auto-negotiation Ethernet ports
		4 SFP interfaces
	10-Gigabit	2 SFP+ interfaces
PON Port	Quantity	8
	Physical interface	SFP slot
	Interface type	ITU-TG.984.2 Class B+/Class C+
	Max splitting ratio	1:128
Management Port		1 100/1000BASE-Tx out-band Ethernet port 1 CONSOLE local management port
USB Port		1 Type-C interface Similar to the CONSOLE port function, used for serial port login
PON Port attribute	Transmission distance	20KM
	Port rate	Downstream: 2.5Gbps Upstream: 1.25Gbps
	Wavelength	Forwarding: 1490nm Receiving: 1310nm
	Interface type	SC/UPC
	Fiber type	9/125μm SMF (Single Mode Fiber)
	Light transmission power	Class B+ +1.5~+5dBm	Class C+ +3~+7dBm
	Receiving sensitivity	Class B+ -28dBm	Class C+ -30dBm
	Saturation power	Class B+ -8dBm	Class C+ -12dBm
Network management method		Support CLI,SNMP,TELNET,SSH,WEB
Business capabilities		Support device log, device upgrade, device management, condition monitoring, configuration management, and user management. Layer 2 switching configuration management: Like port management, VLAN, RSTP, IGMP, ACL, QOS and so on. PON function configuration management: Like OLT authentication, DBA template, service template, line template and so on.
Backplane Bandwidth		78G

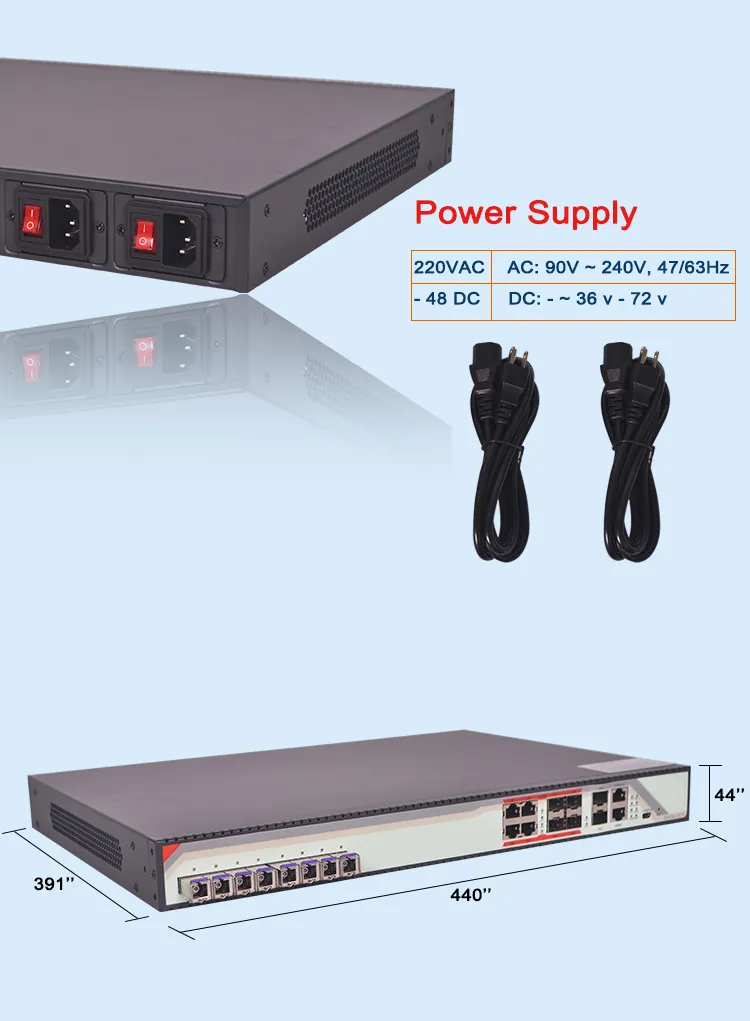

Size		440mm(L)391mm(W)44mm(H)
Weight		4kg
Power supply	220VAC	AC: 90V~240V,47/63Hz
	-48DC	DC:-36V~-72V

FTTH/FTTB 2*10g Uplink Ports Fiber Optic Network 2.5g 8 Pon Ports Gepon Olt

1. What are the payment terms that you support?

Usually, we accept T/T, PayPal, Western Union, and Alibaba Trade Assurance. You can select the terms of payment which is more convenient for you.

2. What about the lead time?

Usually, if there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends.

3. How about the shipping?

When the package is small, we normally choose FedEx, DHL, TNT, and UPS and so on, while the goods have high weight and volume, we suggest using air or sea shipment.

4. How can I place an order?

(1) Negotiation is agreed upon for the product price and specifications.

(2) Proforma invoice will be sent for confirmation.

(3) After the agreement on the proforma invoice, the customer makes the deposit.

(4) Manufacturing will be started as soon as the payment is confirmed by our bank.

(5) Ship out the goods within the agreed delivery deadline.

5. Can you do OEM for us?

Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.

6. How about the Warranty?

There are 12 months for the warranty.

While the warranty is not responsible for those broken by violence or updated with other brands.
