FTTH 1g 10g Uplink 16 Port Gpon Olt Z Te Zxa10 C320 Olt
Product DescriptionZTE ZXA10 C320 is a small size, full-service optical access convergent platform and provides carrier-class QoS and reliable network to meet the requirements for small-scale implementation of FTTx services.ZTE ZXA10 C320 OLT (ZTE C320) is a compact, dense full-service xPON converg......
Send Inquiry
Product Description

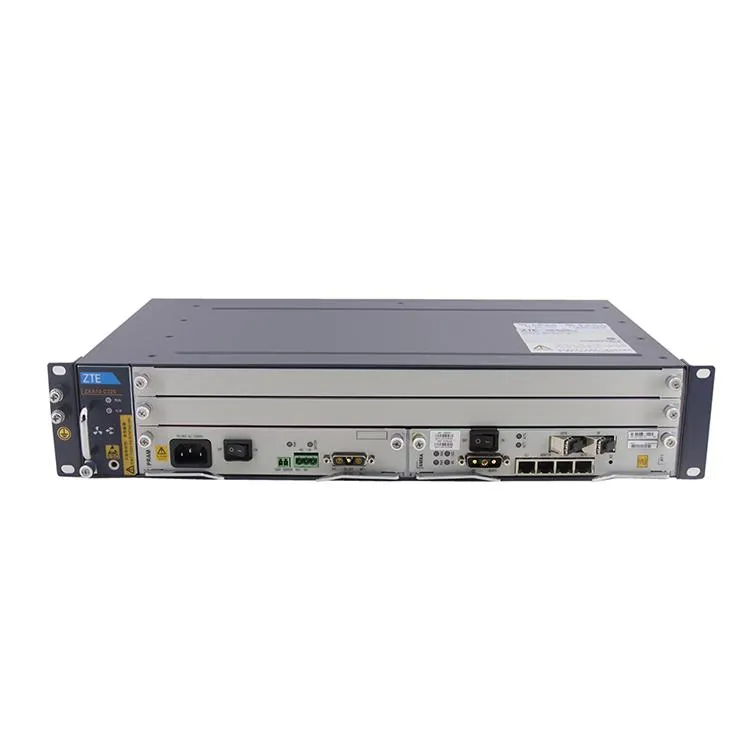

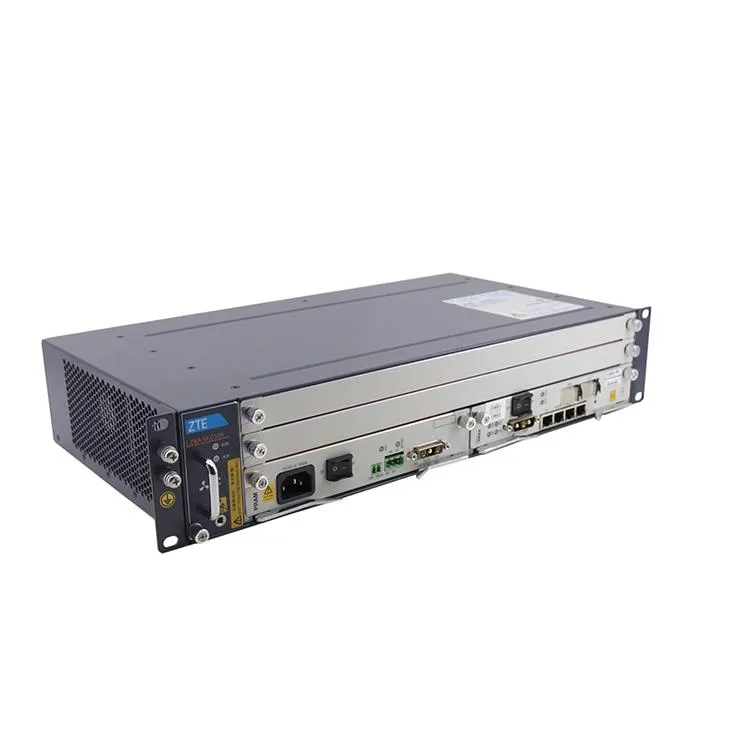

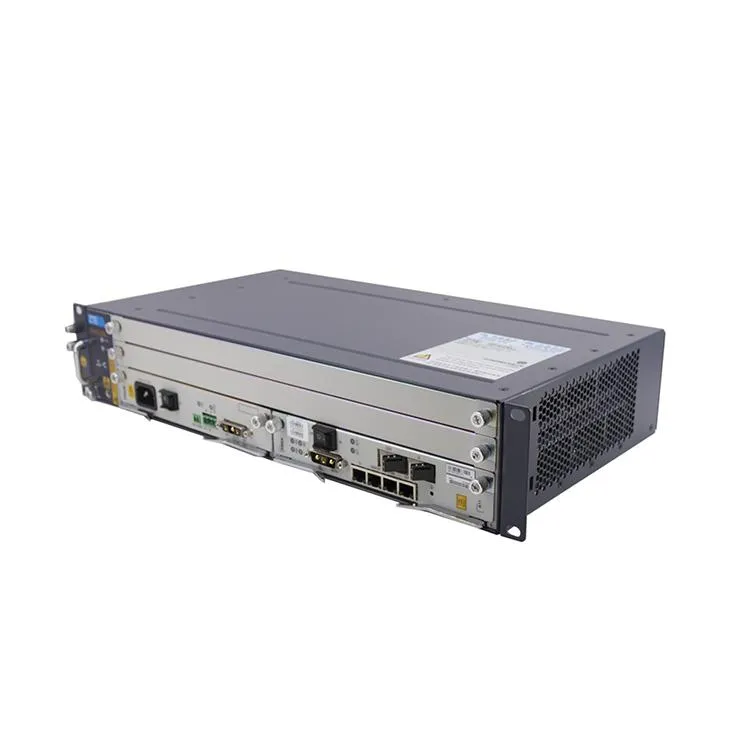

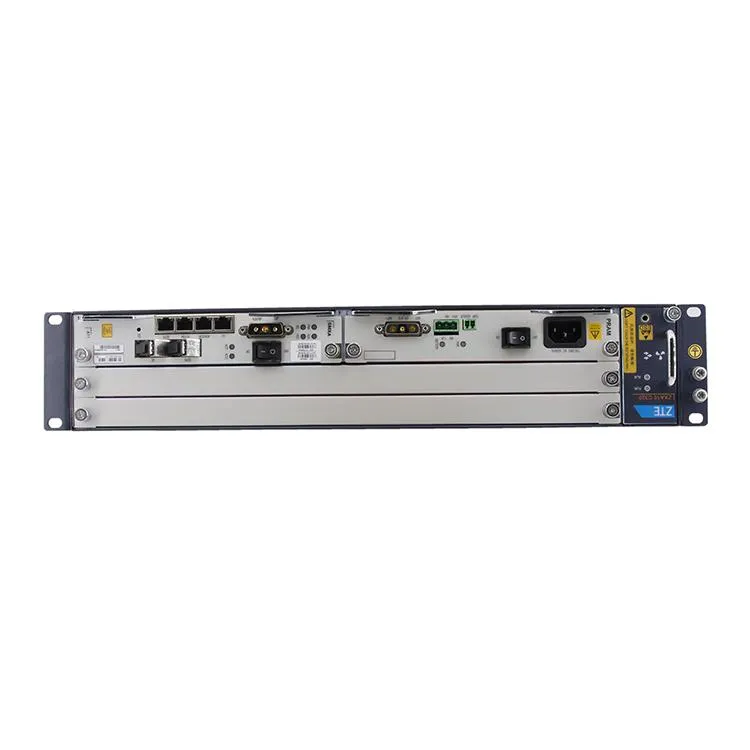

ZTE ZXA10 C320 is a small size, full-service optical access convergent platform and provides carrier-class QoS and reliable network to meet the requirements for small-scale implementation of FTTx services.
ZTE ZXA10 C320 OLT (ZTE C320) is a compact, dense full-service xPON converged optical access platform for next-generation optical access networks, and it supports GPON/EPON/P2P/10GEPON/XG-PON1 common platform access, ZTE ZXA10 C320 supports HSI, VolP, IPTV, CATV, mobile backhaul, WiFi and other full-service access aggregation and management control, providing carrier-class QoS and security reliability.
ZXA10 C320 is new-generation compact OLT, only 2U high, saving installation space; high line card density: industry-leading 16-port GPON/EPON and 48-channel P2P board capability, single-frame can provide 32 G/EPON ports and 96 channels P2P GE port; ZTE C320 supports GPON/EPON/P2P/10G EPON/XG-PON1 with the same platform access, and will also support TWDM-PON technology; unified bearer voice, high-speed Internet access, IPTV, traditional TDM and mobile backhaul services. Integrated access; adopts large-scale OLT hardware and software architecture, supports architecture evolution, is compatible with ZXA10 C300 service boards, and saves board costs.
Product Features
- Flexible networking to adapt to multiple deployment scenarios
Long-distance wide coverage: support OLT sinking, long-distance remote installation, mobile bearer, out-of-band and other non-dense access scenarios.suitable for optical access of user groups such as parks, communities, enterprises, townships and villages Multiple networking modes: flexible support for P2P.hand-in-hand, cascading, and ring networking, and other network requirements, rapid deployment of network and services;
- Powerful performance for refined operations multicast function
ZTE C320 provides SCB and secondary multicast replication mechanism, perfect and fine and reliable user multicast control mechanism; Complete H-QoS control: ZTE C320 supports three-level hierarchical H-QoS control based on service provider, household and service, and meets the requirements of Open Access network; high-precision clock time synchronization: ZTE C320 provides IEEE High-precision time and clock synchronization methods such as 1588V2 and synchronous Ethernet.
- High reliability, providing a carrier-grade system and business security
Board protection: ZXA10 C320 main control switching, power supply and management work in active/standby or redundant mode; Link protection: optical line PON protection and uplink LACP, load sharing, Liu attribution, STP and ring network protection.
- Energy-saving and environmental protection
Energy-saving and low-power design: mining and new-generation chip, intelligent low-power design management in single-board machine, system power consumption monitoring, optical port ALS function, etc., the energy consumption of the same port configuration is lower than that of large OLT 35%|above; Environmentally friendly lead-free materials: European COC, RoHS and other standard specifications and requirements.
| Brand | Z TE |
| Model | ZXA10 C320 |
| Backplane capacity | 420 Gbit/s |
| Switching capacity | 84 Gbit/s |
| Number of service cards | 2 (GPON/P2P/XG-PON1) |
| Number of combined control cards | 2 |
| Number of power supply cards | 1 |
| Number of uplink cards | 1 (10GE/GE/FE/E1/T1) |
| Maximum number of GPON subscribers | 4096 |
| Management Interfaces | CLI, SSH, SNMP, telnet |
| Power | -48 V (DC), 230V (AC) |
| Working temperature and humidity | -25°C – +55°C, 5% – 95% |
| Split Ratio | up to 1:128 |
| Range | 20-60 km |
| Maximum attenuation | SFP B+ 28 dB, SFP C+ 32 dB |
| Dynamic Bandwidth Allocation | NSR-DBA, SR-DBA |
| Support | FEC, AES128, SCB, OLS |
| Dimensions | 86.1 mm (height) x 482.6 mm (width) x 270 mm (depth) |
| Power Supply | Dual DC: 48V/60VAC: 100V~240V |
| Cabinet | Indoor: 2200mm x 600mm x 300mm standard cabinet Outdoor: EC90EB, EC70E |
| Main-Control Switching Card SMXA | Panel interfaces: 1*10GE/GE(optical)+1*GE/FE(Optical)+ 1*GE/FE(electrical) +1*serial port+ 1*management FE+ 1*environment detecting port Ethernet uplink port: MAX. 2*10GE+4*GE or 6*GE |
| Service Card (2 slots) | GTGO(8*GPON) /GTGH(16*GPON)/FTGK(48*P2P)/GTXO(8*XG-PON1) |
