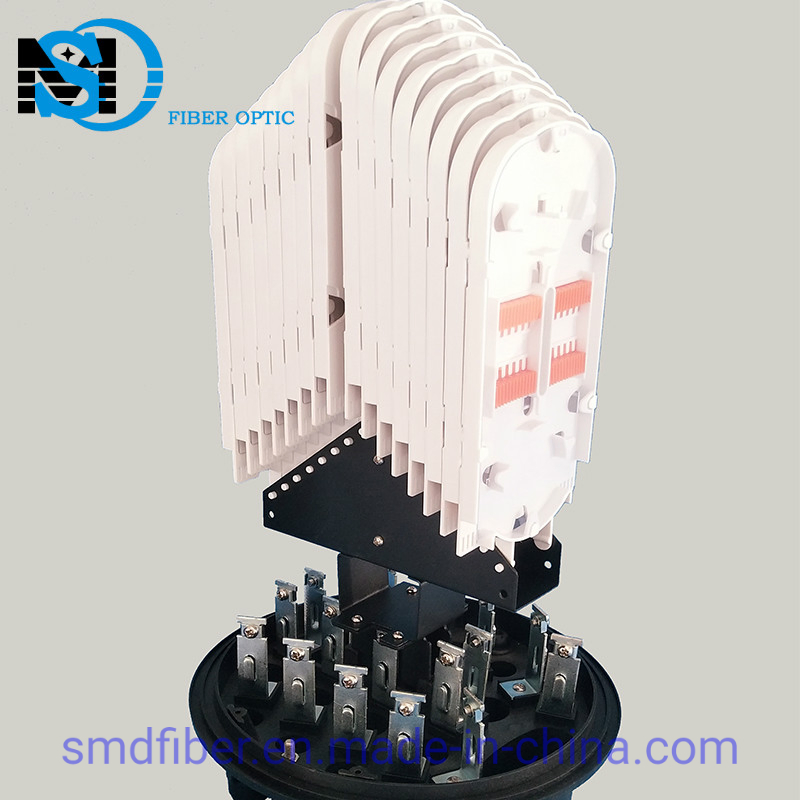

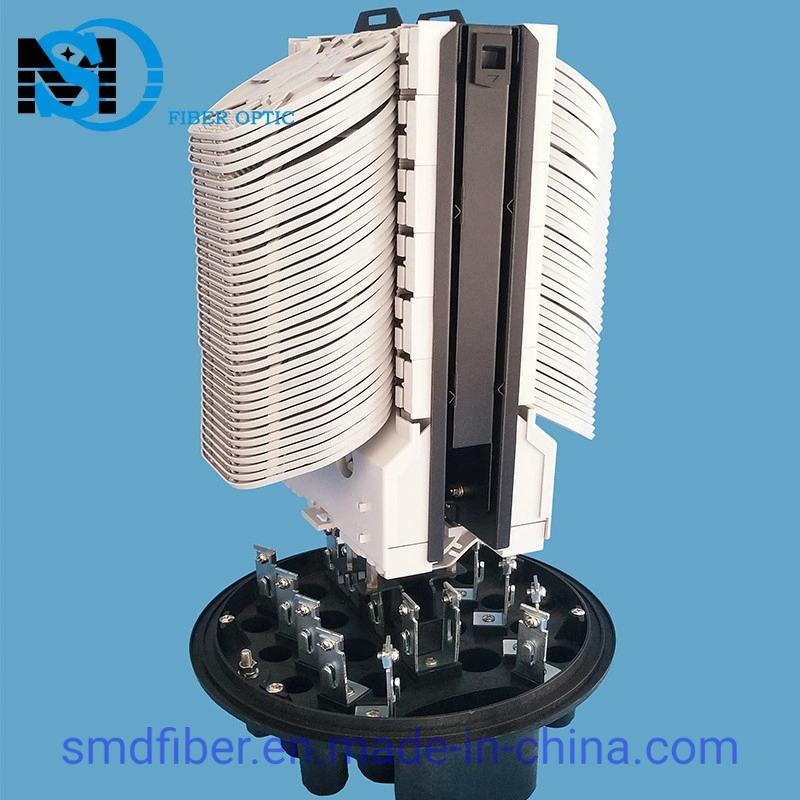

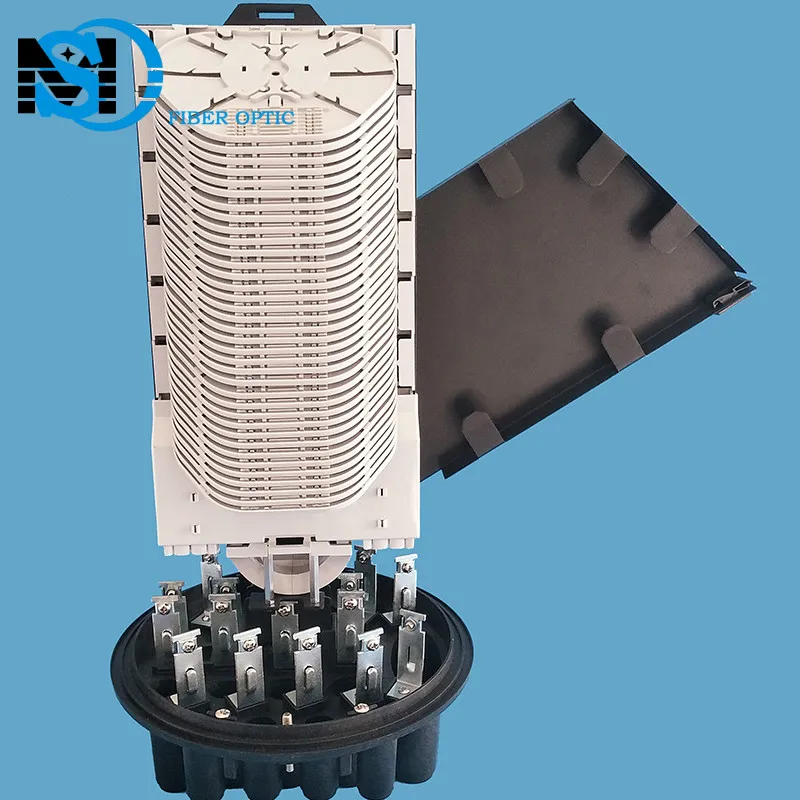

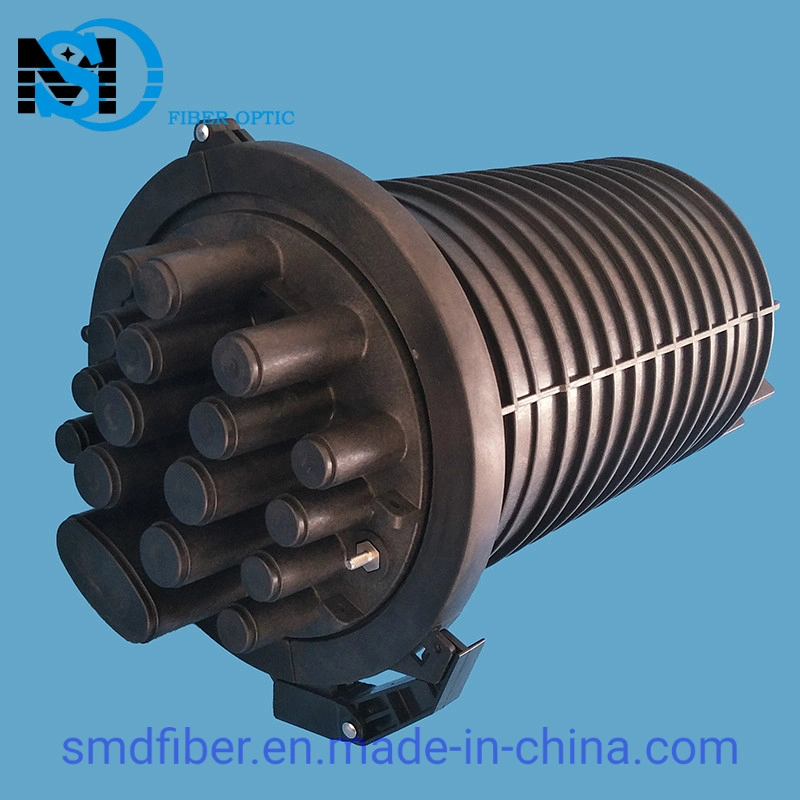

Fiber Optic Dome Type Plastic Splice Closure
Description
1.Application
A type of dome clousure series,used for direct connection during opticcal fiber transmission,and provides joint connection protection,with 16 small round entry holes and I elliptical entry hole;heat sealing with heat shrinkable casing;can be used for overhead,pole,wall and buried installations.With good sealing performance,the simple installation and wide application range are the best choice for optical fiber connection.
2.Product Feature
All functional indicators are in line with the national YD814.1-2004 standard for distribution box.
Four-in and four-out cable ports;there are 17 rounds holes and oval hole,which suits for the access of /7-/27 cables.
The outer box body is made of high-strengh engineering plastics.
Technical index
Description
1.Application
A type of dome clousure series,used for direct connection during opticcal fiber transmission,and provides joint connection protection,with 16 small round entry holes and I elliptical entry hole;heat sealing with heat shrinkable casing;can be used for overhead,pole,wall and buried installations.With good sealing performance,the simple installation and wide application range are the best choice for optical fiber connection.
2.Product Feature
All functional indicators are in line with the national YD814.1-2004 standard for distribution box.
Four-in and four-out cable ports;there are 17 rounds holes and oval hole,which suits for the access of /7-/27 cables.
The outer box body is made of high-strengh engineering plastics.
Technical index
- Fiber radius of curvature: ≥40mm
- Optical disk additional loss: ≤ 0.01dB
- Temperature Range: - 40°C ~ + 60°C
- Anti lateral pressure: ≥2000N / 10 cm
- Shock resistance: ≥20N.m
