Fiber Optic Anatel Gpon Splitter FTTH 2X32 PLC Divisor Sc/APC Connector
Fiber Optic ANATEL Gpon Splitter FTTH 2x32 PLC Divisor SC/APC Connector UT-King's PLC splitters are used to separate or combine optical signals. A PLC (planar lightwave circuit) is a micro-optical component based on planar lightwave circuit technology and provides a low cost light distr......
Send Inquiry
Product Description
UT-King's PLC splitters are used to separate or combine optical signals. A PLC (planar lightwave circuit) is a micro-optical component based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability. PLCs are manufactured using silica glass waveguide circuits that are aligned with a v-groove fiber array chip that uses ribbon fiber. Once everything is aligned and bonded, it is then packaged inside a miniature housing.
PLC Splitter offers a cost-effective and space-saving networking solution in an optical transmission system.
UT-King's FTTH Passive Fiber Optical Cable Splitter SC/APC 1x16 PLC SpliiterDescriptionPLC splitters are used to separate or combine optical signals. A PLC (planar lightwave circuit) is a micro-optical component based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability. PLCs are manufactured using silica glass waveguide circuits that are aligned with a v-groove fiber array chip that uses ribbon fiber. Once everything is aligned and bonded, it is then packaged inside a miniature housing. PLC splitters have high quality performance, such as low insertion loss, low PDL, high return loss, etc. The PLC is a more recent technology. PLC splitters offer a better solution for larger applications. Waveguides are fabricated using lithography onto a silica glass substrate, which allows for routing specific percentages of light. As a result, PLC splitters offer accurate and even splits with minimal loss in an efficient package.The PLC splitter is a micro-optical element using photolithographic techniques to form optical waveguide at medium or semiconductor substrate for realizing branch distribution function. Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.PLC splitter: Losses are not sensitive to the wavelength, spectral uniformity is higher, it is more compact and is lower cost with greater degrees of splitting. However, device fabrication process is more complex. Bare fiber splitter is a kind of ODN product suitable for PON networks that can be installed in the pigtail cassette, test instrument and WDM system, which minimizes the space occupation. It is relatively fragile on fiber protection and need a complete protection design on carrying box body and device.
Features:
- Uniform power splitting
- Compact package dimension
- Low polarization dependent loss
- Good channel-to-channel uniformity
- Low Insertion Loss and high Return Loss
- Environmentally and mechanically stable
- Wide operating wavelength range from 1260nm to 1650nm
Specification :
| Item | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 | 2x64 | 2x128 | |||||||||
| Operating Wavelength(nm) | 1260-1650 | |||||||||||||||
| Fiber Type | G657A1 or as customers' order | |||||||||||||||
| Connector | SC/FC/LC | |||||||||||||||
| Ferrule section | UPC/APC | |||||||||||||||
| Insertion loss(dB) | ≤4.5 | ≤7.9 | ≤10.8 | ≤14.1 | ≤17.3 | ≤21.1 | ≤24.8 | |||||||||
| Loss uniformity(dB) | ≤0.9 | ≤1.1 | ≤1.2 | ≤1.5 | ≤1.8 | ≤2.2 | ≤2.5 | |||||||||
| Return Loss(dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | |||||||||
| Polarization Dependent Loss(dB) | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.4 | ≤0.4 | |||||||||
| Directivity(dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | |||||||||
| Temperature correlation loss -40~85ºC(dB) | ≤0.5 | ≤0.5 | ≤0.5 | ≤1.5 | ≤0.5 | ≤0.5 | ≤0.5 | |||||||||
| Size(mm)(LxWxH) | 50×4×4 | 60×7×4 | N/A | |||||||||||||
| Working Temperature(ºC) | -40~85 | |||||||||||||||
| Storage Temperature(ºC) | -40~85 | |||||||||||||||

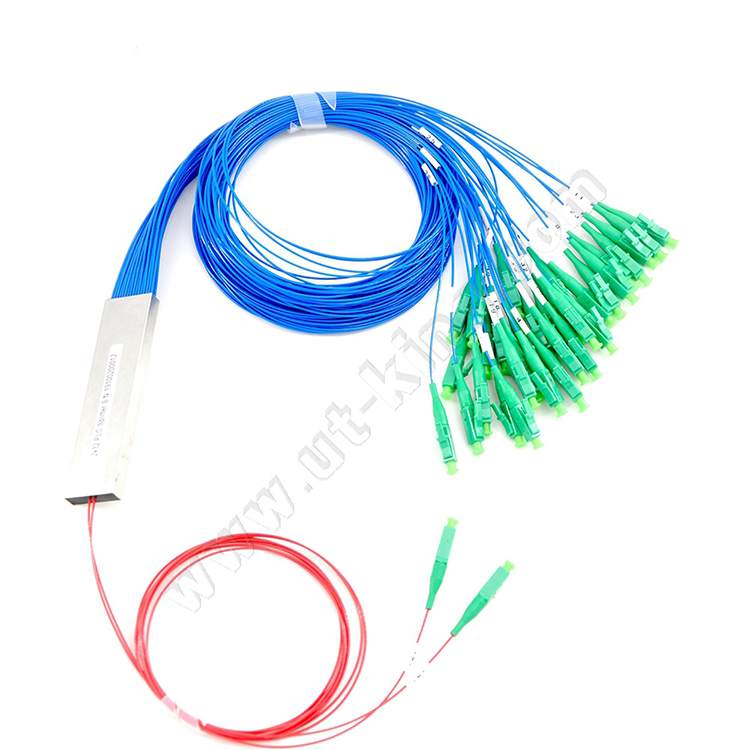

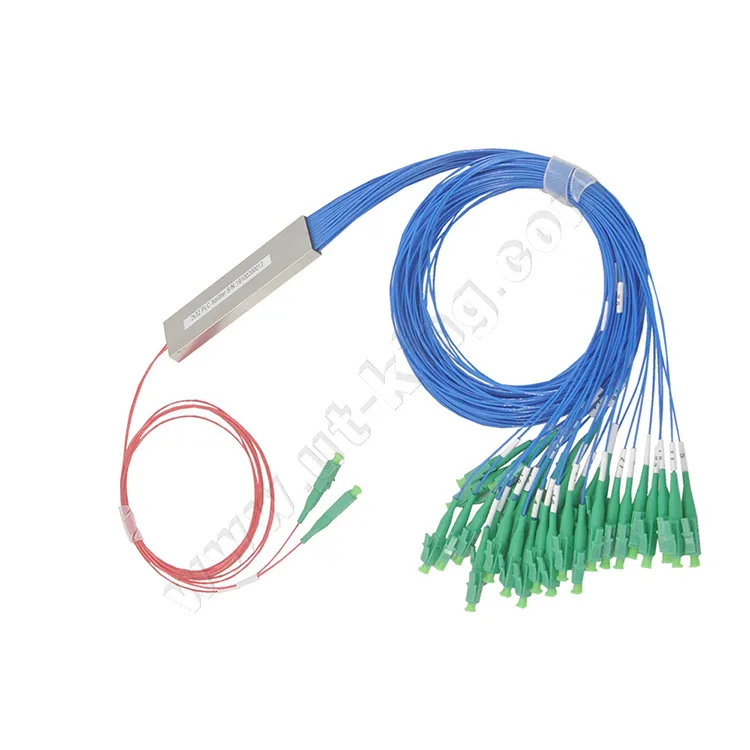

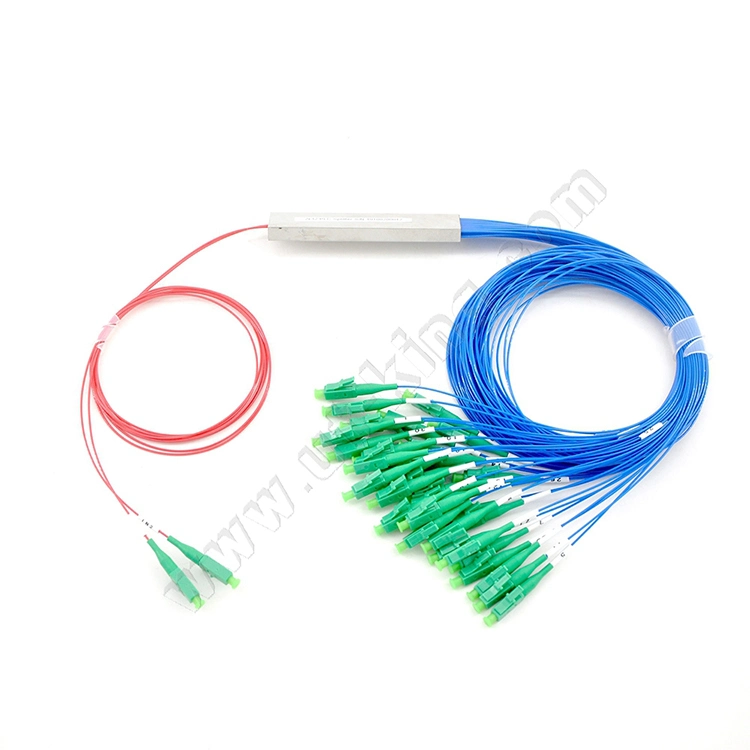

Details of Picture:
