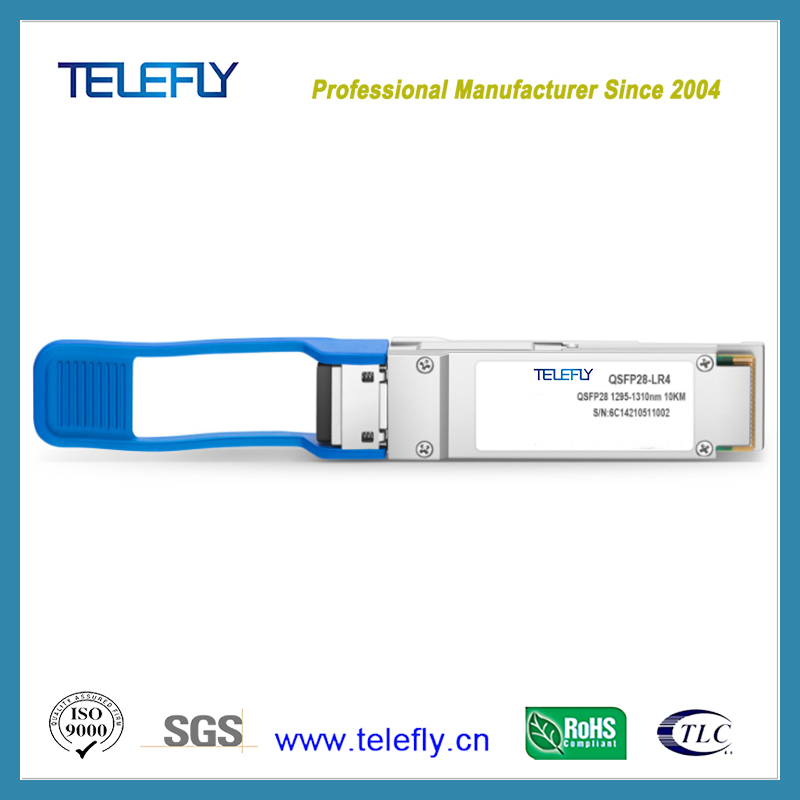

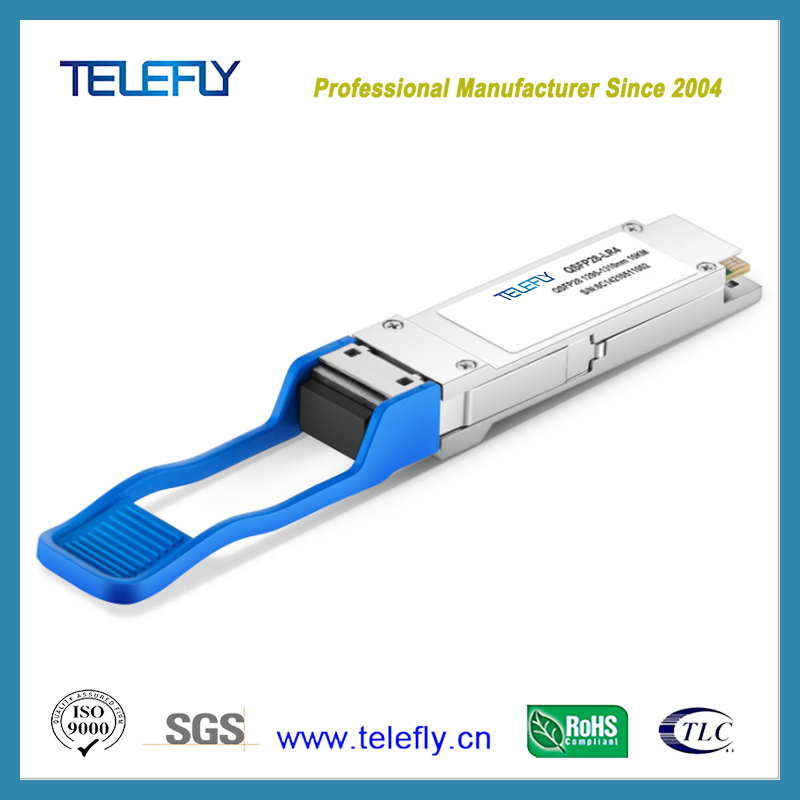

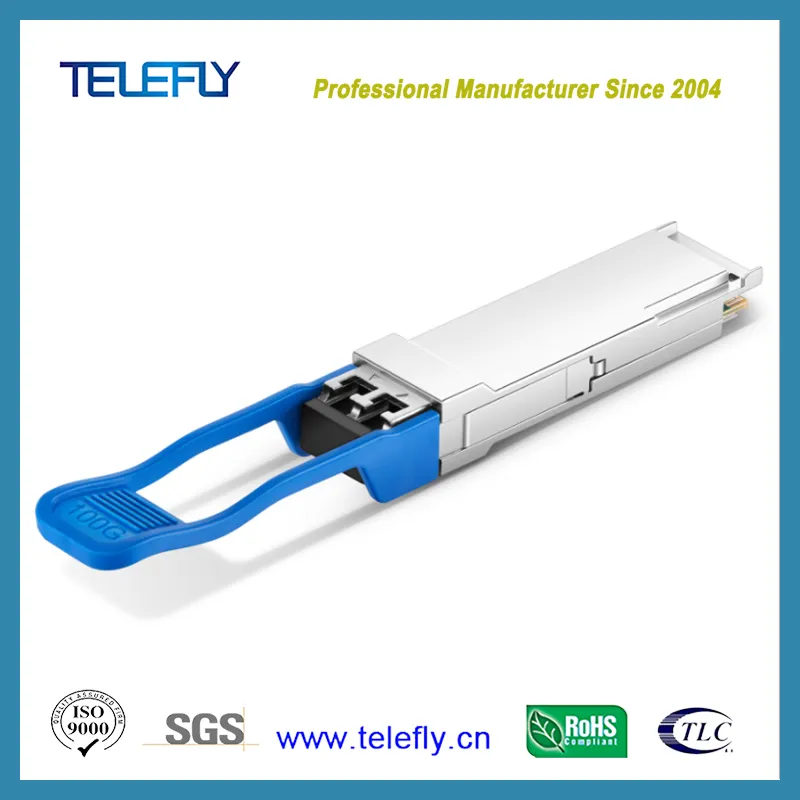

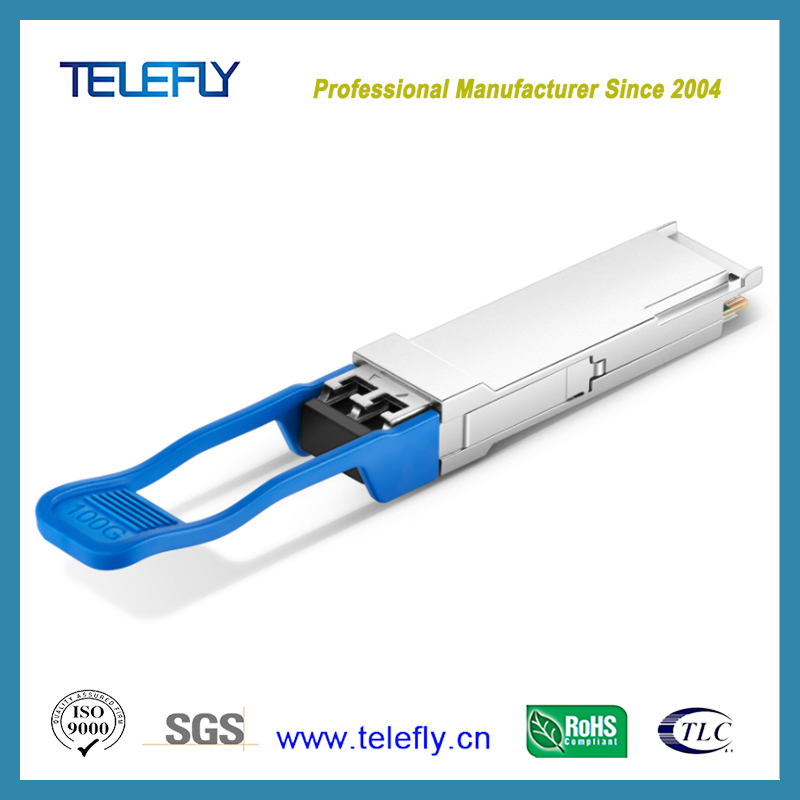

Factory Supply Qsfp28-100g-10km-Lr4, Optic SFP 100g10km Module
Factory supply Qsfp28-100g-10km-Lr4,optic sfp 100g10km modulePRODUCT DESCRIPTIONThis product is a 100Gb/s transceiver module designed for optical communication applications compliant to 100GBASE-LR4 of the IEEEP802.3ba standard. The module converts 4 input channels of 25Gb/s or 27.9GB/s electrical ......
Send Inquiry
Product Description
Factory supply Qsfp28-100g-10km-Lr4,optic sfp 100g10km module
PRODUCT DESCRIPTION
This product is a 100Gb/s transceiver module designed for optical communication applications compliant to 100GBASE-LR4 of the IEEE
P802.3ba standard.
P802.3ba standard.
The module converts 4 input channels of 25Gb/s or 27.9GB/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes
them into a single channel for 100Gb/s optical transmission.
them into a single channel for 100Gb/s optical transmission.
Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts
them to 4 output channels of electrical data.The central wavelengths of the 4 LAN WDM channels are 1295.56, 1300.05, 1304.58 and 1309.14 nm
them to 4 output channels of electrical data.The central wavelengths of the 4 LAN WDM channels are 1295.56, 1300.05, 1304.58 and 1309.14 nm
Features:
Duplex LC receptacle optical interface
Single +3.3V power supply
Hot-pluggable QSFP28 MSA form factor
4x28G Electrical Serial Interface (CEI-28G-VSR)
AC coupling of CML signals
Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)
Receiver: 4x25Gb/s PIN ROSA
Low power dissipation (Max: 4W)
Built in digital diagnostic function
Operating case temperature range:0ºC to 70ºC
Compliant with 100GBASE-LR4
I2C Communication Interface

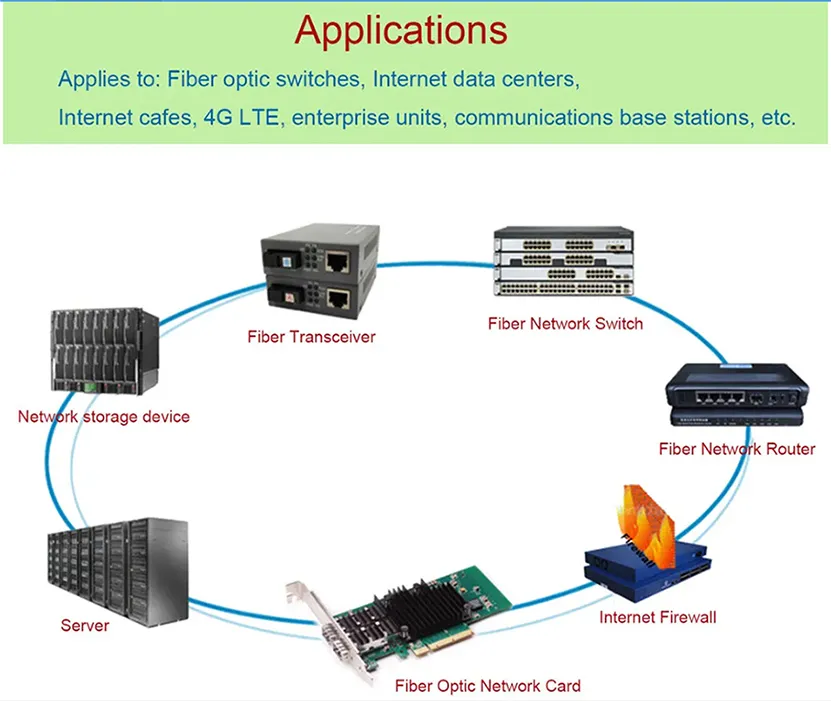

Applications:
100GBASE-LR4
Infiniband QDR and DDR interconnects
100G Datacom connections
Standards
Compliant with IEEE 802.3ba
Compliant with QSFP28 MSA hardware specifications
Compliant with RoHS
| Item | Description | |||||||
| Transceiver form factor | QSFP28 | |||||||
| Transmission speed | 100GE | |||||||
| Center wavelength (nm) | 1295, 1300, 1304, 1309 | |||||||
| Standards compliance | 100GBASE-LR4 | |||||||
| Connector type | LC | |||||||
| Applicable cable and maximum transmission distance | Single-mode fiber (G.652): 10 km | |||||||
| Transmit power (dBm) | -4.3 to +4.5 | |||||||
| Maximum receiver sensitivity (dBm) | -10.6 | |||||||
| Overload power (dBm) | 4.5 | |||||||
| Extinction ratio (dB) | 4 | |||||||
| Operating temperature | 0°C to 70°C (32°F to 158°F) | |||||||
| Part number | HL-QSFP28-100G-LR4 | |||||||
| QSFP28 series | ||||||||
| Package | Part Number | Data Rate | Reach | Wave | TX | RX Sens | Power Cons | Interface |
| (km) | (nm) | (dBm) | (dBm) | |||||
| QSFP28 SR4 | HL-QSFP28-SR4 | 100G | 150m | 850 | -8.4~2.4 | -10.3 | <2W | MPO |
| QSFP28 PSM4 | HL-QSFP28-PSM4 | 100G | 2km | 1310 | -6.0~2.0 | -10.1 | <3.5W | MPO |
| QSFP28 CWDM4 | HL-QSFP28-IR4 | 100G | 2km | CWDM | -6.5~2.5 | -10.1 | <3.5W | LC |
| QSFP28 LR4 | HL-QSFP28-LR4 | 100G | 10km | LAN WDM | -4.3~4.5 | -10.6 | <3.5W | LC |
| QSFP28 LR4 25KM | HL-QSFP28-25K | 100G | 25km | LAN WDM | -4.1~4.5 | -11.5 | <3.5W | LC |
| QSFP28 ER4 Lite | HL-QSFP28-ER4 | 100G | 40km | LAN WDM | -2.5~4.5 | -18.5 | <4W | LC |
