Product Description

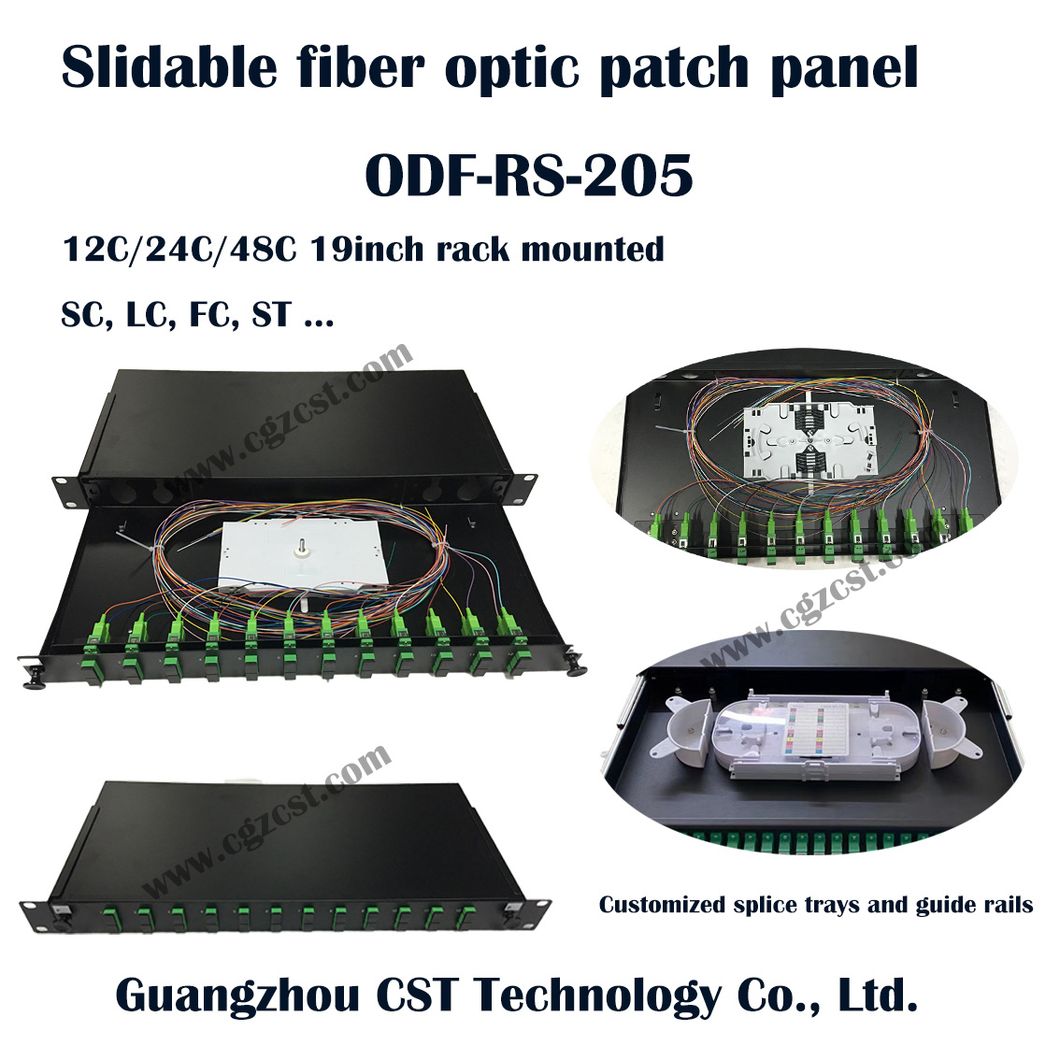

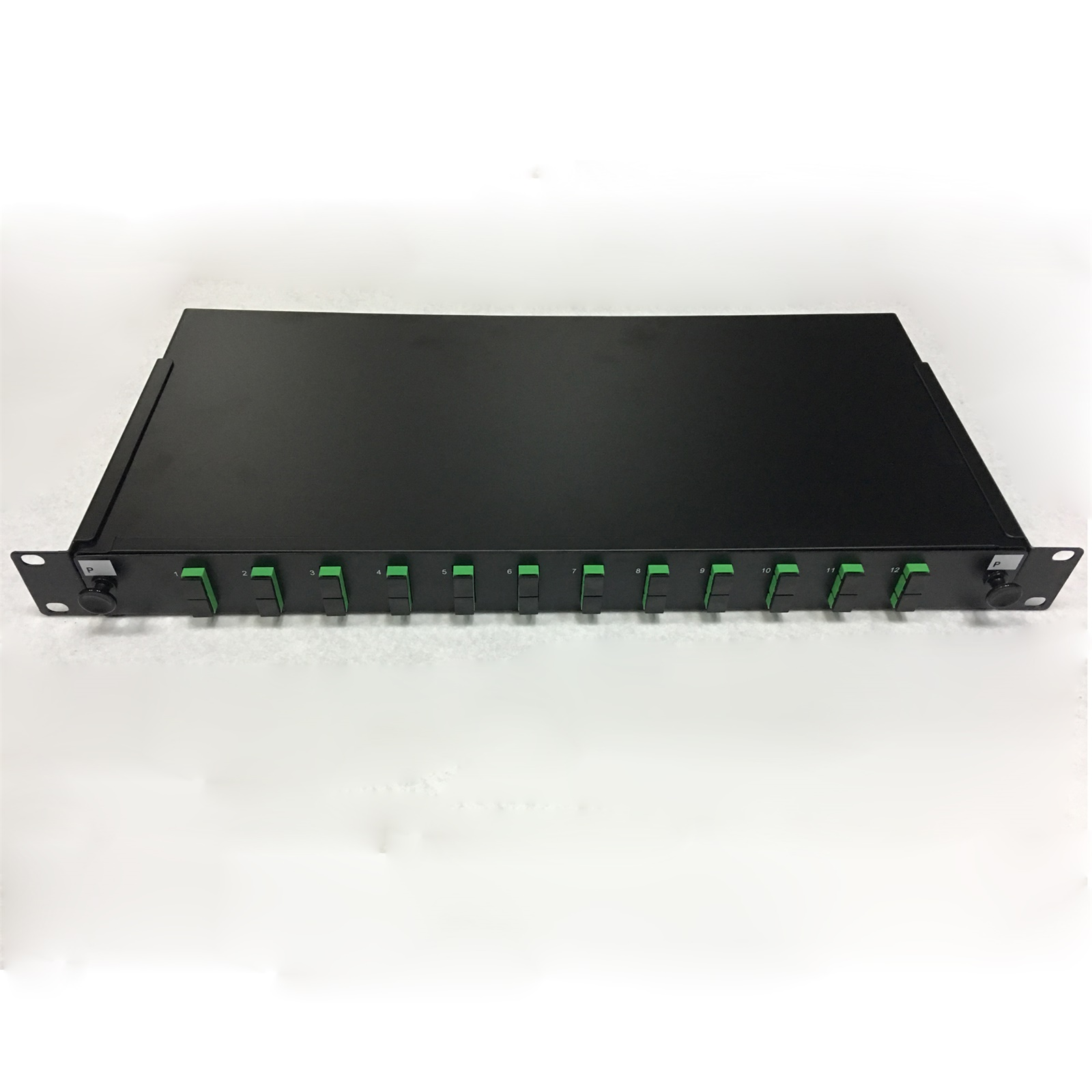

Slidable fiber optic patch panel
ODF-RS-205
Description:

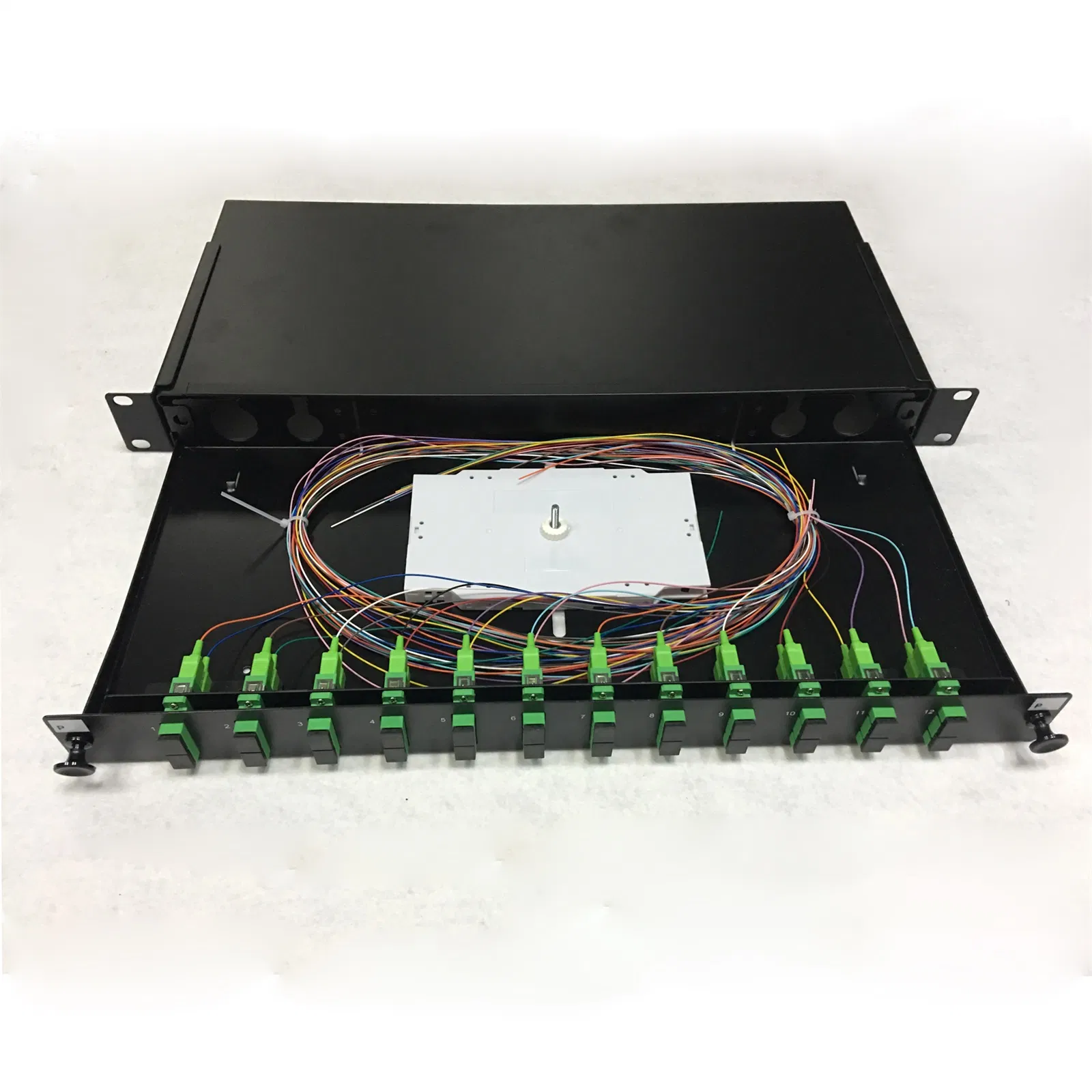

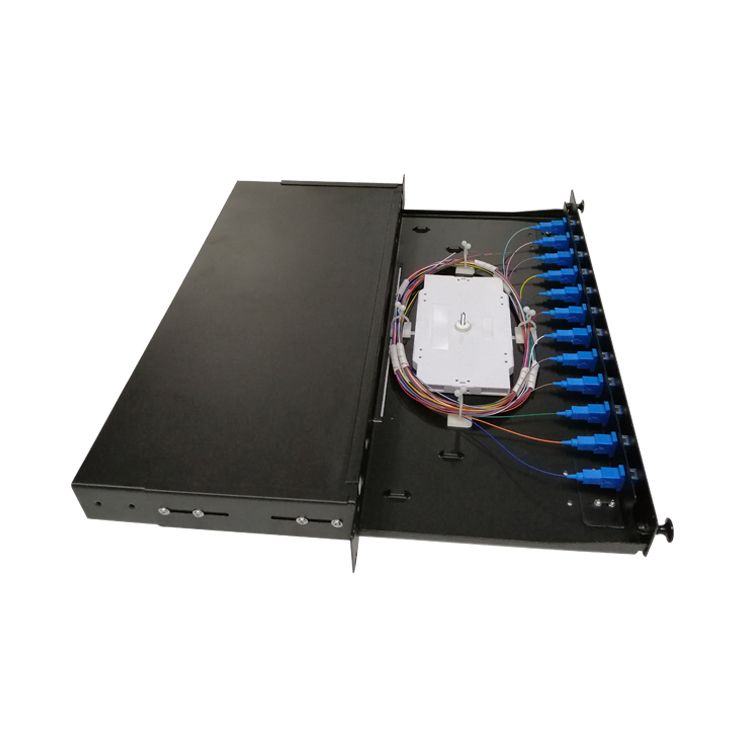

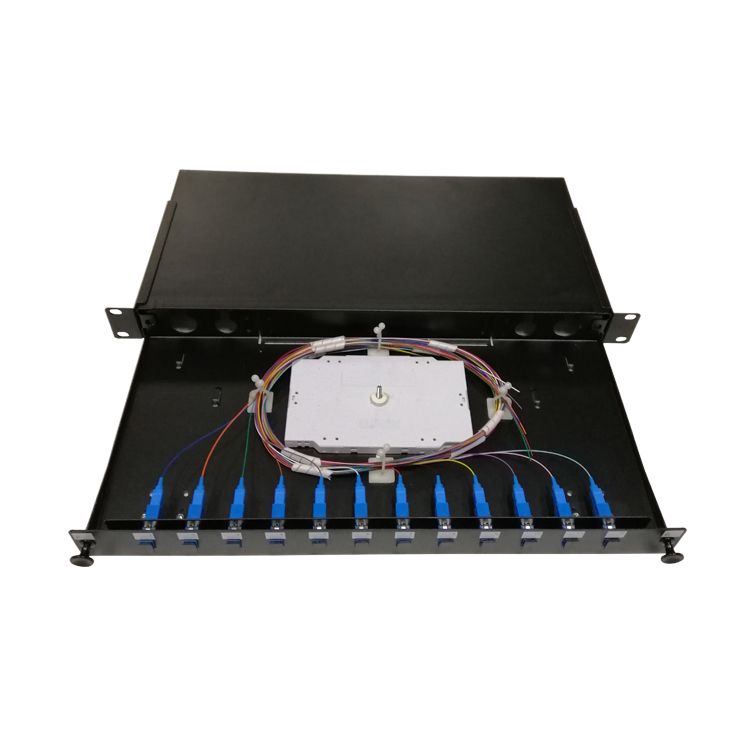

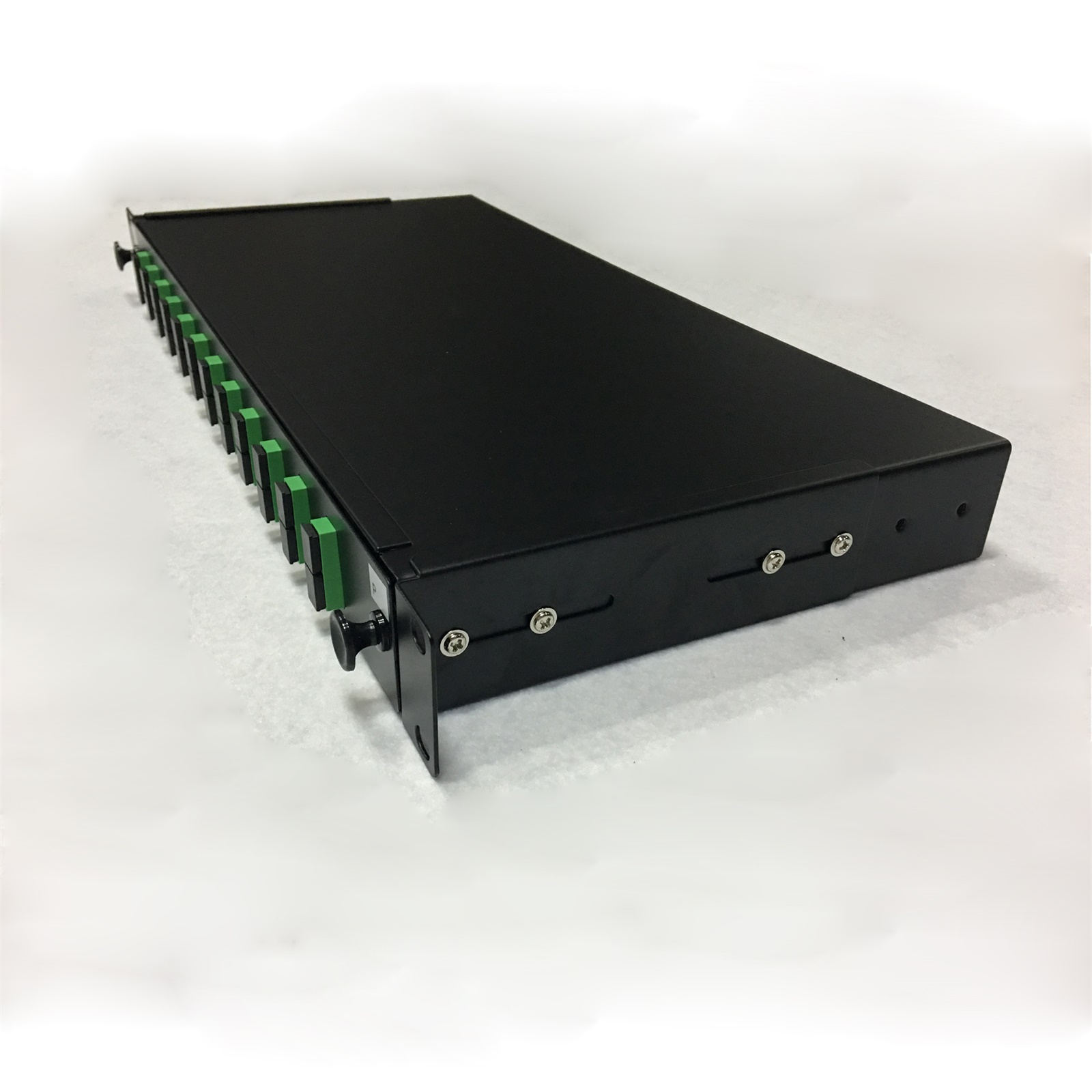

ODF-RS-205 is a 19inch rack mounted fiber optic patch panel that can load 12, 24, 48 SC, LC, FC, ST ... different adapters for max. 48 fiber distribution and connection. It is drawer type, but no sliding rail, simple structure, easy to operate. It is economic choice and popular in the market.
Factory Sales 12f 24f Sc/Upc Sc/APC Sliding Fiber Optic Patch Panel ODF-RS-205 FTTH

Factory Sales 12f 24f Sc/Upc Sc/APC Sliding Fiber Optic Patch Panel ODF-RS-205 FTTH

Features:
Material: high-quality cold roll steel & the surface is sprayed with electrostatic powder.
Color: Black or White
Slidable type, no sliding rail, 19inch rack mounted application
Max. 2pcs OST-011 or OST-035 splice trays, 48 fibers
4 cable ports at rear side, can load 2pcs M20 and 2pcs M25 PG gland
SC, FC, LC, ST ... different adapter plate available; if load SC, LC adapter, can do double layer adapter plate
Simple structure and easy operation

Specification:

Model	Dimension	Material	Adapter port	Capacity	Application
ODF-RS-205/12C	43020544mm	Cold roll steel	12 SC, LC, FC, ST ...	12 fibers	19 inch rack mounted
ODF-RS-205/24C			24 SC, LC, FC, ST ...	24 fibers
ODF-RS-205/48C			48 SC, LC, FC, ST ...	48 fibers

Packing information:
5pcs per carton, about 15kgs, each carton 55x28x27cm

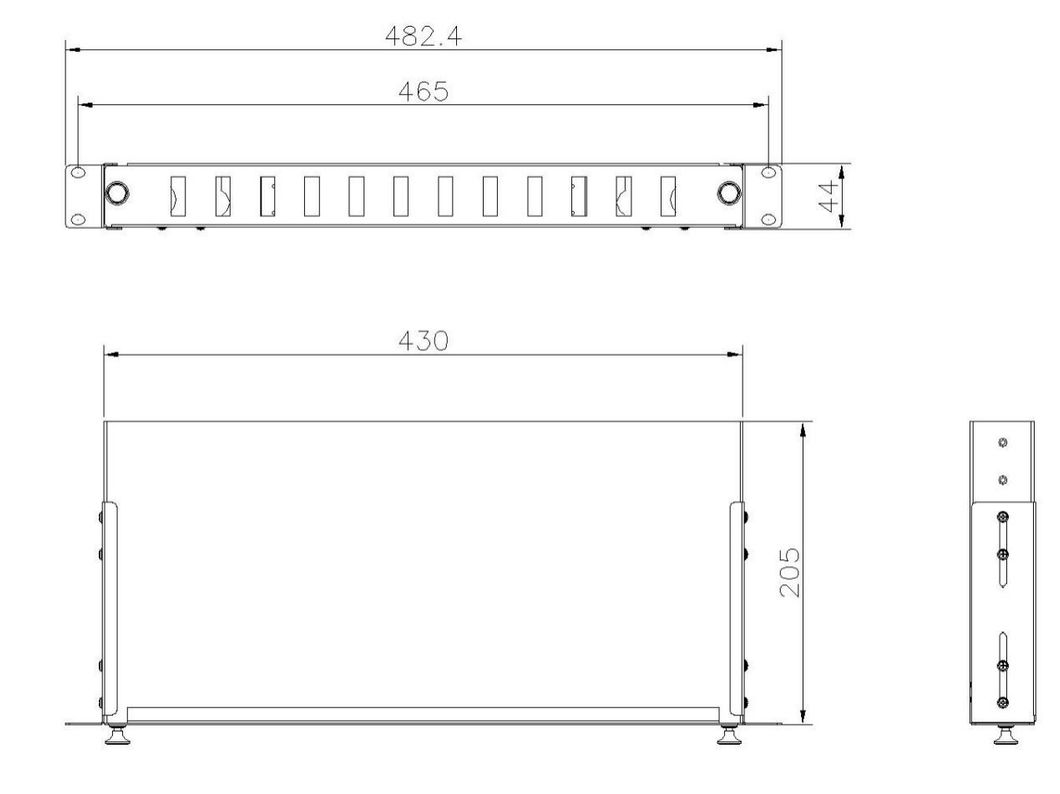

Drawings: (mm)
Factory Sales 12f 24f Sc/Upc Sc/APC Sliding Fiber Optic Patch Panel ODF-RS-205 FTTH

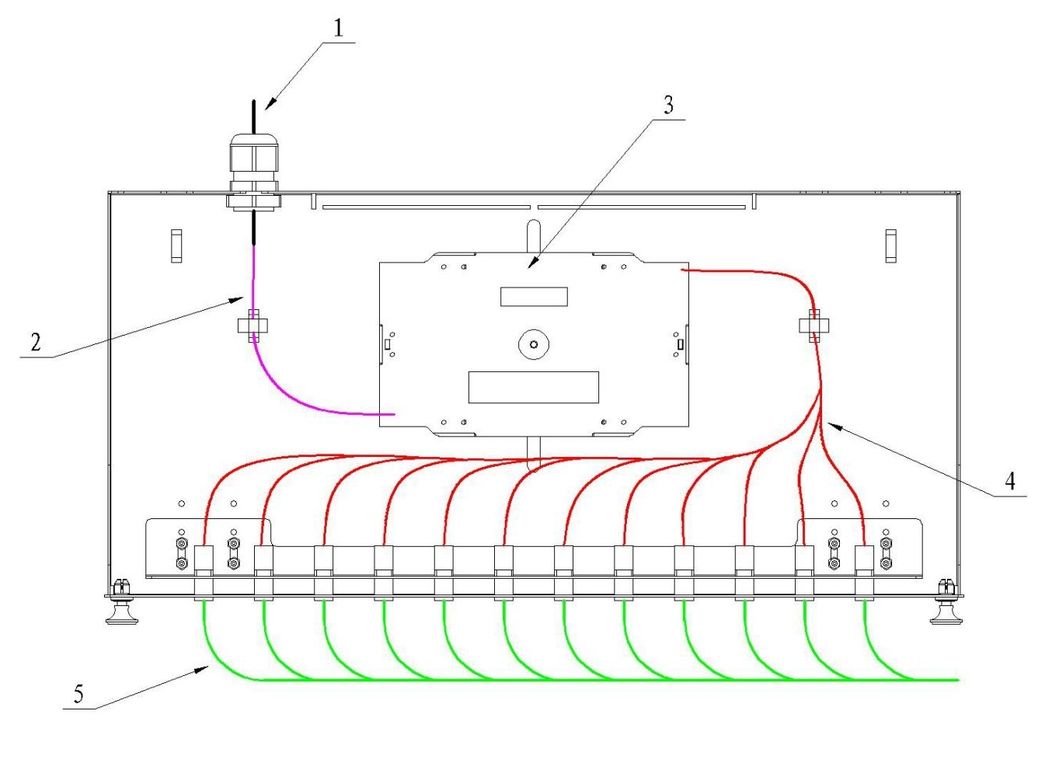

Instruction:

1.Fiber optic cable 2. Stipped out fiber 3. Fiber optic splice tray
4. Fiber optic pigtail 5. Fiber optic patch cord

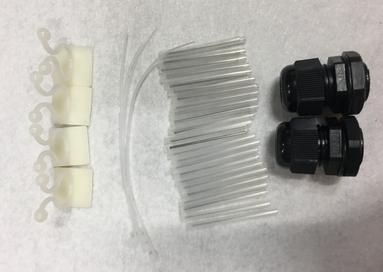

Accessories:

Item	Specificaiton	Qty
Heat shrinkable protection sleeve	452.61.2mm	As per using capacity
Cable tie	3*120mm	4pcs
PG gland	M20	2pcs
Plastic cable guider ring	KL-1/20*20mm, white	4pcs
