Europ Type ODF 19 Inch Rack Mount Sliding Type Fiber Optic Patch Panel

Product Description

europ type ODF 19 inch rack mount sliding type Fiber Optic Patch Panel

Features:

Material: high-quality cold roll steel&the surface is sprayed with electrostatic powder.

Size: 430*205*44mm (W x D x H)

Color : Black or White

Installation:19inch rack mount

Inner structure:It can load 2pcs OST-011 or OST-035 splice trays max. The rear cable input port can fix with 2pcs M20 and 2pcs M25 PG gland

Double layer adapter plate .Customer can choose different adapter port and capacity.

Simple structure and easy operation
Europ Type ODF 19 Inch Rack Mount Sliding Type Fiber Optic Patch Panel

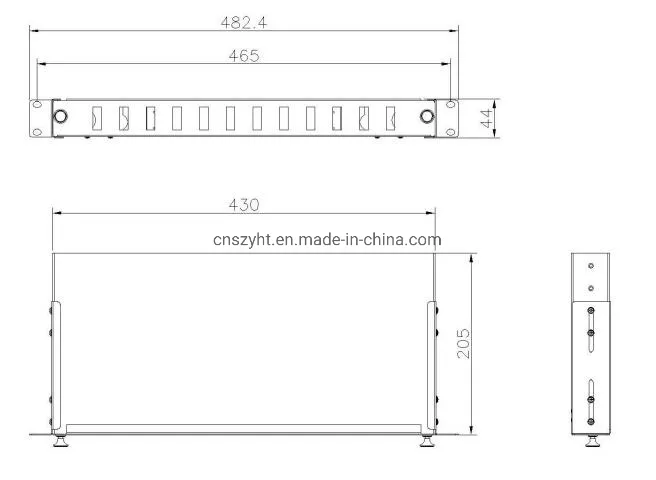

Dimension:

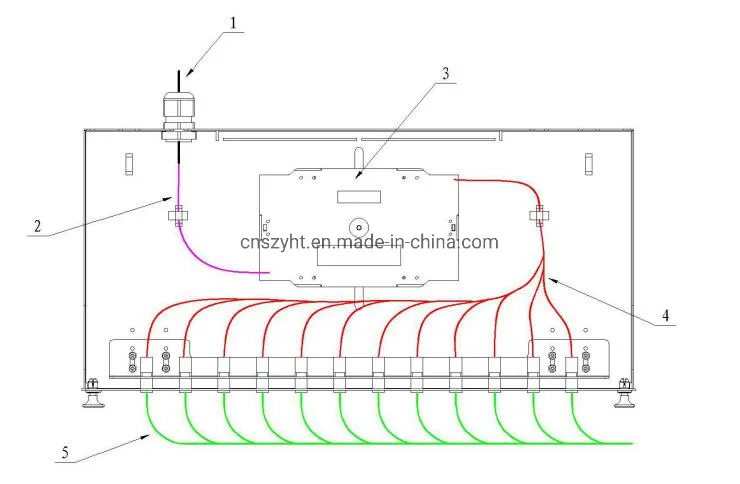

Fiber Arrangement Figure

1,Cable 2,Stripped cable 3,splice tray 4,pigtail 5,patch cord

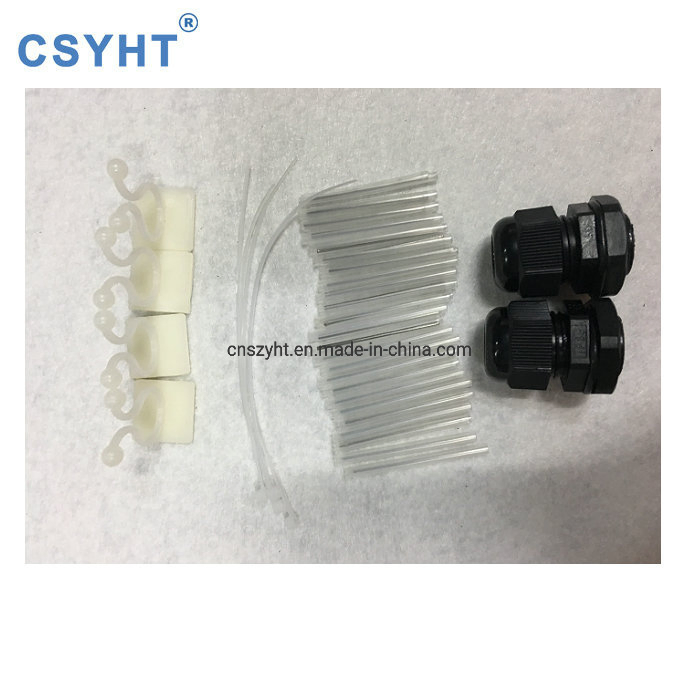

Accessory

Item	Name	size	unit	Qty
1	Shrinkable sleeve	45MM2.61.2	pc	Same with fibers capacity
2	Cable tie	3mm*120mm/white	pc	4
3	PG gland	M20	pc	2
4	Plastic Cable ring	KL-1/20*20/white	pc	4

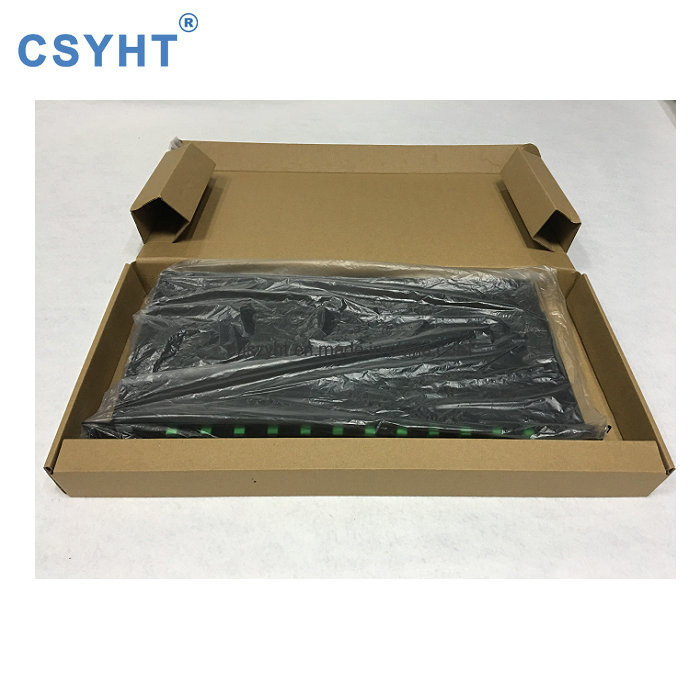

Package

Carton size(CM)	G.W(KG)	Qty/ctn
54.52826.5	15	5sets

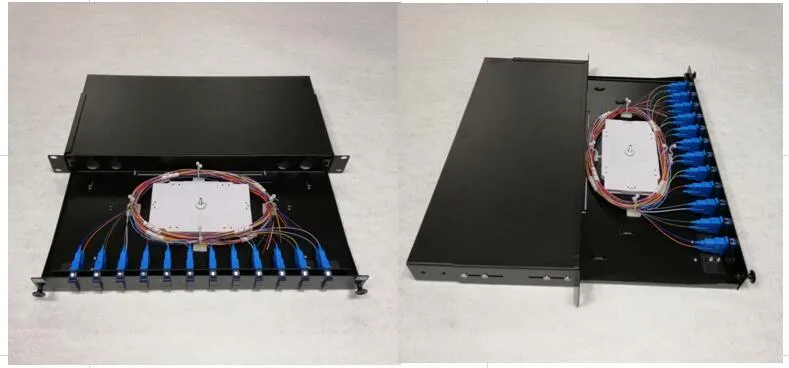

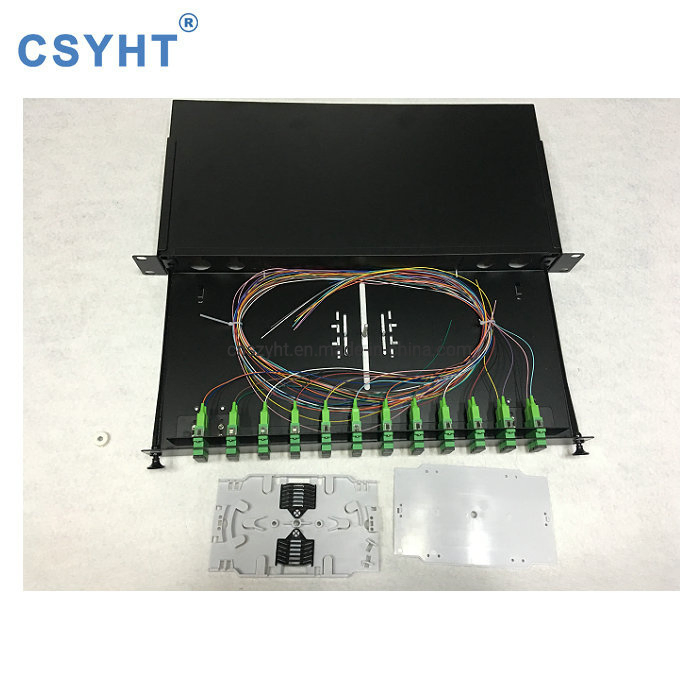

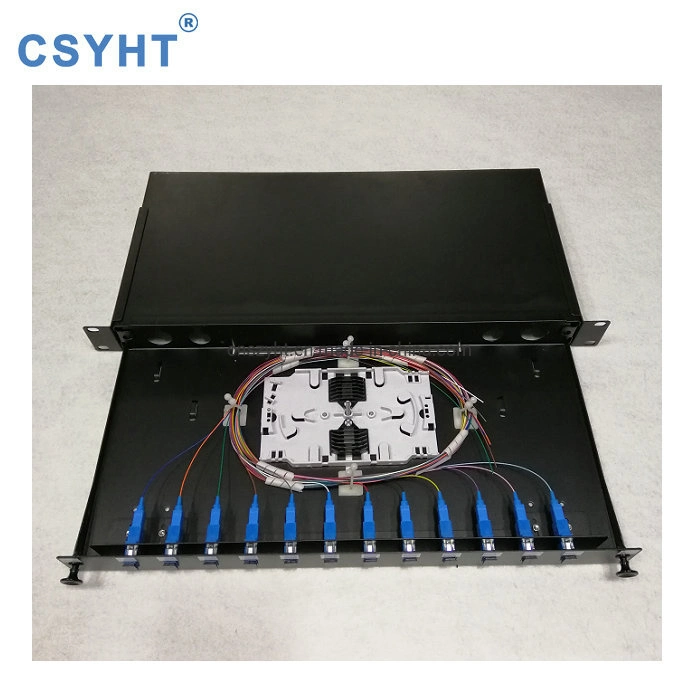

Product image :
Europ Type ODF 19 Inch Rack Mount Sliding Type Fiber Optic Patch Panel
