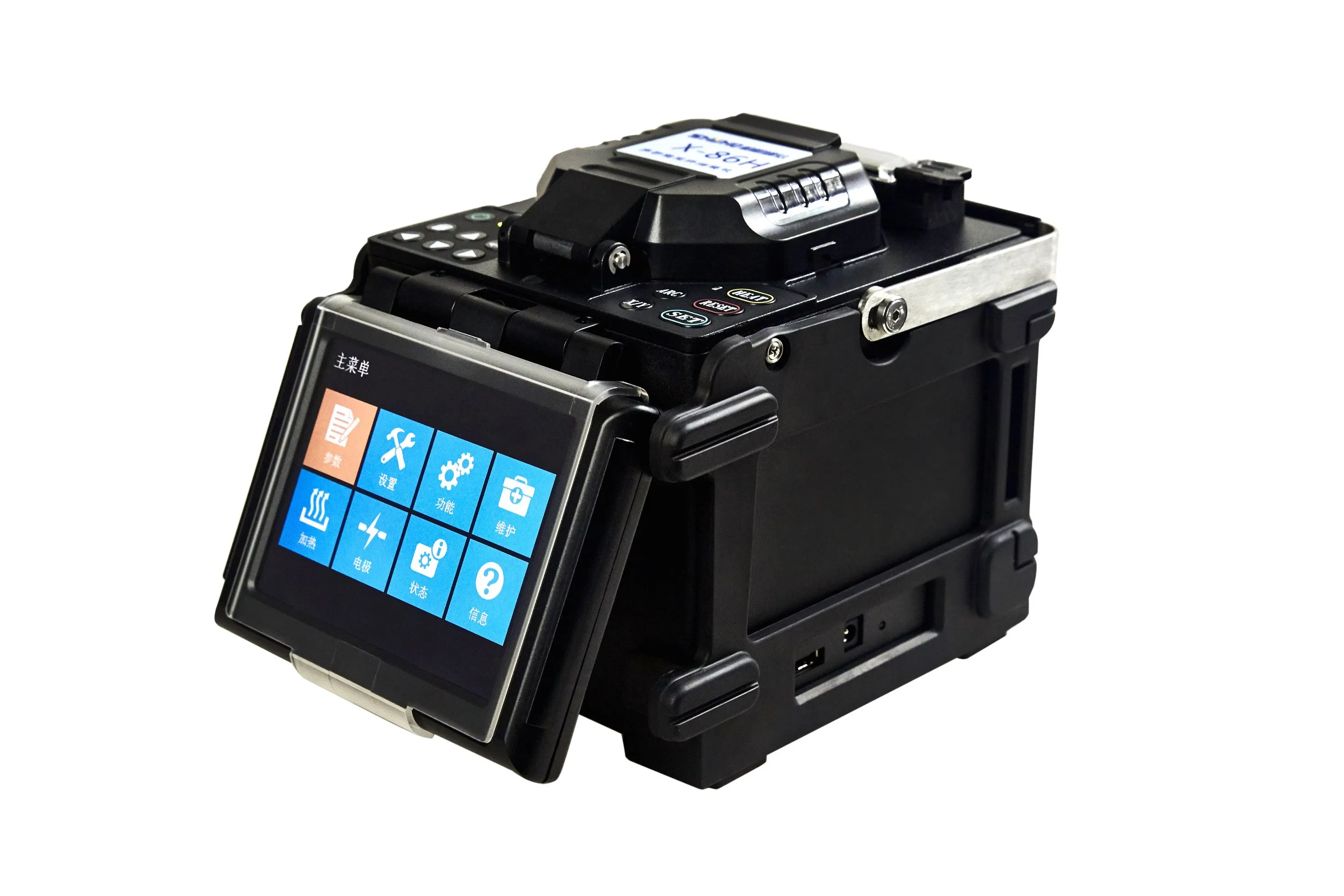

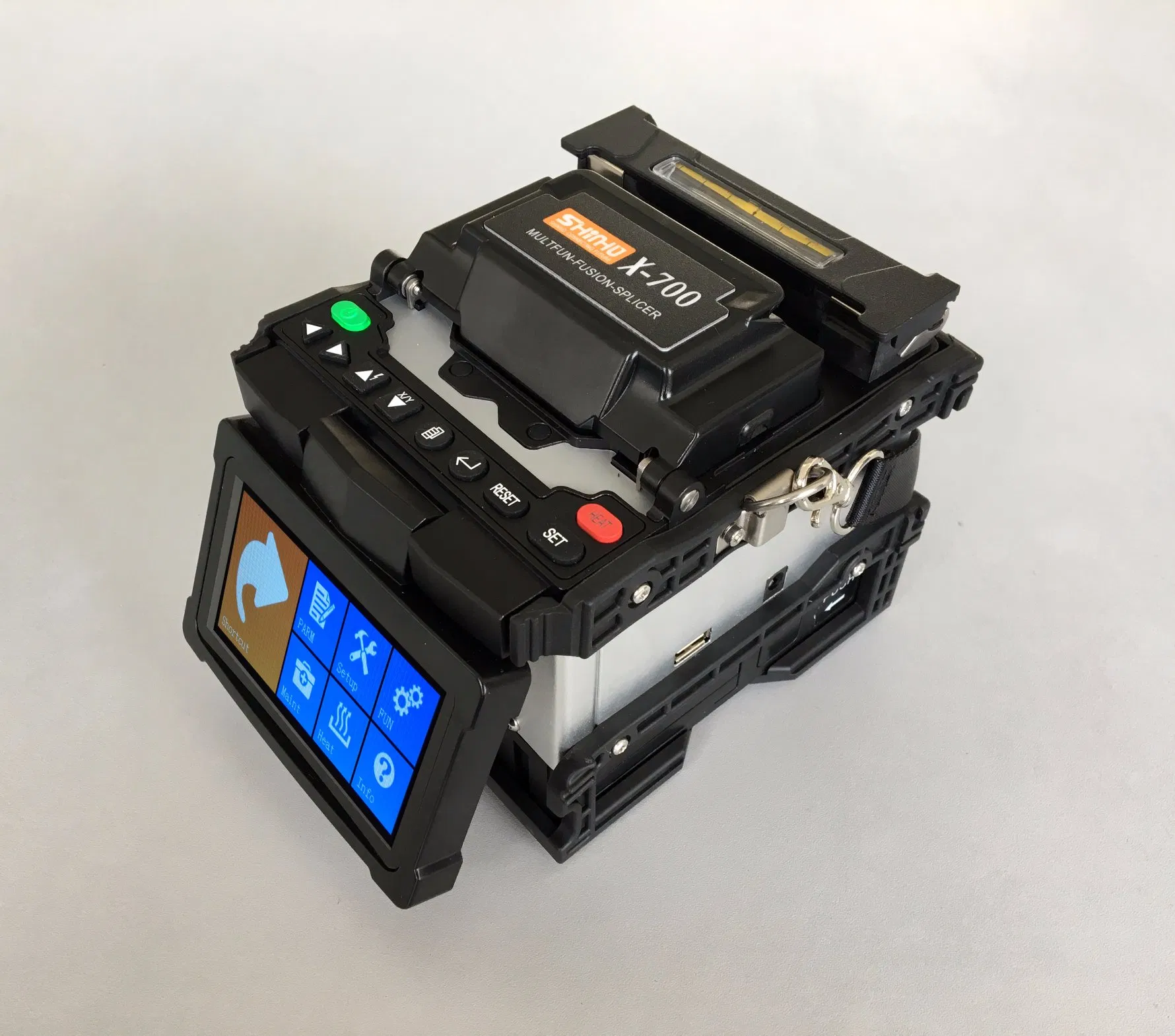

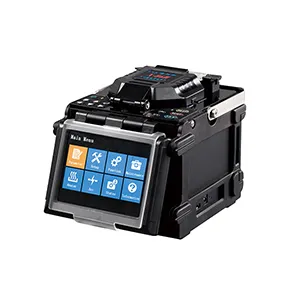

China Electrical Economic Shinho Fiber Optic Splicing Fusion Splicer

Product Description

Features:

PAS image digital processing system, core to core alignment

Arc calibrated by temperature and pressure parameters

Various display group, max magnification up to 300

8 seconds typical splicing and 28 seconds heating time

Metro style GUI, easy operation

Intelligent operation, auto heating and fusing

High definition 5.7' colorful LCD

Rubber armor protects machine from shock or impact

High capacity and pluggable battery, long work time

USB port for software upgraded online Electrical Economic Shinho Fiber Optic Splicing Fusion Splicer
Product Description

Applicable fiber	SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T
Applicable fiber	G.655), others(including G.657)
	G.655), others(including G.657)
Cladding diameter	80 -150μm
Coating diameter	160 - 900μm
Typical splice loss	SM 0.02dB, MM 0.01dB, DS 0.04dB, NZDS 0.04dB
Return loss	<60dB
Cleaved length	10~16mm ( Diameter of coating < 250μm ) ; 16mm ( Diameter of coating
Cleaved length	250~1000μm )
	250~1000μm )
Splicing program	40 groups
Operate mode	Manual, Automatic
Auto-Heat	Available
Typical splicing time	8 seconds
Heating time	26 seconds for 60mm, 40mm shrinkable sleeve
Magnification	300 times for single display, 150 times for double display
Photoelectric system	Two high sensitive cameras, 5.7' 640×480 colorful LCD
Splicing data record	Storing up to 4000 groups of records
Loss evaluation	Available
Tension test	1.8~2.2N
Interface	GUI menu interface, easy operation
Battery capacity	5800mAh, 250 times fusion and heating, pluggable, real-time power monitor
Power supply	Adaptor, input: AC 100-240V ( 50/60HZ ) , output: DC 11~13.5V
Electrodes lifetime	More than 4000 times splicing, electrodes can be replaced conveniently
External port	USB2.0 port, used to derive splicing record data, software upgrade
Operate environment	Altitude: 0~5000m; Relative humidity: 0~95%; Temperature: -10ºC~+50ºC;
Operate environment	Wind speed: max 15m/s
	Wind speed: max 15m/s
Volume/Weight	160mm(L)×150mm(W)×145mm(H) / 2.75kg (including battery)

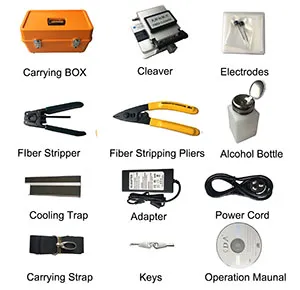

Standard Configuration:

Electrical Economic Shinho Fiber Optic Splicing Fusion Splicer

Packaging Details:
Carton Size: 53cm x31cm x34cm
Gross Weight: 9.5kg
Delivery Detail: in 2 days

Delivery leading period:

Within 3 working days for small orders after receiving full payment

Kindly consult us for bulk orders

Shipment:

Choosing DHL, FedEx, TNT, EMS, UPS and other Express, delivering to your hands directly for small orders.

By sea or by aircargo for bulk orders.

After-sales Service:

We guarantee all our fusion splicers for one year from the date customers receive them. Other parts for six months.

We guarantee that every fusion splicer is tested carefully and works very well before shipment. We strive for 100% customer satisfaction on every sale we complete.
We are responsible for the whole lifespan of our products, and whenever you have questions during usage, feel free to contact us, we are glad to provide technical support timely.

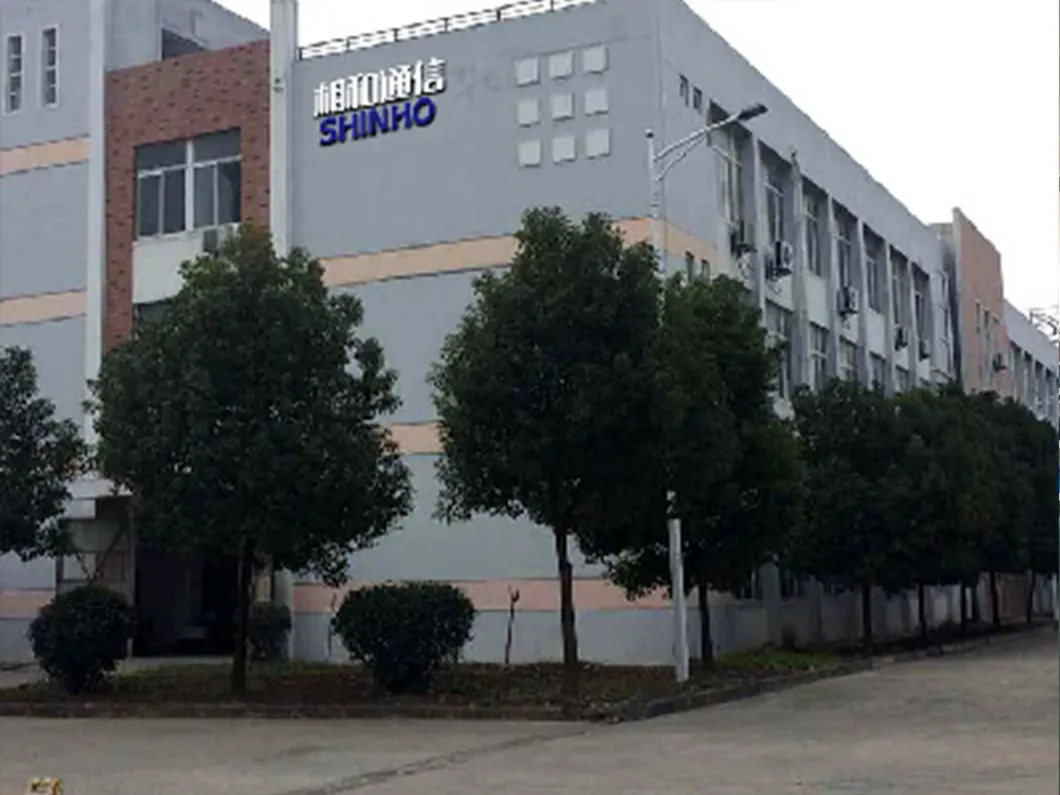

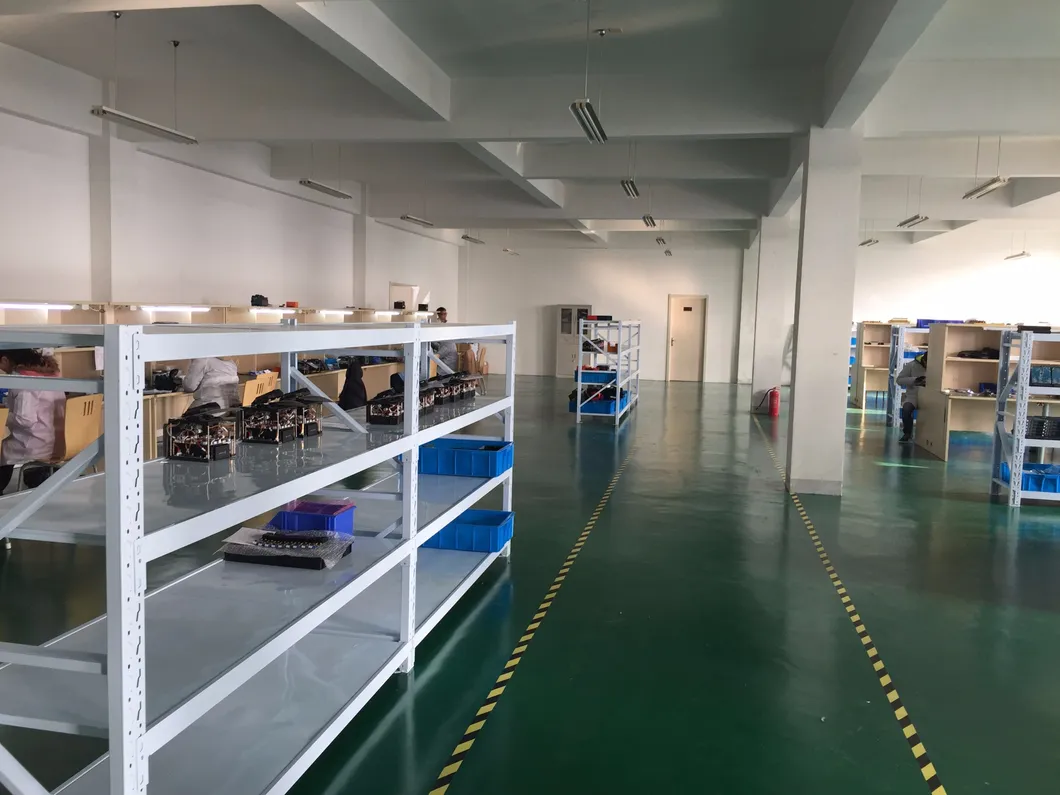

Company Information

Shanghai Xianghe Fiber Communication Co., Ltd is one real professional manufacturer of fusion splicers.We provide OEM, ODM and other services to our valuable customers from overseas markets.As a new manufacturer, our X-series optical fiber fusion splicers have independent IPR. Our optical fiber splicing machines have advanced and stable performance, their operation is easy and intelligent, being widely used in kinds of telecom areas, like communication projects, broadcasting & TV, railway, petroleum & chemical industry, optical passive components production, scientific institute, etc. Compared with Fujikura, Sumitomo, Fitel, Inno and other Chinese splicers, our splicers' fusion losses have reached world's advanced level, much better than all Chinese brands' fusion splicers.

Based on years of experiences in optical communication fields, our aim is to provide you excellent fiber optic fusion splicers, and best after-sales service. Hoping we could establish business relations with your esteemed company very soon.

Be remember, XIANGHE is a leading OEM manufacturer of single core fiber fusion splicers in Shanghai. Electrical Economic Shinho Fiber Optic Splicing Fusion Splicer
