Product Description
Description

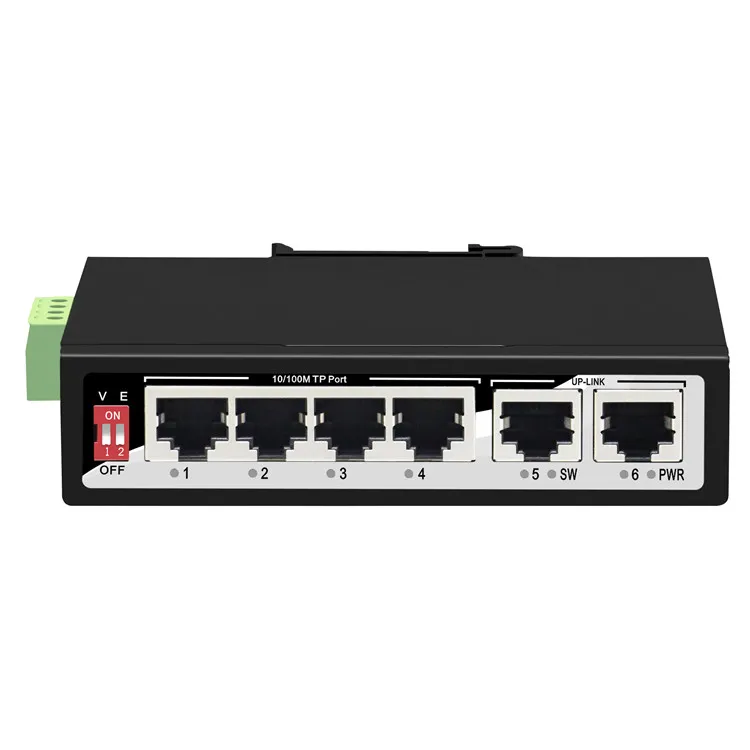

The SST500-AF-42 &SST500-AT-42 device is a kind of industrial PoE media converter, it support 4*10/100Base-TX POE port and 2 uplink 100M Ethernet slot supporting rail and wall mount, Supports power input (DC48-55V). Operating temperature range -40 ºC ~ +75 ºC. Through the industrial environment certification and in line with FCC, CE, CCC standards. Reliable industrial design allows you to ensure that your automation system is running without interruption.
This series of industrial POE switches can be widely used in wind power, power, assembly automation, subway PIS, power SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation, military and other industries, is a green low-power industrial Ethernet switches
.
Features:
1.HD monitor transmission and power supply
2.Wireless AP layout transmission and power supply
3.Network telephone transmission , intelligent house and home system
4.Intelligent transportation supervisory system (ITS)
5. High-speed Way supervisory/Tele-Communication System
6. Security protection system, TV medical treatment
7.High-building Security Protection, Military Tele-Com project
Specification
parameters | ||||||||||||||||||||||||||
PoE Specification | PoE Standard: Supports both IEEE802.3af and IEEE802.3at | |||||||||||||||||||||||||
Single PoE Port Power Output: Max. 15.4 watts (IEEE 802.3af) Max. 30 watts (IEEE 802.3at) | ||||||||||||||||||||||||||
PoE port Auto detect AF/AT devices | ||||||||||||||||||||||||||
PoE Port Output Voltage: DC48V | ||||||||||||||||||||||||||
Power Pin Assignment:1/2+;3/6- | ||||||||||||||||||||||||||
Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) | |||||||||||||||||||||||||
Fiber Media | Multi-mode: 1310nm, 2Km Single-mode: 1310nm, 20; 1550nm, 40/60/80Km | |||||||||||||||||||||||||
Performance Specification | Bandwidth: 1.2Gbps | |||||||||||||||||||||||||
Forwarding Mode | Store-And-Forward | |||||||||||||||||||||||||
LED Display |
| |||||||||||||||||||||||||

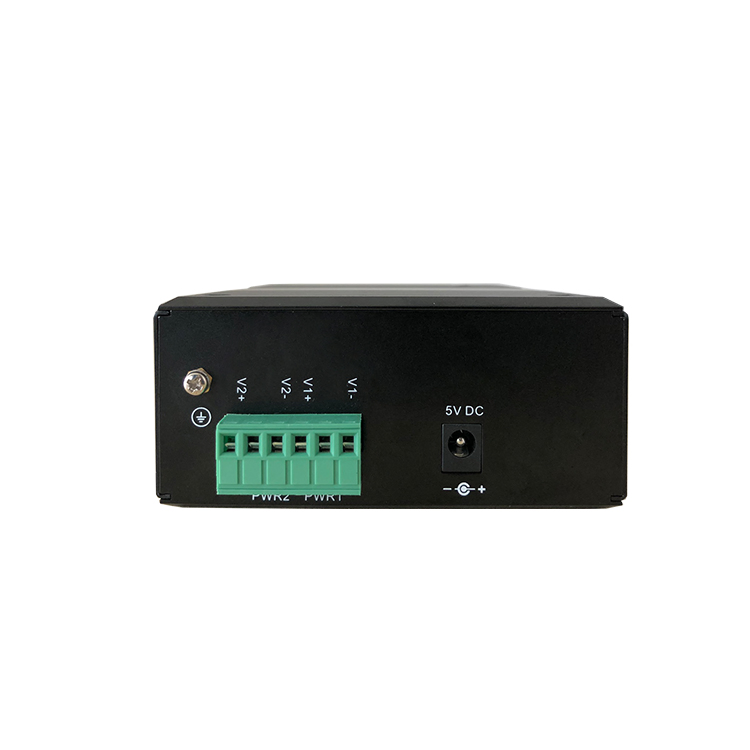

Power Supply | Input Voltage: DC48V (48~55V) Type of input: 4 pins terminal block(redundance V1+V1-,V2+V2-) No-load consumption: MAX 5W@ DC52V0.1A Full-load consumption: MAX 65W@ DC52V1.25A (802.3af) Full-load consumption: MAX 104W@ DC52V2A (802.3af+) Full-load consumption: MAX 130W@ DC52V2.5A (802.3at) | |||||||||||||||||||||||||
Working Environment | Working temperature: -40~75ºC Storage temperature: -40~85ºC Relative Humidity: 5%~95 %( no condensation) | |||||||||||||||||||||||||
Industry Standard | EMI: FCC Part 15, CISPR (EN55022) class A EMS: EN61000-4-2 (ESD) EN61000-4-4 (EFT) EN61000-4-5 (Surge) Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 | |||||||||||||||||||||||||

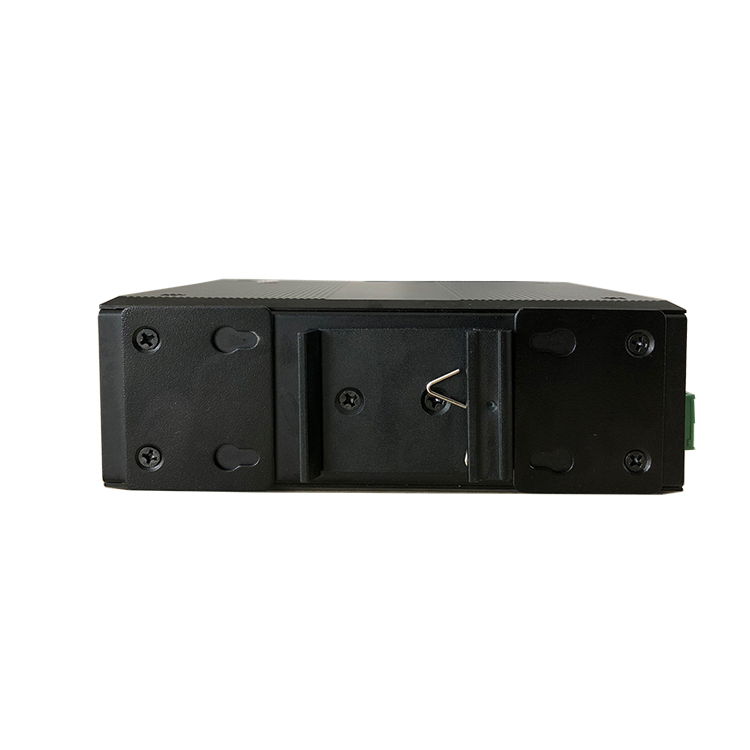

Mechanical Structure | Shell: IP30 protect grade, metal shell Installation: DIN-Rail or Wall mounts | |||||||||||||||||||||||||
Certification | CE mark, commercial | |||||||||||||||||||||||||
MTBF | 300,000 hours | |||||||||||||||||||||||||
Warranty | 5 years | |||||||||||||||||||||||||
