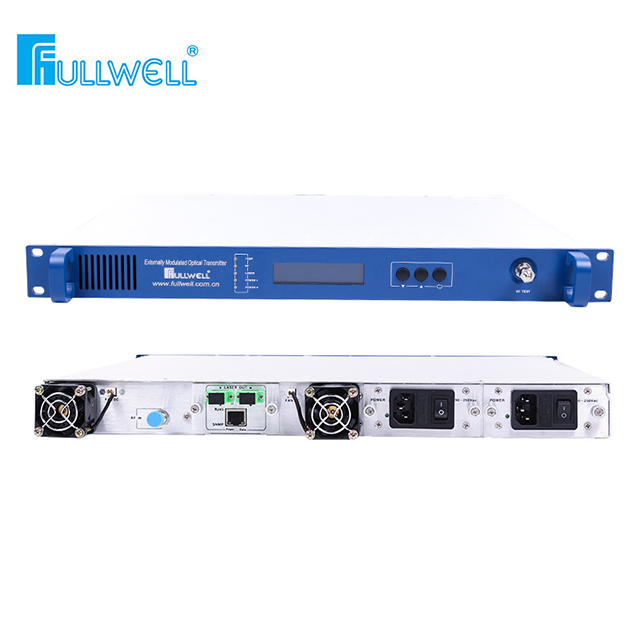

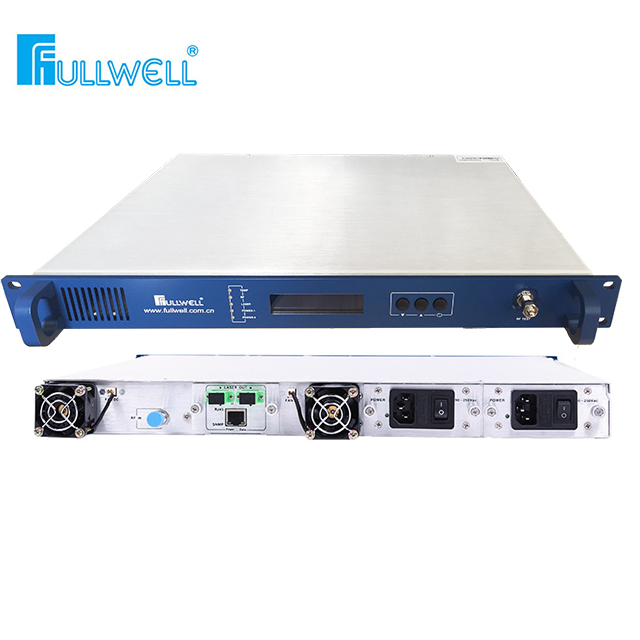

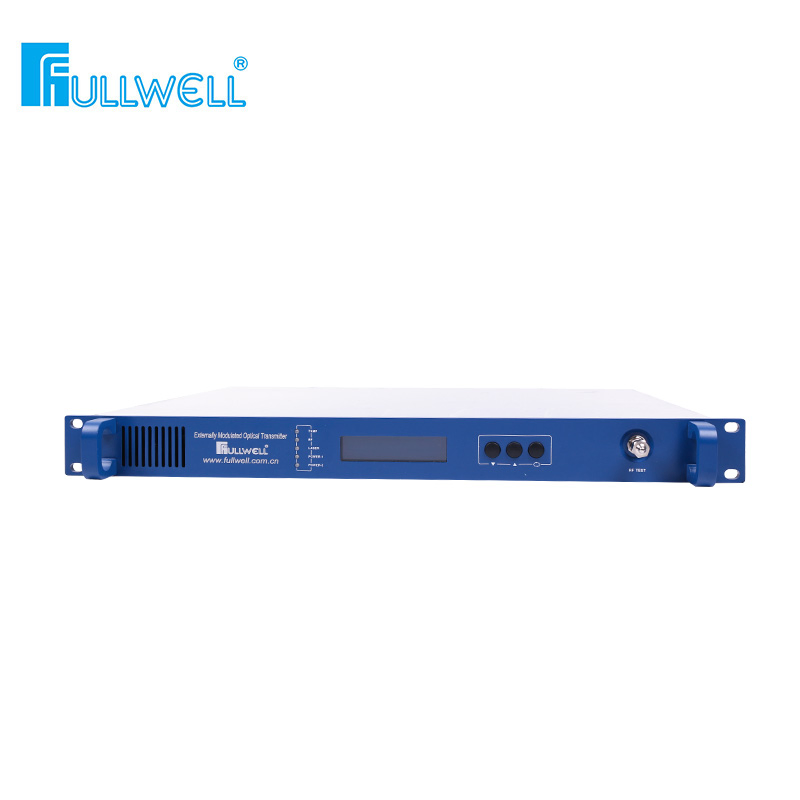

Dual Power Supply 9dBm 1550 Optic Transmitter

Product Description

Items			Parameter	Remark
Optic Parameters	Operating wavelength	(nm)	1550±10
	Output power	(dBm)	2×7	1×5,1×6,1×7, 1x8,1x9, 2×3,2×4,2×5 , 2×6 , 2×7
	Return loss	(dB)	≥52
	Optical fiber connector		SC/APC	Optional SC/APC,FC/APC
RF Parameters	Bandwidth	(MHz)	45-862
	Input level	(dBmV)	23±5	AGC
	Flatness	(dB)	≤±0.75	45~862MHz
	Return loss	(dB)	>16	45~750MHz
	Input Impedance	(Ω)	75
Link Parameters	Channels		PAL-D/60ch
	CNR	(dB)	≥52	65Km fiber,Receive0dBm
	CTB	(dB)	≤-65
	CSO	(dB)	≤-65

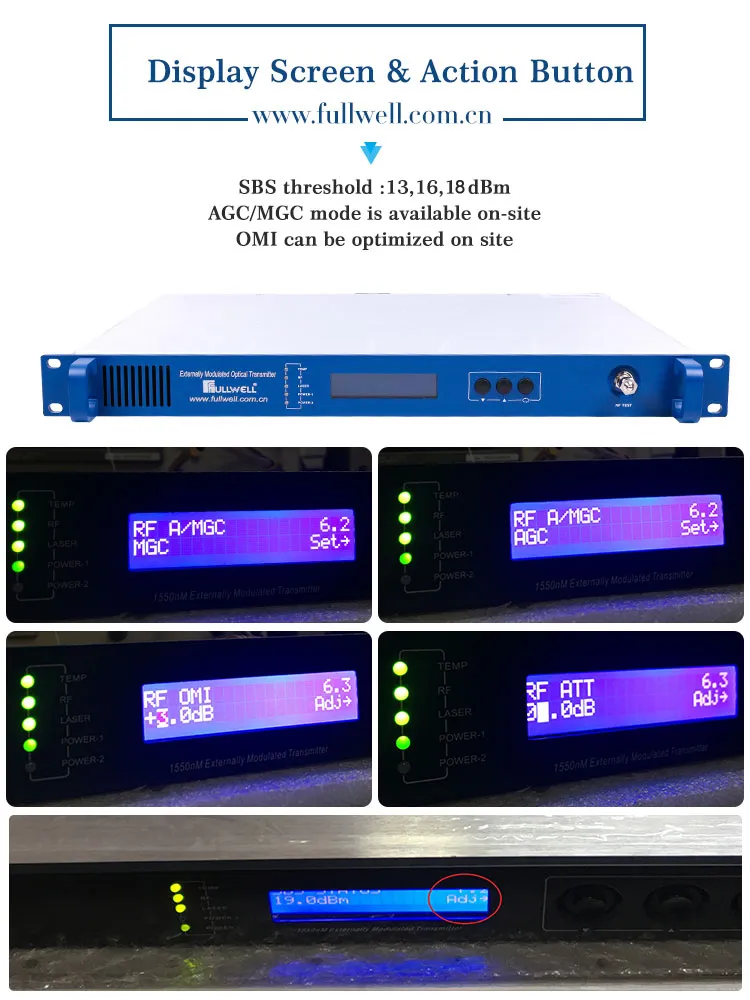

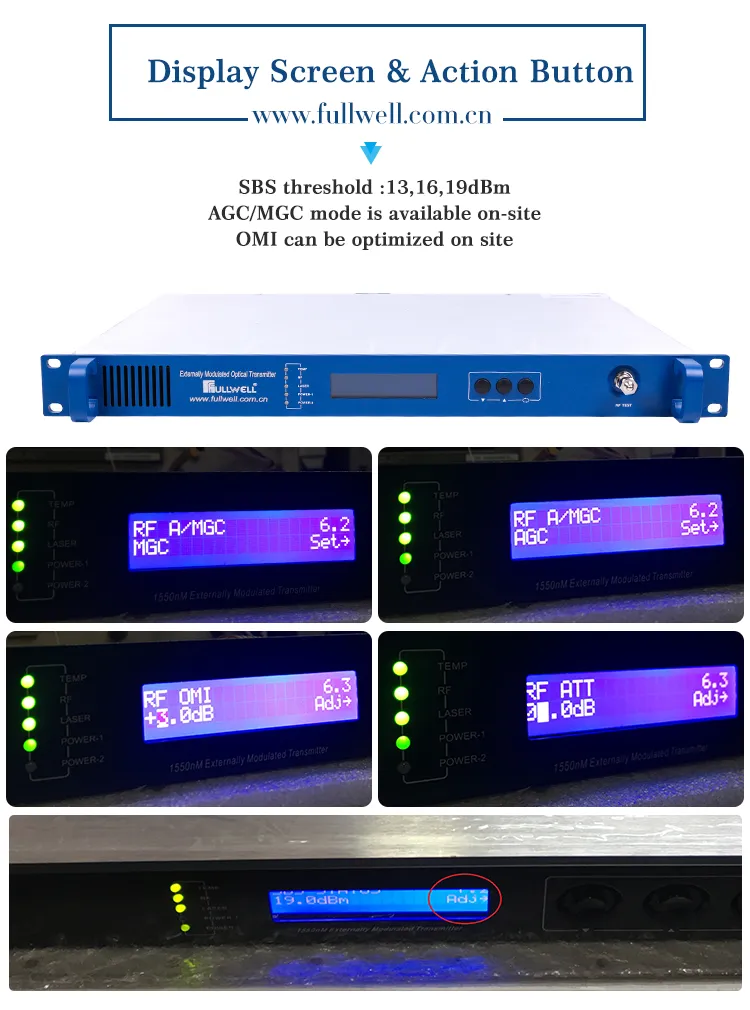

	SBS	(dB)	≥16.0	13,16,18dB adj.
General Parameters	NM interface		RJ45,R232

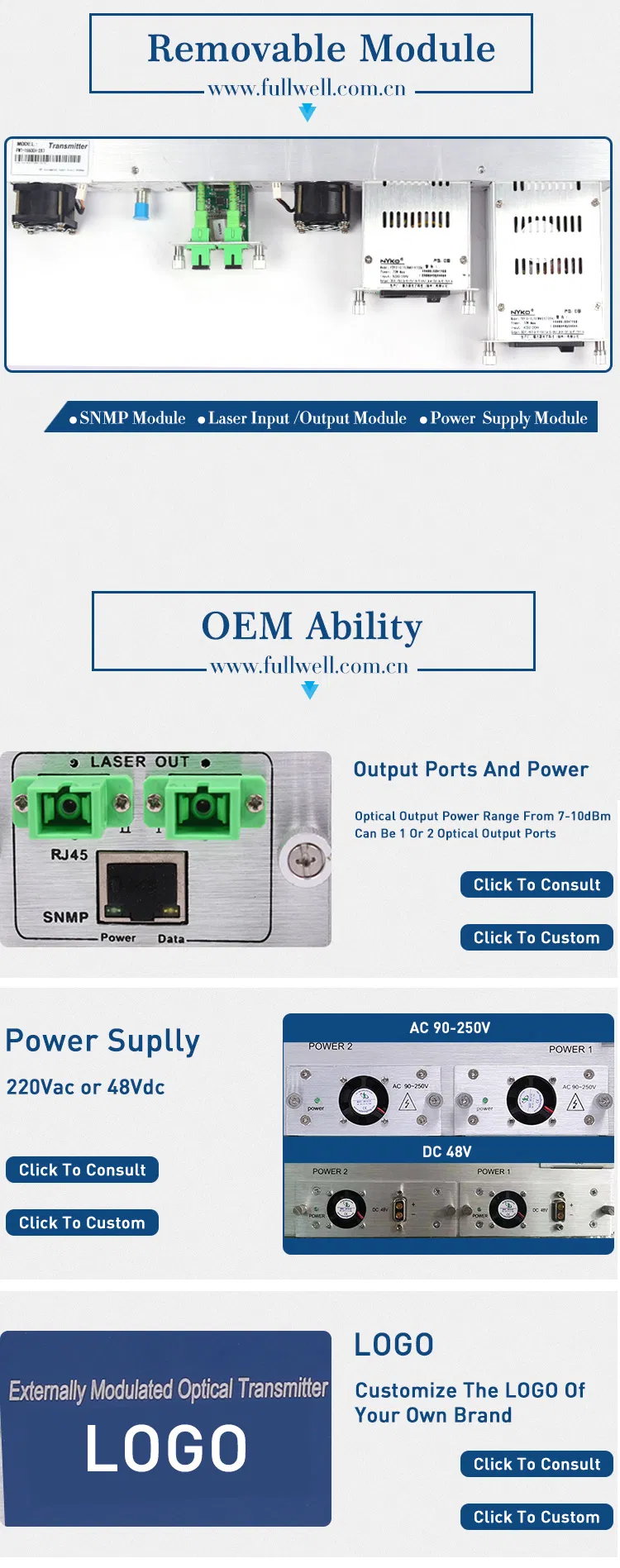

	Power	(V)	90~265	Optional -48VDC
	Power consumption	(W)	≤50
	Working Temp	(ºC)	0~50	Automatically casing temp control
	Storage Temp	(ºC)	-20~85
	Operating relative humidity	(%)	5~95

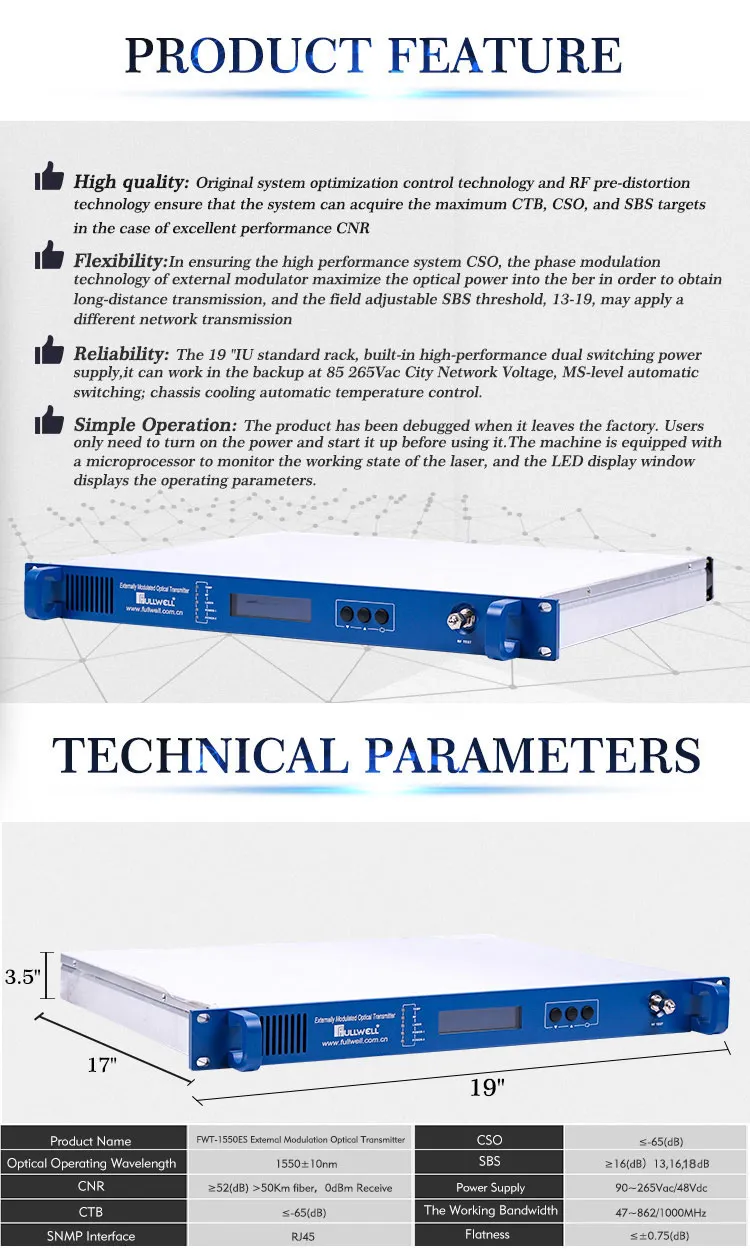

	Size	(")	19×14.5×1.75	(W)x(D)x(H)

FWT-1550ES -1×5    (one output,≥5dBm)
FWT-1550ES -1×6    (one output,≥6dBm)
FWT-1550ES -1×7    (one output,≥7dBm)
FWT-1550ES -1×8    (one output,≥8dBm)
FWT-1550ES -1×9    (one output,≥9dBm)
FWT-1550ES -2×3   (two outputs,≥3dBm)
FWT-1550ES -2×4   (two outputs,≥4dBm)
FWT-1550ES -2×5   (two outputs,≥5dBm)
FWT-1550ES -2×6   (two outputs,≥6dBm)
FWT-1550ES -2×7   (two outputs,≥7dBm)
