China Dell (DE) XFP-10G-SM-ZR80 Compatible 10GBASE-ZR XFP 1550nm 80km DOM LC SMF Transceiver Module

Product Description

Specifications

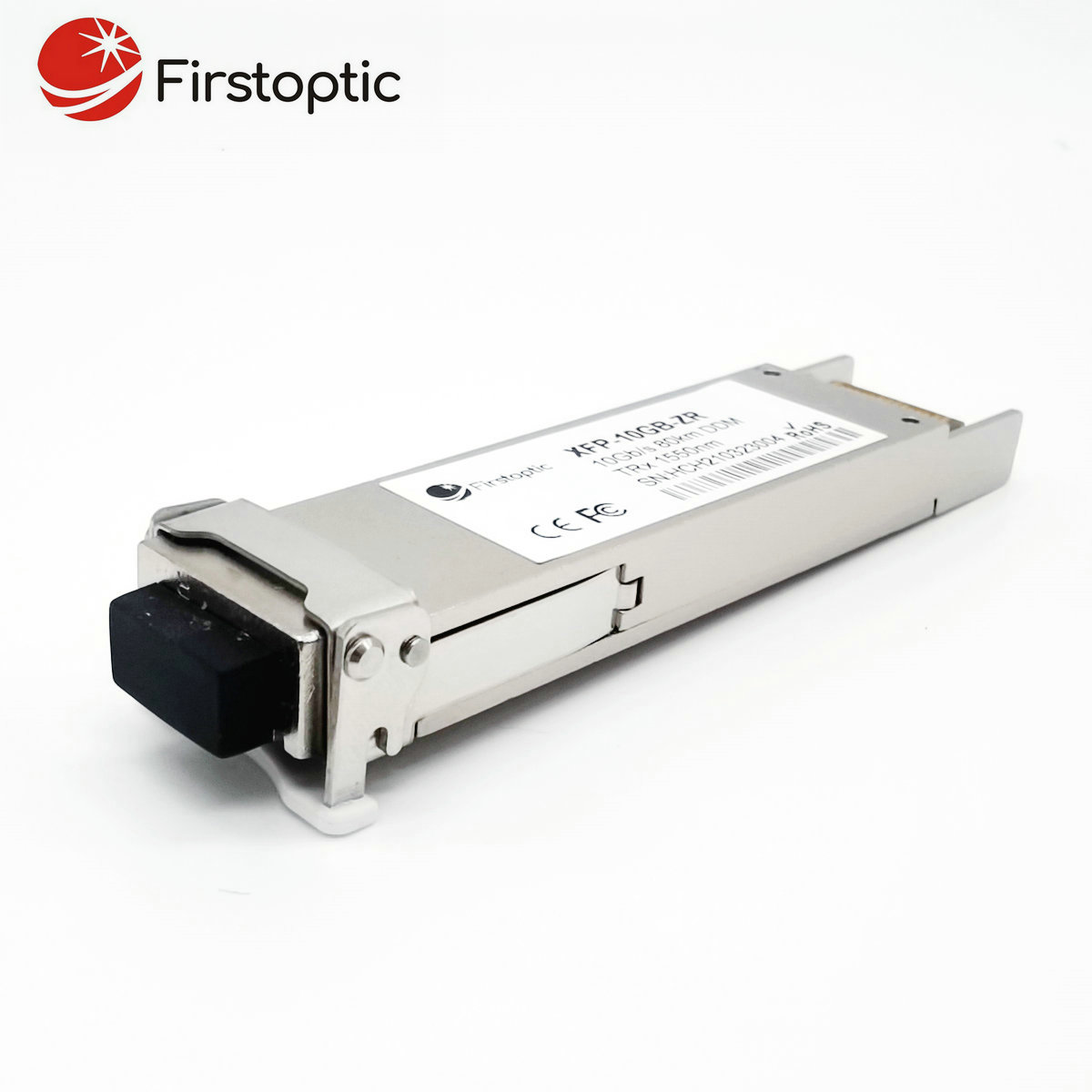

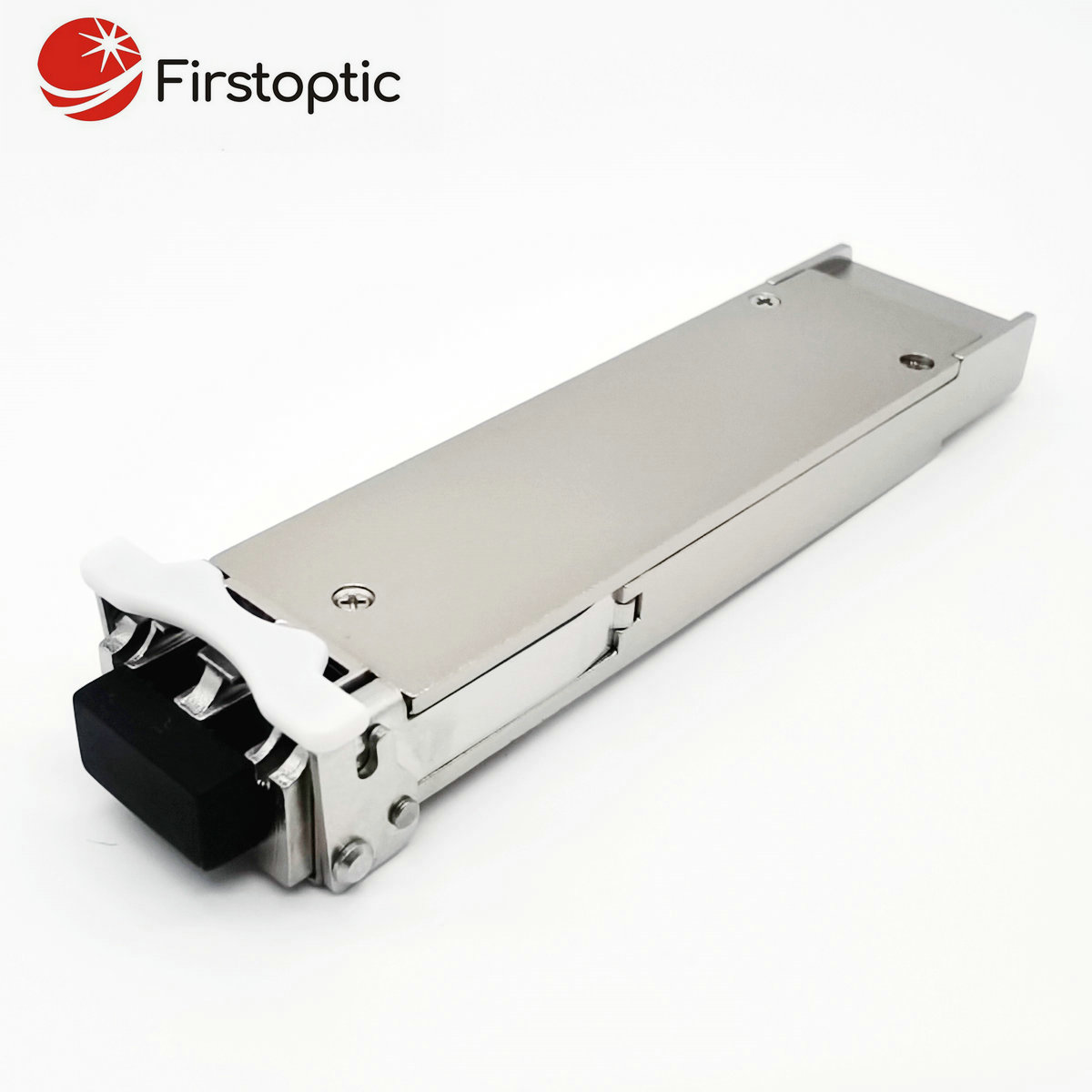

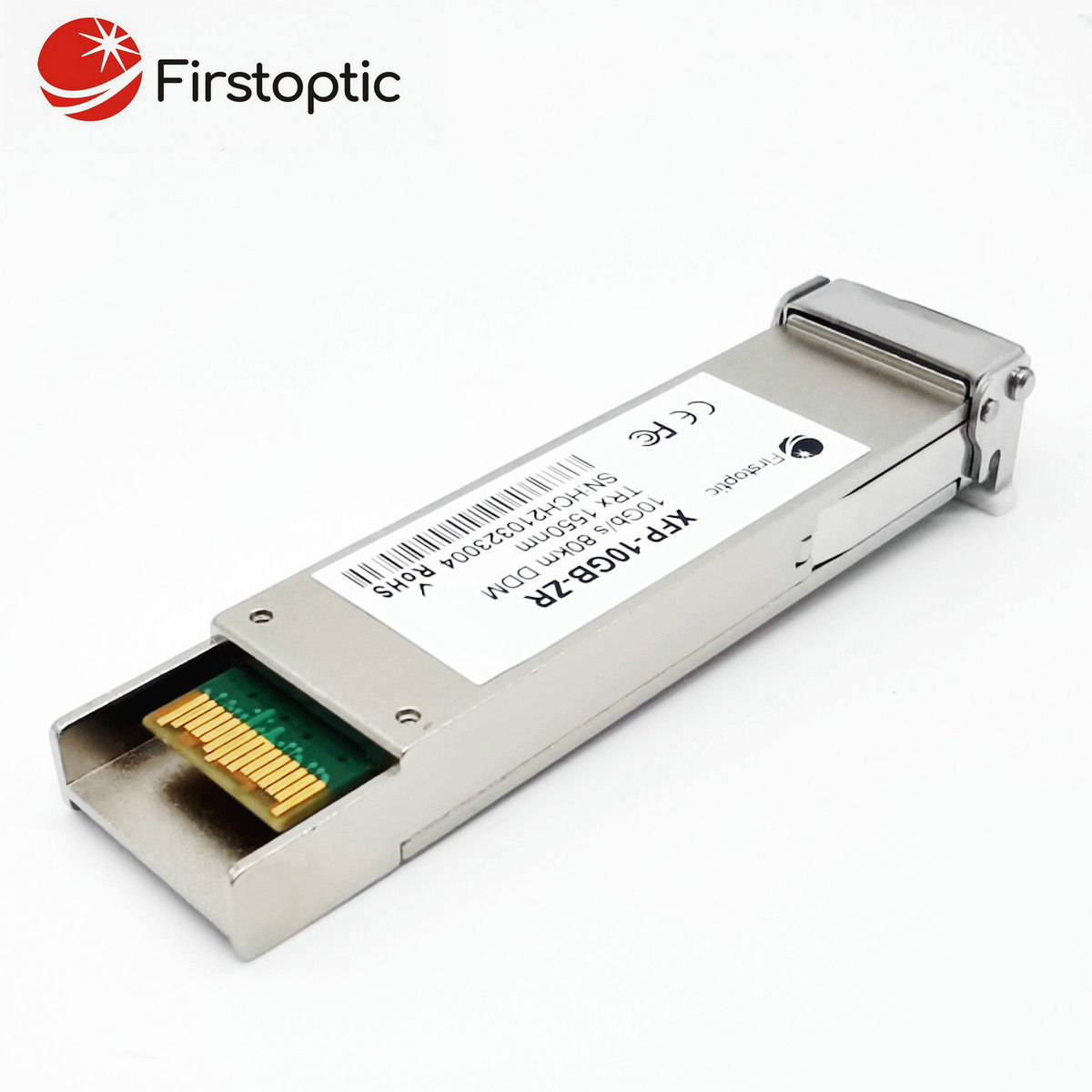

Dell (DE) XFP-10G-SM-ZR80 Compatible 10GBASE-ZR XFP Transceiver Module (SMF, 1550nm, 80km, LC, DOM)

HCH Modle No	XFP-10GB-ZR	Vendor Name	HCH
Form Factor	XFP	Max Data Rate	10Gbps
Wavelength	1550nm	Max Cable Distance	80km
Connector	LC duplex	Optical Components	EML 1550nm
Media	SMF	DOM Support	Yes
TX Power0	0~4dBm	Receiver Sensitivity	<-24dBm
Commercial Temperature Range	0 to 70°C (32 to 158°F)	Protocols	SFP+ MSA Compliant, CPRI, eCPRI

Describe

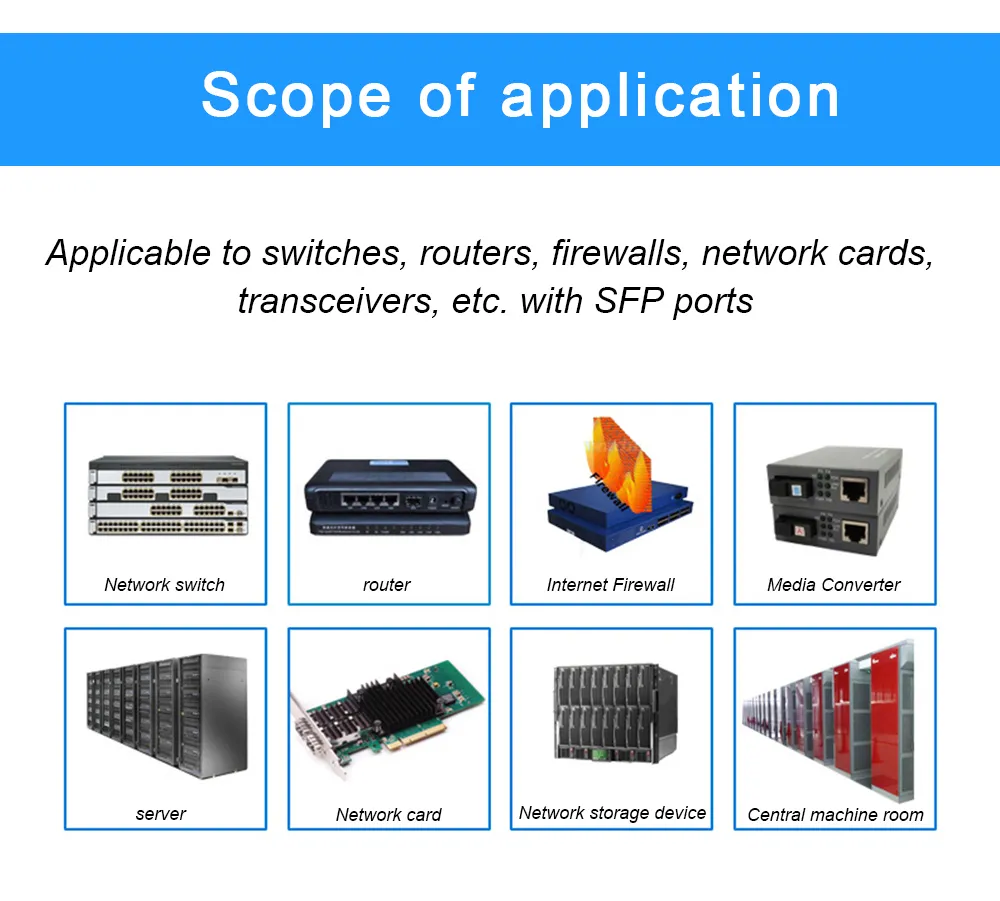

10G XFP series of optical module include SR,LRM,LR,ER,ZR,ZR+, etc., which supports a variety of transmission distances ranging from 300M to 100KM.It is characterized by low power consumption, small volume and wide temperature range.It is mainly used in SDH/SONET/FC transmission and other environments.

Features

* Support Multi Protocol from 9.9Gb/s to 11.3Gb/s
* Duplex LC or Single LC Connector

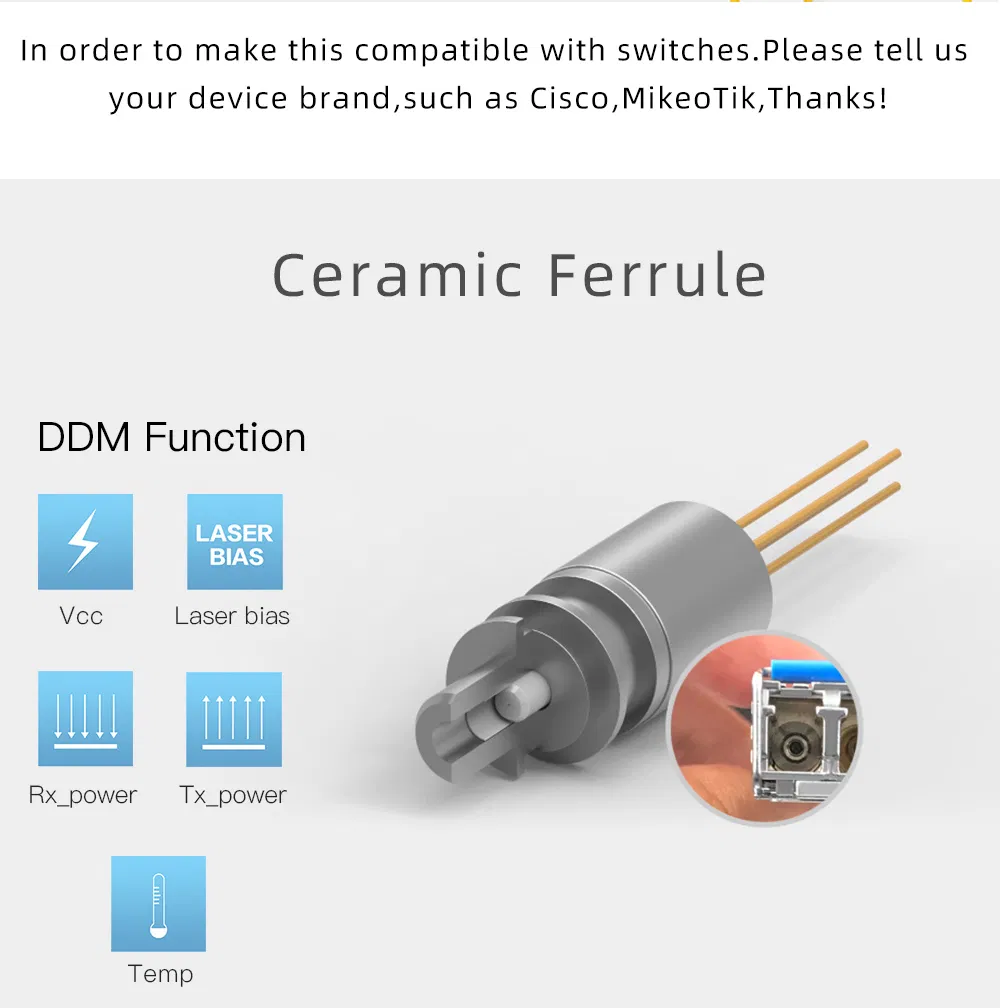

* 2-wire Interface for Management and Diagnostic Monitor
* XFI Electrical Interface with AC Coupling
* Hot Pluggable 30 pin Connector
* Compliant with XFP MSA
* Compliant with IEEE 802.3ae 10GBASE
* Compliant with 10G FC
* Compliant with SONET OC-192 / SDH STM-64
* Operation Temperature Range 0~70°C or -40~85°C Optional
* Low Power Dissipation
* RoHS-6 Compliant

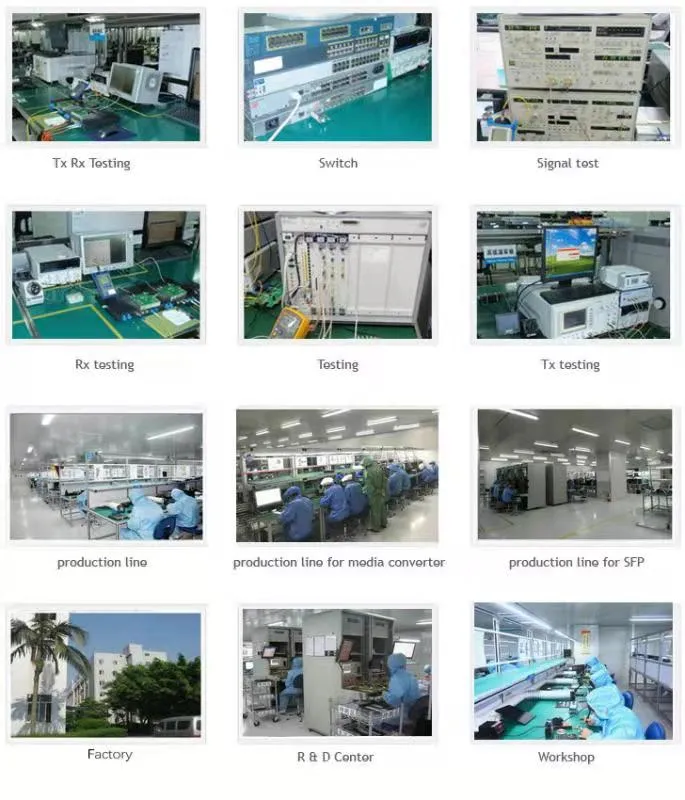

Our Company
