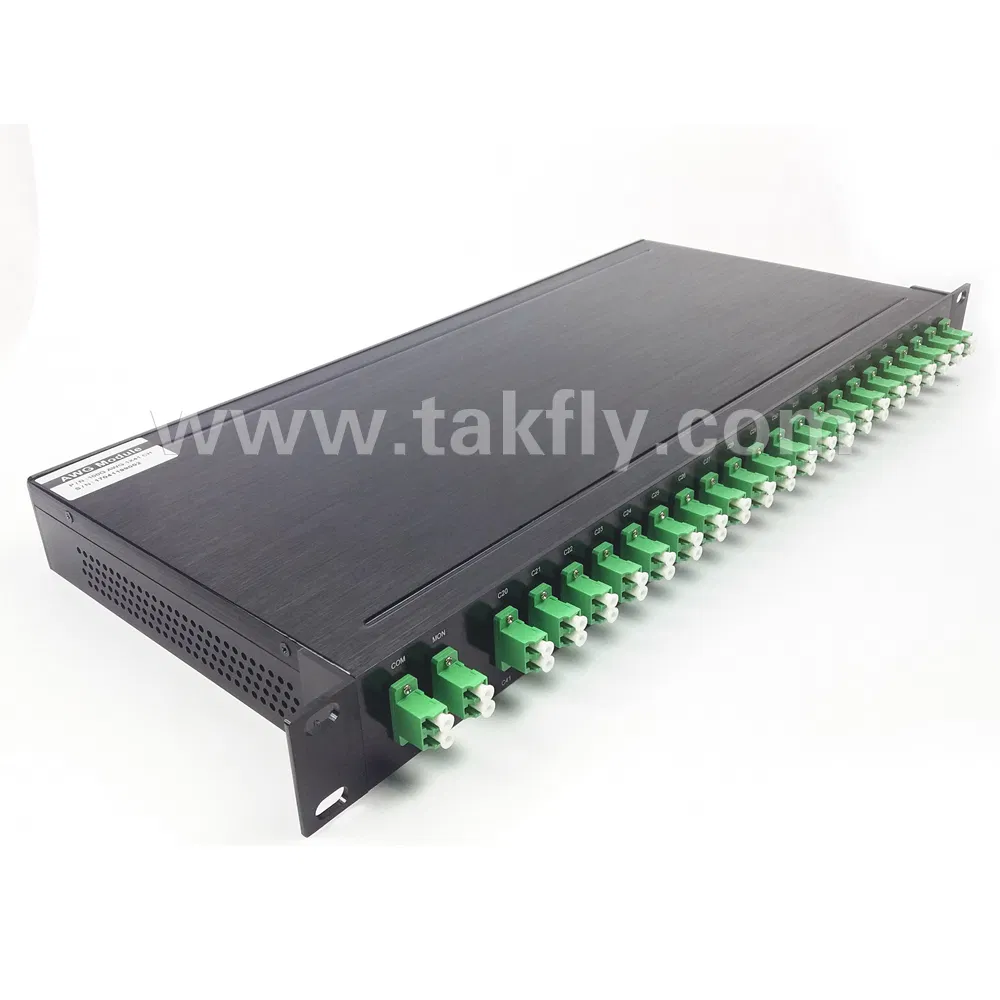

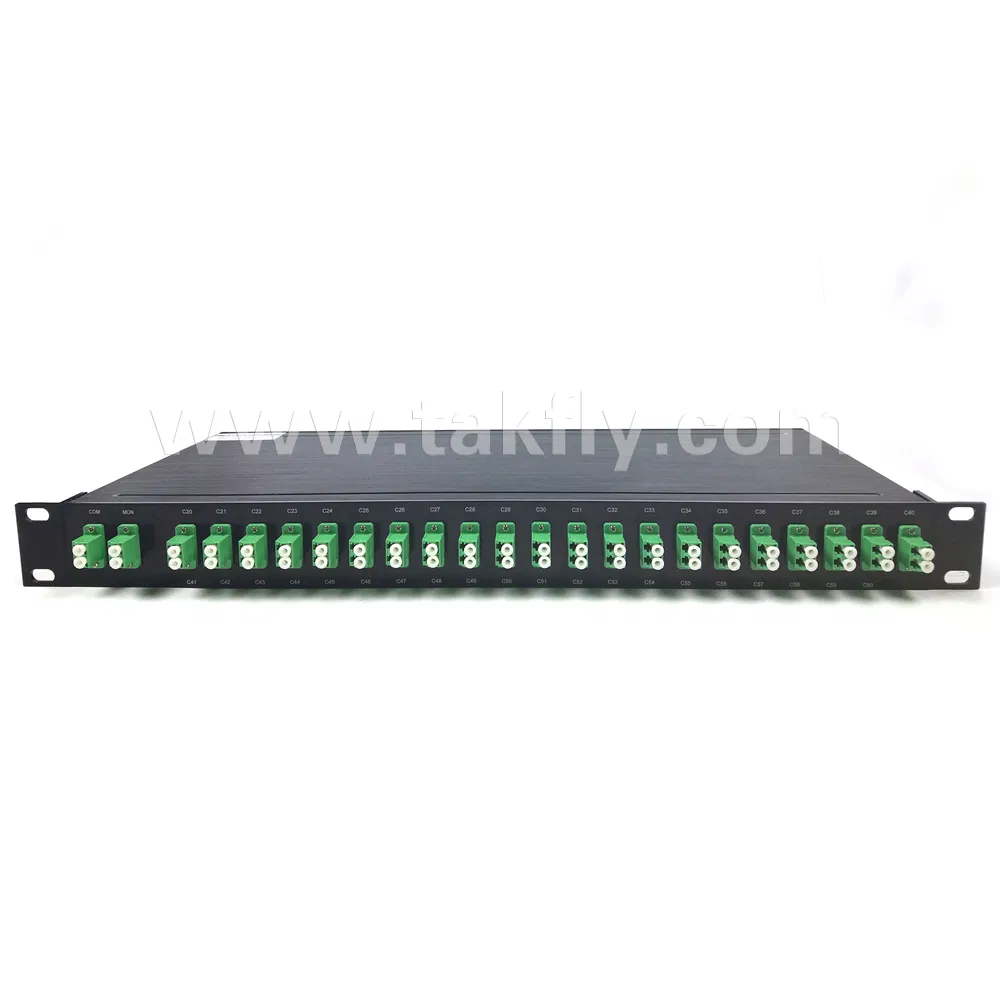

Customized 100G 41CH Low Loss DWDM System Equipment
DWDM system equipment - Dense Wavelength Division Multiplexing uses the C-Band(1530 nm-1560 nm) transmission window but with denser channel spacing. Channel plans vary, but a typical DWDM system would use 40 channels at 100 GHz spacing or 80 channels with 50 GHz spacing.
Features
Ordering information
Why choose Takfly?
Would you like to try DWDM system equipment?Please leave me an inquiry or contact me directly.
DWDM system equipment - Dense Wavelength Division Multiplexing uses the C-Band(1530 nm-1560 nm) transmission window but with denser channel spacing. Channel plans vary, but a typical DWDM system would use 40 channels at 100 GHz spacing or 80 channels with 50 GHz spacing.
Features
- Low Insertion Loss
- Wide pass band
- High Channel Isolation
- High Stability and reliability
- Channel Add/Drop
- DWDM Network
- Fiber Optical Amplifier
| Parameter | 4 Channel | 8 Channel | 16 Channel | ||||
| Mux | Demux | Mux | Demux | Mux | Demux | ||
| Channel Wavelength(nm) | ITU 100 GHz Grid | ||||||
| Center wavelength Accuracy(nm) | ±0.05 | ||||||
| Channel Spacing (GHz) GHz) | 100 | ||||||
| Channel Passband (@-0.5dB bandwidth) (nm) | ≥0.22 | ||||||
| Insertion Loss | ≤1.6 | ≤2.5 | ≤3.5 | ||||
| Channel Uniformity | ≤0.6 | ≤1.0 | ≤1.5 | ||||
| Channel Ripple | 0.3 | 0.3 | 0.3 | ||||
| Isolation | Adjacent | N/A | >30 | N/A | >30 | N/A | >30 |
| Non-adjacent | N/A | >40 | N/A | >40 | N/A | >40 | |
| Insertion Loss Temperature Sensitivity (dB/ºC) | ≤0.005 | ||||||
| Wavelength Temperature ShiftingºC) | <0.002 | ||||||
| Polarization Dependent Loss(dB) | <0.1 | ||||||
| Polarization Mode Dispersion(PS) | <0.1 | ||||||
| Directivity(dB) | >50 | ||||||
| Return Loss(dB) | >45 | ||||||
| Maximum Power Handling (mW) | 500 | ||||||
| Operating Temperature(ºC) | -5~+75 | ||||||
| Storage Temperature(ºC) | -40~85 | ||||||
| Package dimension(mm) |
| ||||||
Ordering information
| Configuration | Channel No. | Channel | Pigtail Type | Fiber length | Dimension(mm) | Connector |
| M=Mux D=Demux | 04=4 Channel 08=8 Channel 16=16 Channel N=N Channel ... | C20= 1561.42 nm C21= 1560.61 nm ... | 0=250um 1=900um 2=2.0mm 3=3.0mm | 1=1m 2=1.5m 3=others | 1= L100 x W80 xH10 2=L140xW100xH15 3=19 1U Rack | 0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=others |
Why choose Takfly?
1.High efficiency,with more than 3000 square meters size & 150+ professional workers can finish your order within a week
2.Quality assurance,we are a factory strictly operating ISO 9001:2008 quality control system,twice check before delivery
3.Competitve price.As a factory,costs are controllable
4.Flexible payment term.T/T,L/C,paypal is availble
5.Professional,Our workers are at least 3 years experience in fiber optic fields,besides,we cooperated with Electroson,Telefonica,etc
6.Complete product range, products cover fiber optic cable,Fiber optic adapter,attenuators,full total FTTH solution.
Would you like to try DWDM system equipment?Please leave me an inquiry or contact me directly.
