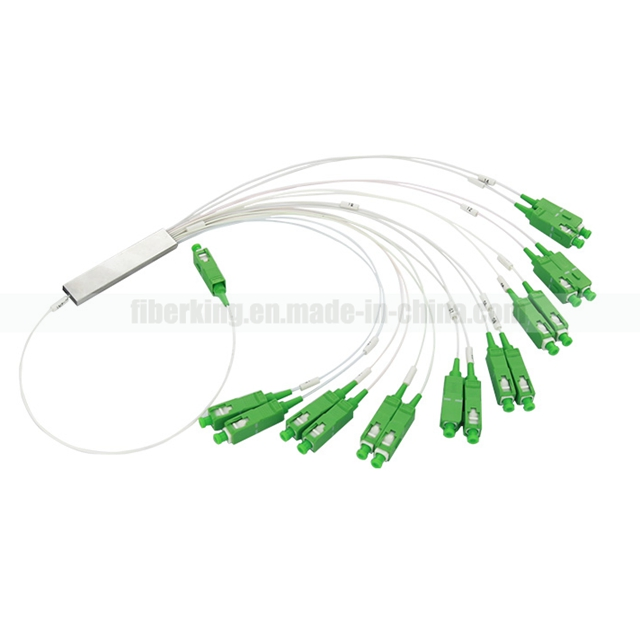

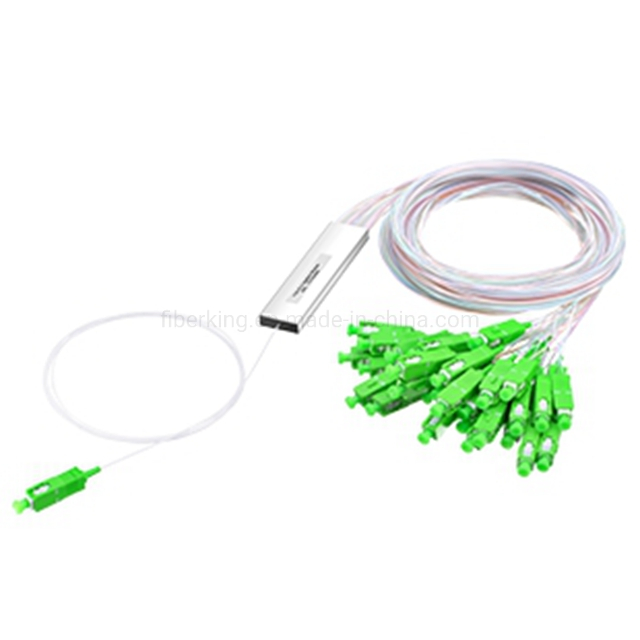

Customized 1*N 2*N steel tube blockless Mini Module Fiber Splitter

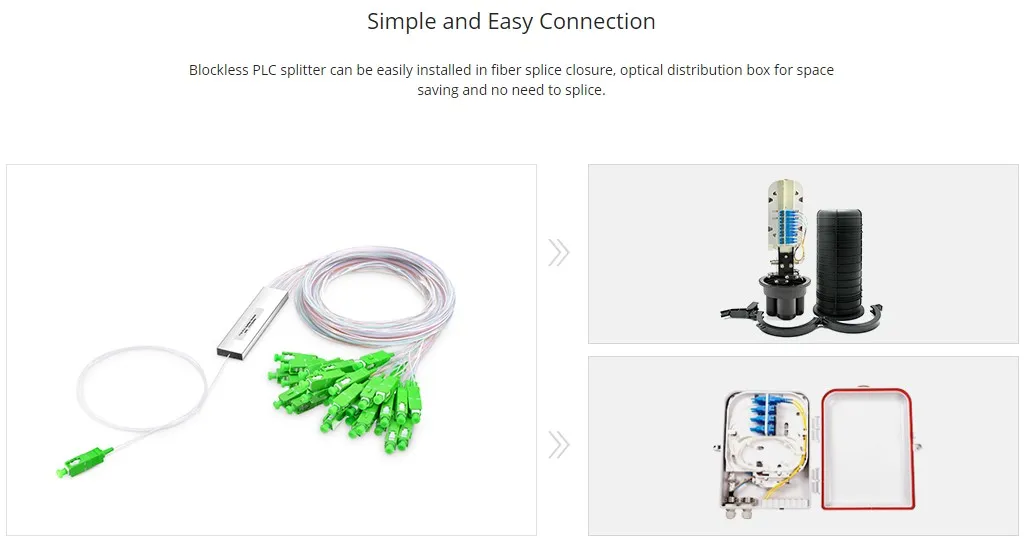

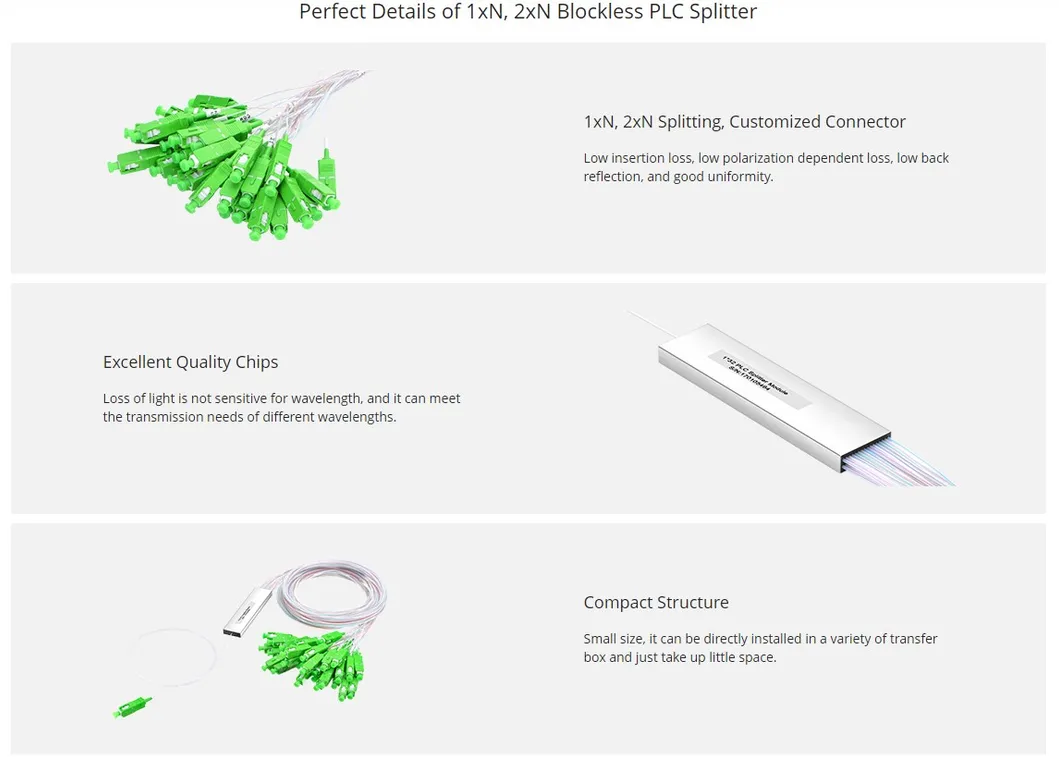

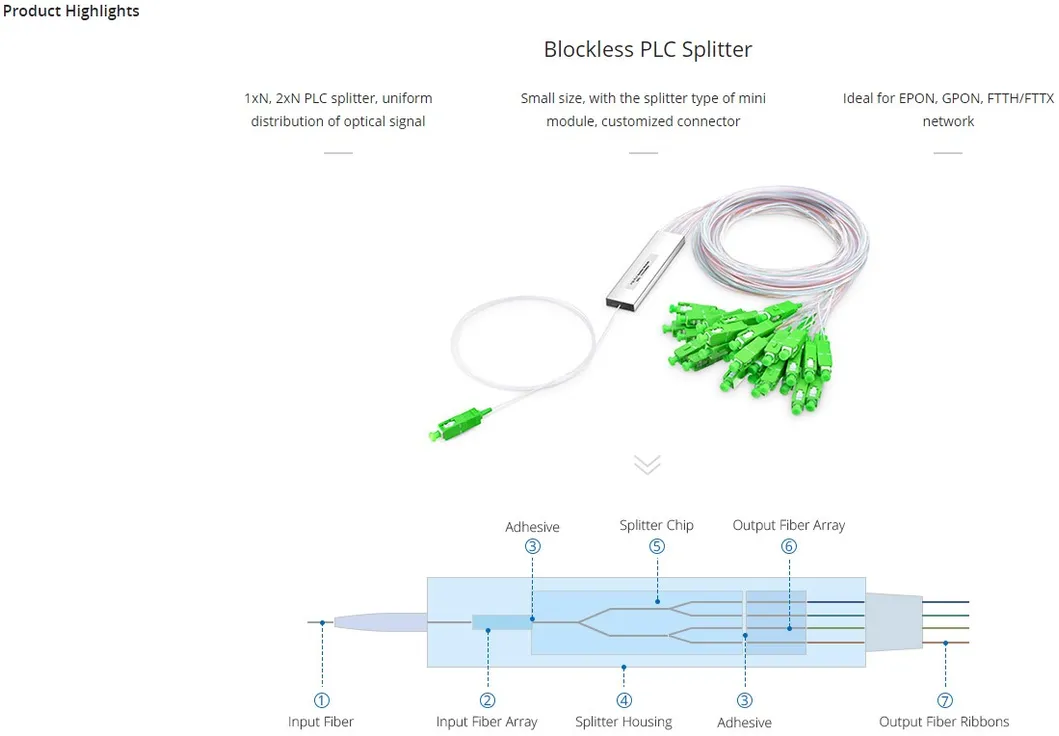

blockless Mini Module Fiber Splitter has stronger fiber protection than bare fiber splitter, which is a miniaturization result of cassette splitter. It's mainly used for various connection and distribution boxes or network cabinets.
Note: 1XN means input is 1, output is N, 2XN means input is 2, output is N.
Hongking communication offer several types of high-quality splitters. These products are designed for long-term reliability, superior performance, and a wide range of uses in fiber optics including optical transmission, long haul, subscriber loop, and fiber to the home, telecommunications, CATV, test equipment, optical fiber sensors, data communications and wide-area network.
Our optical splitters are designed for consistent performance, low optical loss, low polarization sensitivity, superior environmental and mechanical characteristics, and fast installation. They also enable more effective monitoring and management of fiber optical networks.

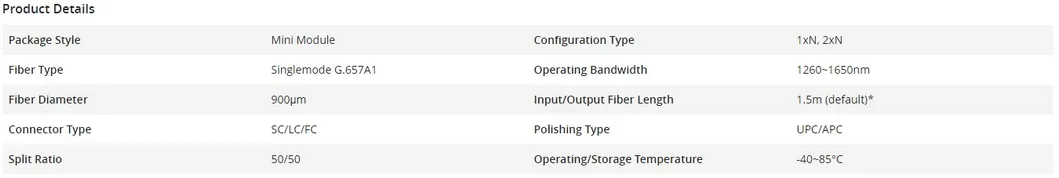

1. Performance
Table1. 1XN PLC splitter(with connector)
Parameters | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 |
Operating Wavelength (nm) | 1260~1650 | |||||
Insertion Loss (dB) | ≤4.3 | ≤7.5 | ≤11.0 | ≤14.0 | ≤17.0 | ≤21.0 |
Loss Uniformity (dB) | ≤0.6 | ≤0.6 | ≤0.8 | ≤1.2 | ≤1.5 | ≤1.8 |
PDL (dB) | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 |
Return loss(dB) | UPC≥50dB;APC≥55dB | |||||
Directivity (dB) | ≥55 | |||||
Pigtail Length (m) | 1m or customer specified | |||||
Fiber Type | G657A or customer specified | |||||
Operation temperature(ºC) | -40~85 | |||||
Note: All measurements were done at room temperature. Above parameters all testing at 1310nm,1550nm wavelength, if it test at 1260~1300nm,1600~1650nm,then insertion loss would be add 0.3dB based on above parameters. | ||||||
Table2. 2XN PLC splitter(with connector)
Parameters | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 | 2x64 |
Operating Wavelength (nm) | 1260~1650 | |||||
Insertion Loss (dB) | ≤4.5 | ≤8.0 | ≤11.7 | ≤14.7 | ≤17.9 | ≤21.2 |
Loss Uniformity (dB) | ≤0.8 | ≤1.0 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.5 |
PDL (dB) | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 |
Return loss(dB) | UPC≥50dB;APC≥55dB | |||||
Directivity (dB) | ≥55 | |||||
Pigtail Length (m) | 1m or customer specified | |||||
Fiber Type | G657A or customer specified | |||||
Operation temperature(ºC) | -40~85 | |||||
Note: All measurements were done at room temperature. Above parameters all testing at 1310nm,1550nm wavelength, if it test at 1260~1300nm,1600~1650nm,then insertion loss would be add 0.3dB based on above parameters.
| ||||||
2. Features:
Excellent Uniformity
High reliability, stability

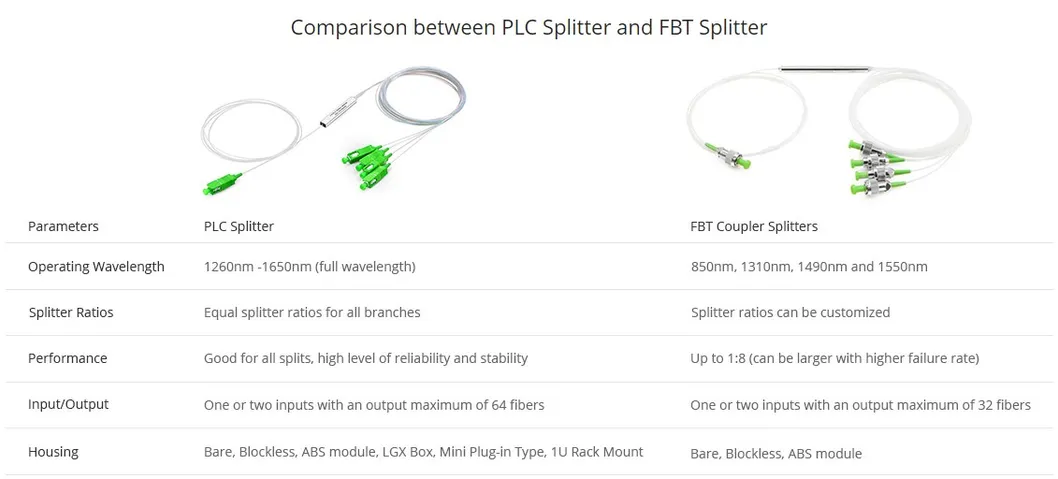

The quality is more credible and stable than fusion coupler splitter
With low insertion loss, Low Polarization Dependent Loss, better return loss and the directivity,
Broadband operating, wavelength :1260nm ~1650nm wavelength range to achieve the planned distribution of optical power
3. Specifications:
1x2, 1x4, 1x8, 1x16, 1x32, 1x64 splits
2x2, 2x4, 2x8, 2x16, 2x32, 2x64 splits

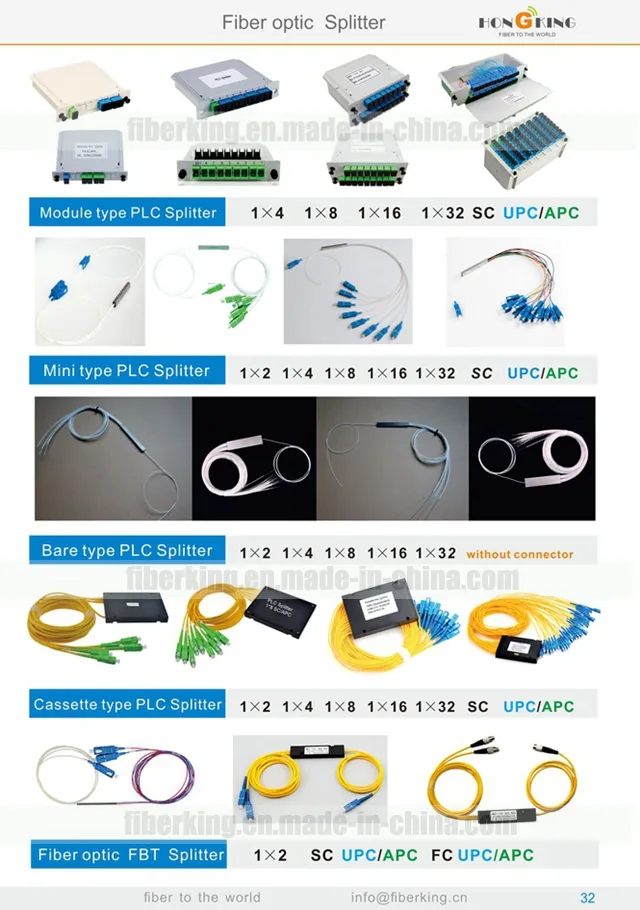

Type: Bare-fiber type,micro type,ABS box type,Cassette type
Adapter type of splitter: SC/UPC, SC/APC

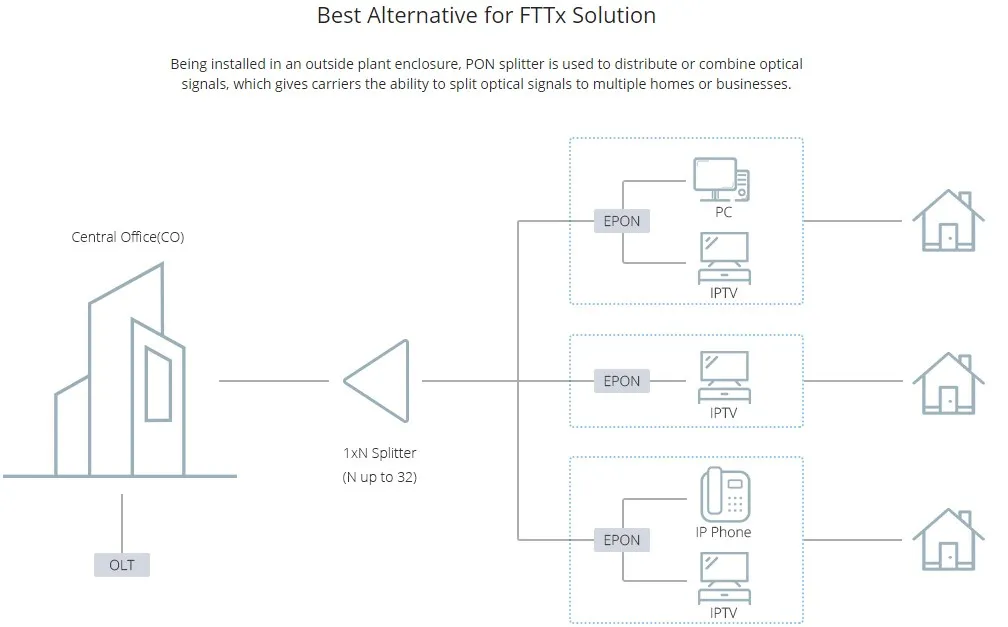

4. Applications:
Access Network,EPON,GPON or WDM-PON
CATV system
Optical communication systems
Testing instruments
FTTH, FTTB
