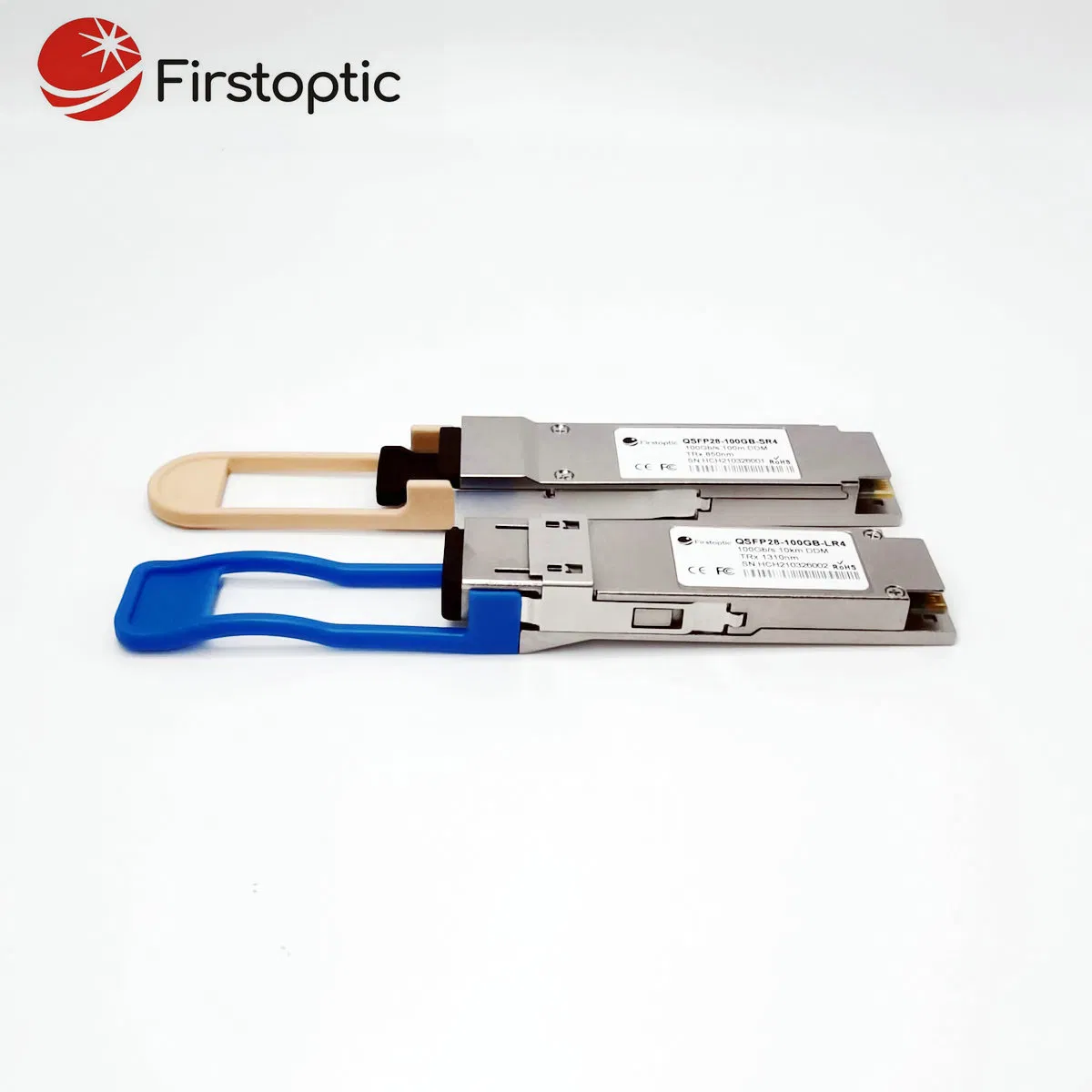

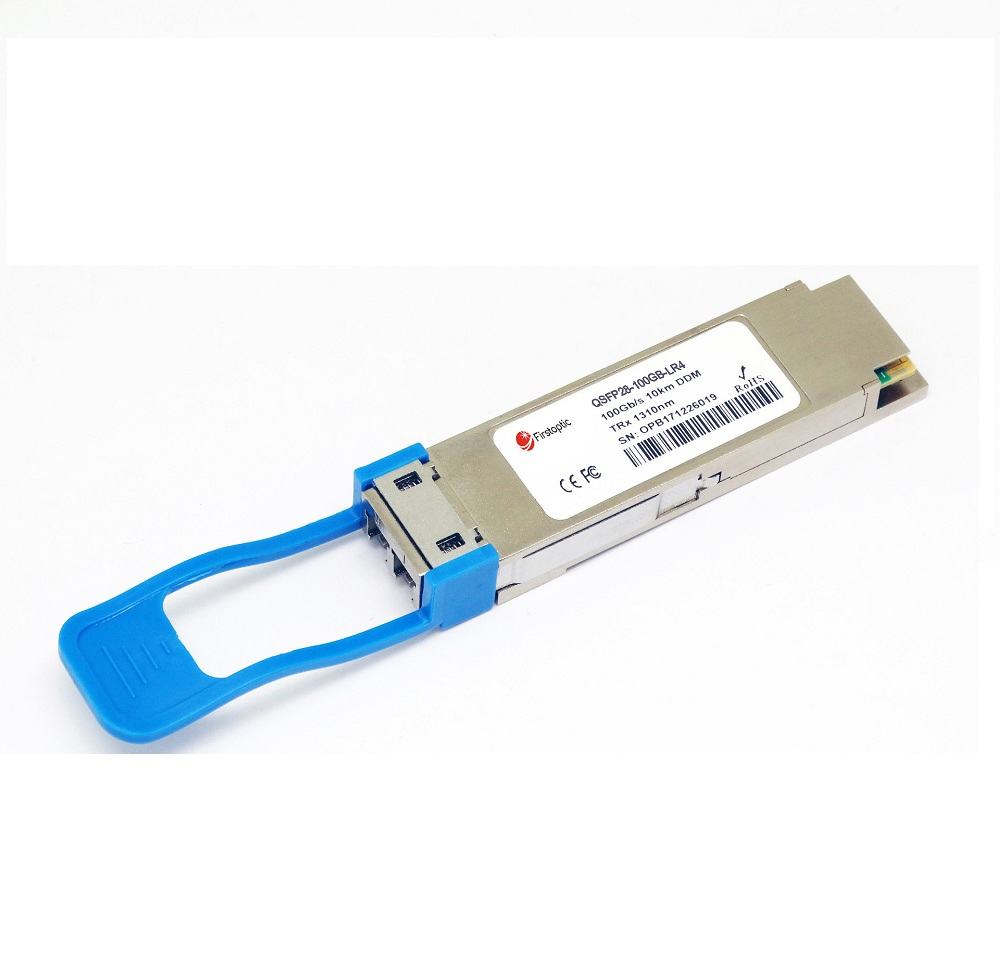

Cisco QSFP-100G-LR4-S Compatible 100GBASE-LR4 QSFP28 1310nm 10km DOM LC SMF Optical Transceiver Module
SpecificationsCisco 100GBASE-LR4 QSFP28 Optical Transceiver Module for Ethernet and Data Center (SMF, 1310nm, 10km, LC, DOM)The QSFP28 module provides 100GBase-LR4 throughput up to 10km over a standard pair of single mode fiber (SMF) with duplex LC connectors. Taking COB+PCBA integrated design, it h......
Send Inquiry
Product Description
The QSFP28 module provides 100GBase-LR4 throughput up to 10km over a standard pair of single mode fiber (SMF) with duplex LC connectors. Taking COB+PCBA integrated design, it has mature packaging process during automated production. This transceiver is compliant with IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm, SFF-8665 and SFF-8636 standards. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data center, high-performance computing networks, enterprise core and distribution layers, campus networks etc.
This product is a 100Gb/s transceiver module designed for optical communication applications compliant to 100GBASE of the IEEE P802.3ba standard. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission.
| Cisco Compatible | QSPF-100G-LR4 | Vendor Name | HCH |
| Form Factor | QSFP28 | Max Data Rate | 103.125Gbps (4x 25.78Gbps) |
| Wavelength | 1310nm | Max Cable Distance | 10km |
| Connector | LC Duplex | Cable Type | SMF |
| Transmitter Type | 4 x LAN WDM DML (DFB) | Receiver Type | PIN |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| TX Power | -4.3~4.5dBm | Receiver Sensitivity | <-10.6dBm |
| Powerbudget | 6.3dB | Receiver Overload | 4.5dBm |
| Power Consumption | ≤4W | Extinction Ratio | >4dB |
| Modulation Format | NRZ | CDR (Clock and Data Recovery) | TX & RX Built-in CDR |
| Packaging Technology | COB (Chip on Board) Packaging | FEC Function | Supported |
| EMC (Electro Magnetic Compatibility) | Supported | Bit Error Ratio (BER) | 1E-12 (without FEC) |
| Protocols | IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636 | MTBF | 5,000,000 Hours |
| Application | Data Center, 100G Ethernet | Warranty | 3 Years |
Features
* Hot-pluggable QSFP28 form factor, compliant with the QSFP28 MSA
* 4 channels full-duplex transceiver modules
* Up to 28Gb/s per channel, 112Gb/s aggregate bit rate
* Support InfiniBand EDR
* Single 3.3V power supply
* 4x25Gb/s VCSEL/DFB/EML transmitter
* 4x25G electrical interface
* Built in full digital diagnostics functions
* I2C management interface
* Maximum link length of 40km on SMF/100m on MMF
* Power dissipation<5W
* Temperature range 0°C to 70°C
* RoHS-6 Compliant

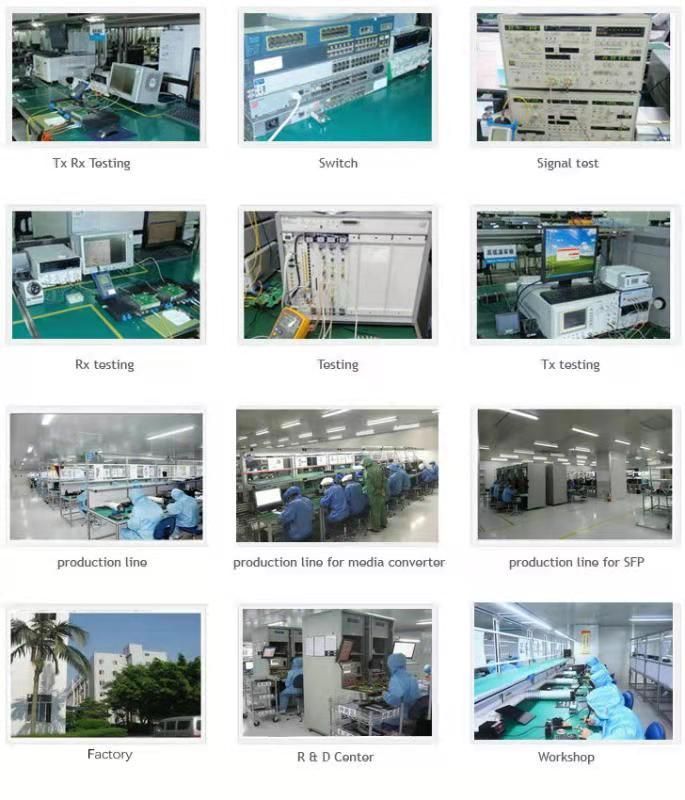

Our Company
