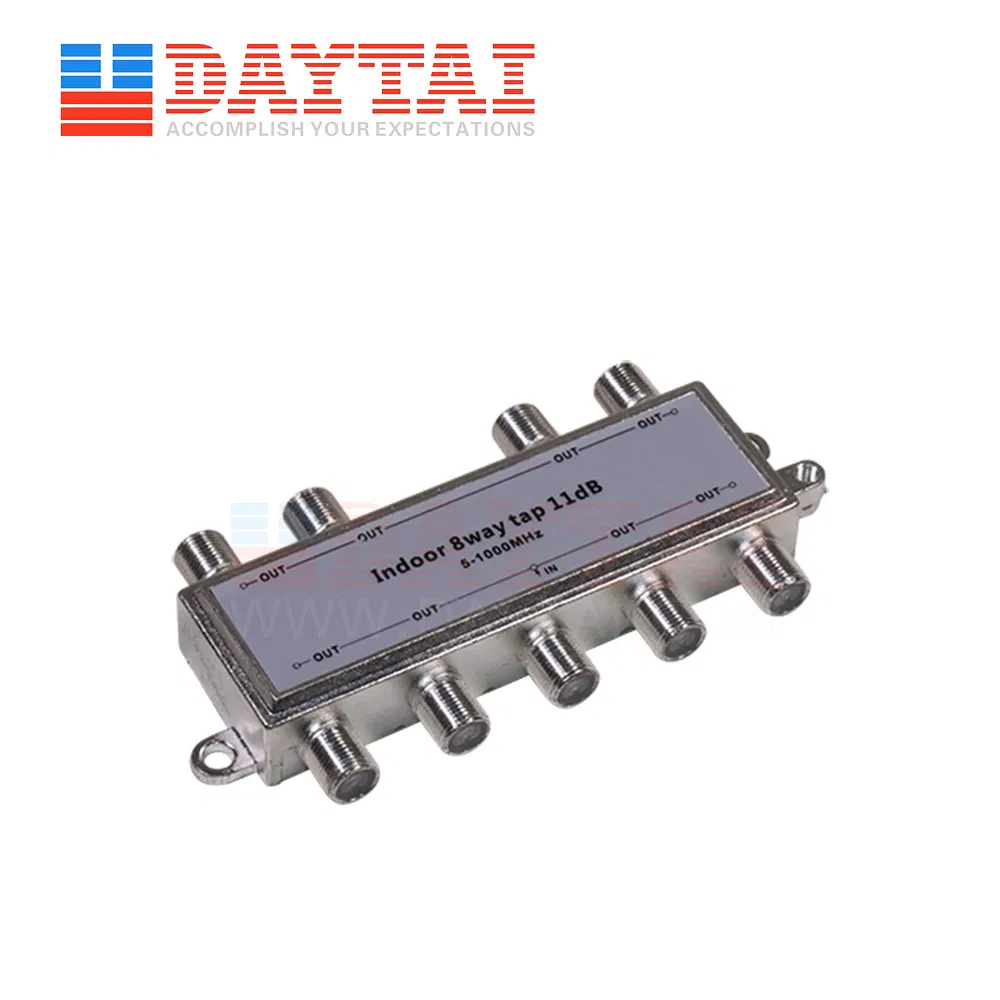

China Ce&RoHS Certified Indoor 8 Way CATV Tap

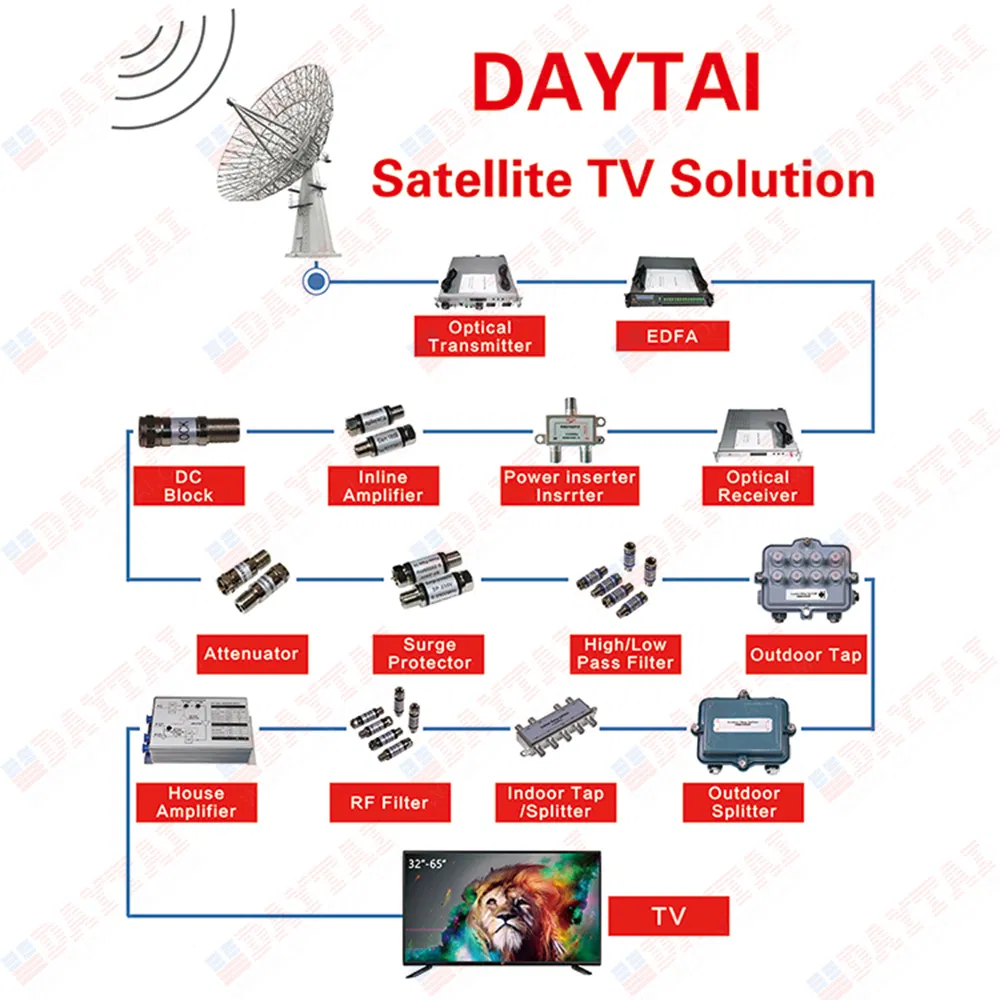

Product Description

★Description
8 Way CATV tap, 06dB,08dB,10dB,12 dB,14dB,16dB,18dB,20dB,22dB,24dB,28dB 5-1000MHz, RFI>110dB, all ports DC blocked.

★Feature

⊙5~1000MHz Bandwidth,120dB EMI.
⊙Low insertion losss, High return loss and isolation
⊙Zinealloy die-cast housing, tin or nickel plated.
⊙Solder back housings, machine threaded, flat F-ports, 75Ohm.
⊙Capacitor at all ports provides effective DC voltage blocking.
⊙Compliant with SCTE splitter guidelines.
⊙CE&ROHS Certified.

★Specification

8 WAY TAP
ITEM			PARAMETER
Tap Loss (dB)	Value	Inaccuracy	06	08	10	12	14	16	18	20
	5-10MHz	±0.5	6.5	8.0	10.0	11.8	13.6	15.8	17.8	19.5
	11-65MHz	±0.5	6.5	8.0	10.2	12.2	13.9	15.9	18.2	20.2
	50-750MHz	±1.0	6.5	8.2	10.4	12.4	14.0	16.4	18.4	20.4
	750-1000MHz	±1.0	6.5	8.5	10.5	12.5	14.5	16.5	18.5	20.5
Insertion Loss (dB)	5-10MHz		≤2.6	≤2.3	≤1.5	≤1.2	≤1.1	≤0.8	≤0.7	≤0.7
	11-65MHz		≤2.6	≤2.5	≤1.4	≤1.2	≤0.9	≤0.7	≤0.6	≤0.6
	50-750MHz		≤3.0	≤2.5	≤1.5	≤1.2	≤1.0	≤0.7	≤0.7	≤0.7
	750-1000MHz		≤3.2	≤2.6	≤1.8	≤1.6	≤1.0	≤0.9	≤0.9	≤0.9
Reverse Isolation (dB)	5-10MHz		≥25	≥25	≥26	≥30	≥32	≥35	≥38	≥38
	11-65MHz		≥28	≥28	≥30	≥30	≥30	≥30	≥31	≥31
	50-750MHz		≥26	≥26	≥28	≥28	≥28	≥28	≥30	≥30
	750-1000MHz		≥25	≥25	≥25	≥25	≥26	≥26	≥28	≥28
Return Loss (dB)	5-10MHz		≥18	≥18	≥18	≥18	≥18	≥18	≥18	≥18
	11-65MHz		≥20	≥20	≥20	≥20	≥20	≥20	≥20	≥20
	50-750MHz		≥20	≥20	≥20	≥20	≥20	≥20	≥20	≥20
	750-1000MHz		≥18	≥18	≥18	≥18	≥18	≥18	≥18	≥18
Impedance	5-1000Mhz		75Ω
Shield Decay	5-1000Mhz		≥100dB
