Central Tube Fiber Optic Cable GYXTY

Product Description

Central tube fiber optic cable GYXTY

Description:

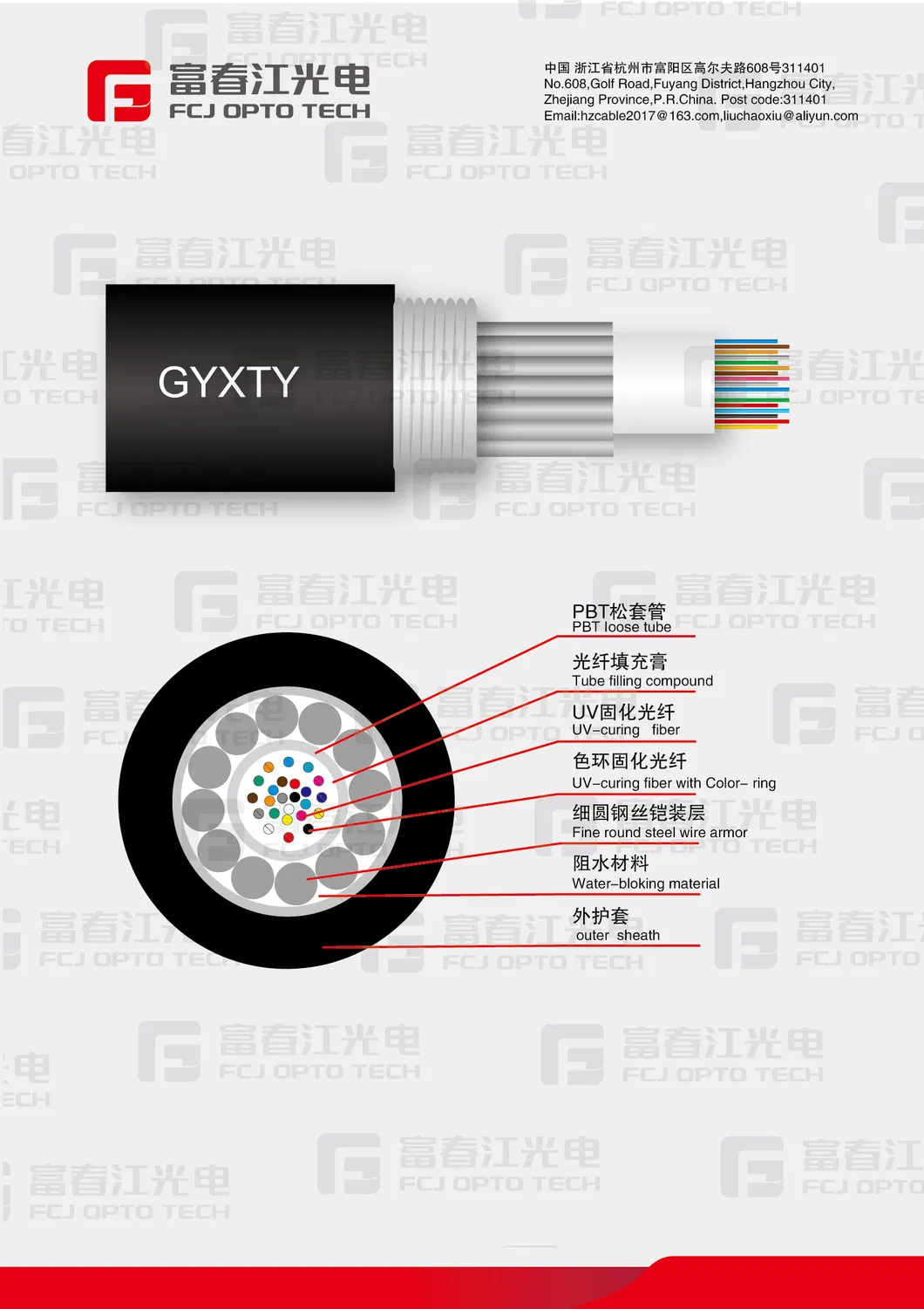

The structure of GYXTY optical cable is to put 250µm optical fiber into a loose tube made of high modulus material, and the loose tube is filled with a waterproof compound. Loose tubing is added with water blocking material to ensure longitudinal water penetration of the optical cable. After the steel wire is wrapped into a cable, a polyethylene sheath is extruded outside.

Characteristics:
1. Fill the loose tube with special grease (gel) to protect the optical fiber critically;
2. Full-section water blocking structure.
3. A layer of wrapped steel wire ensures the tensile strength of the optical cable and has good anti-rat performance;
4, PE sheath has good resistance to ultraviolet radiation and environmental stress cracking resistance;
5. The service life of the product is more than 25 years;
6. Operation temperature: -40 ~ + 70 ºC

Standards:

1. GYXTY optical cable meets YD / T769-2018 standard

2. Application: Suitable for long distance communication and interoffice communication
3. Application: pipeline, overhead

Cable Type	Fiber Count	Tubes	Reference cable overall diameter(mm)	Cable Weight kg/km(Ref)	Tensile Strength Long/Short Term (N)	Crush Resistance Long/Short Term (N/100mm)	Bending Radius Static/Dynamic (mm)
GYXTY-2~12B1.3	2~12	1	7.4	70	≥600/ ≥1500	≥300/ ≥1000	10D/20D
GYXTY-20~24B1.3	13~24	1	8.6	105	≥600/ ≥1500	≥300/ ≥1000	10D/20D

Note: The table shows G.652D fiber, and the fiber model can also be specified according to customer requirements.
