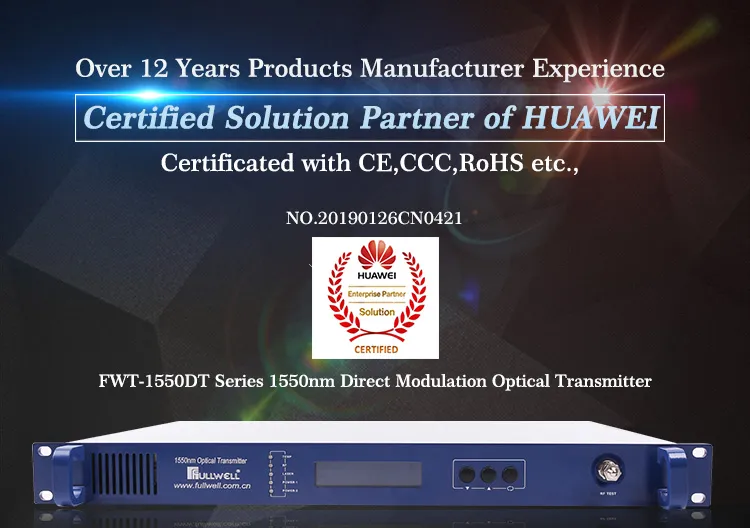

China CATV Plug-in Type 1550nm Direct Modulation Optical Transmitter

Product Description

1550nm Direct modulation Optical Transmitter
FWT-1550DT Series

Product Parameters

No.:	Project	Unit	Parameter	Remark

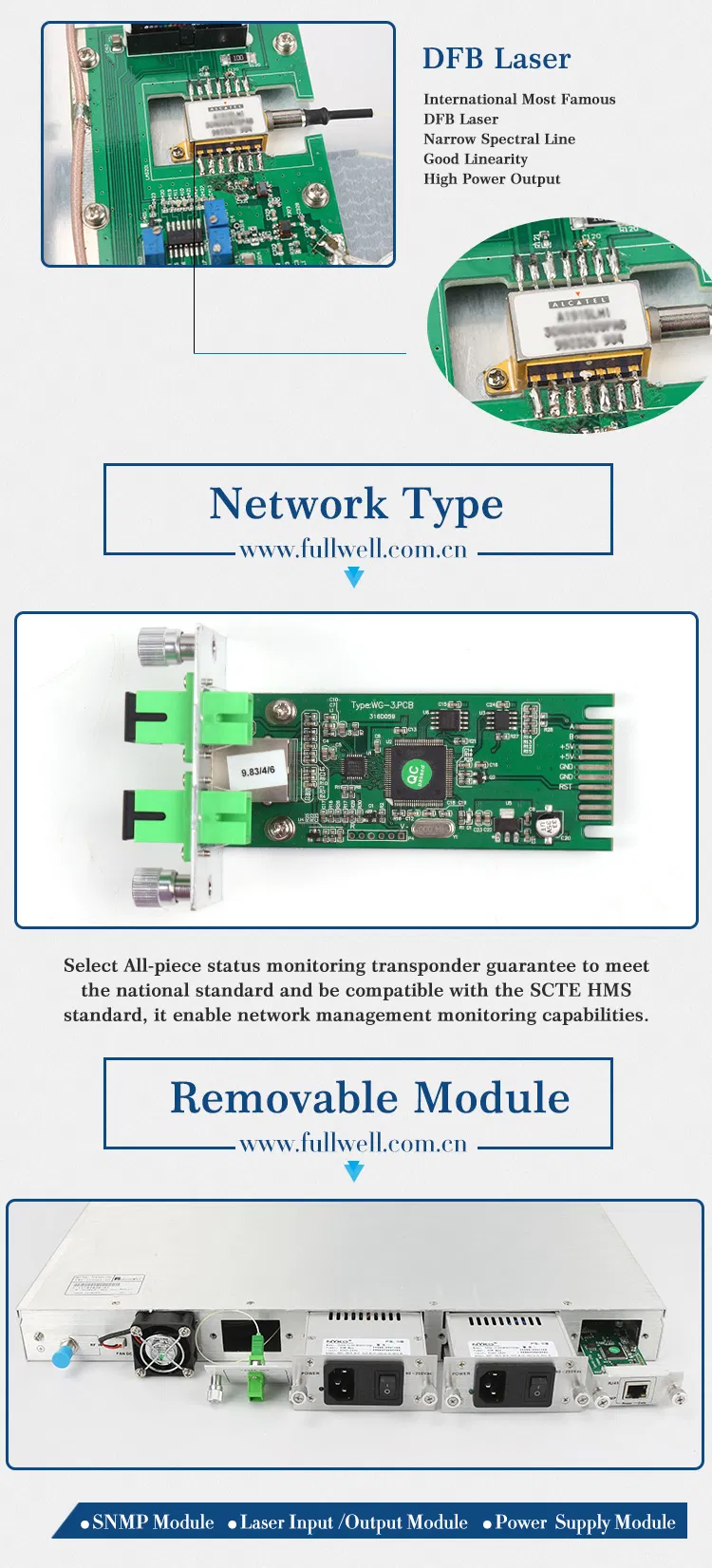

1	Laser model		DFB
2	Optical wavelength	nm	1550±10	if it is different from the wavelength, please marking before order
3	Optical modulation modes		Internal modulation
4	Optical output power	mW	4~10
5	Optical connector form		FC/APC, SC/APC optionally	Please marking before order
6	Frequency range	MHz	45~750(862)
7	Carrier to Noise ratio	dB	≥52.0	According to GY/T143-2000 6.2.3.5
8	Flatness	dB	±0.75	According to GY/T143-2000 6.2.4
9	RF input signal level	dBuV	75~85	AGC automatic control
10	C/CTB	dB	≥65.0	According to GY/T143-2000 6.2.5
11	C/CSO	dB	≥65.0	According to GY/T143-2000 6.2.5
12	RF input impedance	Ω	75
13	RF input reflection loss	dB	>16(47~550)MHz	According to GB/T11381.1
13	RF input reflection loss	dB	>14[550~750(862)MHz	4.2.2.2.5
14	Power supply	V	90~265 mains
15	power consumption	W	≤50	Single power source
16	Power source			Plug-fuse double power backup
17	Operating temperature	ºC	0~50	Automatic chassis controls temperature
18	Storage temperature	ºC	-20~85
19	Working relative humidity	%	20%~85%

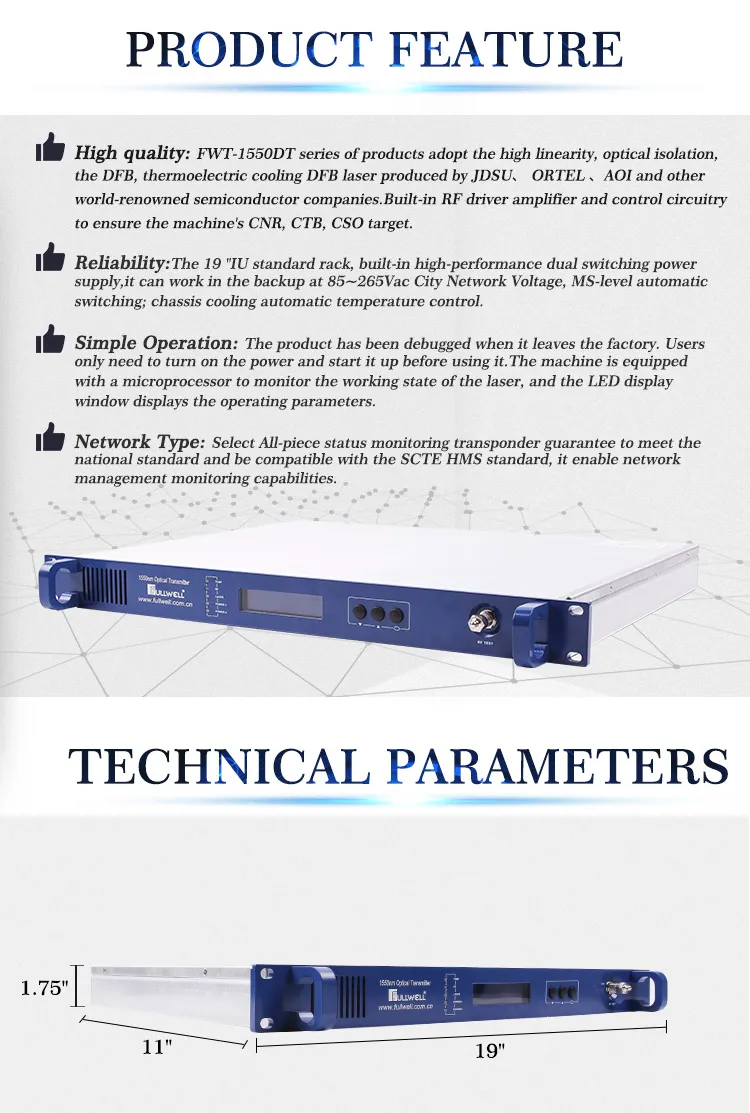

20	Size	″	19″×11″×1.75″	(W)x(D)x(H)
21	Network management interface		RJ45	Support browser and SNMP

   FWT-1550DT-6 output power, ≥6dBm (4mW)
   FWT-1550DT -8 output power, ≥8dBm (6mW)
   FWT-1550DT -9 output power, ≥9dBm (8mW)
   FWT-1550DT-10 output power,≥10dBm (10mW)
