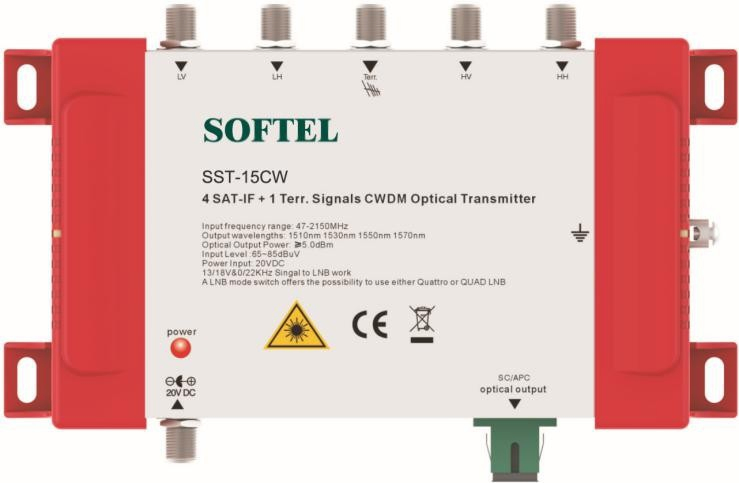

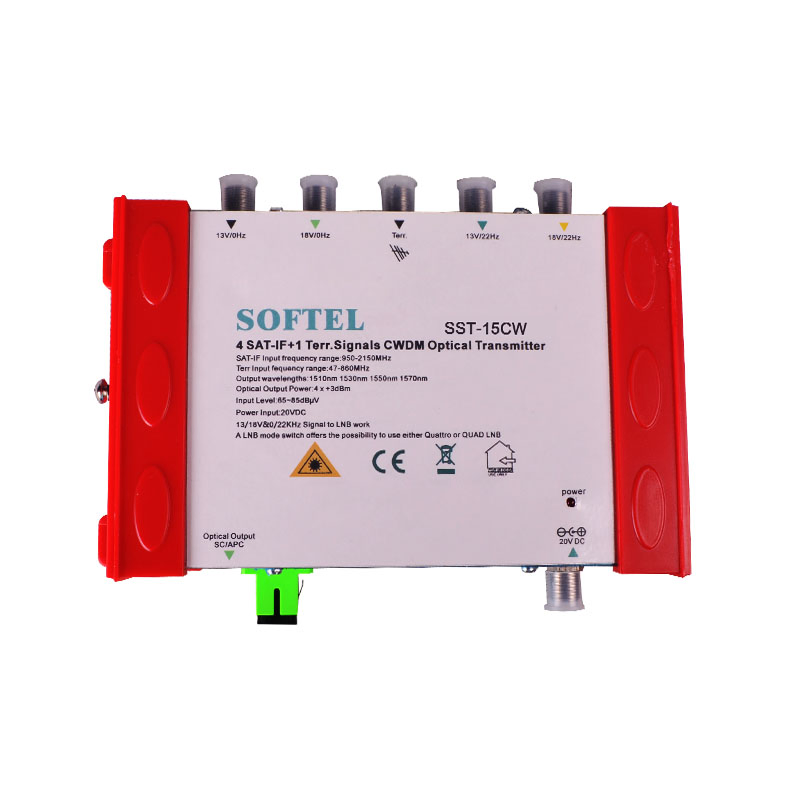

CATV Optical 1550 Mini Satellite Optical Transmitter
CATV Optical 1550 Mini Satellite Optical Transmitter Product Description Key FeaturesDesigned for satellite optical systemWide operating frequency range: 47-2150MHzExcellent linearity and flatnessUsing 1-core single-mode fiber, high return lossBuild-in CWDM, using DFB coaxial small package laserOutp......
Send Inquiry
Product Description
CATV Optical 1550 Mini Satellite Optical Transmitter
Key Features
Usually, we accept T/T, PayPal, Western Union, and Alibaba Trade Assurance. You can select the terms of payment which is more convenient for you.
2. What about the lead time?
Usually, if there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends.
3. How about the shipping?
When the package is small, we normally choose FedEx, DHL, TNT, and UPS, and so on, while the goods have high weight and volume, we suggest using air or sea shipment.
4. How can I place an order?
(1) Negotiation is agreed upon for the product price and specifications.
(2) The Proforma invoice will be sent for confirmation.
(3) After the agreement on the proforma invoice, the customer makes the deposit.
(4) Manufacturing will be started as soon as the payment is confirmed by our bank.
(5) Ship out the goods within the agreed delivery deadline.
5. Can you do OEM for us?
Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.
6. How about the Warranty?
There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands.
Key Features
- Designed for satellite optical system
- Wide operating frequency range: 47-2150MHz
- Excellent linearity and flatness
- Using 1-core single-mode fiber, high return loss
- Build-in CWDM, using DFB coaxial small package laser
- Output 13/18V, 0/22KHz to LNB working
- ALNB mode switch offers the possibility to use either Quattro or QUAD LNB
- A distribution of up to 16 optical nodes is possible
- Red-LED for power indication
- Smaller size and easier installation
| ITEM | Parameters |
| FR connector | F-female |
| Optical Connector | SC/APC |
| Power Supply | F-female |
| Output Optical Wavelength | LV-TX: 1510nm LH-TX: 1530nm HV+Terr.-TX: 1550nm HH-TX: 1570nm |
| Output Optical Power | 3 mW(≥5dBm) |
| Input Impedance | 75 Ω |
| Frequency Range | 47-2150MHz |
| Input Level | 75±10dBuV |
| LNB Power Supply | 13/18V |
| LNB Power Supply Current | 350mA Max. |
| 22KHz Accuracy | 22±4KHz |
| Power Supply | 20 VDC |
| Power Consumption | <15 W |
| Dimensions | 195*128*40mm |
