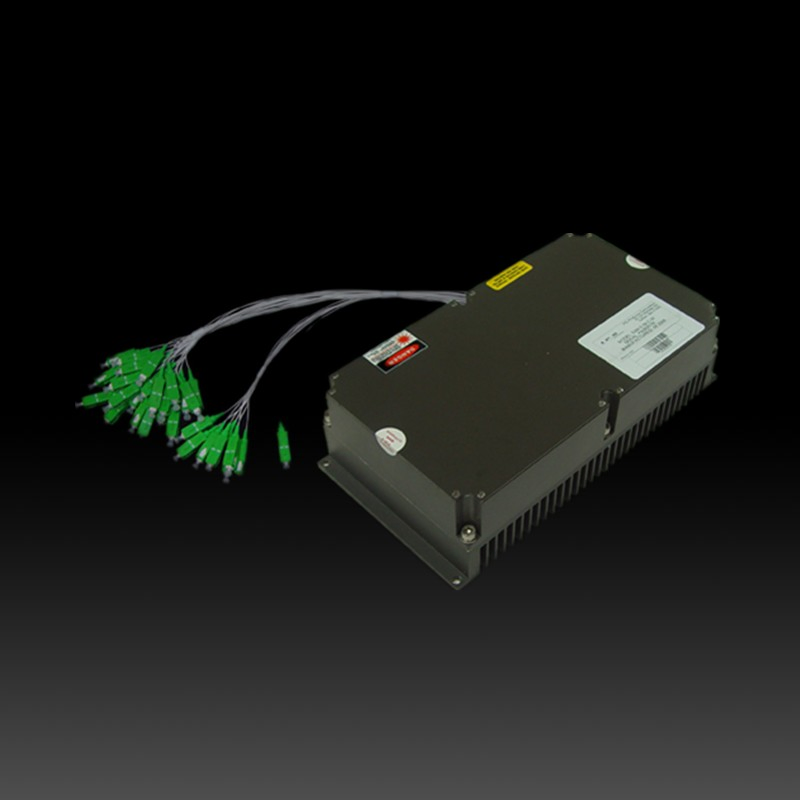

CATV Multi-Ports Output High Power Optical Amplifier Module (HHOA-F5000)

HHOA-F5000
CATV Multi-Ports Output High Power Optical Amplifier Module

Production description

AITC HHOA-F5000 series is a kind of multi-port output, high power, full-function optical amplifier module and is suitable for CATV with low noise. Its total output power is 27~40dBm (0.5W~10W) optional and its optical output port can reach to 64 pieces at most. The module has standard RS232 interface, adopts high reliable and low power consumption design as well as adopts APC, AGC control mode. The product has two series:
HHOA-F5100 Booster amplifier, input power range: +3~+15dBm
HHOA-F5200 Pre-booster amplifier, built-in low noise pre-amplifier, input power range: -10~+10dBm

Product feature

1. Compact Full Function High Power Fiber Booster Optical Amplifier Module
2. Easy to operate. Can work immediately when power up
3. APC, ACC control mode
4. The total output power is 27dBm~40dBm optional
5. Optical output port: 4~64 optional
6. Low noise figure <5.5dB (Pin=0dBm)
7. Extended operation temperature 0~50° C(with heat sink and air-cooled)
8. Input/output optical power detection
9. Input/output optical isolation
10. Industry standard RS232 communication interface and excellent software function
11. Output optical power adjustable (through RS232)
12. High reliable, low power consumption
13. The excellent P/P ratio in the field

Main application

1. FTTX (FTTP, FTTH) ( º C )
2. CATV
