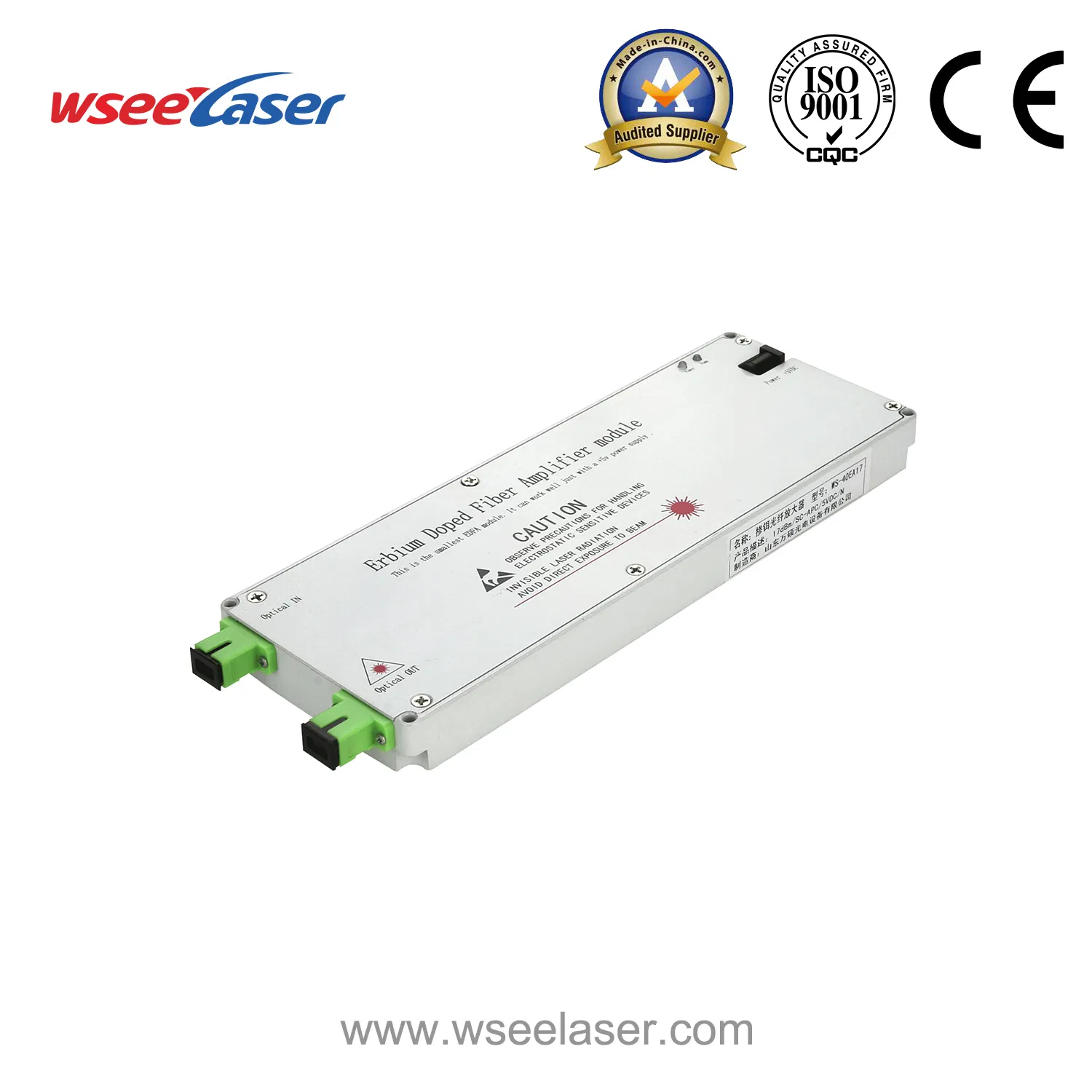

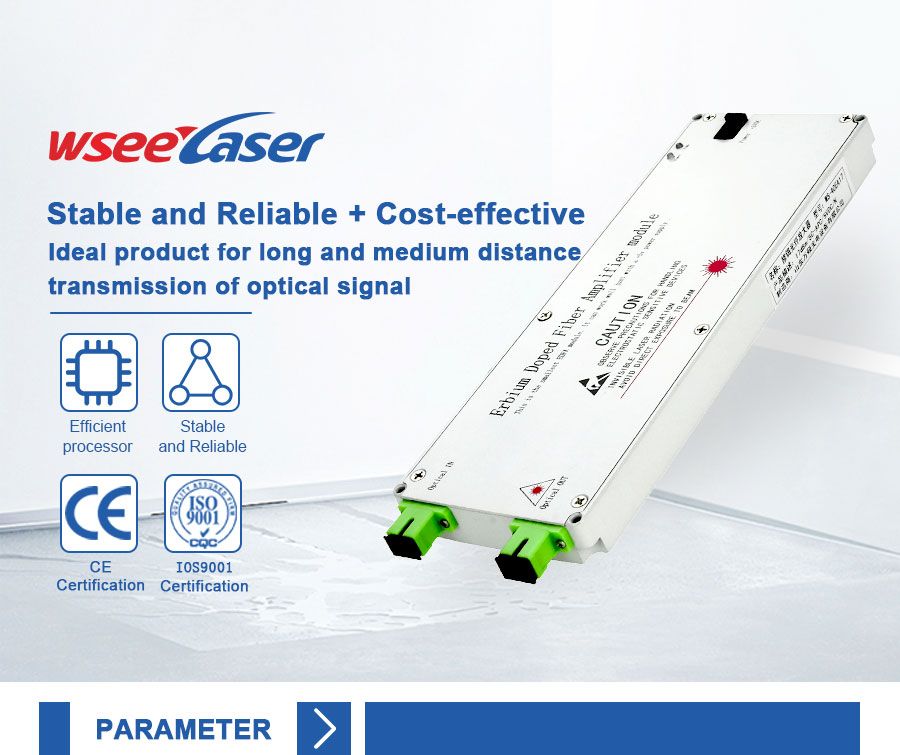

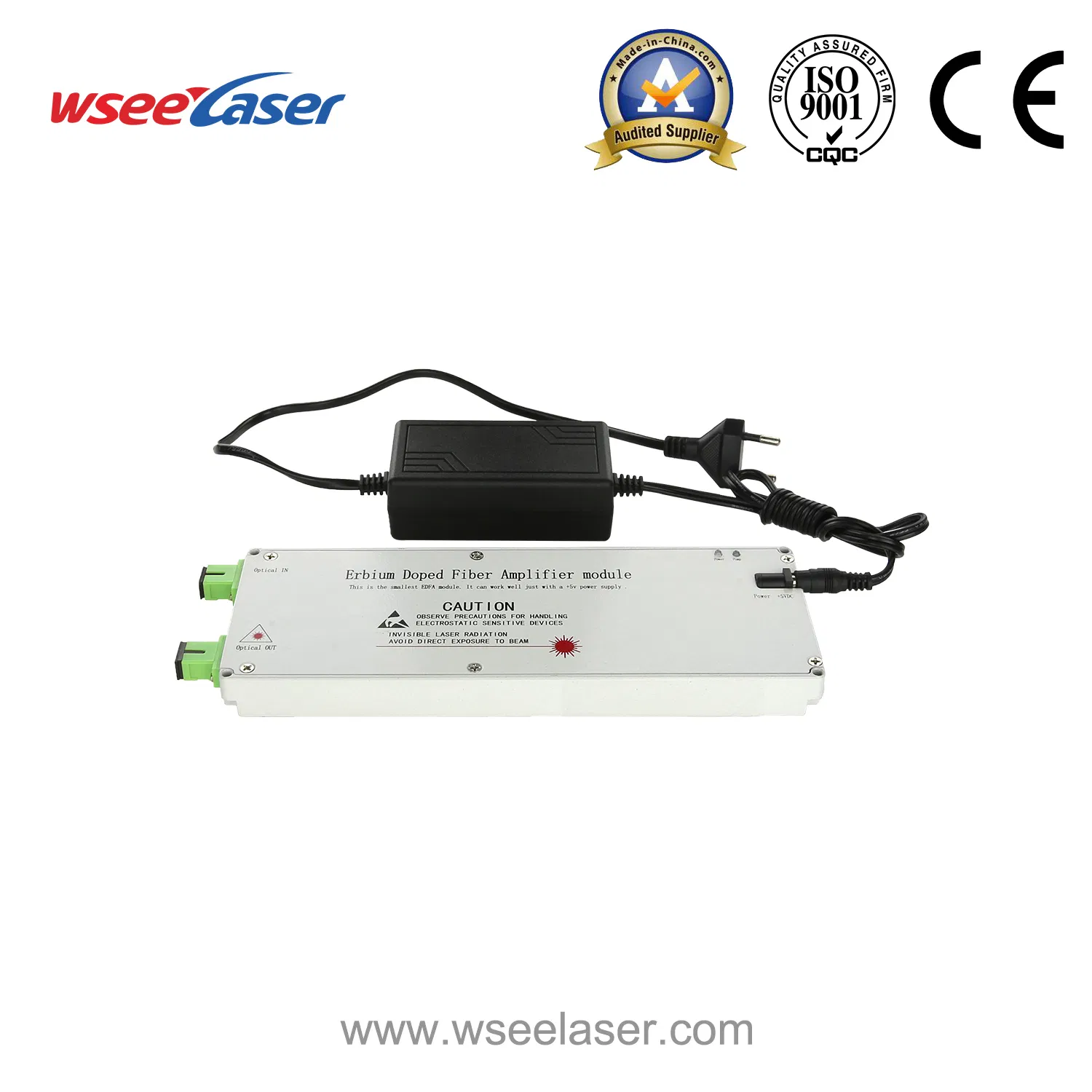

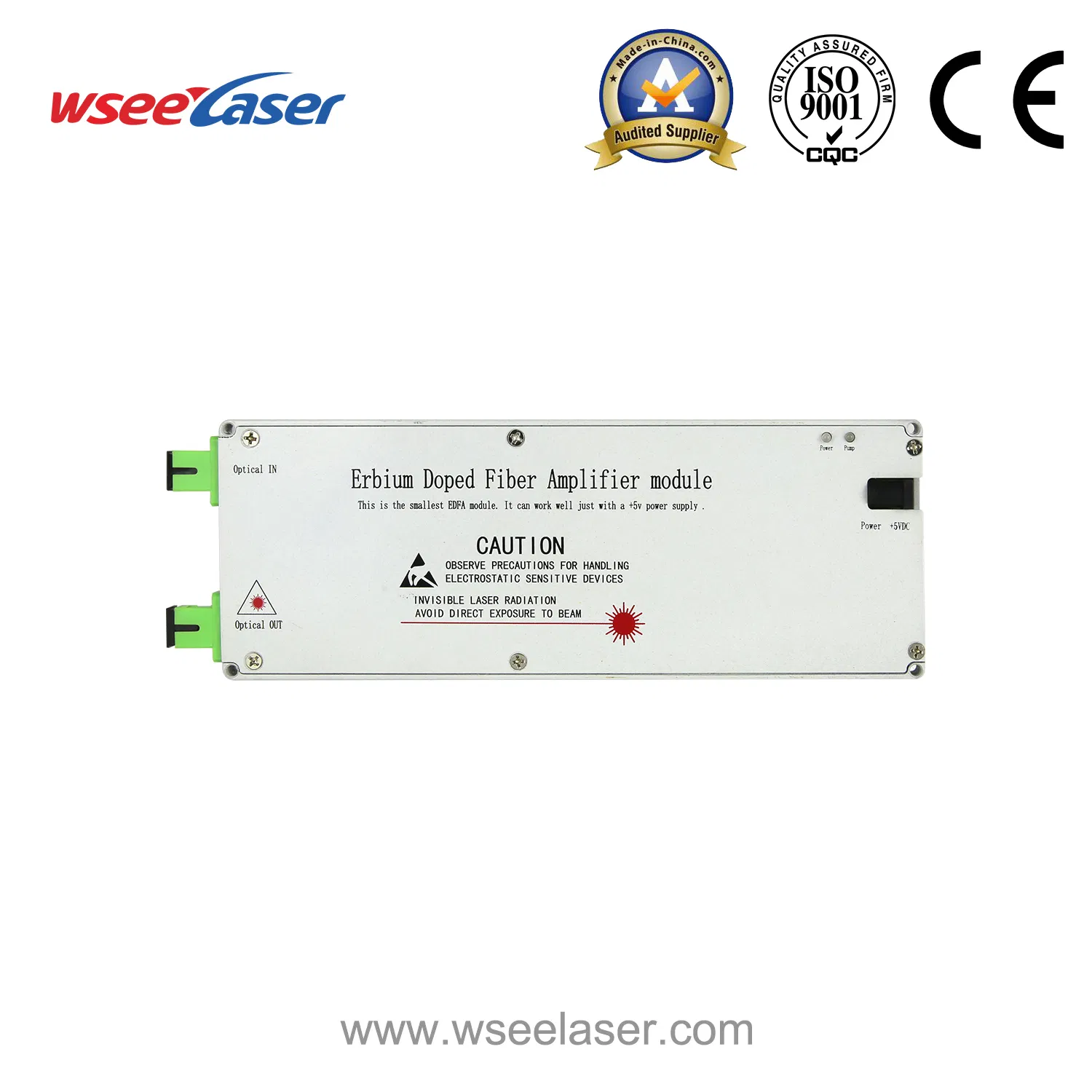

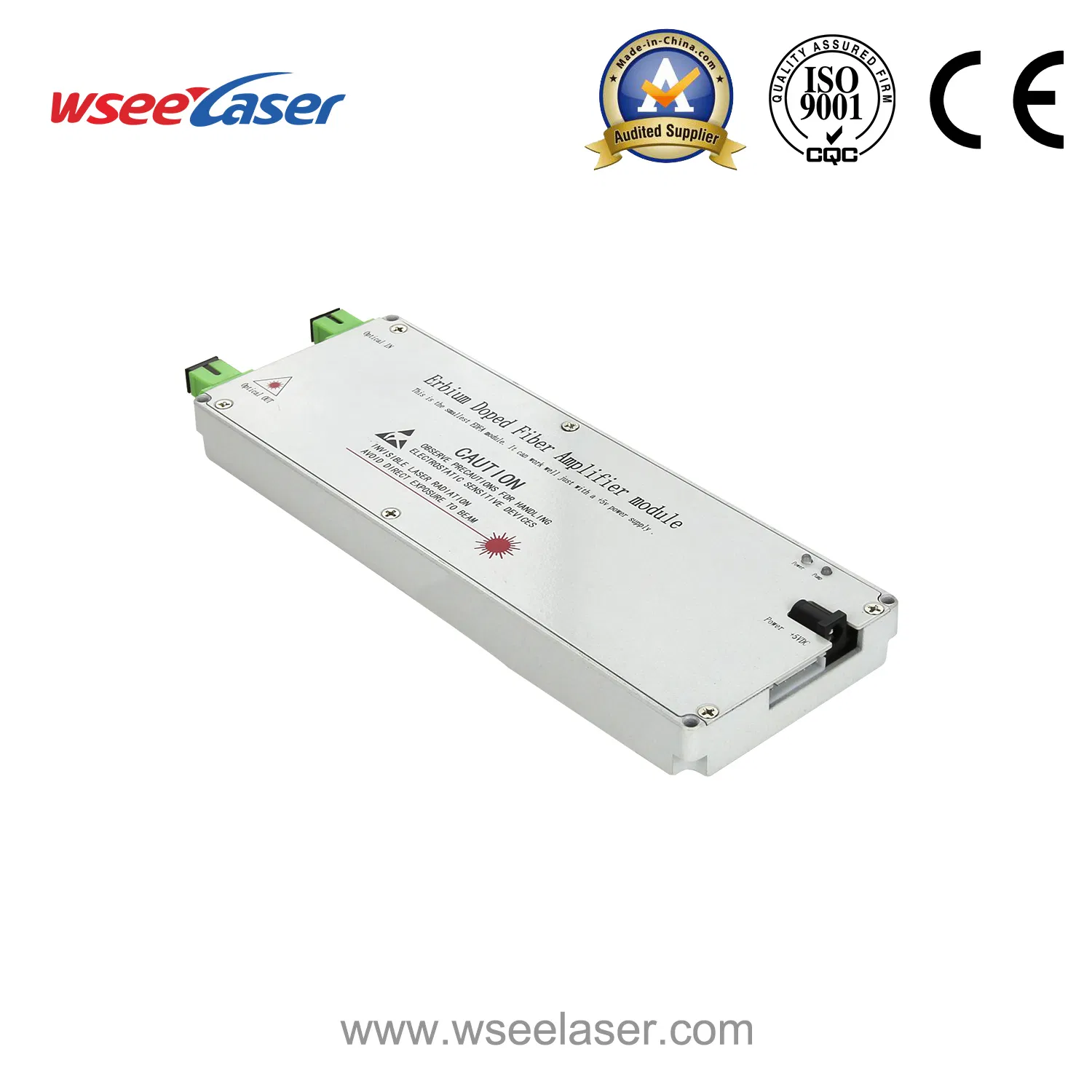

CATV External Modulated EDFA 1550 Mini Optical Amplifier Fiber Amplifier
Technical parametersWS-EA1500-IRemarksWavelength1535~1565 nm Input power range-5dBm~ +10dBmNormal input +3dBmOutput power range(13~24)dBm Optical power stability±0.1 dBm Noise figure≤ 5.0 dB@+0dBm input, λ=1550nmReturn lossinput≥ 45 dB output≥ 45 dB Optical......
Send Inquiry
Product Description
| Technical parameters | WS-EA1500-I | Remarks | |
| Wavelength | 1535~1565 nm | ||
| Input power range | -5dBm~ +10dBm | Normal input +3dBm | |
| Output power range | (13~24)dBm | ||
| Optical power stability | ±0.1 dBm | ||
| Noise figure | ≤ 5.0 dB | @+0dBm input, λ=1550nm | |
| Return loss | input | ≥ 45 dB | |
| output | ≥ 45 dB | ||
| Optical connector | SC/APC(standard)&FC/APC | Customized | |
| C/N | ≥ 50 dB | Test follow GT/T 184-2002 | |
| C/CTB | ≥ 63 dB | ||
| C/CSO | ≥ 63 dB | ||
| Supply voltage | DC 8V | External power supply | |
| Consumption | ≤ 10 W | ||
| Working temperature range | -5 ~ +42 ºC | ||
| Maximum working relative humidity | Max95%, non-condensing | ||
| Storage temperature range | -30 ~ +70 ºC | ||
| Maximum storage relative humidity | Max95%, non-condensing | ||
| Size | 82(L)*245(W)*19(H) mm | ||
| Package size | 340*134*50 mm | ||
| Weight (including package) | 0.44 kg | ||
This device is self-developed, independent Erbium-doped fiber amplifier. The product is compact and light weight, compact structure, easy installation and debugging, high cost performance, stable and reliable, is the ideal product to build secondary network and long-distance
transmission in 1550nm optical signals

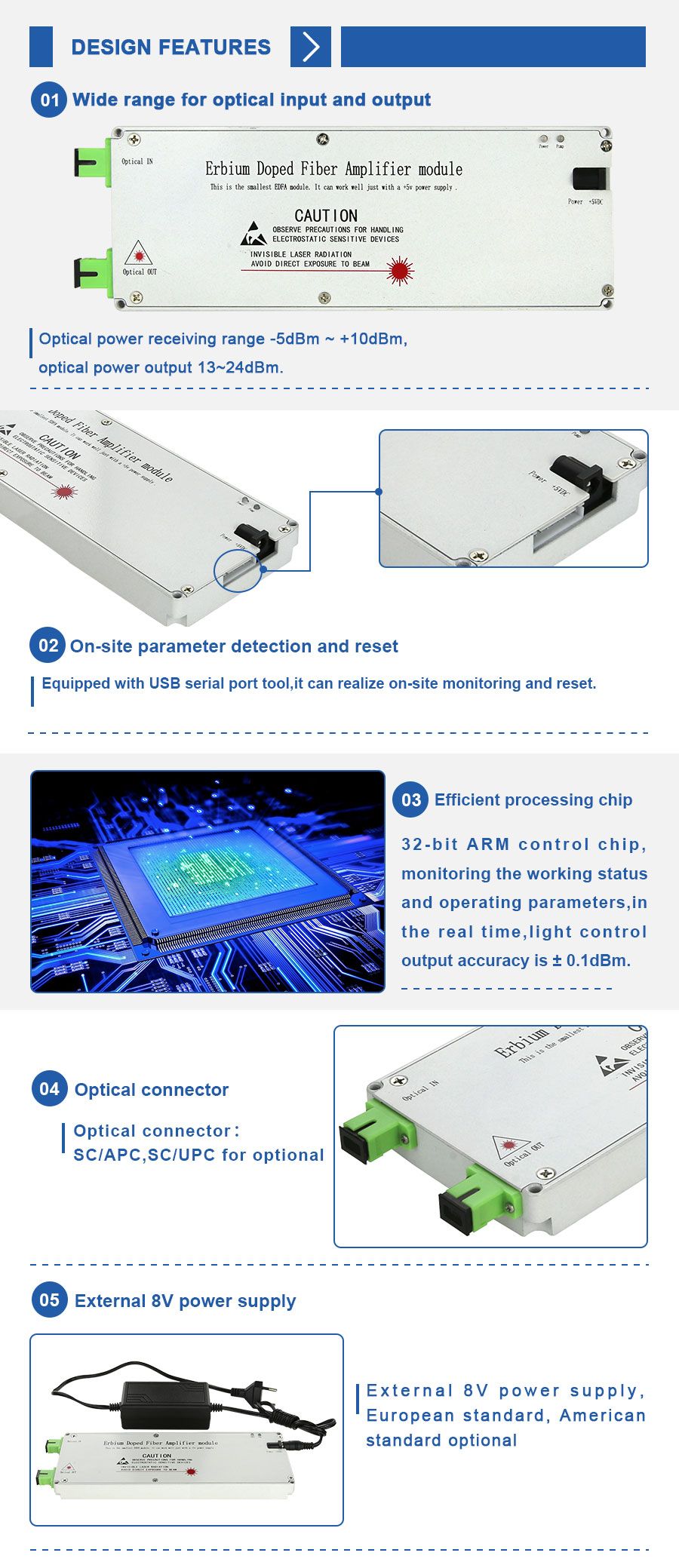

- Adopted internationally renowned brand low noise pump lasers, low distortion, wide band, high output optical power.
- Imported high-performance erbium-doped fiber, high energy conversion efficiency.
- Optical power receiving range -10dBm ~ +10dBm, optical power output 13~24dBm.
- 32-bit ARM control chip, real-time monitoring of the working status and operating parameters, light control output accuracy of ± 0.1dBm.
- Working mode APC/ACC optional.
- Output power +0.2~-4dBm adjustable.
- All control circuits and devices use high-efficiency switching chips, and the overall power consumption is ≤10W.
- Equipped with USB serial port tool, through the computer connection, can realize parameter on-site monitoring and reset.
- External 8V power supply, European standard, American standard optional.
