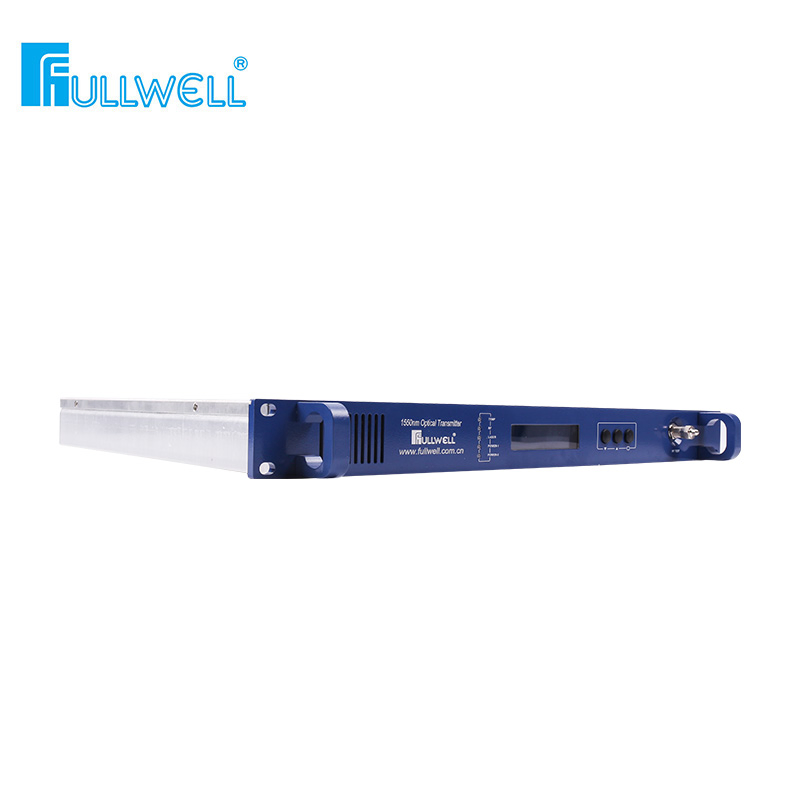

CATV 1550 Optical Transmitter with AGC
1550nm Direct modulation Optical TransmitterPlug-in type, Single ModuleWith AGC, 1 way outputFWT-1550DT -10Features1. Pull-out type module design, DFB Laser,NEC module.2. Output power 2....10mW.3.C/CTB≥65.0dB, C/CSO≥65.0dB, CNR≥52.0dB4.Front panel display for operating paramet......
Send Inquiry

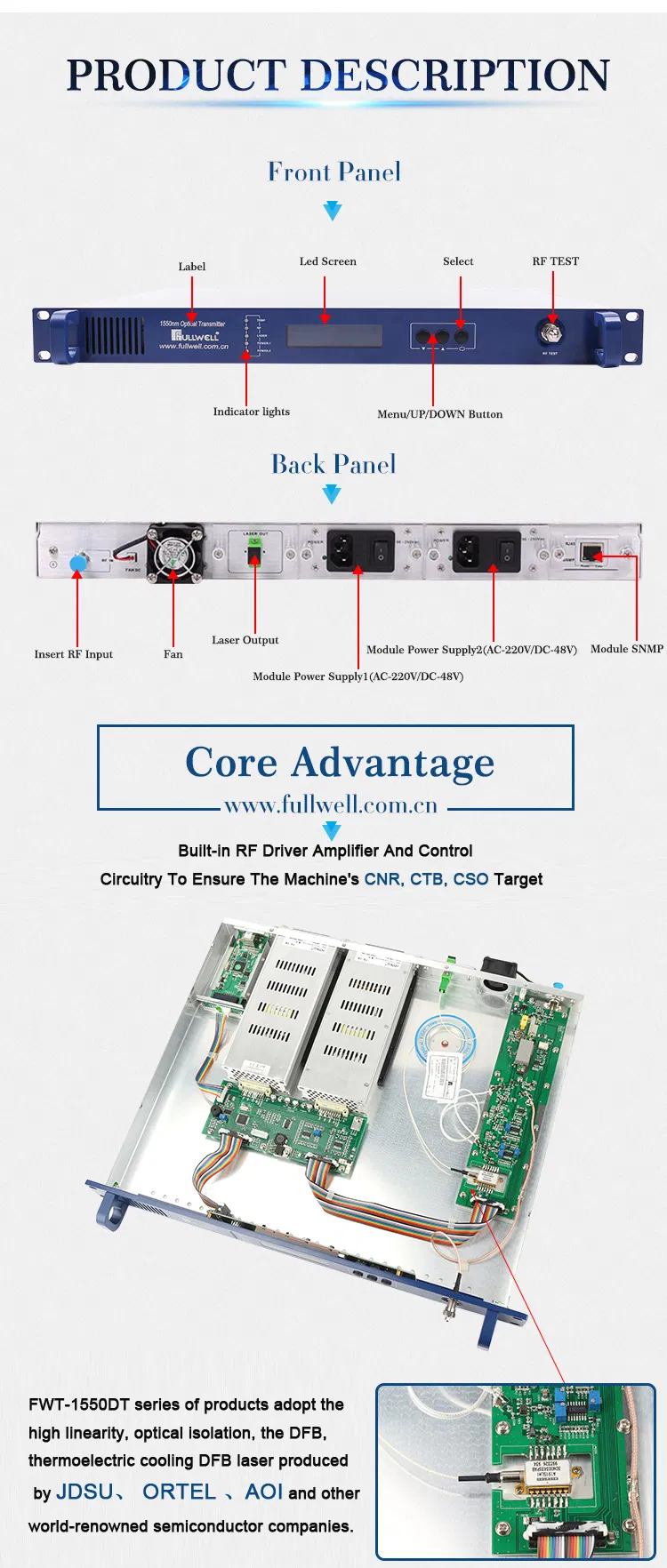

Product Description

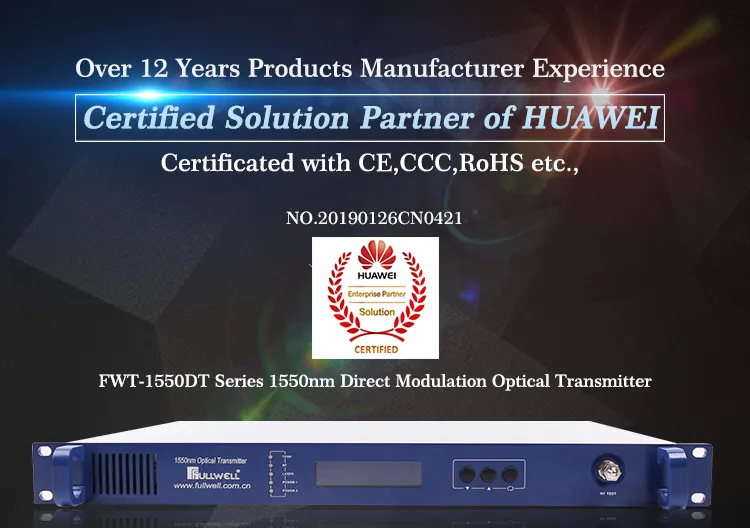

1550nm Direct modulation Optical Transmitter
Plug-in type, Single Module
With AGC, 1 way output
FWT-1550DT -10

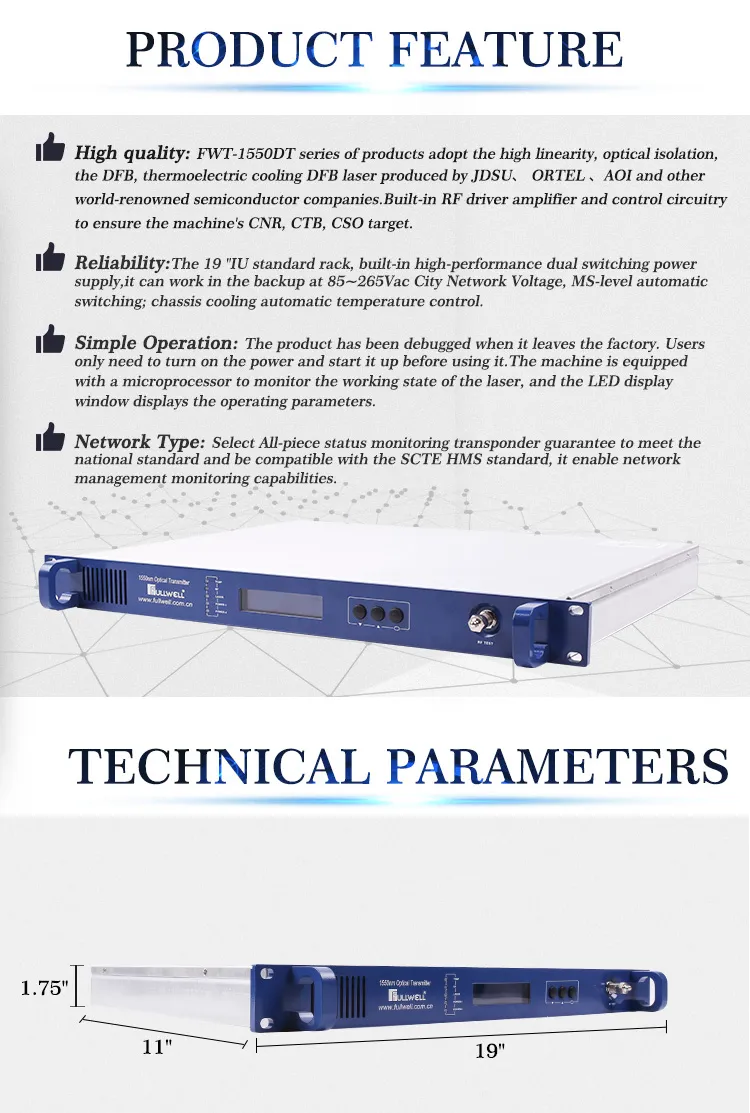

Features

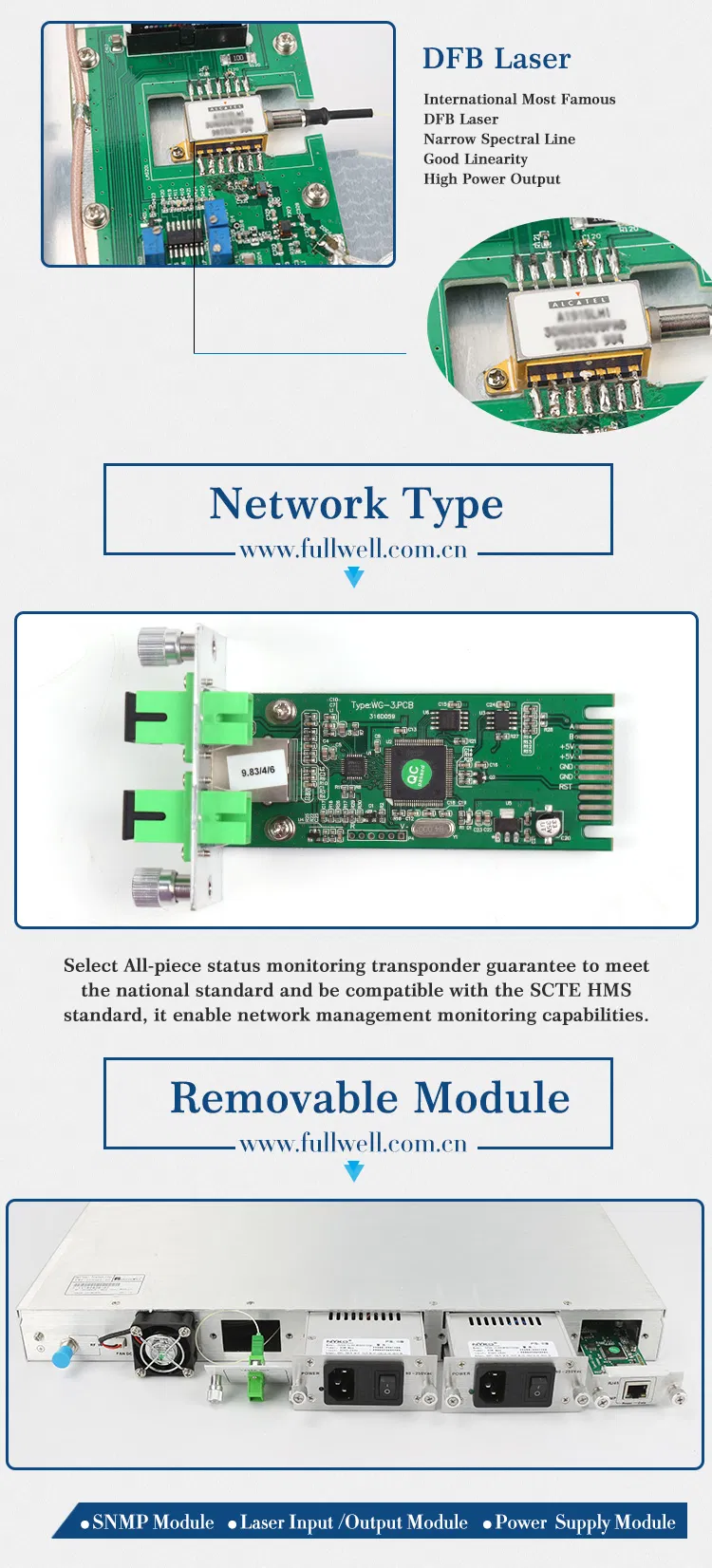

1. Pull-out type module design, DFB Laser,NEC module.
2. Output power 2....10mW.
3.C/CTB≥65.0dB, C/CSO≥65.0dB, CNR≥52.0dB
4.Front panel display for operating parameters and warming.
5.RJ45 port. SNMP web interface.
6.Hot-plug switching power supply design.(90~265V)
7. OEM offered.
Technical indexes
| Serial No. | Project | Unit | Parameter | Remark |
| 1 | Laser model | DFB | ||
| 2 | Optical wavelength | nm | 1550±10 | if it is different from the wavelength, please marking before order |
| 3 | Optical modulation modes | Internal modulation | ||
| 4 | Optical output power | mW | 7mW (2~10) | |
| 5 | Optical connector form | FC/APC, SC/APC optionally | Please marking before order | |
| 6 | Frequency range | MHz | 45~750(862) | |
| 7 | Carrier to Noise ratio | dB | ≥52.0 | According to GY/T143-2000 6.2.3.5 |
| 8 | Flatness | dB | ±0.83 | According to GY/T143-2000 6.2.4 |
| 9 | RF input signal level | dBuV | 78~88 | AGC automatic control |
| 10 | C/CTB | dB | ≥65.0 | According to GY/T143-2000 6.2.5 |
| 11 | C/CSO | dB | ≥65.0 | According to GY/T143-2000 6.2.5 |
| 12 | RF input impedance | Ω | 75 | |
| 13 | RF input reflection loss | dB | >16(47~550)MHz | According to GB/T11381.1 |
| >14[550~750(862)MHz | 4.2.2.2.5 | |||
| 14 | Power supply | V | 90~265 mains | |
| 15 | power consumption | W | ≤50 | Single power source |
| 16 | Power source | Plug-fuse double power backup | ||
| 17 | Operating temperature | ºC | 0~50 | Automatic chassis controls temperature |
| 18 | Storage temperature | ºC | , -20~85 | |
| 19 | Working relative humidity | % | 20%~85% | |
| 20 | Size | ″ | 19″×11″×1.75″ | (W)x(D)x(H) |
| 21 | Network management interface | RJ45 | Support browser and SNMP |

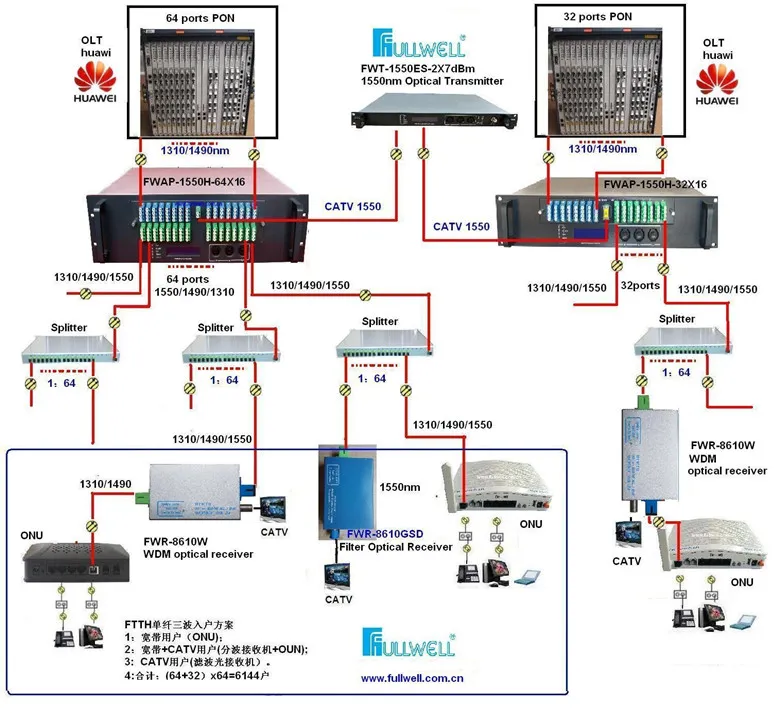

Network Application

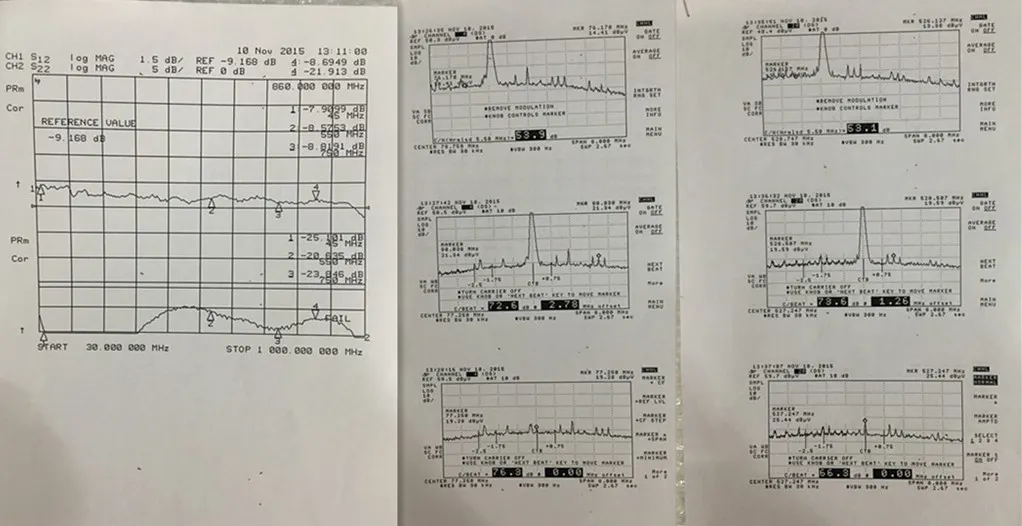

Test Reporter
-----------------------------------FAQ---------------------------------------------
1. What are your terms of payment?
Usually, we can accept T/T, PayPal and Western Union. You can select the terms of payment which is more convenient for you.
2. What about the lead time?
Usually, if there is stock of goods, we will deliver the goods within 3~5 work days after we receive the payment.
3. How about the shipping?
Usually, we will deliver the goods via International Express like FedEx, DHL, TNT, and UPS and so on. Door to door delivery service will be provided.
4. How can I place an order?
(1) Agreement is achieved on the product price and product specifications.
(2) We make proforma invoice for your confirmation.
(3) When you agree on the proforma invoice, you make the payment.
(4) We deliver the goods after we receive your payment.
5. Can you do OEM for us?
Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.
6. What are the advantages of your products?
A. Good quality and competitive prices.
B. Strict quality control during production process.
C. Professional operations in processes of production, sales, assembling, packaging and shipping.
D. Good after-sale service. Professional online technical support can be provided. Moreover, if there is any problem of the goods, we will help to solve the problem or provide replacement of the goods.
