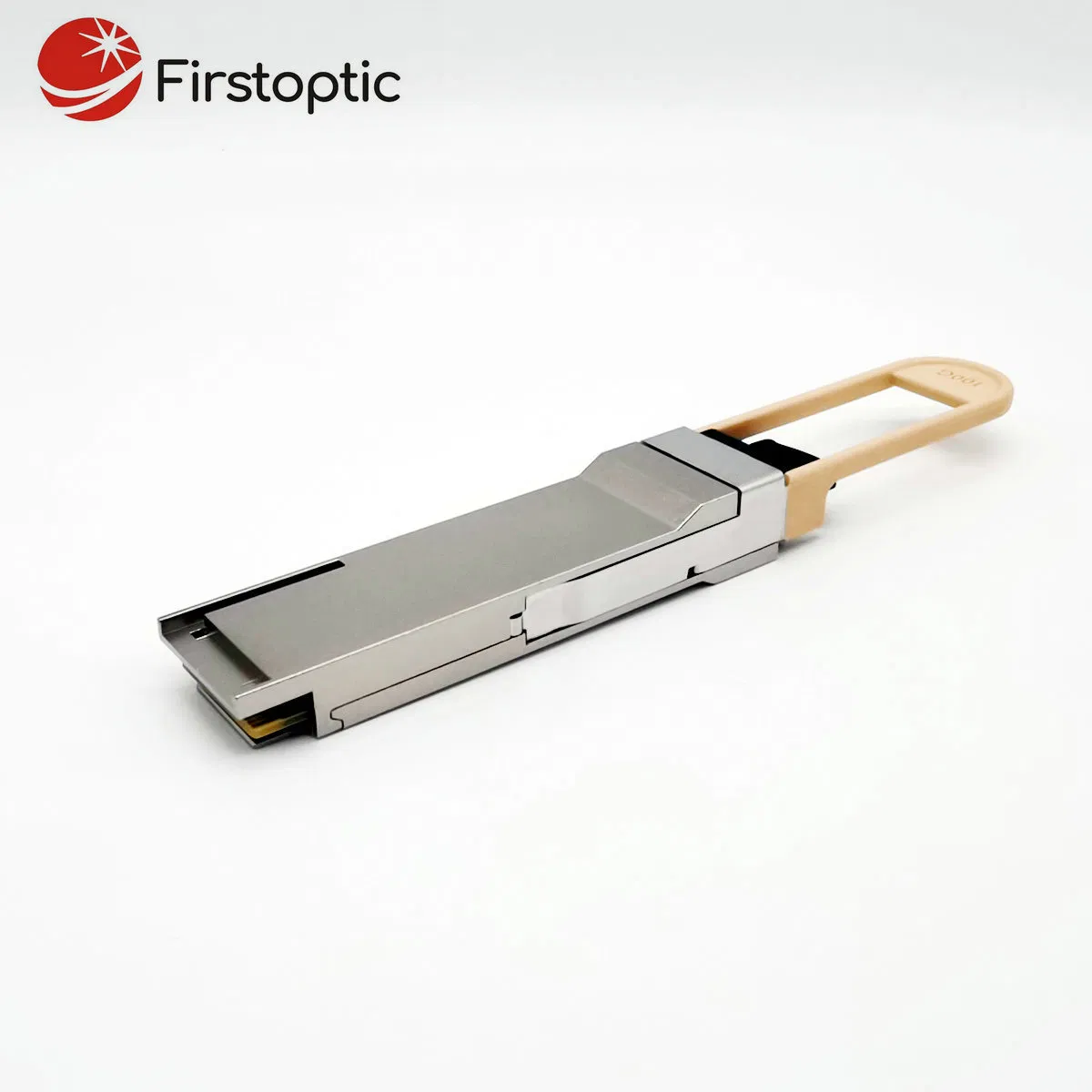

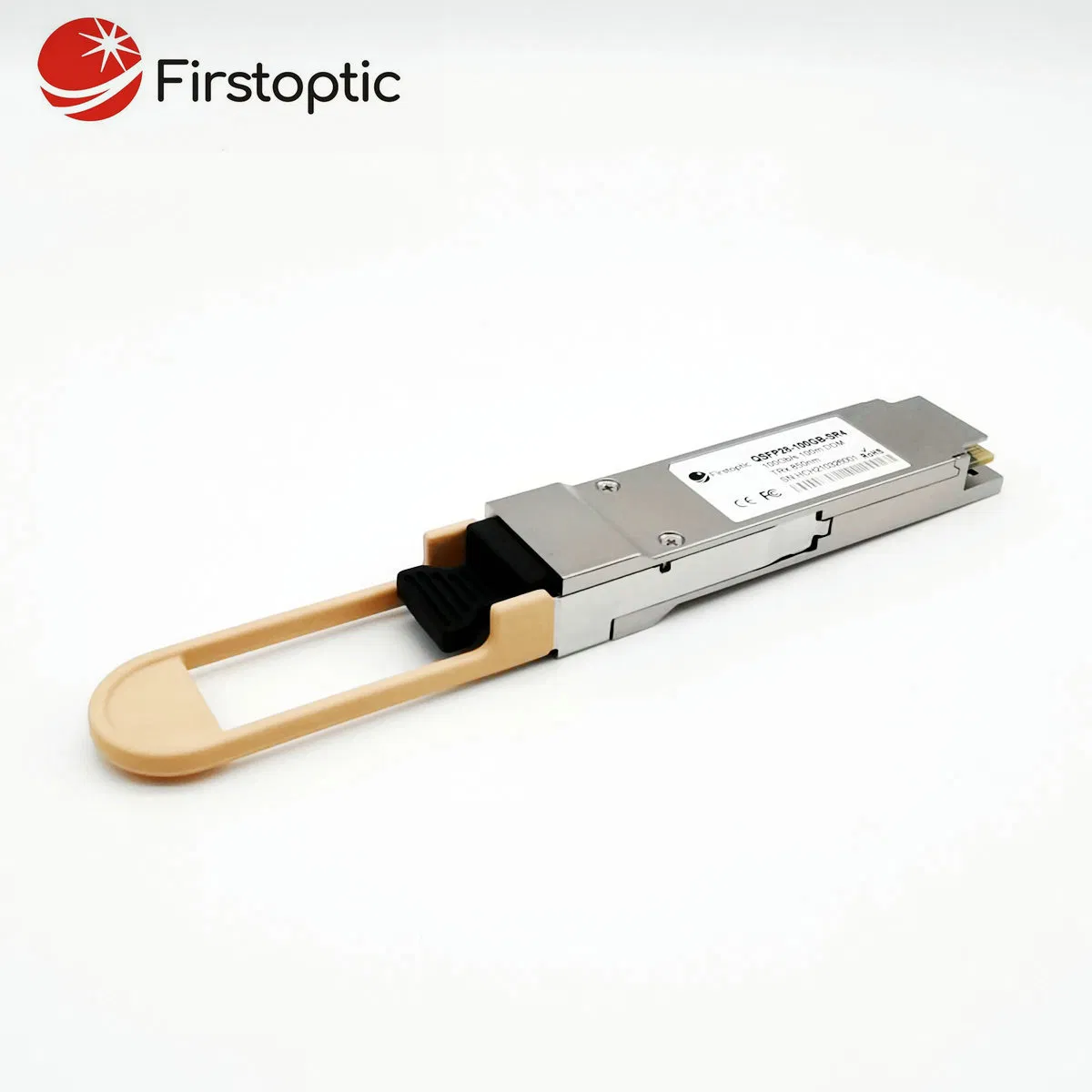

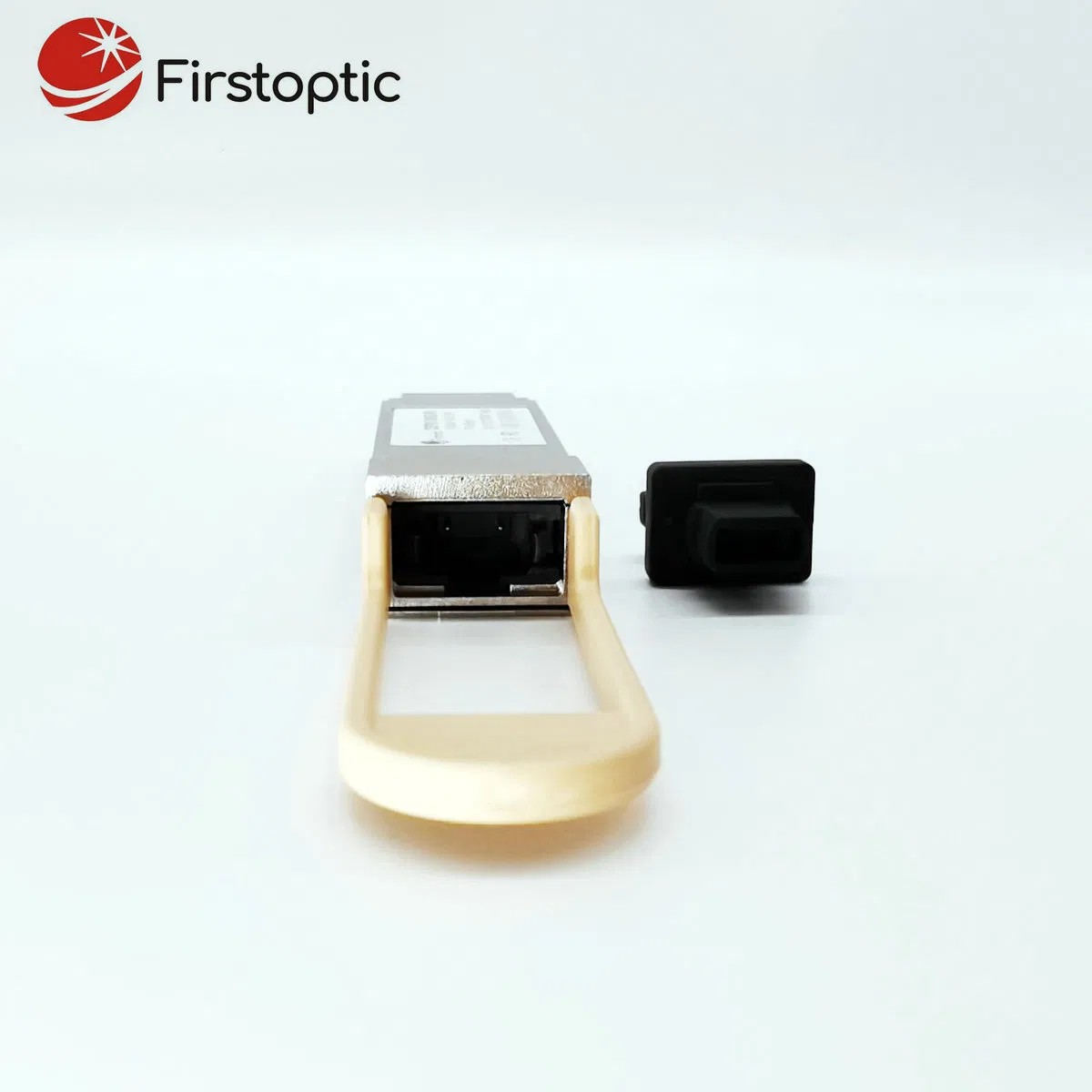

Arista Networks QSFP-100G-SR4 Compatible 100GBASE-SR4 QSFP28 850nm 100m DOM MTP/MPO MMF Optical Transceiver Module
SpecificationsArista QSFP-100G-SR4 Compatible 100GBASE-SR4 QSFP28 Optical Transceiver Module (MMF, 850nm, 100m, MTP/MPO, DOM)The 100GBASE-SR4 QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 100m over OM4 multimode fiber (MMF) using a wavelength of 850nm vi......
Send Inquiry
Product Description
The 100GBASE-SR4 QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 100m over OM4 multimode fiber (MMF) using a wavelength of 850nm via a MTP/MPO-12 connector. This transceiver is compliant with IEEE 802.3bm 100GBASE-SR4 and CAUI-4 standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications.
| HCH Modle No | QSFP-100G-SR4 | Vendor Name | HCH |
| Form Factor | QSFP28 | Max Data Rate | 103.125Gbps (4x 25.78Gbps) |
| Wavelength | 850nm | Max Cable Distance | 70m@OM3/100m@OM4 |
| Connector | MTP/MPO-12 | Cable Type | MMF |
| Transmitter Type | VCSEL 850nm | Receiver Type | PIN |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| TX Power | -8.4~2.4dBm | Receiver Sensitivity | <-10.3dBm |
| Powerbudget | 1.9dB | Receiver Overload | 2.4dBm |
| Power Consumption | ≤1.8W | Extinction Ratio | >3dB |
| Modulation Format | NRZ | CDR (Clock and Data Recovery) | TX & RX Built-in CDR |

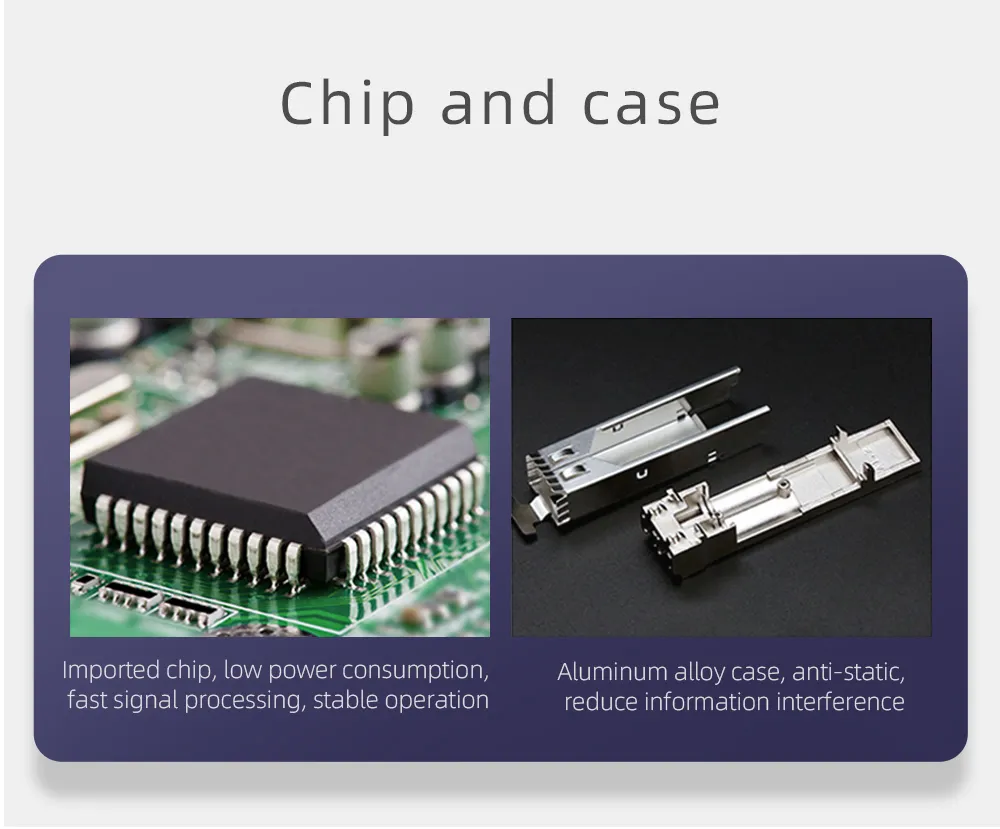

| Packaging Technology | COB (Chip on Board) Packaging | FEC Function | Supported |
| EMC (Electro Magnetic Compatibility) | Supported | Bit Error Ratio (BER) | 1E-12 (without FEC) |
| Protocols | IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636 | MTBF | 12,800,000 Hours |
| Application | Data Center, 100G Ethernet | Warranty | 5 Years |
Features
* Hot-pluggable QSFP28 form factor, compliant with the QSFP28 MSA
* 4 channels full-duplex transceiver modules
* Up to 28Gb/s per channel, 112Gb/s aggregate bit rate
* Support InfiniBand EDR
* Single 3.3V power supply
* 4x25Gb/s VCSEL/DFB/EML transmitter
* 4x25G electrical interface

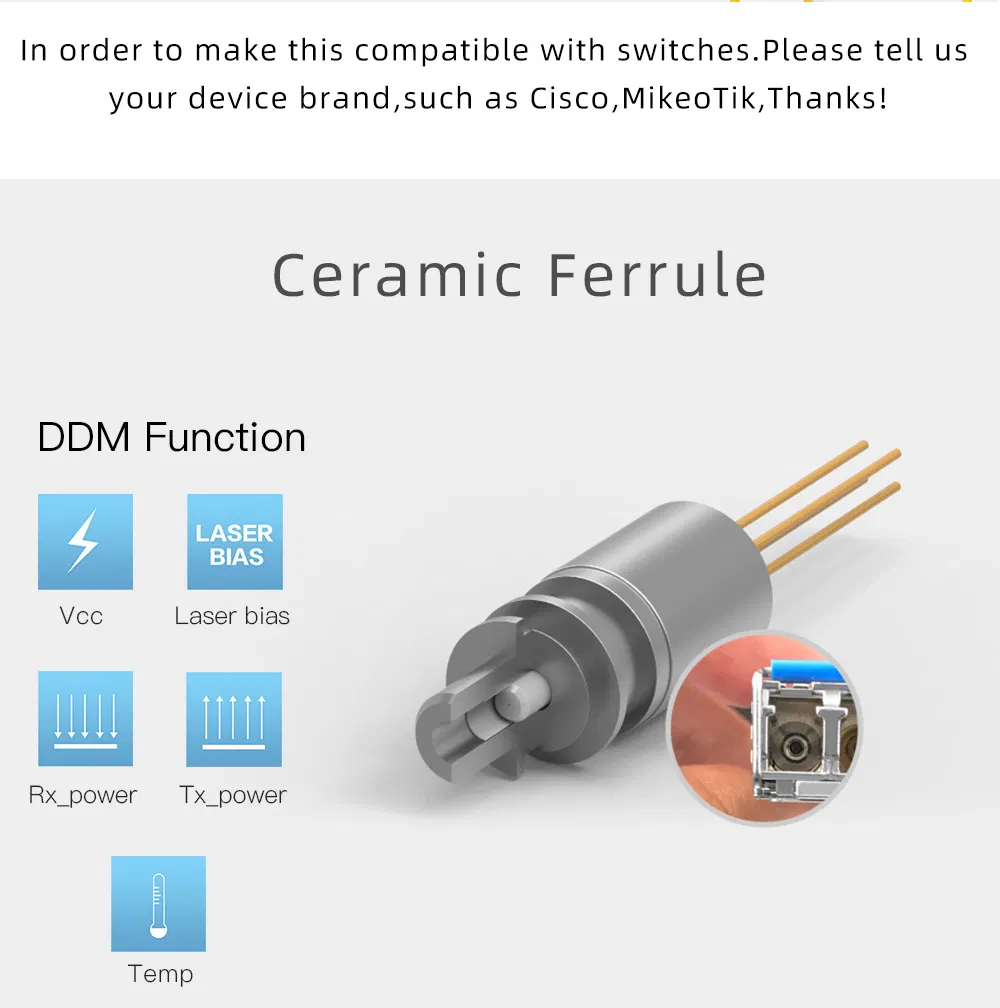

* Built in full digital diagnostics functions
* I2C management interface
* Maximum link length of 40km on SMF/100m on MMF
* Power dissipation<5W
* Temperature range 0°C to 70°C
* RoHS-6 Compliant

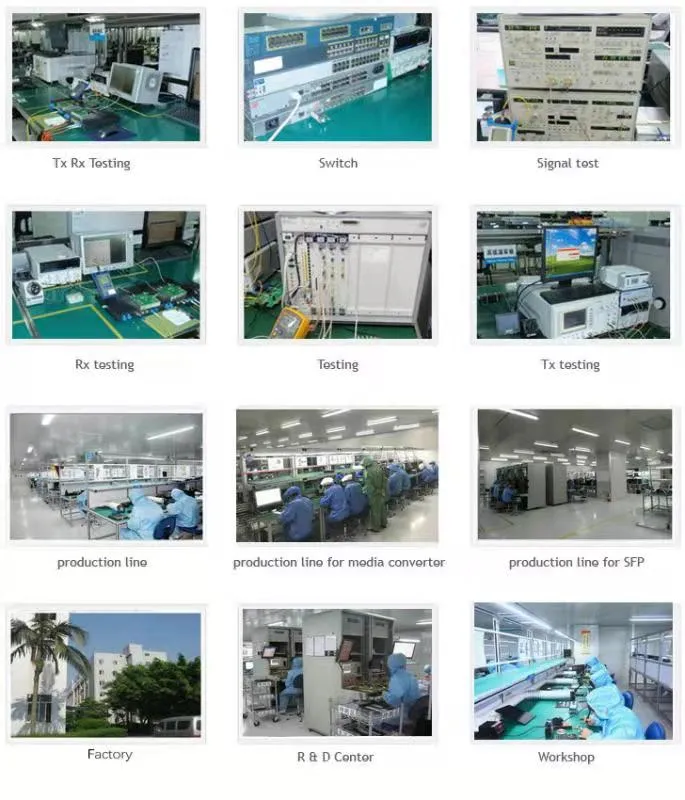

Our Company
