8channels 1310 -1590nm Dual Fiber CWDM OADM Fmu Plug-in Module for Flexible Expansion and Upgrade
DWDM OADM ModuleProduct DescriptionDWDM Wavelength Optical Add/Drop Multiplexing(OADM), 100G Channel Spacing, Bi-Direction, fixed wavelength, 4 Wavelengths, 1 service Add/Drop for EAST and WEST, or 2 services Add/Drop for EAST only Features Cost-effective DWDM deviceReliable passive thin film fil......
Send Inquiry
Product Description

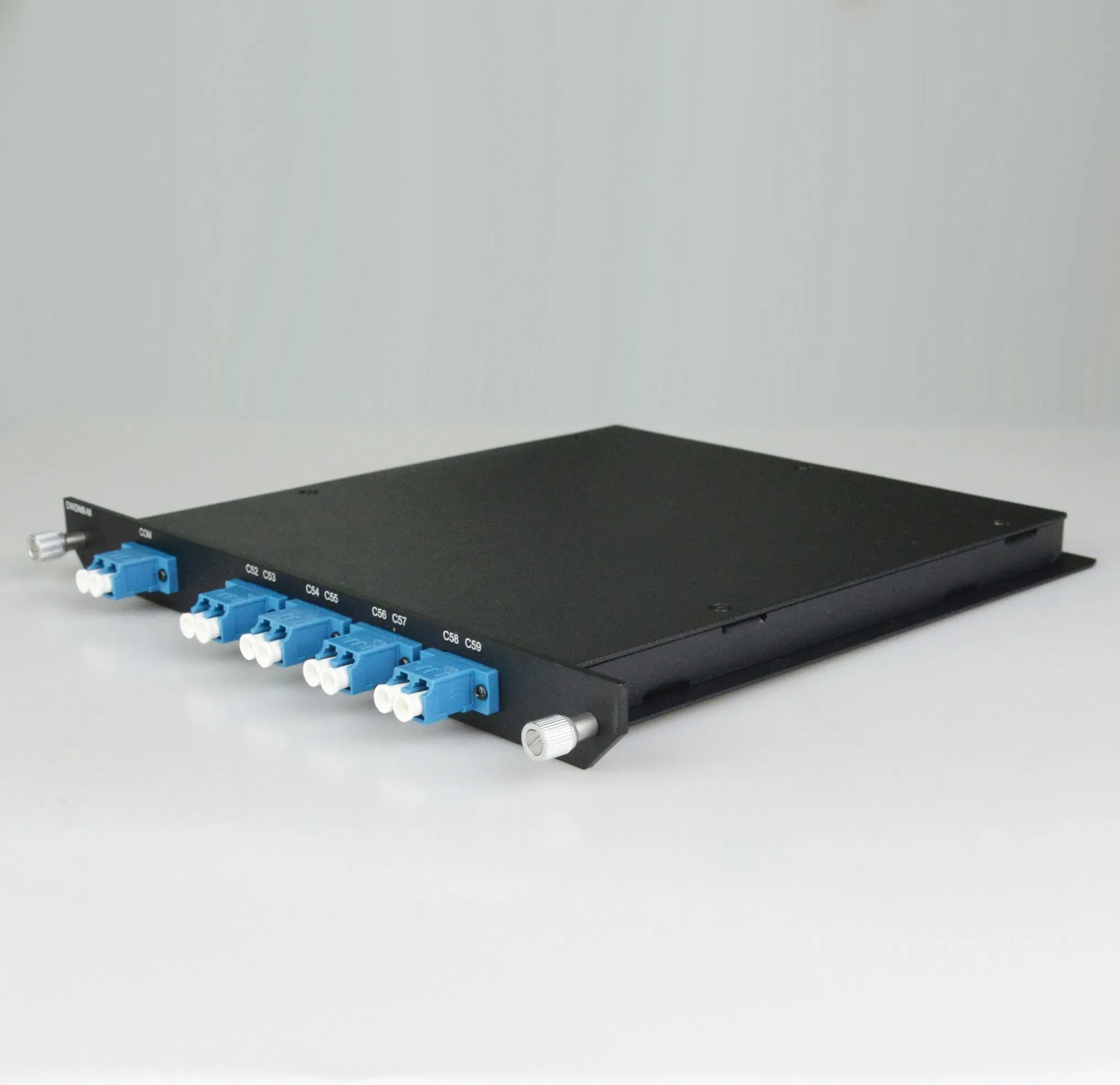

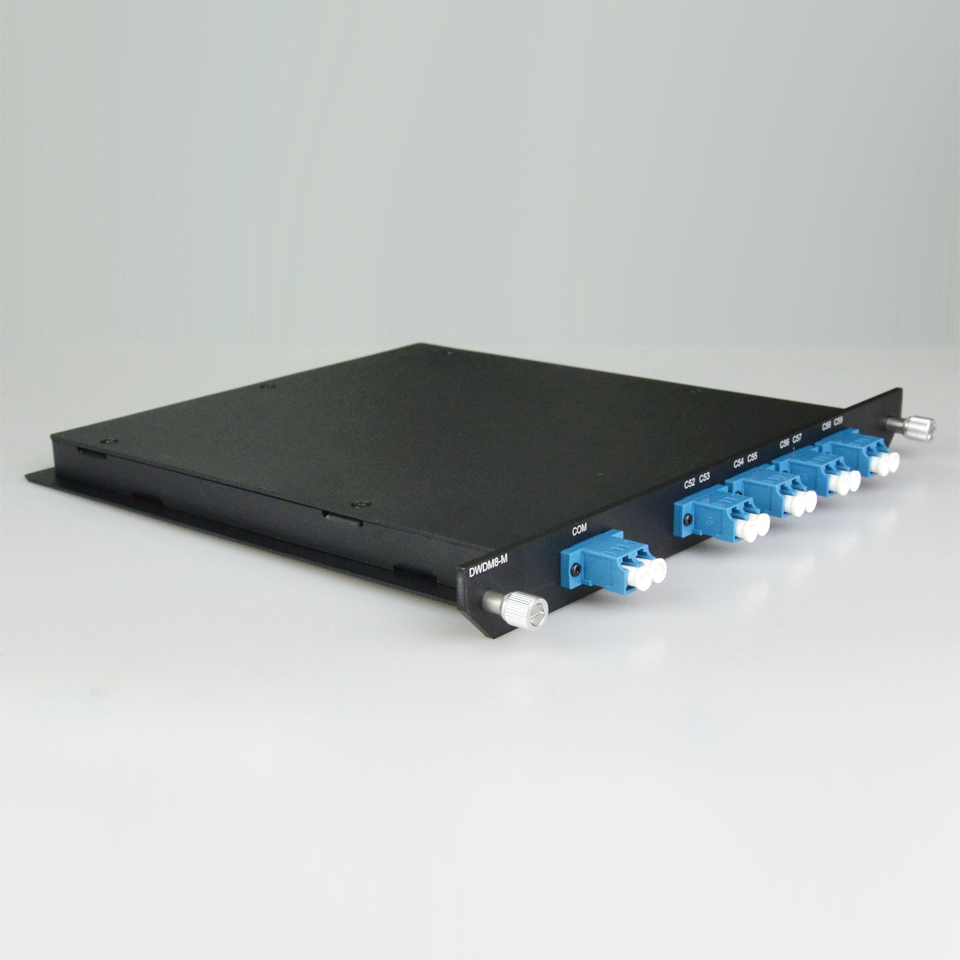

DWDM OADM Module
Product Description
DWDM Wavelength Optical Add/Drop Multiplexing(OADM), 100G Channel Spacing, Bi-Direction, fixed wavelength, 4 Wavelengths, 1 service Add/Drop for EAST and WEST, or 2 services Add/Drop for EAST only
Features
- Cost-effective DWDM device
- Reliable passive thin film filter
- Low optical insertion loss
- No adhesive on optical path
- RoHs Compliant
Applications
- Metro Network
- Data center communication
Performance Specification
Parameter | Unit | Specification | ||
| Channel spacing | GHz | 100/200 | ||
| Number of Channels | CH | 4 | ||
| Operating Wavelength | nm | DWDM wavelength customer option | ||
| Channel Wavelength Bandwidth | nm | ITU±0.11 | ||
| Ripple in Passband | dB | ≤ 0.5 | ||
| Insertion Loss(COM to EXP) | dB | ≤ 1.5 | ||
| Insertion Loss(COM to Add/Drop) | dB | ≤ 2.0(-S), ≤ 1.5(-D) | ||
| Insertion Loss(EXP to Add/Drop) | dB | ≤ 1.5(-D) | ||
| Isolation(COM/EXP to Add/Drop) | dB | ≥ 30 | ||
| Isolation(COM to EXP/EXP to COM ) | dB | ≥ 15 | ||
| Polarization Dependent Loss | dB | ≤ 0.2 | ||
| Polarization Mode dispersion | ps | ≤ 0.2 | ||
| Return Loss (including connector) | dB | ≥ 45 | ||
| Directivity | dB | ≥ 50 | ||
| Insertion Loss Temperature Stability | dB/°C | ≤ 0.005 | ||
| Temperature Wavelength Drift | nm/°C | ≤ 0.005 | ||
| Recommend Operation Environment | ||||
| Power Handling | mW | ≤ 500 | ||
| Tensile Load | N | 5 | ||
| Operating Temperature | °C | 0 ~ 70 | ||
| Storage Temperature | °C | -40 ~ 85 | ||
| Relative Humidity | % | <95 | ||
Package Specification | ||||
| Package Dimension | mm | 100x80x10 or customer define | ||
| Fiber Length | m | 1m or customer length | ||
| Fiber diameter | mm | 0.25/0.9/2.0 | ||
| Fiber Type | Corning SMF-28e or equivalent | |||
| Connector Type | COM port | LC/UPC | ||
| EXP port | LC/UPC | |||
| Add/Drop port | LC/UPC | |||
PN: OADM2-D-xxxx-1-B-S
| OADM | Optical Add/Drop Module |
| 2 | 2: 2 services or 4 wavelengths |
| D | D: DWDM wavelength C: CWDM wavelength |
| xxxx | 5253: Add/Drop wavelength=C52 to C53 |
| 1 | 1: LC adapter |
| B | 1U: 1U chassis(width=230mm) A1: ABS box(100mmx80mmx10mm) B: LGX box(201mmx186mmx21mm) |
| D | S: single direction (Add/Drop for East only) D: dual direction(Add/Drop for East/West) |
