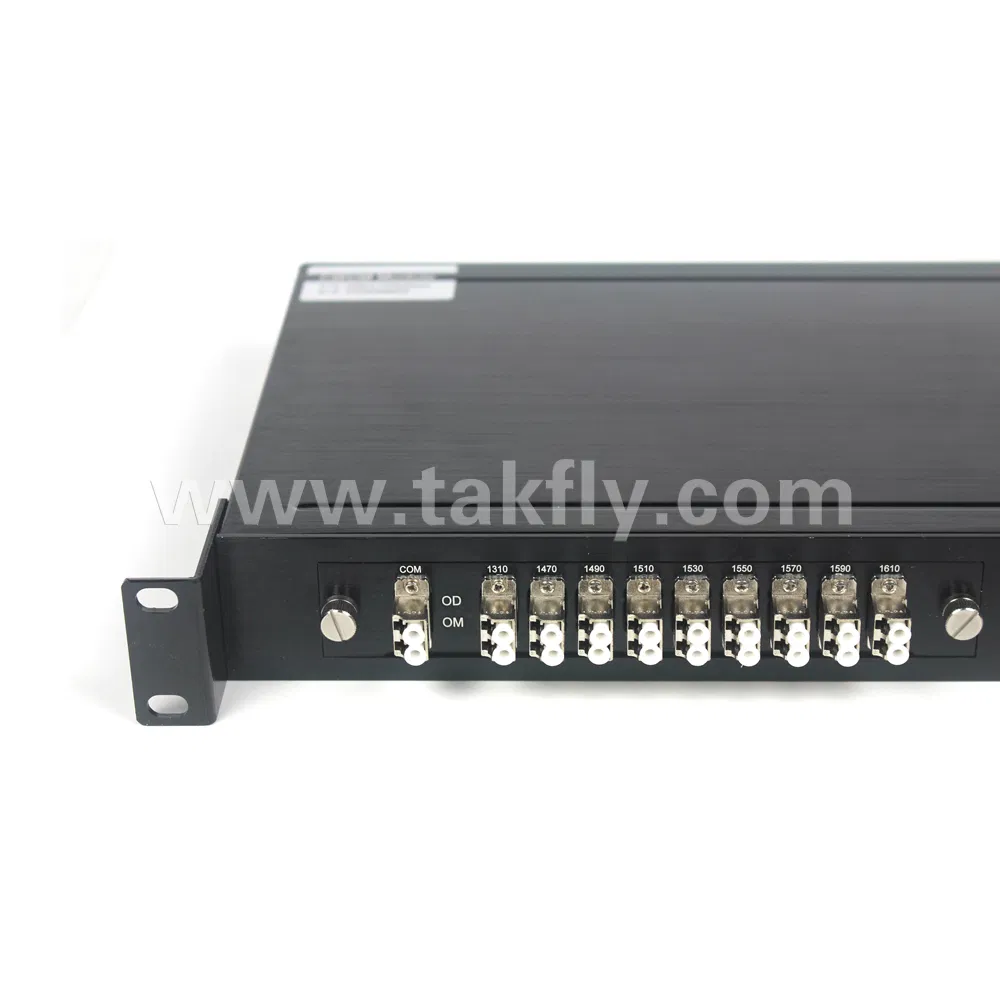

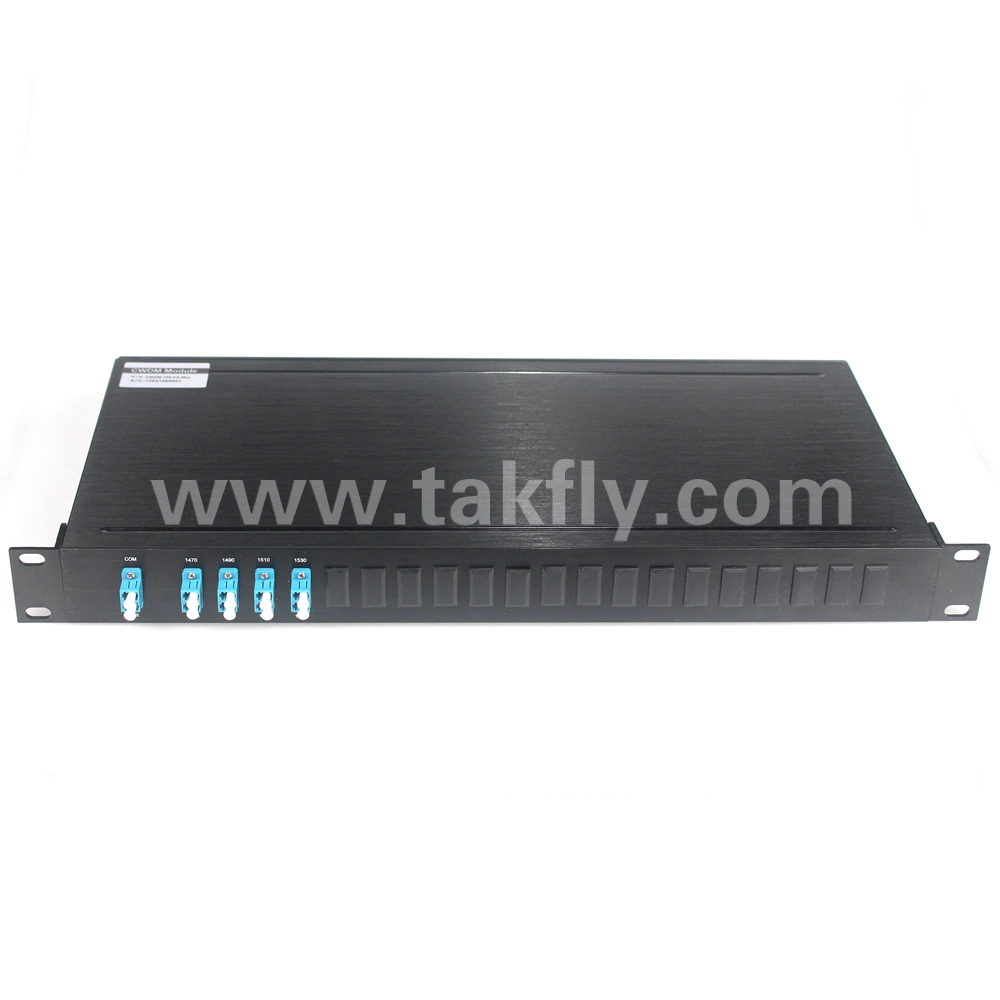

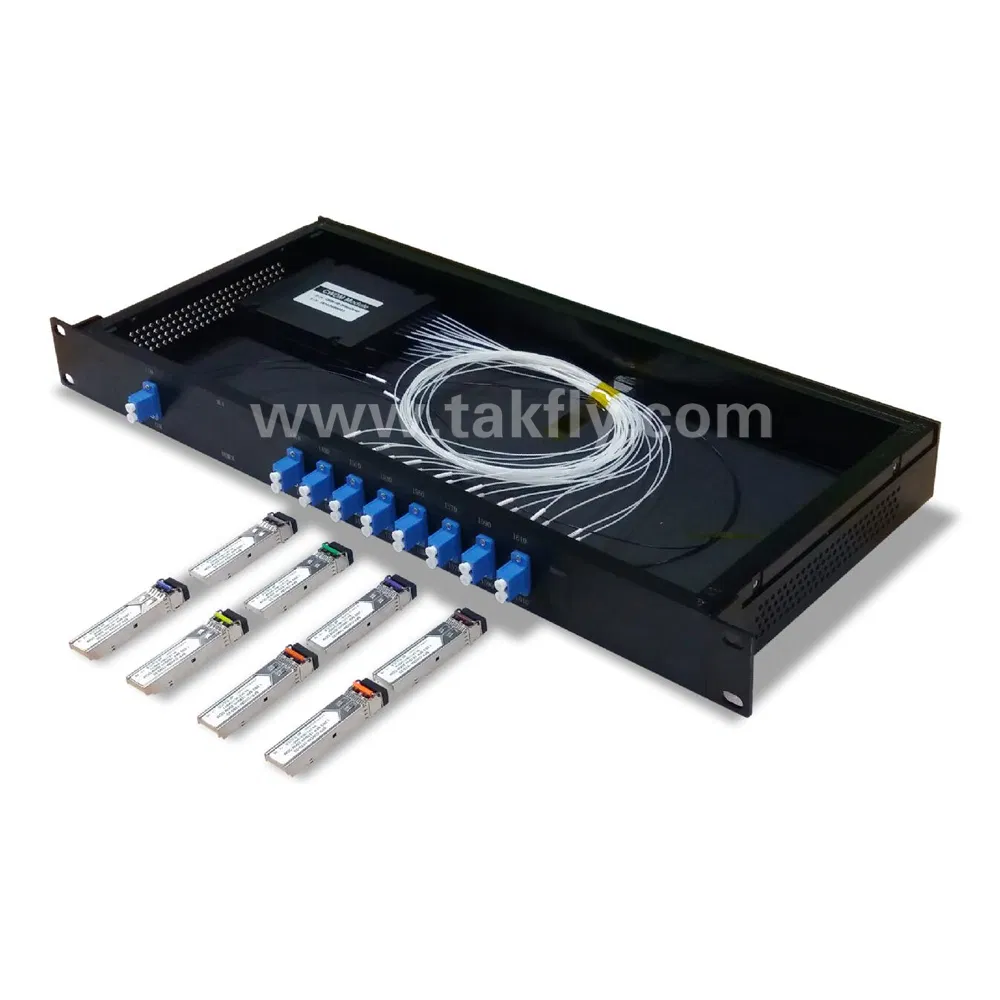

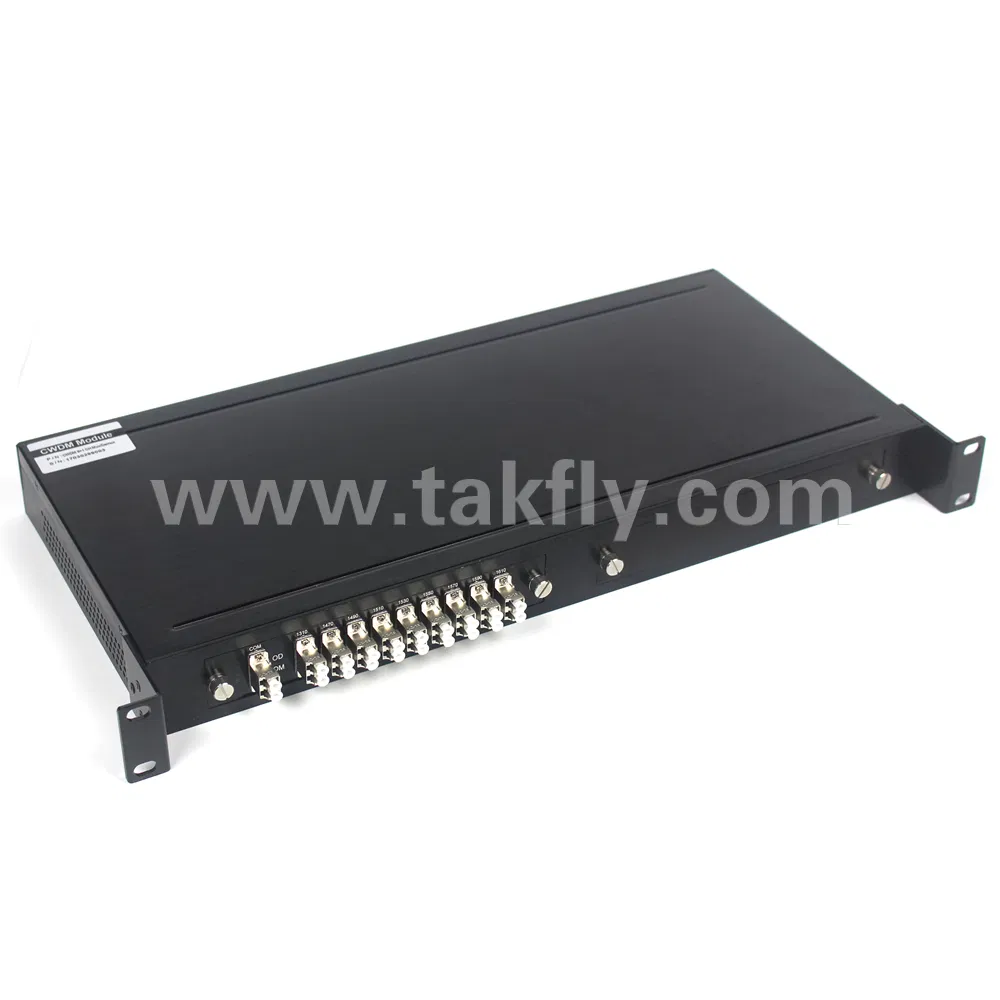

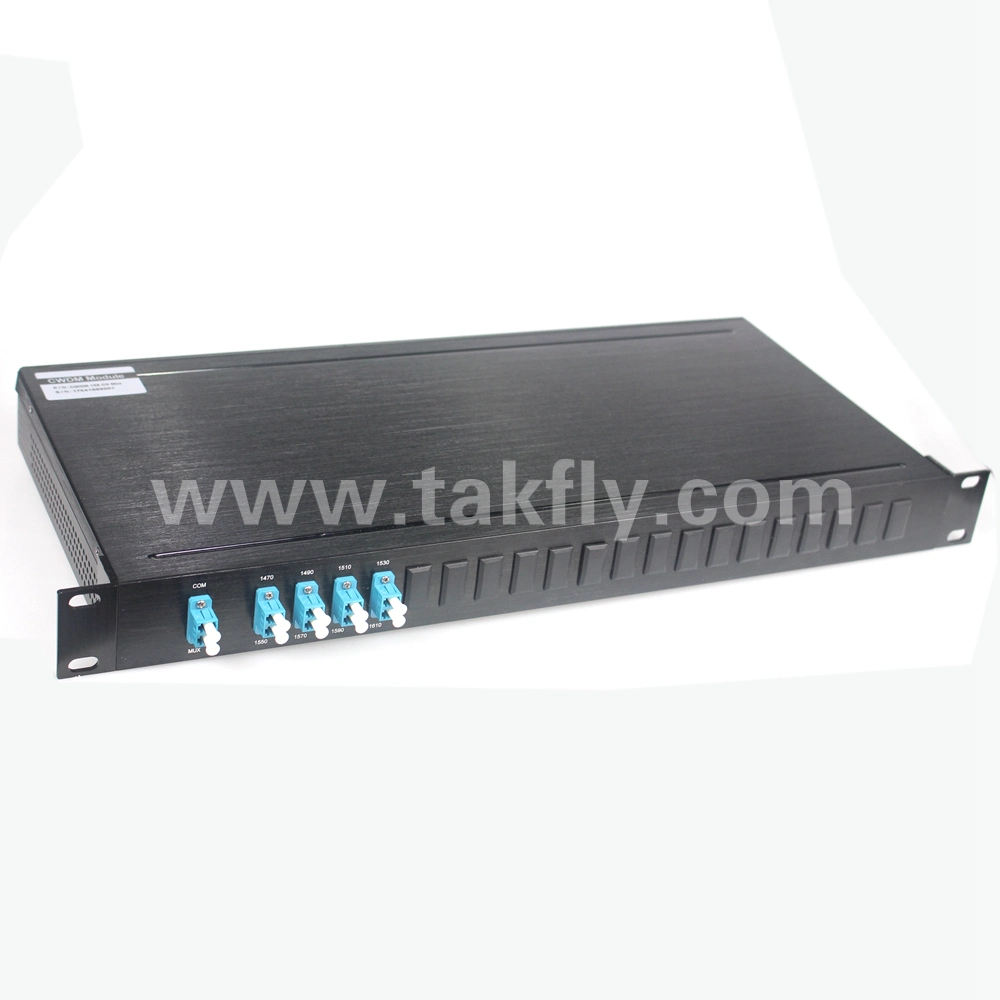

8+1 CH Fiber Optical Mux/Demux Rackmount CWDM with SFP Module
8+1 CH Fiber Optical Mux/Demux Rackmount CWDM with SFP ModuleFeatures1. Low Insertion Loss2. Wide pass band3. High Channel Isolation4. High Stability and reliability5. Epoxy-free on Optical PathApplication1. Line Monitoring;2. WDM Network;3.Telecommunication;4. Cellular Application;5. Fiber Optical ......
Send Inquiry
Product Description
8+1 CH Fiber Optical Mux/Demux Rackmount CWDM with SFP Module
Features
1. Low Insertion Loss
2. Wide pass band
3. High Channel Isolation
4. High Stability and reliability
5. Epoxy-free on Optical Path
Application
1. Line Monitoring;
2. WDM Network;
3.Telecommunication;
4. Cellular Application;
5. Fiber Optical amplifier;
6. Access NetworkSpecification
Spec
| Parameters | Unit | Specification | ||||
| Channel Count | Ch | 8 | ||||
| Channel Center Wavelength | nm | 1470/1490/1510/1530/1550/1570/1590/1610 | ||||
| Channel Passband | Min | nm | ±7.5 | |||
| Insertion Loss | Max | dB | <2.2 | |||
| Isolation | Adjacent Channel | Min | dB | 30 | ||
| Non-Adjacent Channel | Min | dB | 40 | |||
| Passband Ripple | Max | dB | 0.3 | |||
| Polarization Dependent Loss | Max | dB | 0.1 | |||
| Directivity | Min | dB | 55 | |||
| Return Loss | Min | dB | 50 | |||
| Polarization Mode Dispersion | Max | ps | 0.1 | |||
| Power Handling | Max | mW | 500 | |||
| Pigtail and Connector Type | COM | 0.9/mm black loose tube with connector | ||||
| Other ports | 0.9/mm white loose tube with connector | |||||
| Fiber Type | SMF-28e | |||||
| Fiber length | m | ≥1 | ||||
| Operating Temperature | °C | -10 ~ 70 | ||||
| Storage Temperature | °C | -40 ~ 85 | ||||
| Package Dimension | mm | (L)100×(W)80×(H)10 | ||||

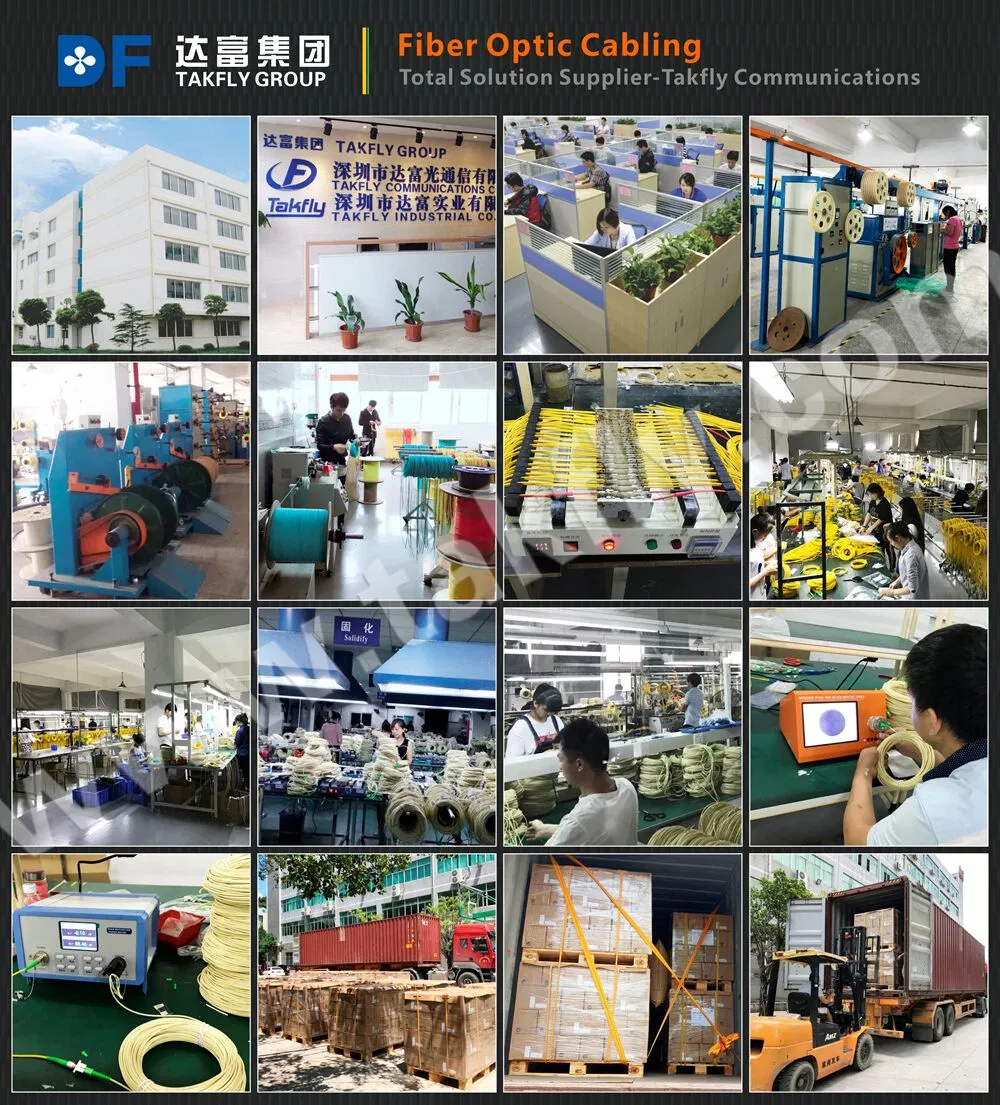

Pic about TakfLy
Why choose Takfly ?
Service
1.Customer's logo: Acceptable
2.General inspection on fixing before packing
3.Third party inspection: Acceptable
Quality Control
All products must go through five checks before manufacturing process
1.Material incoming inspection before production
2.Full check after every individual process finished
3.Full check after production half-done
4.Full check before packing
5.Spots check after production packed before shipping
Advantages:
1.15 years experience in manufacturing fiber optic products..
2.Availability of R & D with more than 10 engineers.
3.Available of design and making mold with special molding house.
4.High quality, attractive price and fast delivery(2-7days)
5.OEM, ODM customer designs are also welcomed
6.More than 200 workers
7.Excellent service
Delivery:

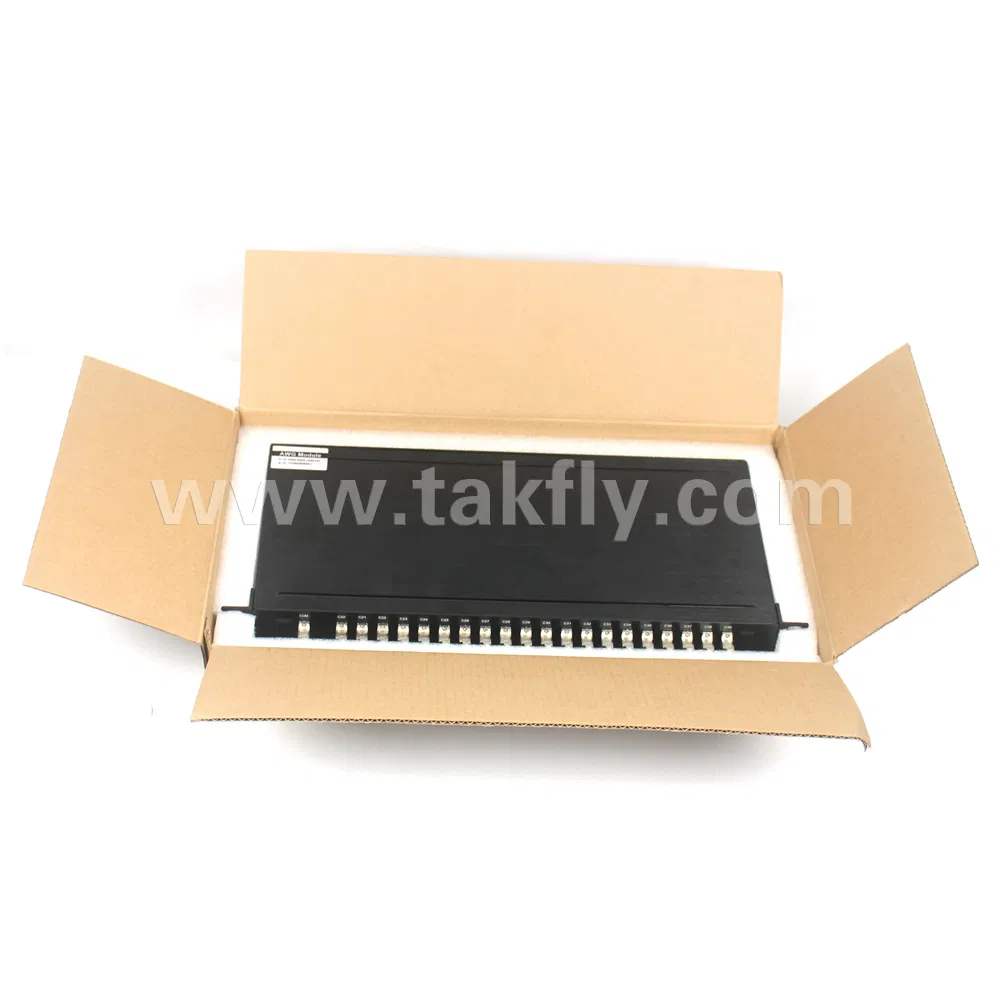

1.Packing: Plastic bag& carton, Neutral packing or as your required.
2.Sample time: 1-3 days after confirm
3.Order lead time: 2-7working days depend on quantity and products.
4.Shipping port: Shenzhen China or HK
5.Shipping term: EXW or FOB
Payment:
Acceptable by T/T, West Union, PayPal and L/C according to your requirement
Shipping
1.Once confirmed the order, and payment sent after finishing goods. 2.Goods will be sent within 7 days with the fast,reasonable and efficient shipping mode such as DHL, EMS, UPS,FEDEX, TNT, etc.
3.Please make sure your postal address is correct. Any lost and mistakes because of wrong address are not supplier's responsibility.
4.Please do not bid if you disagree with the shipping and handling charge.
Contact
1.Our working time:8:30am~5:30pm
2.All the inquiries will be replied within 24hours, So please feel free to send us your inquiry.
3.When our trade manager is off line, please feel free to leave a message, and tell us the products you need, our model number, and your E-mail address, we will reply to you within 24 hours too.
Any question about this 8+1 CH Fiber Optical Mux/Demux Rackmount CWDM with SFP Module,please leave me an inquiry or contact me directly.
