6MW 10MW 20MW Mini Transmitter 1550nm CATV FTTH Optical Transmitter
Mini CATV Optical Transmitter DescriptionFTTH MINI CATV Optical Transmitter,Output Optical Wavelength:1550nm,Optical Return Loss:45dB,Optical Connector:SC/APC,Optical Fiber Type:Single Mode,Frequency Range:40-1000MHz,Input Level:65-85dBuV,C/N:52dbc,Power Input Voltage:+6V~18V,Dimensions:90*45*19mm,N......
Send Inquiry
Product Description
Mini CATV Optical Transmitter Description
FTTH MINI CATV Optical Transmitter,Output Optical Wavelength:1550nm,Optical Return Loss:45dB,Optical Connector:SC/APC,Optical Fiber Type:Single Mode,Frequency Range:40-1000MHz,Input Level:65-85dBuV,C/N:52dbc,Power Input Voltage:+6V~18V,Dimensions:90*45*19mm,Net weight:0.066Kg
Mini CATV Optical Transmitter Features
* GaAs Active Devices,designed For FTTH(Fiber To The Home Network)
* Voltage supply: +6V~18V(DC)
* Frequency range 40-1000MHz.
* Excellent Linearity and flatness
* Aluminum Profiles housing,excellent heat dissipation performance
* Smaller size and easier install
* Red-LED Power Indication
Mini CATV Optical Transmitter Parameter
Number Item | Unit | Description | Remark | ||||||
Output Optical Wavelength:1310 or 1550nm (Can be customized) | |||||||||
1310nm Wavelength Output Power :1mW,3mW ,6mW ,10mW is optional (Usually the Standard power is 6mw or 10mw) | |||||||||
1550nm Wavelength Output Power :1mW,3mW ,5mW,6mW is optional (MAX is 6mW,Usually the Standard power is 6mw) | |||||||||
Customer Interface | |||||||||
1 | RF Connector |
|
| 75Ω"F" connector |
| ||||
2 | Optical Connector |
|
| SC/APC | Can be customized | ||||
3 | DC Supply |
|
| DC Adapter |
| ||||
Optical Parameter | |||||||||
4 | Optical Return Loss |
| dB | >45 |
| ||||
5 | Output Optical Wavelength |
| nm | 1310 or 1550 or 1470 or 1610 nm | Can be customized | ||||
| Output Optical Power |
| mW | ≤10 | Can be customized | ||||
6 | Optical Fiber Type |
|
| Single Mode |
| ||||
RF Parameter | |||||||||
7 | Frequency Range | MHz | 40-1000 |
| |||||
8 | Flatness | dB | ±0.5 |
| |||||
9 | Input Level | dBuV | 65-85 |
| |||||
10 | Output Impedance | Ω | 75 |
| |||||
11 | C/N | dBc | 52 |
| |||||
Other Parameter | |||||||||
12 | Power Input Voltage | VDC | +6V~18V | Factory Supply 9V DC Adaptor | |||||
13 | Power Consumption | W | <1.5 |
| |||||
14 | Dimensions | mm | 90*45*19 |
| |||||
15 | Net weight | KG | 0.066 | Not Include Power Adaptor | |||||

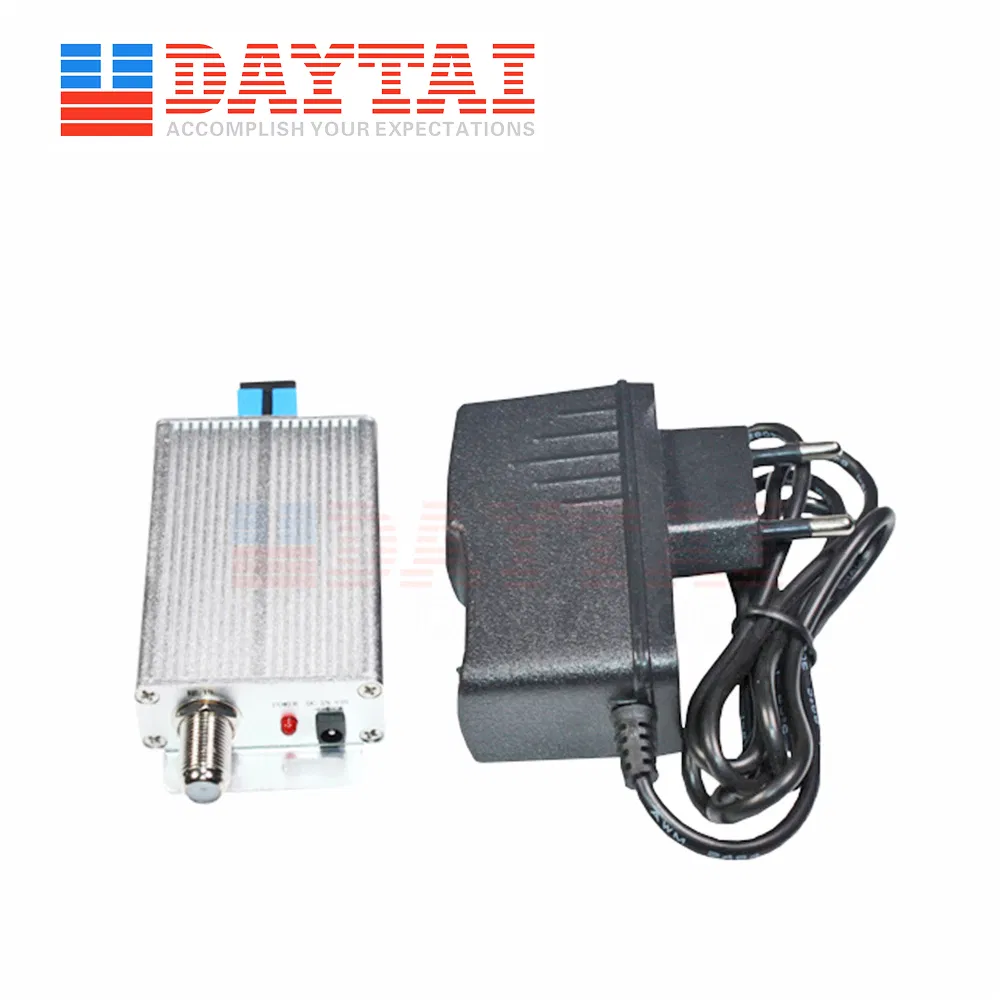

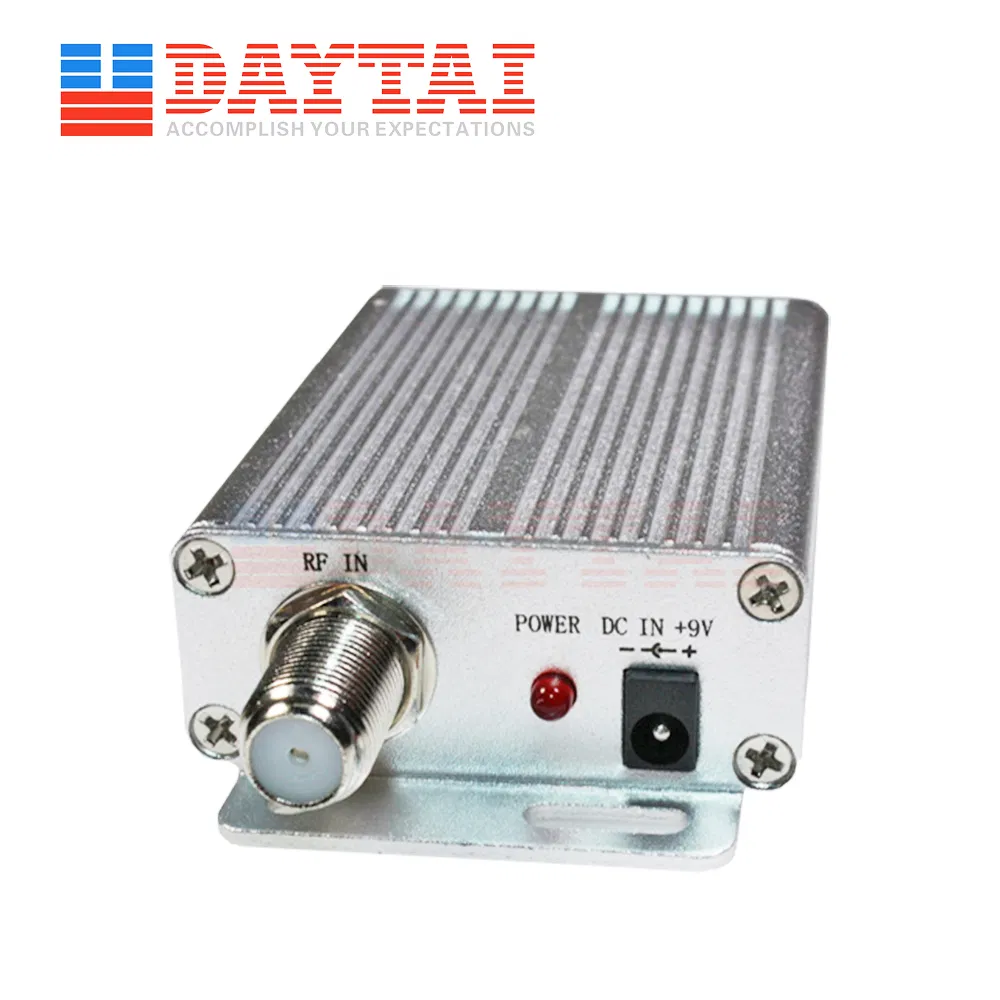

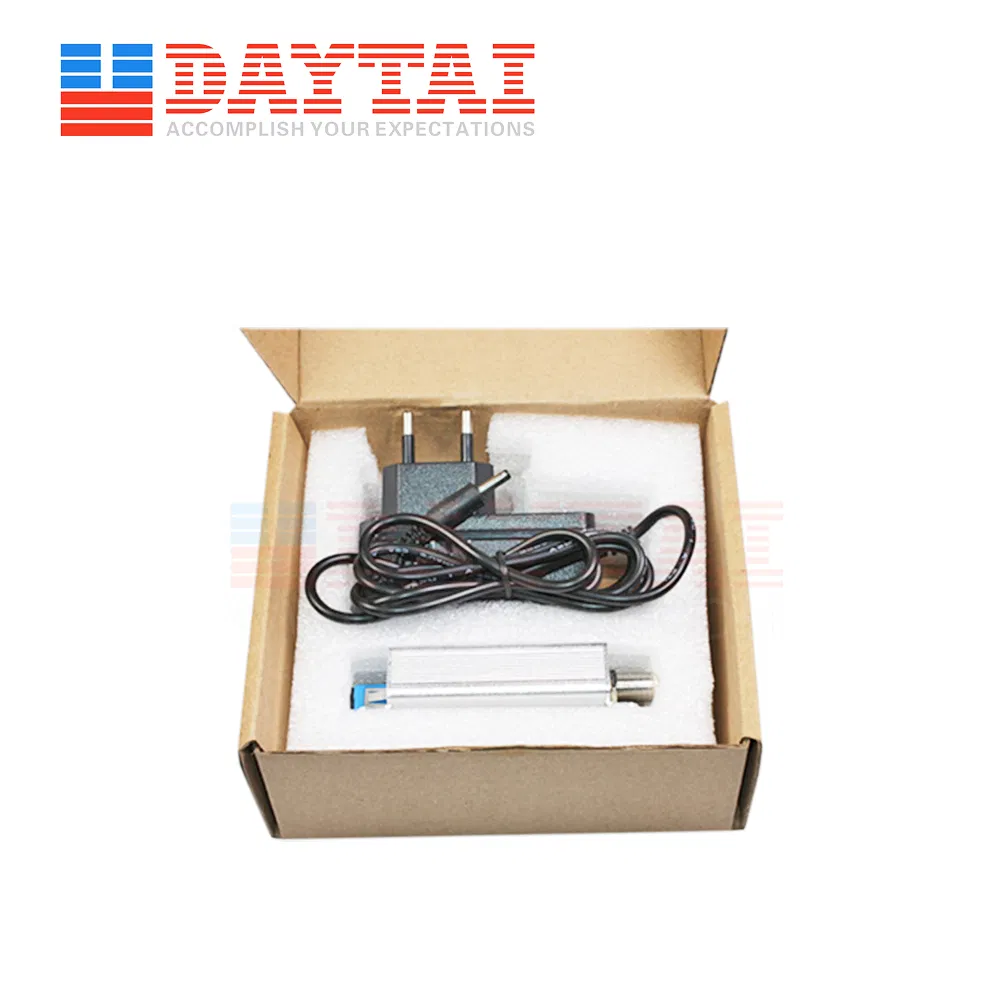

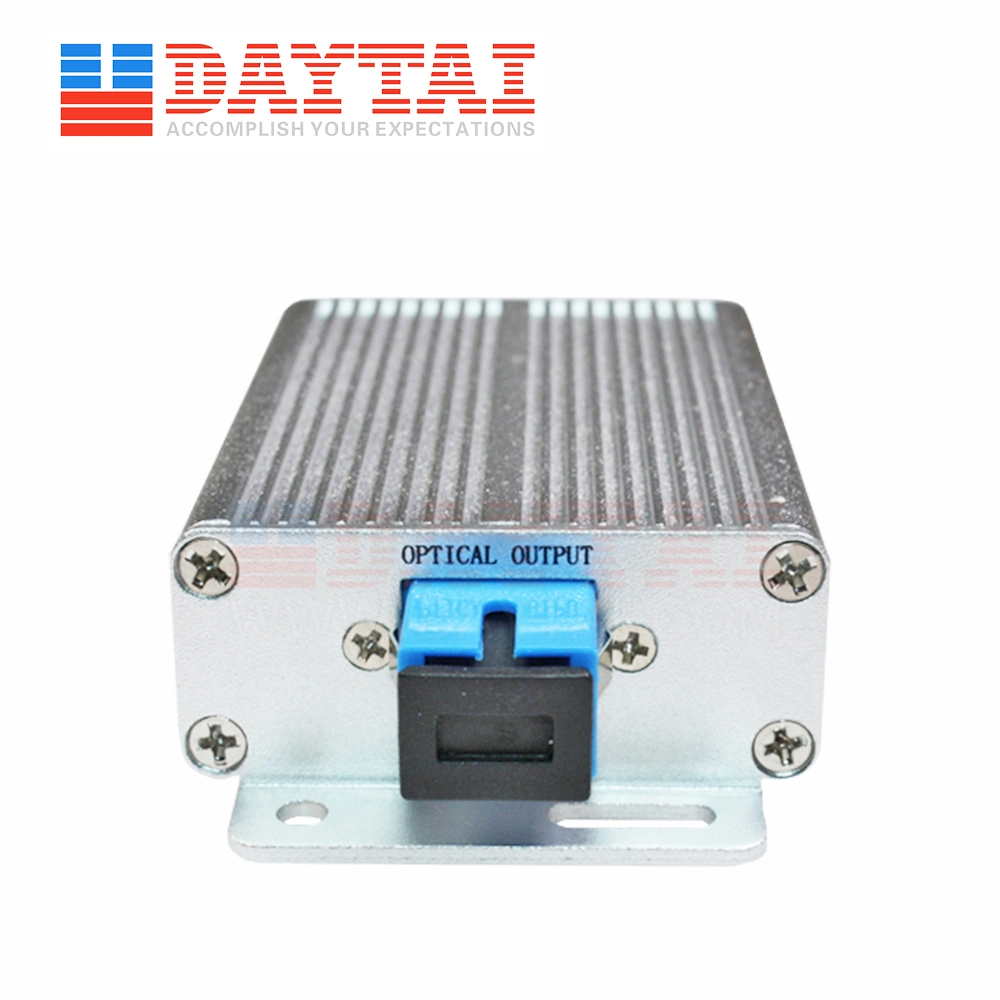

Mini CATV Optical Transmitter Picture
Q1:What's the delivery time?
Re:The lead time is 15-20 days after order confirmed.
Q2:Can you send me a free sample?
Re: We are willing to send you free sample,if you would like to pay the shipping costs.
Q3:What's your payment terms?
Re: 30% in advance, and 70% before shipment.
Q4:What's the payent method?
Re: We accpet T/T, Western Union, Paypal.
Q5:How to ship the items to me?
Re: Courier (DHL , TNT , FEDEX , UPS , EMS ) , By Air, By Sea are available.
