4u Slide 48 Cores Rack-Mount Fiber Optical Distribution Frame
4U Slide 48 Cores Rack-Mount Fiber Optical Distribution Frame Fiber optic patch panel(ODF) is also called fiber distribution panel. Its main function is to terminate the fiber optic cable and provide connection access to the cable's individual fibers. Fiber patch panels are termination units, wh......
Send Inquiry
Product Description
Fiber optic patch panel(ODF) is also called fiber distribution panel. Its main function is to terminate the fiber optic cable and provide connection access to the cable's individual fibers. Fiber patch panels are termination units, which are designed to provide a secure, organized chamber for housing connectors and splice units. Fiber patch panels are available in rack mounted or wall mounted. Both types can house, organize, manage and protect fiber optic cable, splices and connectors. Rack mount panels is usually 19" or 23" universal width. The height of patch panel can be 1u, 2u, 3u, 4u, 6u, etc. The opening of the optical fiber patch panels can be slidable or fixed or revolving. Wall mount patch panel is more customized, it can be any structure and dimension. And the patch panels can be used for indoor or outdoor application.
Description

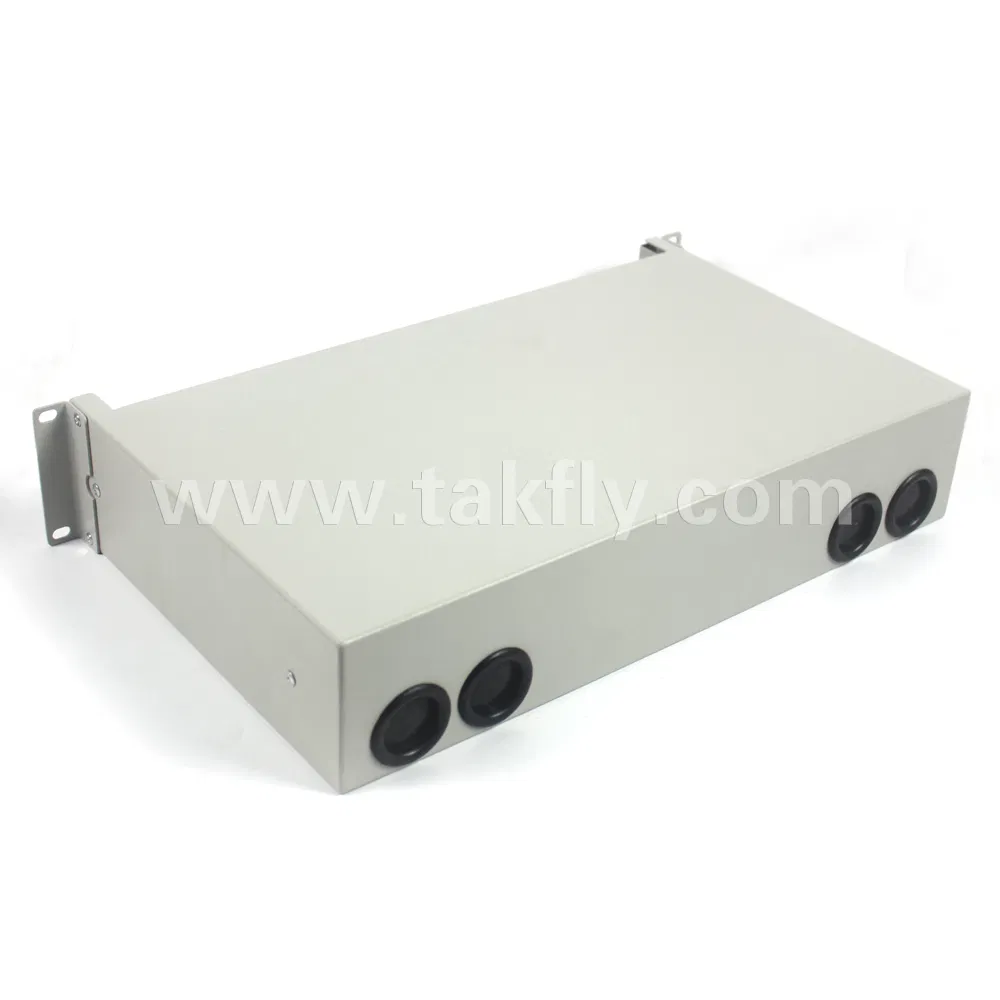

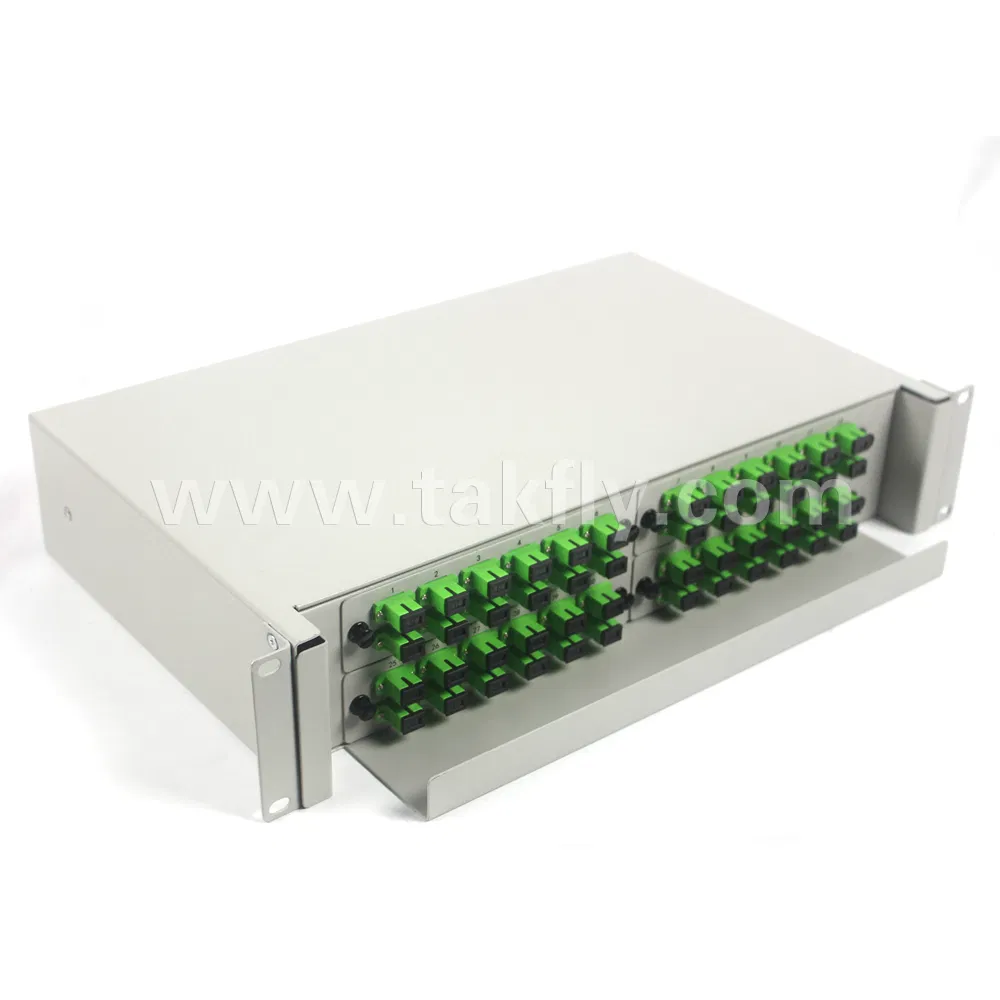

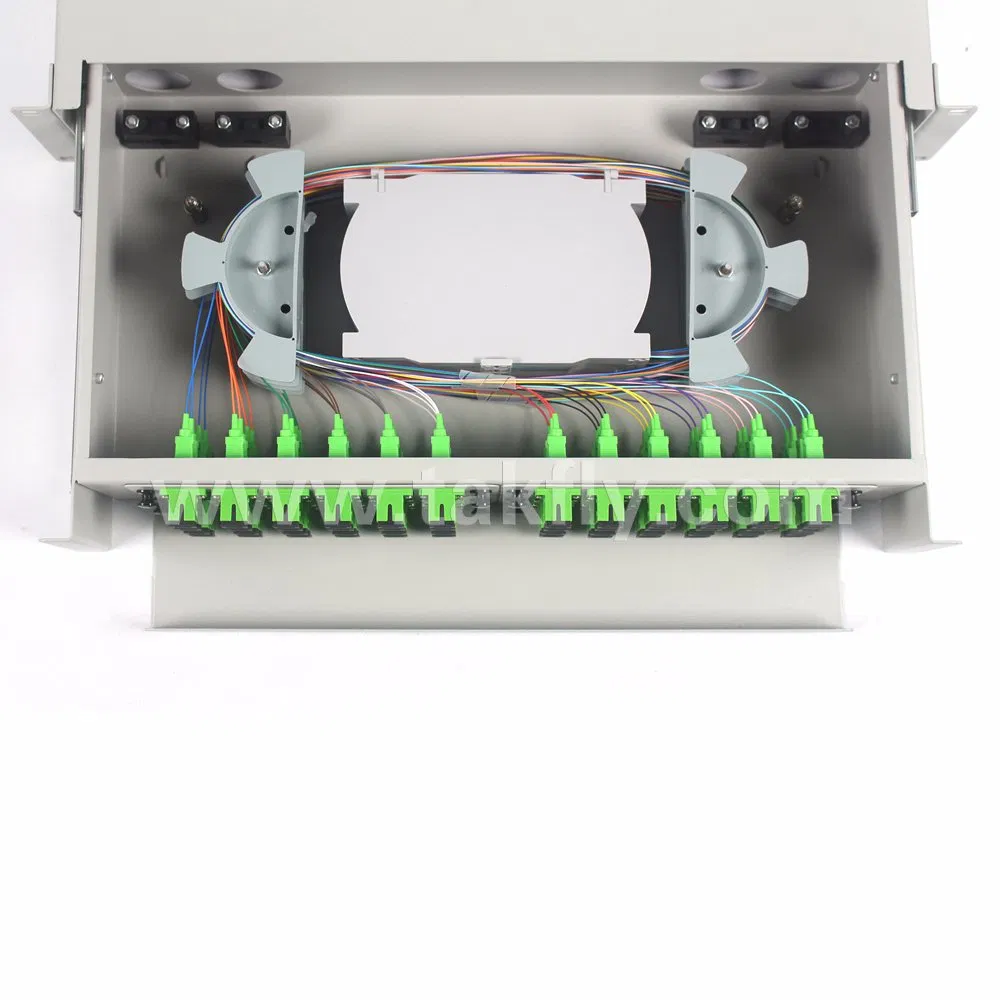

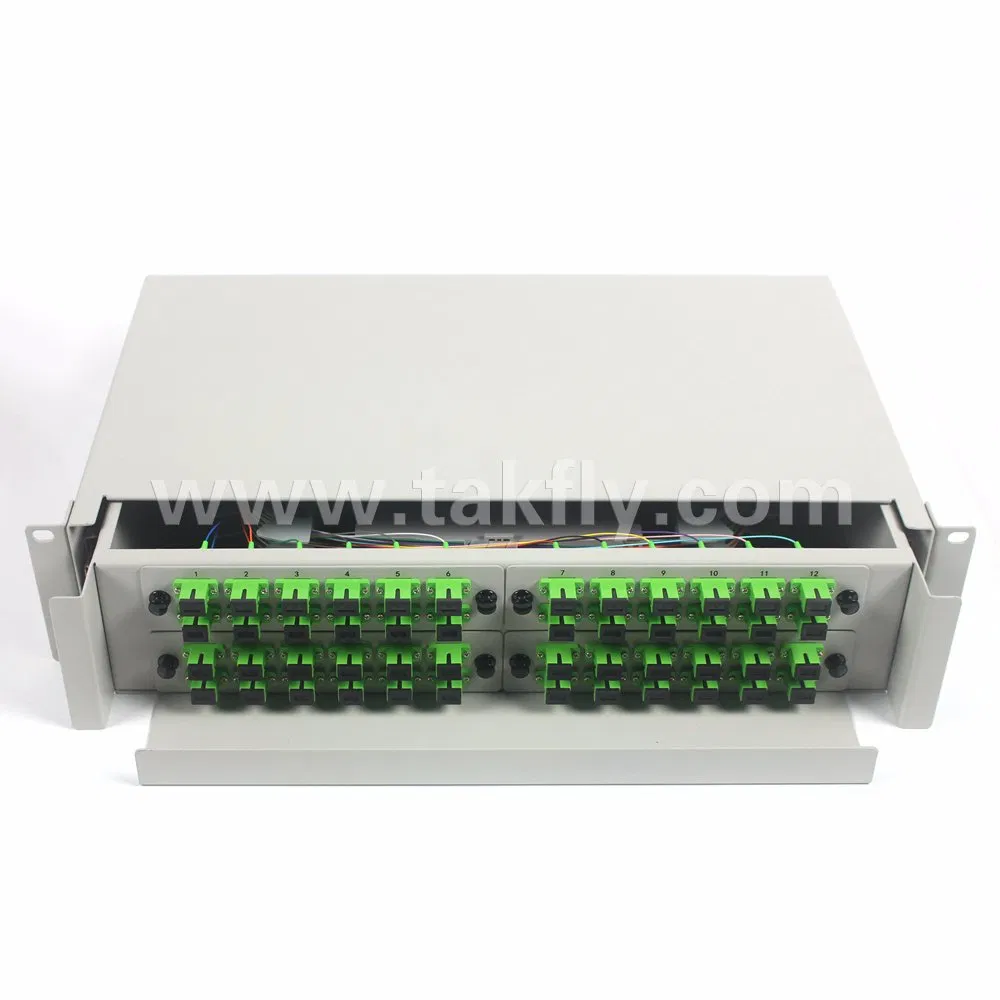

Rack-mount Fiber Optic Distribution Frame is modular design with drawable trays inside and cold-rolled steel box. It could be pre-installed with various kinds of fiber optic adapters and pigtails.
It is with standard 19 inch size and properly designed to control the bend radius of the cable inside the enclosure to avoid extra optical loss. This frame is ideal for indoor fiber optic cables connection storage, distribution and management
Features:
1, Interface optional: SC/FC/LC/ST etc.
2, Cores optional: 12/24/36/48/72/96/144 etc.
3, Material: cold-rolled steel
4, Modular design with splicing and distribution function
5, Standard size, light weight and reasonable structure
6, Compact design for space saving
7, Suitable for ribbon and single fiber
8, Various panel plate to fit different adapter interface
9, Front access design panel design for easy operation
10, Suitable for 19'' or 23'' standard optic distribution cabinets.
11, Splice tray units inside changeable
12, Front mark on the plate is easy for identification and operation
13, 12 cores splice tray unit can storage max. 2m pigtail
Application:
1, Telecommunications subscriber loop
2, Fiber to the home (FTTH)
3, LAN/ WAN
4, CATV
Services
1,We provide professional offer, detailed products test report and related specifications.
2,We provide professional technology support to meet the requirements of customers.
3,Within 12 hours of the corresponding customer inquiry,we will promptly get in touch with customers.
4,we supply free samples if necessary.
5,We supply ODM/OEM products & services.
Ordering information
| Model | Core Count | Height | Dimension(cm) | Weight(kg) |
| ODF-RF144 | 144 | 7U | 49x30.5x31.15 | 17.1 |
| ODF-RF96 | 96 | 5U | 49x30.5x22.25 | 11 |
| ODF-RF72 | 72 | 4U | 49x30.5x17.8 | 9 |
| ODF-RF48 | 48 | 3U | 49x30.5x13.35 | 7 |
| ODF-RF36 | 36 | 2U | 49x30.5x8.9 | 5.7 |
| ODF-RF24 | 24 | 2U | 49x30.5x8.9 | 4.6 |
| ODF-RF12 | 12 | 1U | 49x30x4.45 | 3.5 |
Why choose Takfly ?
Service
1.Customer's logo: Acceptable
2.General inspection on fixing before packing
3.Third party inspection: Acceptable
Quality Control
All products must go through five checks before manufacturing process
1.Material incoming inspection before production
2.Full check after every individual process finished
3.Full check after production half-done
4.Full check before packing
5.Spots check after production packed before shipping
Advantages
1.15 years experience in manufacturing fiber optic products..
2.Availability of R & D with more than 10 engineers.
3.Available of design and making mold with special molding house.
4.High quality, attractive price and fast delivery(2-7days)
5.OEM, ODM customer designs are also welcomed
6.More than 200 workers
7.Excellent service
Delivery
1.Packing: Plastic bag& carton, Neutral packing or as your required.
2.Sample time: 1-3 days after confirm
3.Order lead time: 2-7working days depend on quantity and products.
4.Shipping port: Shenzhen China or HK
5.Shipping term: EXW or FOB
Payment
Acceptable by T/T, West Union, PayPal and L/C according to your requirement
Shipping
1.Once confirmed the order, and payment sent after finishing goods. 2.Goods will be sent within 7 days with the fast,reasonable and efficient shipping mode such as DHL, EMS, UPS,FEDEX, TNT, etc.
3.Please make sure your postal address is correct. Any lost and mistakes because of wrong address are not supplier's responsibility.
4.Please do not bid if you disagree with the shipping and handling charge.
Contact
1.Our working time:8:30am~5:30pm
2.All the inquiries will be replied within 24hours, So please feel free to send us your inquiry.
3.When our trade manager is off line, please feel free to leave a message, and tell us the products you need, our model number, and your E-mail address, we will reply to you within 24 hours too.
Any question about this ODF,please leave me an inquiry or contact me directly.
