    FWG-HGU824GWC is xPON(GPON and EPON dual-mode)HGU ONT. It is designed for meeting the multi-services needs of fixed network operators or cable operators, and widely used in FTTO (office), FTTD (desk), FTTH (home) broadband access and CATV, video surveillance, and other requirements.
It is based on mature GPON and Gigabit EPON technology, which has a high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility, good quality of service (QOS) guarantees, and the technology of 802.11b/g/n/ac WIFI(2T2R), Layer 2/3. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah.Small size dual-mode ONU can automatically detect OLT and switch PON mode, it can be used as GPON or EPON. It can also be applied to a wide temperature environment, and also has a firewall function.

Features:

Ø HGU ONT, bridging and routing modes can be set
Ø Dual-mode ONT compatible with popular EPON and GPON OLT.
Ø Support loop detection, IGMP, IGMP snooping, and MLD snooping
Ø 802.1Q VLAN, QinQ, Cos, DSCP, QoS for priority of service
Ø Support port speed, support for storm suppression
Ø WiFi support 2.4G speeds up to 300Mbps and 5G speed up to 867Mbps

Ø Support VOIP protocol: SIP, H323
Ø Support No-auth, WEP, WPA-PSK, and WPA2-PSK.
Ø CATV(RF bandwidth:45~1000MHz,),AGC Dynamic Range(dBm):-12~-2, output level:80±2dBuV.
Ø CATV function can be managed, supporting remote control of CATV signal by OLT
Ø Support Telnet, CLI, OMCI/OAM and Web management
Ø Support NAPT, Firewall function
Ø Support remote software upgrade

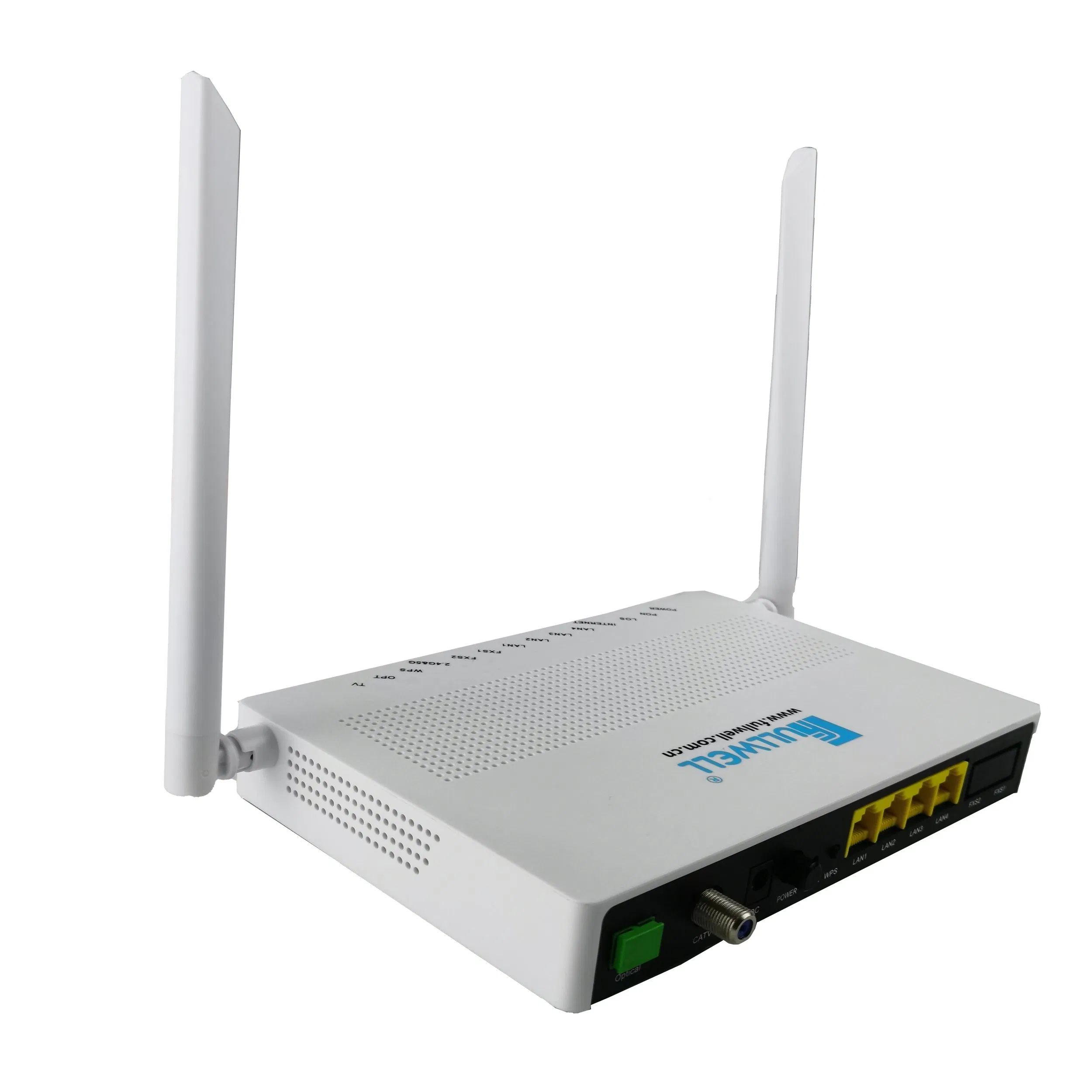

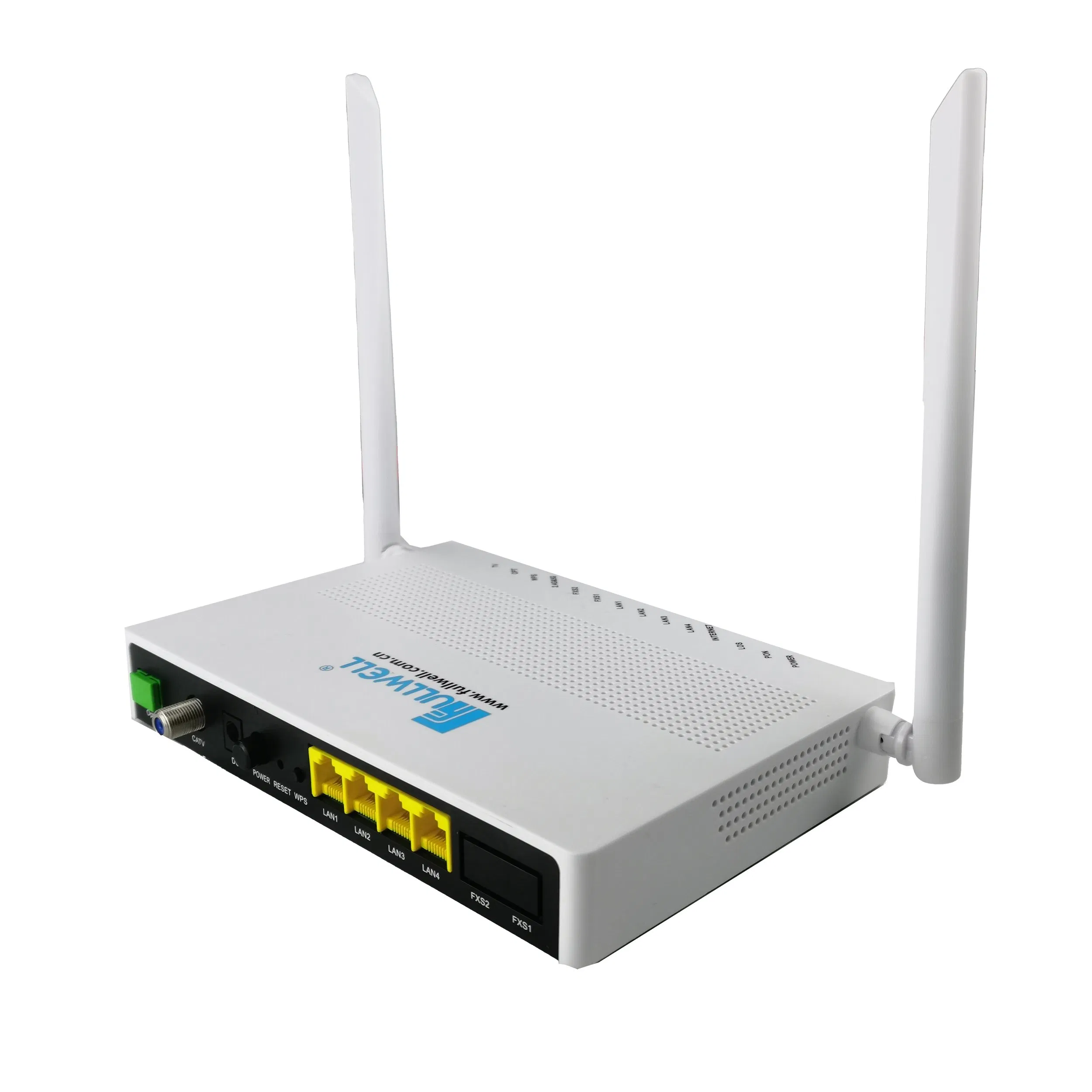

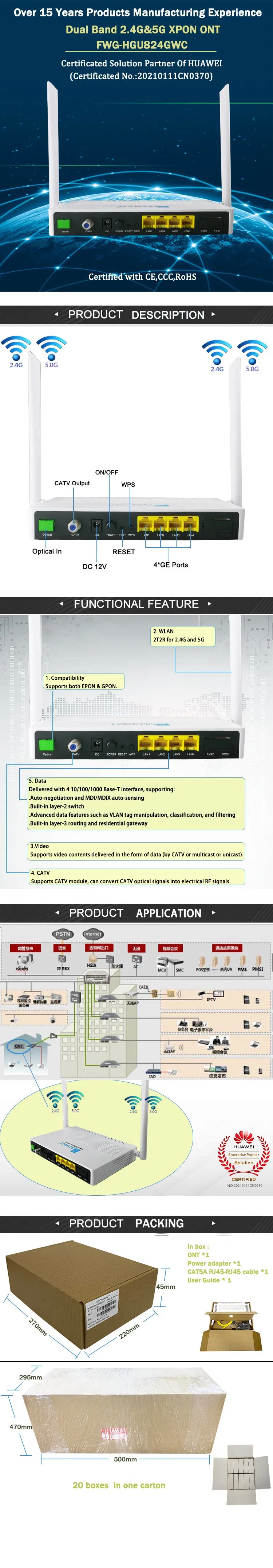

4ge+2.5/5gwifi Dual Band Xpon Ont/ONU

Technical parameters

Items	Unit	Specifications
PON standard.		EPON IEEE802.3ah, GPON ITU-T G.984.x,G.988
Optical interface		SC/APC connector,1 GPON/EPON interface(EPON PX20+ and GPON Class B+)Receiving sensitivity: ≤-28dBm,Transmitting optical power: 1~+4dBmTransmission distance: 20KM
Speed	Gbps	GPON: uplink 1.25Gbps, downlink 2.5Gbps; EPON: symmetric 1.25Gbps
Wavelength	nm	Tx1310, Rx 1490, CATV 1550
Interface	Data	4GE 10/100/1000Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors
	telephone	2 FXS, RJ11 connectors
	Wireless	Compliant with IEEE802.11b/g/n/ac, 300Mbps/867Mbps,2T2R 2 external antenna
Indicator	LED	PWR, PON, LOS, LAN1--LAN4, 2.4G, 5G, TV
Operating condition	ºC	Operating temp: -5 ~ +55
Storing condition	ºC	Storing temp: -30 ~ +60
Humidity	%	10~90(non-condensing)
Power supply	V	DC 12V,1.5A adapter
Power consumption	W	≤10
Dimension	mm	25119031(L×W×H)
Net weight	Kg	0.28

CATV

Items	Unit	Specifications
Input optical power range	dBm	-18~ +2
Optical return loss	dB	≥55
Wavelength	nm	1550 ±10
RF Output Connector	F	Imperial or metric
RF management		Support OMCI On & Off CATV signal
RF Bandwidth	MHz/dB	47~1000/±1
RF impedance	Ω	75
RF output return loss	dB	≥14 dB
RF output lever	dBuV	80±2(@-12 to -2dBm)
AGC Range	dBm	-12~-2
CTB/CSO/HUM	dB	≥62 ≥62 ≥45
MER	dB	≥32 @-15dBm, ≥34 @-12dBm

Instructions for Use

Power Connection

This machine is supported by a power adapter. Firstly, connect the DC 12V output cable of the power adapter to the DC 12V port of the machine, and then plug the external regulated power supply into the 220V of the mains. The power indicator on the panel is on, indicating that the power supply is working normally.

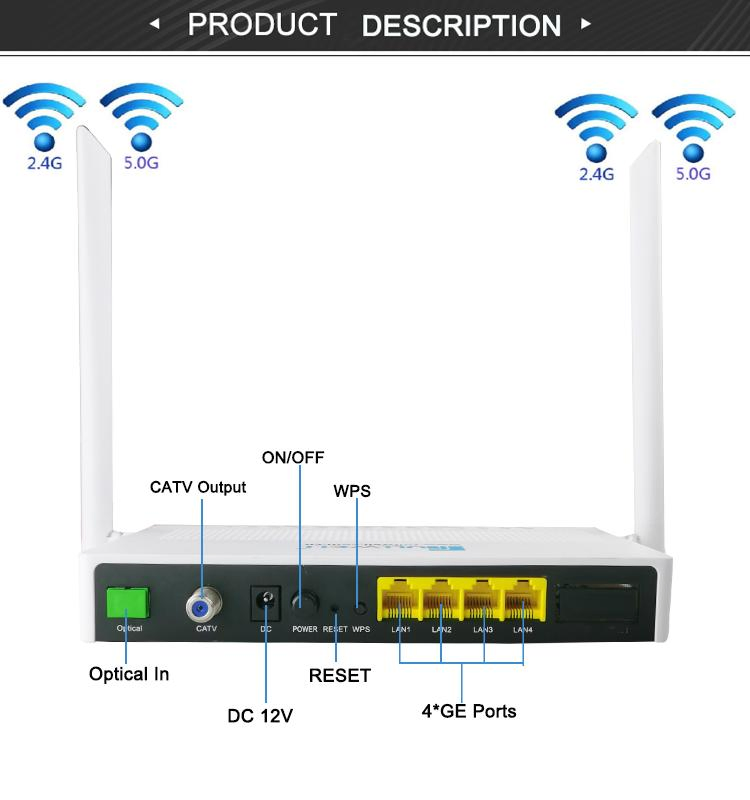

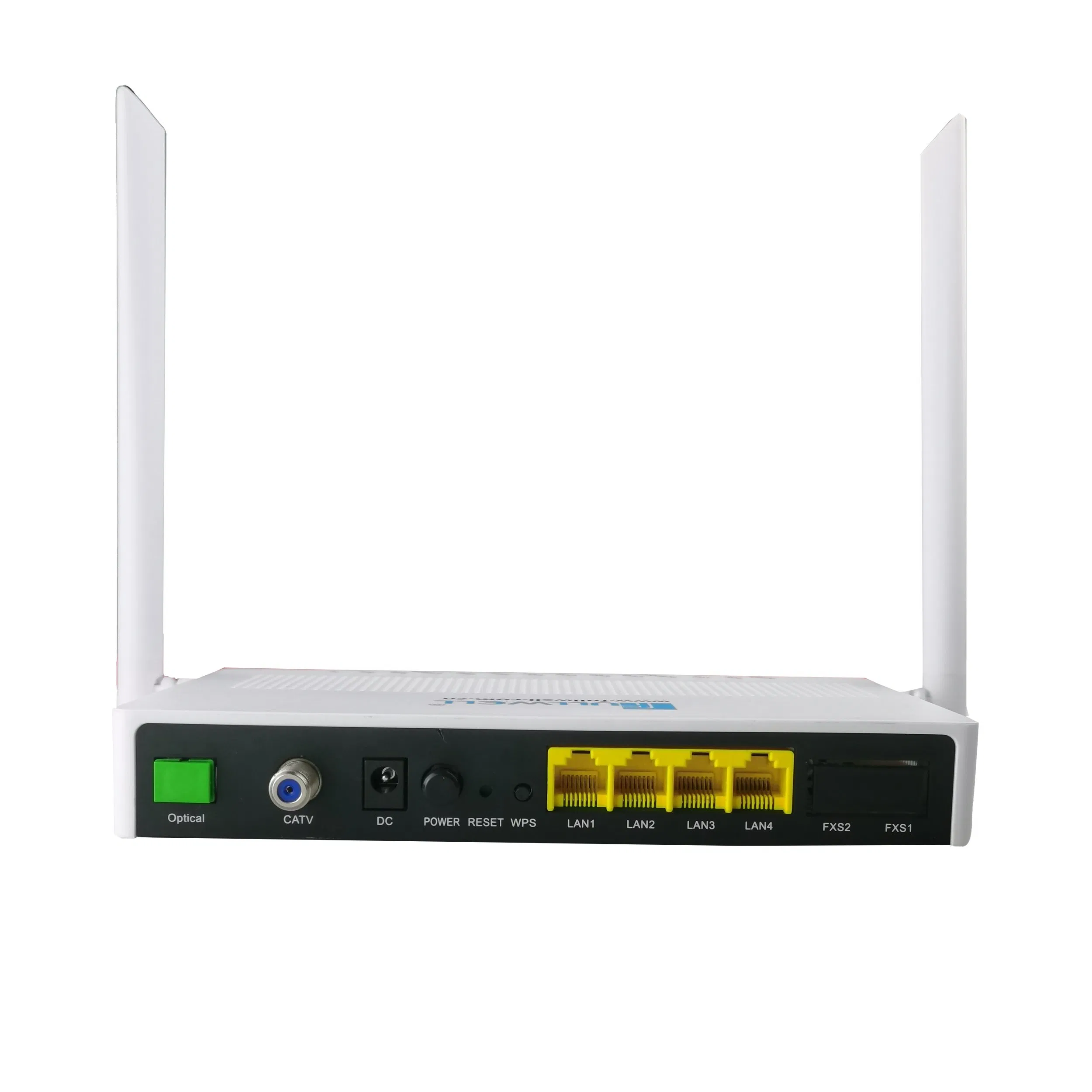

2 INTERFACES

INTERFACES	Introduction
ON/OFF	Power switch button
Power	Power input interface, DC 12V/1.5A
Optical	CATV and xPON fiber interfaces, using SC/APC fiber access
LAN1-LAN4	LAN service interface
Reset	Reset button
CATV	CATV RF signal output

Indicators Description

Indicator	Status	Description
Power	ON	The device is powered on normally.
Power	OFF	The device is not powered on.
PON	Twinkling	Received light, device not registered
	ON	The ONU is connected to the OLT and registered successfully.
	OFF	No optical received, device not registered
LOS	Twinkling	Fiber break or optical power exceeds the limit
LOS	OFF	ONU accepts normal optical power
LAN1-LAN4	ON	The network port is connected but no data is transmitted.
	Twinkling	The network port has a data transmission
	OFF	The device is not powered on or the network port is not connected to the terminal device.
WIFI(2.4G/5G)	ON	WIFI works fine
	Twinkling	WIFI has a data transmission
	OFF	WIFI works abnormally
Internet	ON	Successfully connected to the Internet
Internet	OFF	Not connected to the Internet
OPT	ON	CATV optical signal is within the normal range
OPT	OFF	CATV optical signal is too low or faulty
TV	ON	RF output level is within the normal range
TV	OFF	RF output level is not within the normal range

WEB Login
This machine supports WEB management. You can log in to 192.168.0.1 (default IP address) from any PC to get relevant information. The steps are as follows:
1) Change the network segment of the PC to 192.168.0.X and connect it to any network port of the machine with a network cable;
2) Enter http://192.168.0.1 in Chrome, press Enter to pop up the login page, enter the username and password (admin/system), and then enter the system management page.

Matters Needing Attention
1) This device is an indoor structure, it can not be used in places that are easily invaded by rainwater; it should have proper space in the indoor box to facilitate heat dissipation;
2) The fiber input and the cable output must be reserved for a certain length to avoid accidents caused by too short; the optical interface in the ONU is the SC/APC head. Do not misplace or the end faces are inconsistent.

Accessories
1). External power supply * 1: AC110~C255V→DC12V/1.5A
2). User Guide * 1
3). The certificate of conformity has been affixed to this manual.
