4CH, 8CH, 16CH CWDM/OADM Module
Fiber Optic WDM Product Name4CH,8CH,16CH CWDM/OADM ModuleFiber Optic WDM Feature:Low Insertion LossWide pass bandHigh Channel IsolationHigh Stability and reliabilityFiber Optic WDM Applications:Line Monitoring(CWDM Add/Drop)WDM NetworkFiber Optical amplifierFiber Optic WDM Performance Specifications......
Send Inquiry
Product Description
Fiber Optic WDM Product Name
4CH,8CH,16CH CWDM/OADM Module
Fiber Optic WDM Feature:
Low Insertion Loss
Wide pass band
High Channel Isolation
High Stability and reliability
Fiber Optic WDM Applications:
Line Monitoring(CWDM Add/Drop)
WDM Network
Fiber Optical amplifier
Fiber Optic WDM Performance Specifications:
Fiber Optic WDM Order Information:
FQA :
1. Q: Are you a manufacturer?
A: yes, we are a manufacturer , FTTH solution and data center total solution provider in Shenzhen, China, established in 2000.
2. Q: What's your MOQ?
A: MOQ can be 1 pcs, but the price is not competitive.More quantity,the price will be more competitive.
3. Q: Can you quote FOB price?
A: yes. We can delivery by air, DHL, TNT, UPC, FEDEX, etc. For big quantity we will deliver it by sea.
We can quote price with freight and lead time for you, after you let us know detailed requirements with quantity.
We have competitive shipping forwarders. For more solutions, you can feel free to contact us.
4. Q: How is your quality?
A: Our production is according to IEC, Europe standard. CE, ISO, RoHS, CPR, and ANATEL certified.
All the products are 100% test before delivery.
5. Q: What's your lead time?
A: It depends on the quantity and products. For fiber optic patch cord, the lead time can be 2 -3 working days within 5000 pcs. We keep the regular products in stock. Also, we can deal with urgent orders.
6. Q: What's your warranty?
A: Depends one different product, we have1 years warranty for patch cord since delivery, but only responsible for non-artificial damage. For artificial damage, we can repair it for you for free, freight will be paid by your side.
7. Q: What's your packing?
A: International export standard package.If you need to print your logo on the packing, please let us know before we quote.
8. Q: Can you offer OEM/ODM?
A: yes, we can. all products accept OEM /ODM. we can sign the Confidentiality Agreement.
9. Q: Can I have a sample?
A: It depends on which products, Free sample provide under 10 usd. Freight will be paid by buyer before delivery.
10. Q: How can I order?
A:1.send mail or inquiries with product name, specification, and quantity to us . Provide your receive address if you need FOB,CIF,CFR price.
2.We will offer our quotation with lead time.
3.After the quotation confirmed, we will send a PI with our bank account.
4.Production will be arranged after the payment received.
5.Confirm the consignee with you before we deliver it.
6.The tracking number will be provided after the delivery.
11. Q: What your payment term?
A: T/T, Western Union, Paypal, MoneyGram at once. For big amounts, can be 50% deposit in advance, 50% balance paid before delivery.

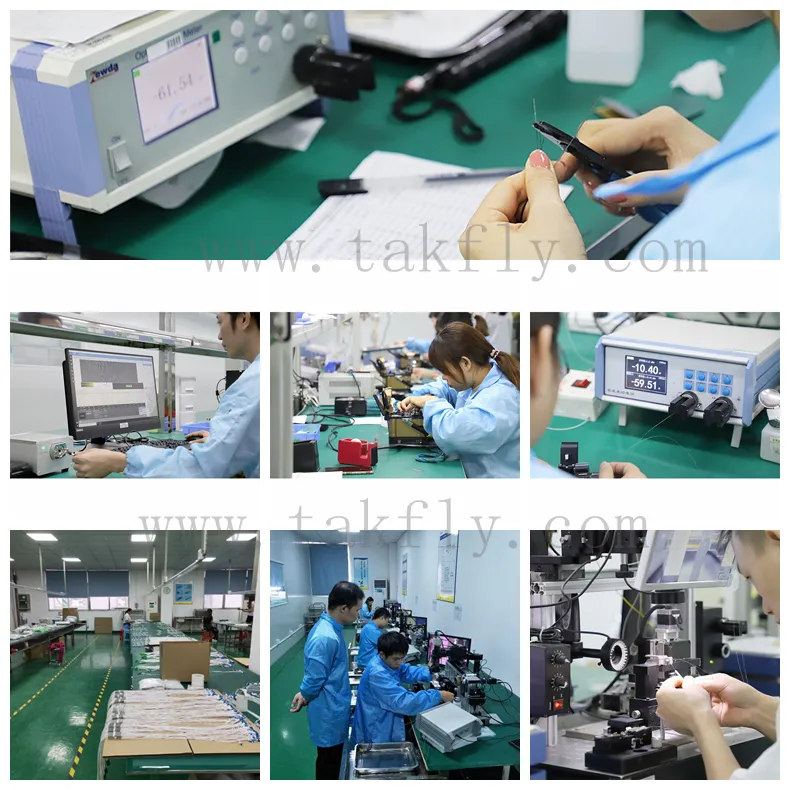

Fiber Optic WDM Workshop
Certificates:
ISO9001, ISO1400, CE, RoHS, CPR, ANATEL certified
Exhibitions:
OFC, CommunicAsia, ECOC, Netcom, SVIAZ ICT, AFRICACOM, CAIRO ICT, etc.

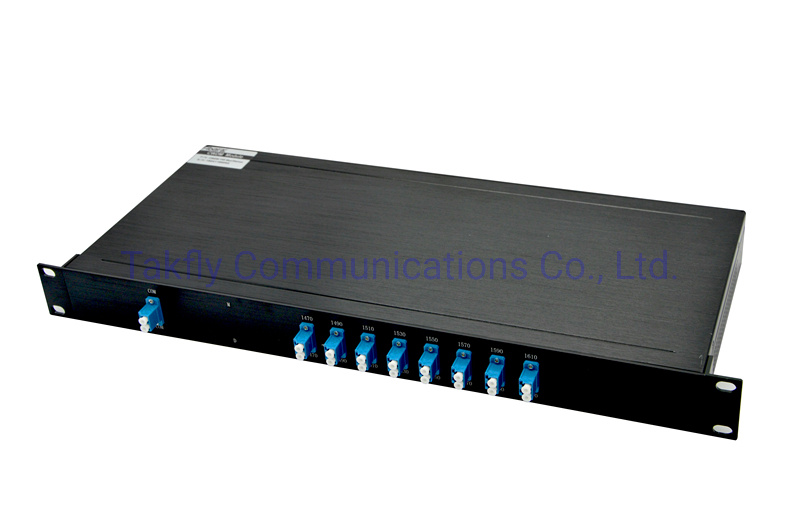

4CH,8CH,16CH CWDM/OADM Module
Fiber Optic WDM Feature:
Low Insertion Loss
Wide pass band
High Channel Isolation
High Stability and reliability
Fiber Optic WDM Applications:
Line Monitoring(CWDM Add/Drop)
WDM Network
Fiber Optical amplifier
Fiber Optic WDM Performance Specifications:
| Parameter | 4 Channel | 8 Channel | 16 Channel | ||||
| Mux | Demux | Mux | Demux | Mux | Demux | ||
| Channel Wavelength(nm) | 1270~1610 | ||||||
| Center wavelength Accuracy(nm) | ±0.5 | ||||||
| Channel Spacing (nm) | 20 | ||||||
| Channel Passband(@-0.5dB bandwidth (nm) | >13 | ||||||
| Insertion Loss(dB) | ≤1.6 | ≤2.5 | ≤3.5 | ||||
| Channel Uniformity(dB) | ≤0.6 | ≤1.0 | ≤1.5 | ||||
| Channel Ripple(dB) | 0.3 | ||||||
| Isolation (dB) | Adjacent | N/A | >30 | N/A | >30 | N/A | >30 |
| Non-adjacent | N/A | >40 | N/A | >40 | N/A | >40 | |
| Insertion Loss Temperature Sensitivity(dB/ºC) | <0.005 | ||||||
| Wavelength Temperature Shifting(nm/ºC) | <0.002 | ||||||
| Polarization Dependent Loss(dB) | <0.1 | ||||||
| Polarization Mode Dispersion(PS) | <0.1 | ||||||
| Directivity(dB) | >50 | ||||||
| Return Loss(dB) | >45 | ||||||
| Maximum Power Handling(mW) | 500 | ||||||
| Operating Temperature(ºC) | -5~+75 | ||||||
| Storage Temperature(ºC) | -40~85 | ||||||
| Package dimension(mm) | 19 1U Rack | ||||||
Fiber Optic WDM Order Information:
| Configuration | Channel No. | Channel | Pigtail Type | Fiber length | Dimensio(mm) | Connector |
| M=Mux D=Demux | 04=4 Channel 08=8 Channel 16=16 Channel N=N Channel ... | 27=1270nm 47=1470nm 49=1490nm ... 61=1610nm SS=special… | 0=250um 1=900um 2=2.0mm 3=3.0mm | 1=1m 2=1.5m 3=others | 1= L100 x W80 xH10 2=L140xW100xH15 3=19 1U Rack | 0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=others |
FQA :
1. Q: Are you a manufacturer?
A: yes, we are a manufacturer , FTTH solution and data center total solution provider in Shenzhen, China, established in 2000.
2. Q: What's your MOQ?
A: MOQ can be 1 pcs, but the price is not competitive.More quantity,the price will be more competitive.
3. Q: Can you quote FOB price?
A: yes. We can delivery by air, DHL, TNT, UPC, FEDEX, etc. For big quantity we will deliver it by sea.
We can quote price with freight and lead time for you, after you let us know detailed requirements with quantity.
We have competitive shipping forwarders. For more solutions, you can feel free to contact us.
4. Q: How is your quality?
A: Our production is according to IEC, Europe standard. CE, ISO, RoHS, CPR, and ANATEL certified.
All the products are 100% test before delivery.
5. Q: What's your lead time?
A: It depends on the quantity and products. For fiber optic patch cord, the lead time can be 2 -3 working days within 5000 pcs. We keep the regular products in stock. Also, we can deal with urgent orders.
6. Q: What's your warranty?
A: Depends one different product, we have1 years warranty for patch cord since delivery, but only responsible for non-artificial damage. For artificial damage, we can repair it for you for free, freight will be paid by your side.
7. Q: What's your packing?
A: International export standard package.If you need to print your logo on the packing, please let us know before we quote.
8. Q: Can you offer OEM/ODM?
A: yes, we can. all products accept OEM /ODM. we can sign the Confidentiality Agreement.
9. Q: Can I have a sample?
A: It depends on which products, Free sample provide under 10 usd. Freight will be paid by buyer before delivery.
10. Q: How can I order?
A:1.send mail or inquiries with product name, specification, and quantity to us . Provide your receive address if you need FOB,CIF,CFR price.
2.We will offer our quotation with lead time.
3.After the quotation confirmed, we will send a PI with our bank account.
4.Production will be arranged after the payment received.
5.Confirm the consignee with you before we deliver it.
6.The tracking number will be provided after the delivery.
11. Q: What your payment term?
A: T/T, Western Union, Paypal, MoneyGram at once. For big amounts, can be 50% deposit in advance, 50% balance paid before delivery.
Fiber Optic WDM Workshop
Certificates:
ISO9001, ISO1400, CE, RoHS, CPR, ANATEL certified
Exhibitions:
OFC, CommunicAsia, ECOC, Netcom, SVIAZ ICT, AFRICACOM, CAIRO ICT, etc.
