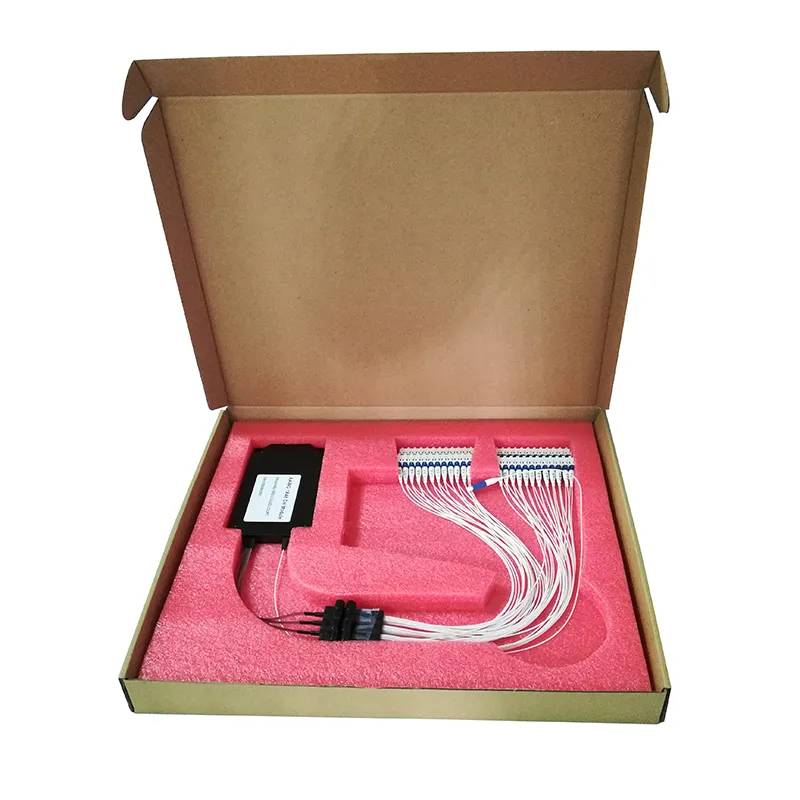

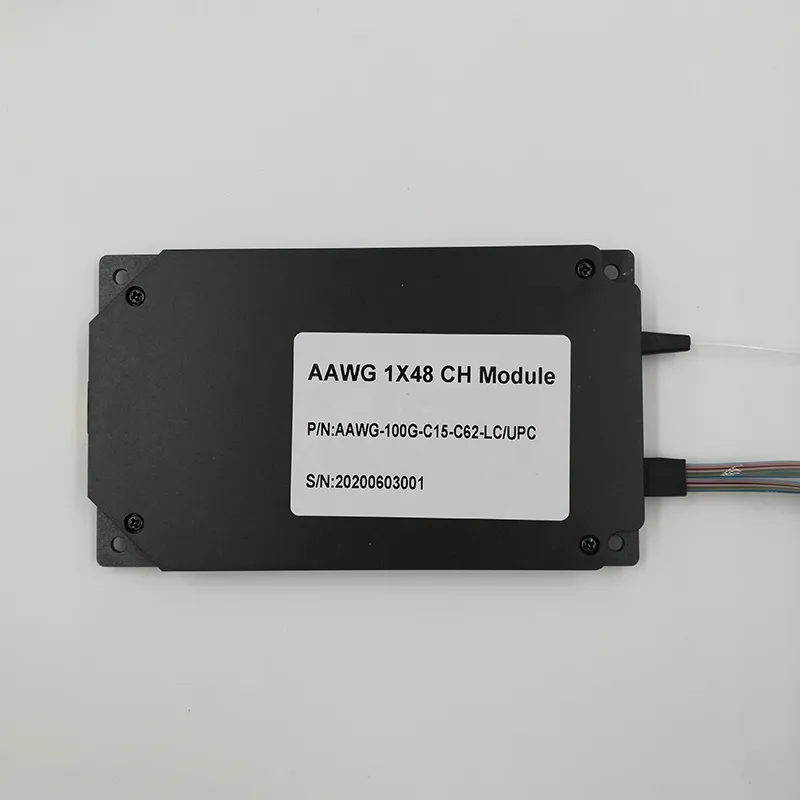

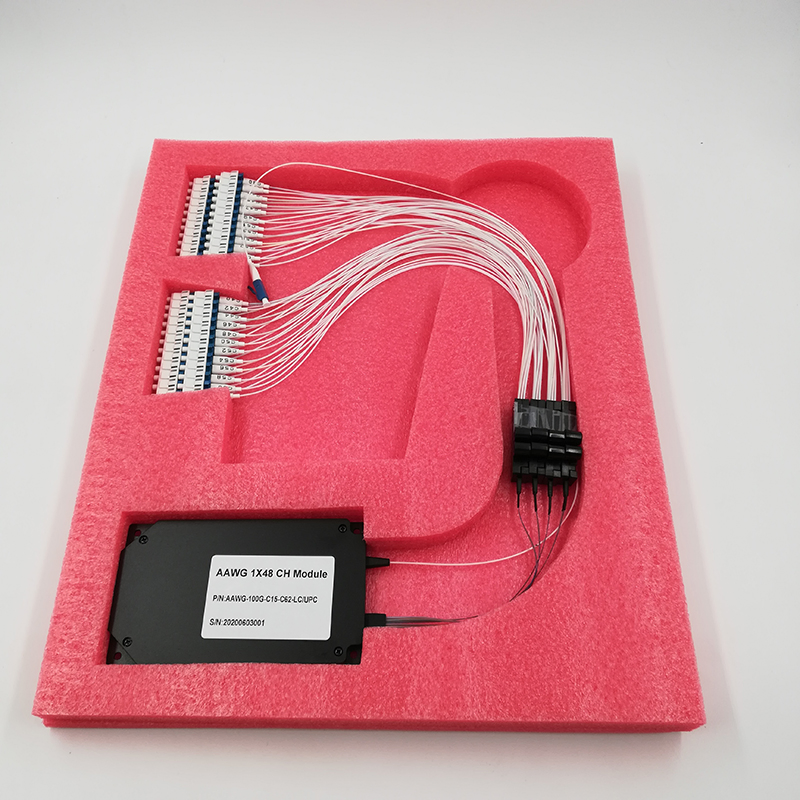

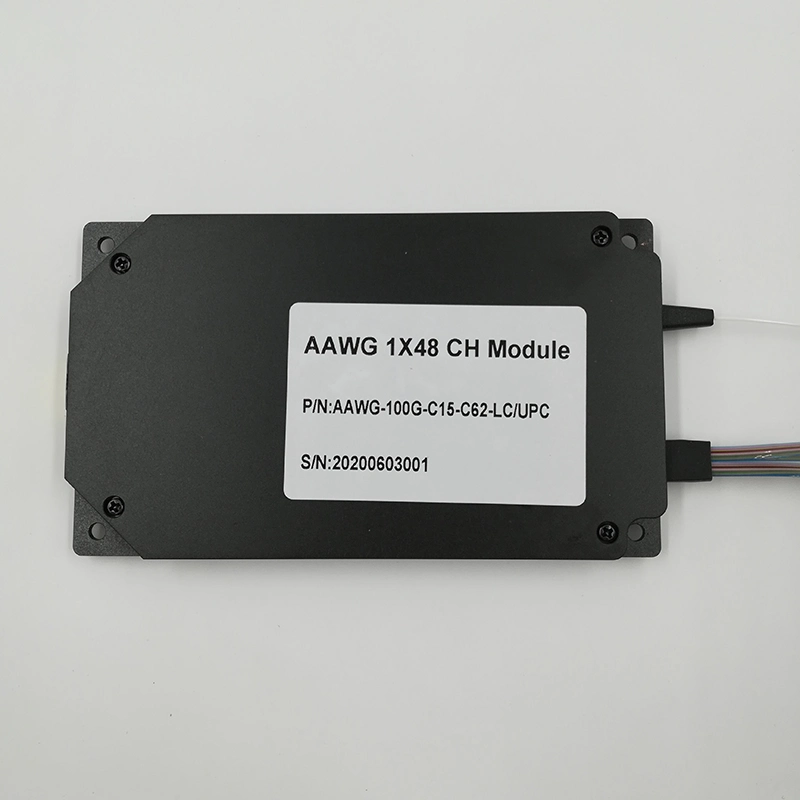

48 Channels Athermal AWG DWDM Pigtailed Module

48 Channels Athermal AWG DWDM Pigtailed Module

Product Description

Athermal Arrayed Waveguide Grating (AAWG) DWDM Modules features of athermal packaging design require no electrical power, software or temperature control.
Thermal Arrayed Waveguide Grating (TAWG) DWDM Modules are designed for use within the C-band release of DWDM system. To decrease the power dissipation of the devices in different environmental conditions, the AWG package is special designed with selection of reliable thermal plastic with low thermal conduction, and the AWG operating temperature is controlled by using foil resist heater or Peltier TEC with thermistor temperature sensor.
The channel spacing for DWDM is 1.6/0.8/0.4 nm (200GHz/100 GHz/50 GHz grid). This small channel spacing allows to transmit simultaneously much more information









Features:

~ 40CH 100G AWG Moduie (40CH 100G DWDM Mux Demux)

~lnsertion Loss Ripple:1.0db

~Optical Returnloss:40db

~Band: C-Band, L-Band, C+L-Band, Customize is optional

~Number of Channeis:16CH,32CH,40CH,48CH,Special is optional

~Spacing:50G,100G,200G,Special is optional

~Filter Shape: Gaussian, Broad Gaussian, Flat Top is optional

~Package: Module, Rack, Special is optional

~Fiber Length:0.5m,1m,1.5m,2m,2.5m,3m,Specify is optional

~ln/Out Connector:None,FC/APC,FC/PC,SC/APC,SC/PC,LC/APC,LC/PC,ST/UPC,Specify is optional



All specifications guaranteed over the operating temperature range.


3. WAVELENGTH PLAN
