4 Prots, Max 120core, 12- 24f Tray Dome Type Fiber Optic Splice Closure (FOSC) for FTTH
Applications:Aerial, underground, wall-mounting, hand hole-mounting and duct-mountingIt's especially applicable to FTTH optical fiber distributionFeatures:* Adopts mechanical sealing structure. * Adopt engineering PC plast ic with high-strength to make the closure has longer life time and exce......
Send Inquiry
Product Description
Applications:
Aerial, underground, wall-mounting, hand hole-mounting and duct-mounting
It's especially applicable to FTTH optical fiber distribution
Features:
* Adopts mechanical sealing structure.
* Adopt engineering PC plast ic with high-strength to make the closure has longer life time and excellent sealing performance.
* Installed one 1:16 blockless PLC splitter in max. One 1:16 or two 1:8 bare PLC splitter.
* Different drop cable elements to be chosen (Φ5,2*3). Max. 18pcs drop cable input/output (special type Can be customized).
* Patented sealing structure keep good sealing performance after re-entry and re-using.
* Easy installation for improve work efficiently.
Dimension and capacity:
| GJS-D-2001 | |||||||
| Core Capacity (Max.) | Optional Assemble | Outside Dimension (L*W*H )mm | Suitable Cable Diameter | Straight-through | |||
| Bunchy (single ) | Bunchy (Double) | Ribbon | Adapter | Splitter | |||
| 24core | 120core | / | Yes | Yes | 510*250*218 | 2 ports * round : 21mm 2 ports * round : 40mm | Yes |
Ordering Informations:
| Type | Splice Tray Capacity | Wiring mdule Qty & Max. Qty | Splitter Tray Max. | Type of Adaptor & Max. Qty | Max. Capacity |
| GJS-D-2001 I (Bunchy) | 5 pcs (12-24f per tray) | None | 1 | None | 120F |
| GJS--D-2001 II (Bunchy) | 2 pcs (12-24f per tray) | 1 | 1 | SC 18 pcs | 48F |

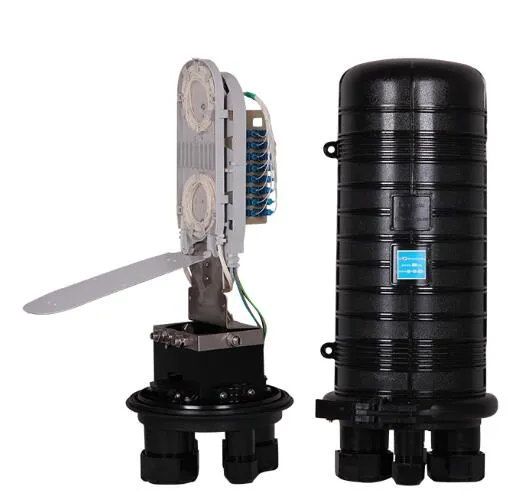

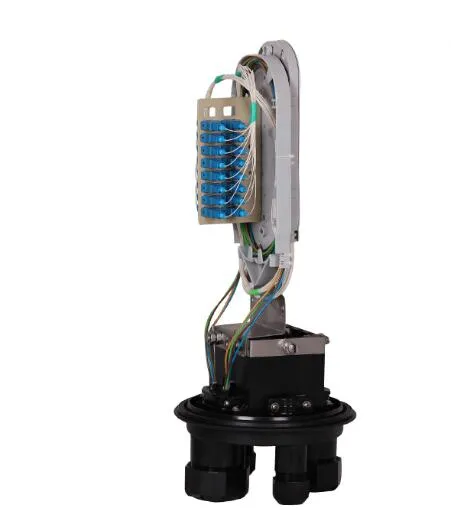

Products Display:
